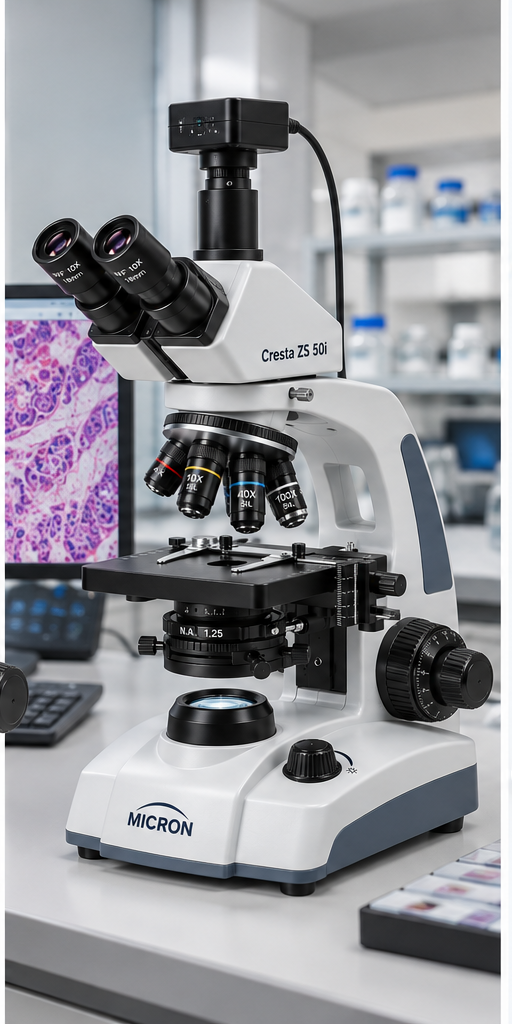

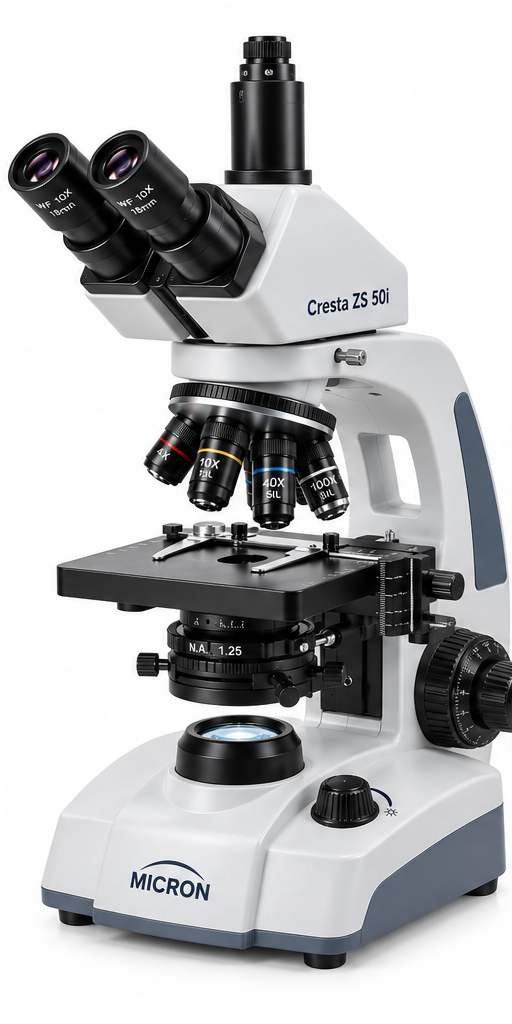

The CRESTA ZS-50I Research Microscope is an advanced research microscope featuring an Infinity Plan Achromatic optical system, Siedentopf viewing head, precision coaxial focusing, ball-bearing mechanical X-Y stage and built-in LED illumination with battery backup. It can be configured for specialized fluorescence, metallurgical and polarizing microscopy applications.

Product Overview

The CRESTA ZS-50I is designed as a versatile research microscopy platform for laboratories requiring infinity-corrected Plan Achromatic optics and the ability to expand into specialized microscopy configurations.

The microscope features a single-mould rigid structure with a carrying window in the arm. Its Siedentopf-type viewing head is inclined at 30° and rotatable through 360°, providing an ergonomic viewing arrangement. The head is available in monocular, binocular and trinocular configurations.

A reversed inward quadruple ball-bearing nosepiece with positive click stops provides controlled objective positioning. Coaxial coarse and fine focusing is graduated to 0.002 mm, while the ball-bearing-driven mechanical stage provides X-Y movement of the slide.

The optical configuration comprises WF 10X/20 mm eyepieces and 4X, 10X, 40X S/L and 100X S/L Infinity Plan Achromatic objectives, providing 40X–1000X magnification.

A movable Abbe condenser with NA 1.25, iris diaphragm and swing-out filter holder provides illumination control. Built-in LED illumination includes intensity control and an inbuilt battery-backup facility.

The ZS-50I can also be upgraded for fluorescence, metallurgical and polarizing microscopy, allowing the platform to be adapted to specialized research requirements.

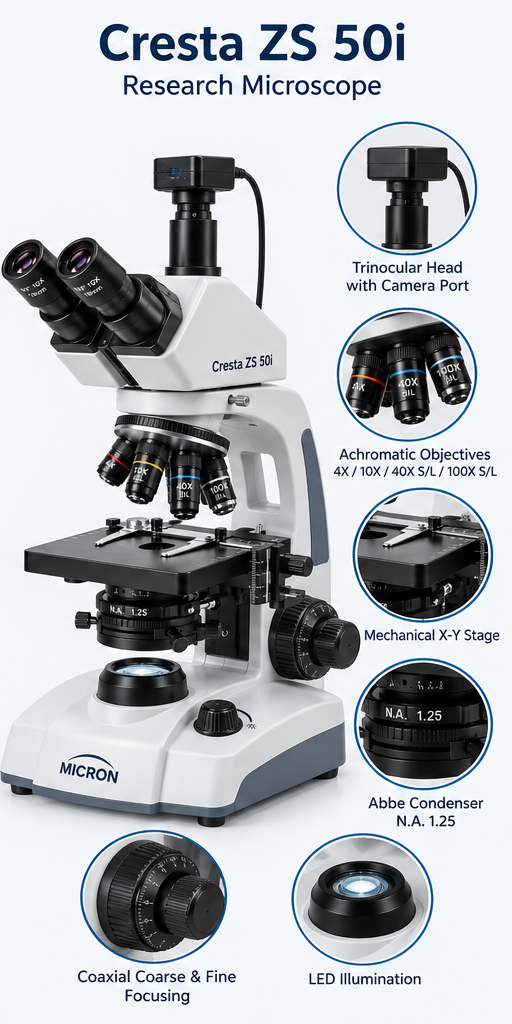

Key Features & Benefits

• Infinity Plan Achromatic optical system
• 40X–1000X magnification
• WF 10X/20 mm wide-field eyepiece
• Siedentopf-type viewing head
• 30° inclined head
• 360° head rotation
• Monocular, binocular and trinocular configurations
• Independent interpupillary adjustment
• Reversed inward quadruple ball-bearing nosepiece
• Positive click stops
• Coaxial coarse and fine focusing
• 0.002 mm fine-focus graduation
• Ball-bearing-driven mechanical X-Y stage
• Movable Abbe condenser, NA 1.25
• Iris diaphragm and swing-out filter holder
• Built-in LED illumination with intensity control
• Inbuilt battery backup
• Upgradeable to fluorescence, metallurgical and polarizing configurations
• Chemical-resistant finish

4. Technical Specifications

5. Applications

• Advanced research microscopy
• Pharmaceutical research
• Academic and university research
• Graduate and postgraduate research
• Fluorescence microscopy with appropriate attachment
• Metallurgical examination with appropriate configuration
• Polarizing microscopy with appropriate accessories
• Biological research
• Material examination
• Specialized laboratory microscopy
• Research specimen observation

6. Suitable For

• Advanced research laboratories
• Universities and research institutes
• Pharmaceutical research laboratories
• Biotechnology laboratories
• Academic research facilities
• Materials research laboratories
• Metallurgical laboratories
• Laboratories requiring fluorescence microscopy capability
• Laboratories requiring polarizing microscopy capability
• Graduate and postgraduate research facilities

7. Product Benefits

• Infinity Plan Achromatic optics: Provides a plan-corrected optical platform designed for research microscopy.
• 40X–1000X magnification: Supports a broad range of specimen observation.
• Siedentopf viewing head: Provides an ergonomic 30° inclined viewing arrangement.
• 360° rotation: Allows flexible positioning of the viewing head.
• Precision focusing: Coaxial coarse and fine focusing with 0.002 mm graduation supports controlled focusing.
• Mechanical X-Y stage: Enables systematic specimen positioning and scanning.
• Wide-field eyepieces: WF 10X/20 mm eyepieces provide a 20 mm field of view.
• Adjustable LED illumination: Intensity can be controlled according to observation requirements.
• Built-in battery backup: Provides additional illumination continuity.
• Expansion capability: The microscope can be upgraded for fluorescence, metallurgical and polarizing applications.
• Rigid construction: Single-mould structure supports stable laboratory operation.
