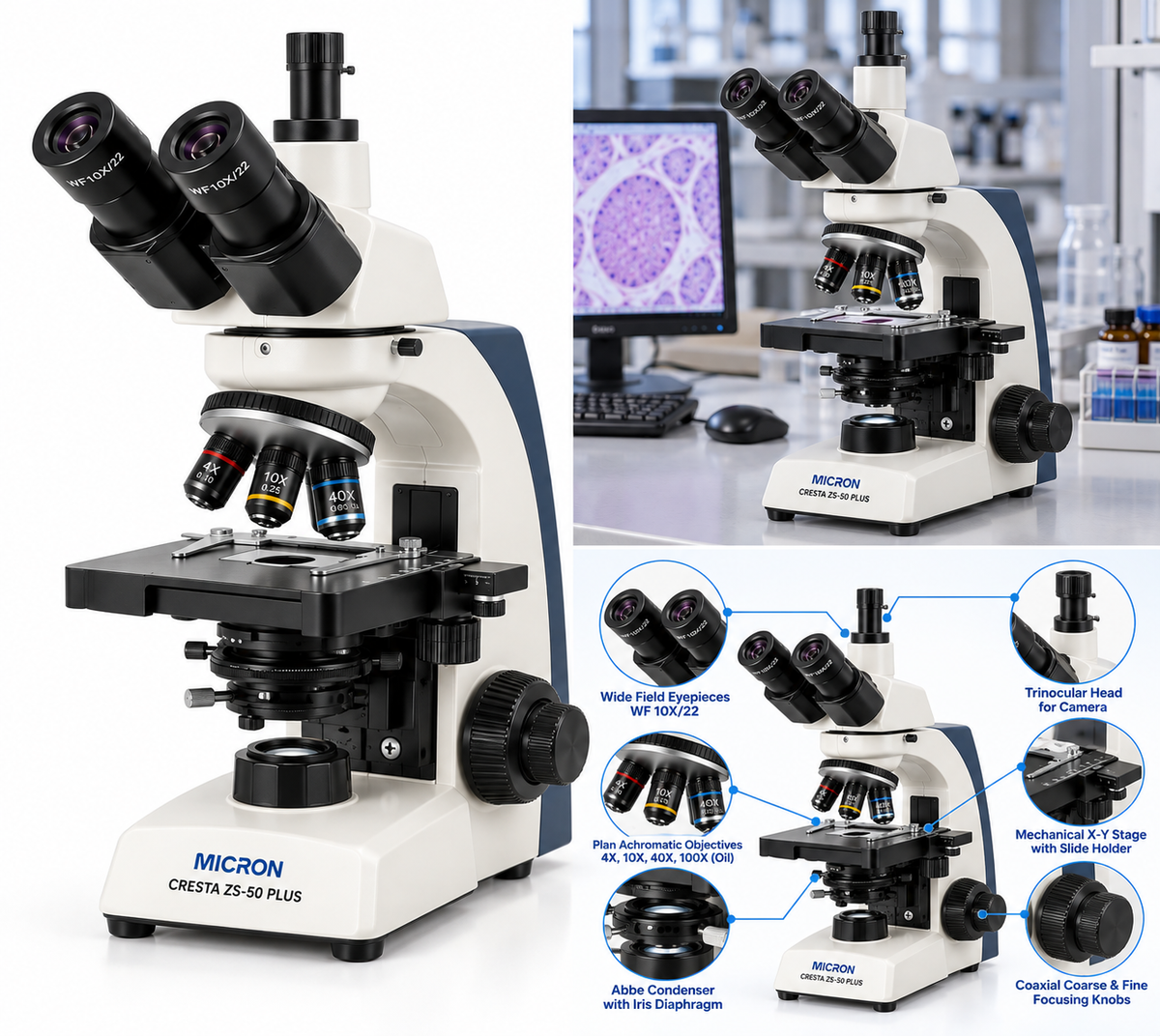

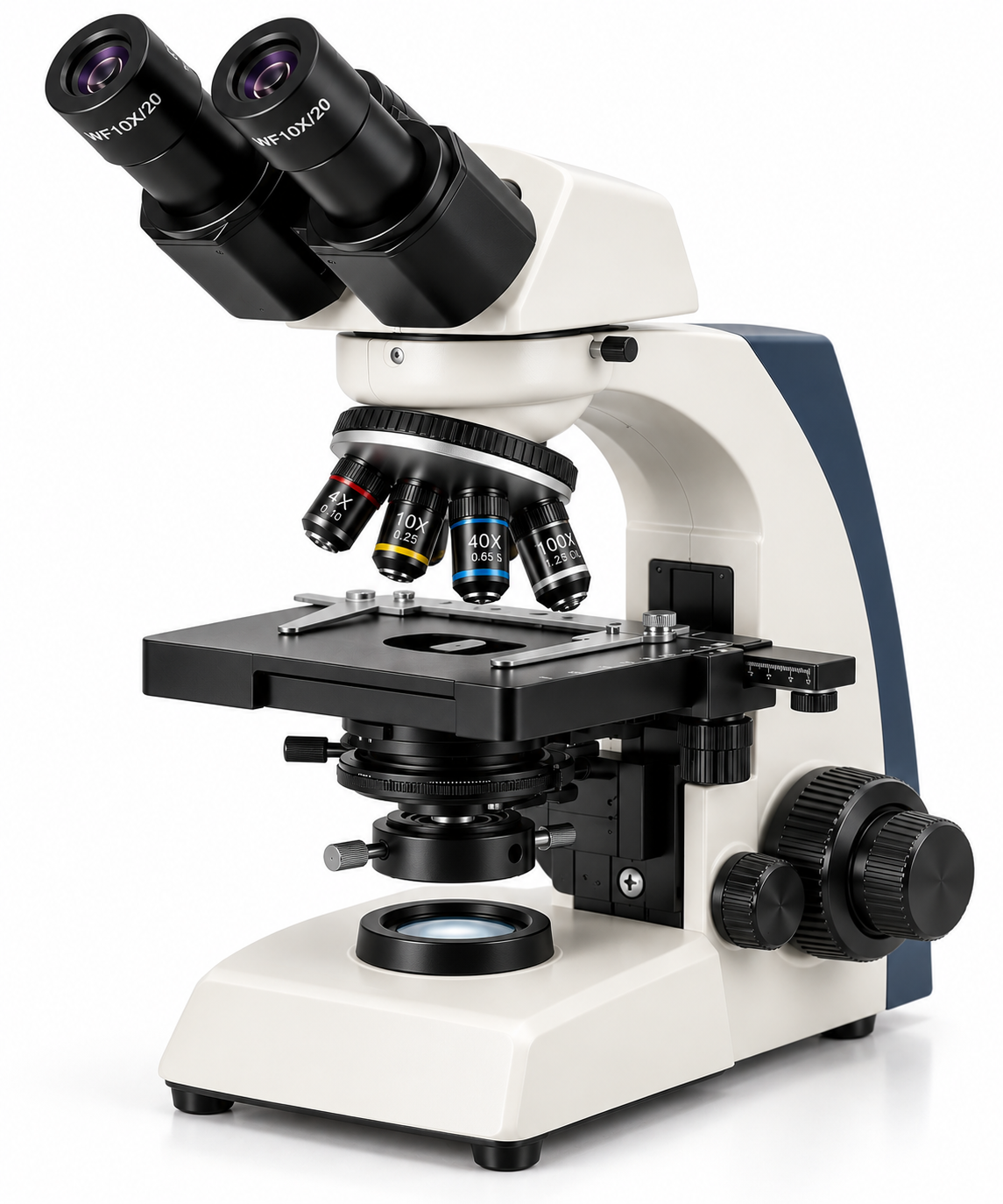

The CRESTA ZS-50 Plus Research Microscope is a versatile research and routine laboratory microscope featuring Plan Achromatic optics, a Siedentopf viewing head, precision coaxial focusing, a ball-bearing-driven mechanical X-Y stage and built-in LED illumination with battery backup. It is available in monocular, binocular and trinocular configurations.

Product Overview

The CRESTA ZS-50 Plus is an advanced research microscope designed for educational, routine research, pharmaceutical, clinical research and quality-control applications. Its single-mould rigid structure incorporates a window in the arm for convenient handling and carriage.

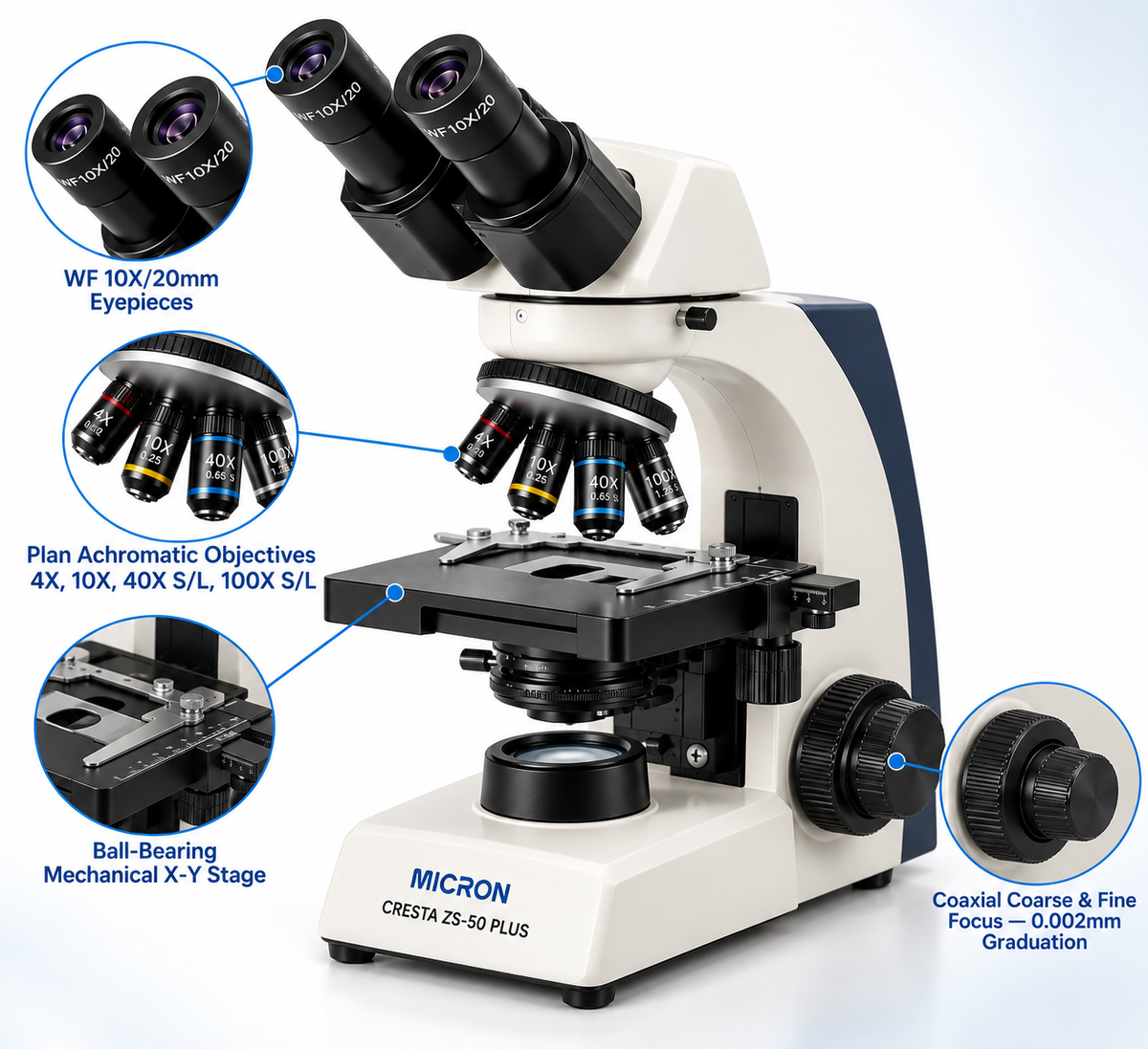

The microscope uses Plan Achromatic objectives with a WF 10X/20 mm eyepiece, providing a magnification range of 40X–1000X. The specified objective set comprises 4X, 10X, 40X S/L and 100X S/L objectives.

The Siedentopf-type head is inclined at 30° and rotatable through 360°. A reversed inward quadruple ball-bearing nosepiece provides positive click-stop positioning of objectives. Coaxial coarse and fine focusing is graduated to 0.002 mm, while the ball-bearing-driven mechanical stage enables X-Y movement of slides.

The microscope incorporates a movable Abbe condenser with NA 1.25, iris diaphragm and swing-out filter holder. Built-in LED illumination with intensity control and an inbuilt battery backup facility provides adjustable illumination for laboratory observation and research work.

Key Features and Benefits

• 40X–1000X magnification
• Plan Achromatic optical system
• WF 10X/20 mm eyepiece
• 4X, 10X, 40X S/L and 100X S/L objectives
• Monocular, binocular and trinocular viewing configurations
• Siedentopf-type head with 30° inclination
• 360° rotatable viewing head
• Reversed inward quadruple ball-bearing nosepiece
• Positive click stops
• Coaxial coarse and fine focusing
• 0.002 mm fine-focus graduation
• Ball-bearing-driven mechanical X-Y stage
• Movable Abbe condenser, NA 1.25
• Iris diaphragm and swing-out filter holder
• Built-in LED with intensity control
• Inbuilt battery backup
• Rigid single-mould construction with carrying window
• Chemical-resistant stipple-grey finish

4. Technical Specifications

5. Applications

• Advanced research laboratories
• Routine biological research
• Pharmaceutical research and drug development
• Academic and postgraduate research
• Life-science research
• Clinical research
• Photomicrography and microscopy imaging
• Quality-control research
• Biological specimen examination
• Laboratory education and training

6. Suitable For

• Research laboratories
• Pharmaceutical laboratories
• Biotechnology laboratories
• University research departments
• Graduate and postgraduate laboratories
• Clinical research facilities
• Quality-control laboratories
• Life-science institutions
• Academic microscopy facilities
• Routine research laboratories

7. Product Benefits

• Plan Achromatic optics: Designed for flat-field observation across the viewing area.
• Wide magnification range: 40X–1000X supports both lower- and higher-magnification microscopy.
• Flexible viewing configurations: Available in monocular, binocular and trinocular configurations.
• Ergonomic Siedentopf head: 30° inclination and 360° rotation support comfortable observation.
• Precision focusing: Coaxial coarse/fine focusing with 0.002 mm graduation enables controlled image focusing.
• Smooth X-Y movement: Ball-bearing-driven mechanical stage facilitates systematic specimen examination.
• Protected objective arrangement: Reversed inward nosepiece positions objectives within the stand contour.
• Adjustable illumination: LED intensity control allows illumination to be adjusted for different specimens.
• Integrated backup: Inbuilt battery backup supports continued illumination during suitable operating conditions.
• Durable construction: Single-mould rigid structure and chemical-resistant finish are suited to routine laboratory environments.
• Research documentation support: The platform is designed for applications involving photomicrography and microscopy imaging.
