The Cresta ZS-50i FL Inverted Fluorescence Microscope combines an inverted research microscope platform with 100W DC mercury fluorescence illumination, dual fluorescence filter sets and a trinocular imaging head. It is designed for fluorescence, brightfield and phase-contrast microscopy, including live-cell and cell-culture applications.
Product Overview
The Cresta ZS-50i FL is an inverted fluorescence microscope built on the Cresta ZS-50i platform. It combines a rigid microscope structure, Siedentopf trinocular head, precision coaxial focusing, mechanical X-Y stage and built-in transmitted LED illumination with a dedicated reflected-light fluorescence module.
The fluorescence module uses a 100W DC mercury lamp house and includes blue and green fluorescence filter sets. The blue filter set has 450–490 nm excitation, a 510 nm dichroic mirror and 520 nm emission barrier, while the green filter set has 480–550 nm excitation, a 570 nm dichroic mirror and 590 nm emission barrier.
The trinocular head splits the optical path between the eyepieces and camera port and is specified as compatible with a wide range of C-mount cameras. A UV protection barrier is included for fluorescence operation.
The inverted configuration is particularly suited to specimens in culture vessels and supports applications such as live-cell fluorescence imaging, immunofluorescence, FISH and fluorescence-based cell assays.

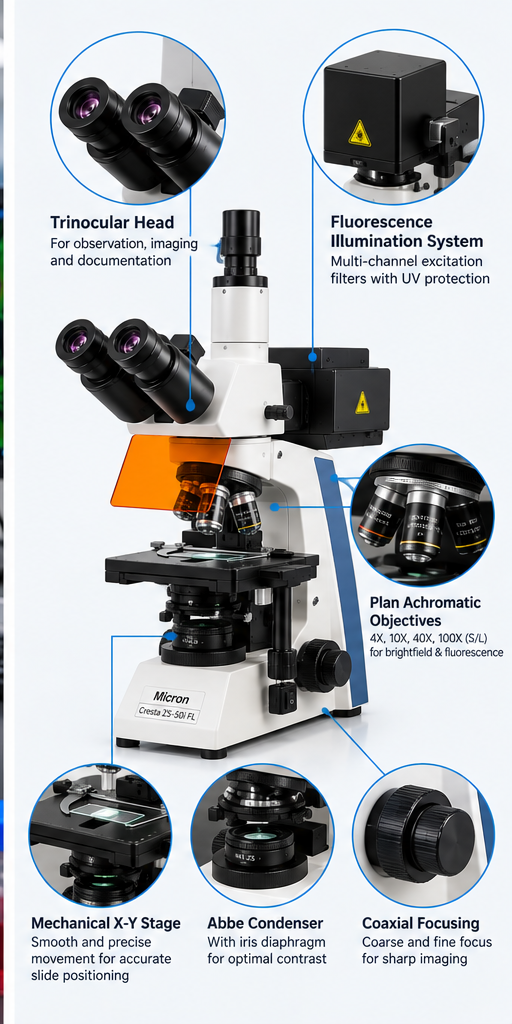

Key Features and Benefits
- 100W DC mercury lamp for fluorescence illumination
- Blue and green fluorescence filter sets
- Blue excitation: 450–490 nm
- Green excitation: 480–550 nm
- FITC / Alexa Fluor 488 compatible blue filter set
- TRITC / Cy3 / Texas Red compatible green filter set
- 510 nm and 570 nm dichroic mirrors
- 520 nm and 590 nm emission barriers
- UV protection barrier
- Inverted microscope configuration
- Siedentopf trinocular head
- 30° inclined, 360° rotatable head
- Reversed inward quadruple ball-bearing nosepiece
- Coaxial coarse and fine focusing
- 0.002 mm fine-focus divisions
- Ball-bearing mechanical X-Y stage
- Movable Abbe condenser, NA 1.25
- Built-in transmitted LED illumination
- C-mount camera compatibility
- Brightfield and phase-contrast capability retained from the base platform
4. Technical Specifications
| Specification | Details |
|---|---|
| Product Model | Cresta ZS-50i FL |
| Microscope Type | Inverted Fluorescence Microscope |
| Base Microscope | Cresta ZS-50i |
| Optical Configuration | Inverted |
| Viewing Head | Siedentopf Trinocular |
| Head Inclination | 30° |
| Head Rotation | 360° |
| Nosepiece | Reversed inward quadruple ball-bearing |
| Nosepiece Positioning | Positive click stops |
| Focusing | Coaxial coarse & fine |
| Fine Focus Graduation | 0.002 mm |
| Stage | Ball-bearing mechanical stage |
| Condenser | Movable Abbe condenser |
| Condenser NA | 1.25 |
| Transmitted Illumination | Built-in LED |
| LED Control | Intensity control |
| Fluorescence Light Source | Mercury lamp house |
| Mercury Lamp | 100W DC |
| Fluorescence Mode | Reflected-light / epi-fluorescence |
| Blue Excitation | 450–490 nm |
| Blue Dichroic Mirror | 510 nm |
| Blue Emission Barrier | 520 nm |
| Green Excitation | 480–550 nm |
| Green Dichroic Mirror | 570 nm |
| Green Emission Barrier | 590 nm |
| Blue Filter Applications | FITC, Alexa Fluor 488 |
| Green Filter Applications | TRITC, Cy3, Texas Red |
| Filter Configuration | Slider or revolving turret |
| UV Protection | UV protection barrier included |
| Camera Interface | C-mount compatible |
| Imaging | Trinocular camera and eyepiece light split |
| Structure | Single-mould rigid structure |
| Additional Capability | Brightfield and phase contrast |
5. Applications
- Live-cell fluorescence imaging
- Immunofluorescence
- Immunocytochemistry
- Fluorescence in situ hybridization (FISH)
- Cell viability assays
- Apoptosis studies
- Cell proliferation and division studies
- Fluorescent protein imaging
- GFP-based research
- Calcium imaging
- Intracellular pH studies
- Neuroscience research
- Developmental biology
- Pharmaceutical research
- Biotechnology research
- Clinical fluorescence microscopy
6. Suitable For
- Cell biology laboratories
- Biotechnology research laboratories
- Pharmaceutical R&D
- Academic research institutions
- Neuroscience laboratories
- Developmental biology laboratories
- Cell-culture facilities
- Immunology laboratories
- Molecular biology laboratories
- Clinical research laboratories
- Fluorescence imaging facilities
7. Product Benefits
- Inverted fluorescence platform: Suitable for observing specimens in culture vessels and other inverted-microscopy workflows.
- High-intensity fluorescence source: The 100W DC mercury lamp provides the specified fluorescence illumination.
- Dual filter capability: Blue and green filter sets support commonly used fluorophore groups.
- Camera-ready design: The trinocular head provides a dedicated imaging path and C-mount compatibility.
- Multi-mode microscopy: The base platform retains brightfield and phase-contrast capabilities.
- Precision focusing: Coaxial coarse/fine focusing with 0.002 mm divisions provides controlled focusing.
- Smooth specimen positioning: Ball-bearing mechanical stage supports X-Y movement.
- Operator protection: A UV protection barrier is included for fluorescence operation.
- Flexible filter mounting: Filter sets can be housed in a slider or revolving turret.
- Research versatility: Suitable for fluorescence imaging alongside conventional inverted microscopy applications.
The Cresta ZS-50i FL Inverted Fluorescence Microscope combines an inverted research microscope platform with 100W DC mercury fluorescence illumination, dual fluorescence filter sets and a trinocular imaging head. It is designed for fluorescence, brightfield and phase-contrast microscopy, including live-cell and cell-culture applications.
Product Overview
The Cresta ZS-50i FL is an inverted fluorescence microscope built on the Cresta ZS-50i platform. It combines a rigid microscope structure, Siedentopf trinocular head, precision coaxial focusing, mechanical X-Y stage and built-in transmitted LED illumination with a dedicated reflected-light fluorescence module.
The fluorescence module uses a 100W DC mercury lamp house and includes blue and green fluorescence filter sets. The blue filter set has 450–490 nm excitation, a 510 nm dichroic mirror and 520 nm emission barrier, while the green filter set has 480–550 nm excitation, a 570 nm dichroic mirror and 590 nm emission barrier.
The trinocular head splits the optical path between the eyepieces and camera port and is specified as compatible with a wide range of C-mount cameras. A UV protection barrier is included for fluorescence operation.
The inverted configuration is particularly suited to specimens in culture vessels and supports applications such as live-cell fluorescence imaging, immunofluorescence, FISH and fluorescence-based cell assays.
Key Features and Benefits
- 100W DC mercury lamp for fluorescence illumination
- Blue and green fluorescence filter sets
- Blue excitation: 450–490 nm
- Green excitation: 480–550 nm
- FITC / Alexa Fluor 488 compatible blue filter set
- TRITC / Cy3 / Texas Red compatible green filter set
- 510 nm and 570 nm dichroic mirrors
- 520 nm and 590 nm emission barriers
- UV protection barrier
- Inverted microscope configuration
- Siedentopf trinocular head
- 30° inclined, 360° rotatable head
- Reversed inward quadruple ball-bearing nosepiece
- Coaxial coarse and fine focusing
- 0.002 mm fine-focus divisions
- Ball-bearing mechanical X-Y stage
- Movable Abbe condenser, NA 1.25
- Built-in transmitted LED illumination
- C-mount camera compatibility
- Brightfield and phase-contrast capability retained from the base platform
4. Technical Specifications
| Specification | Details |
|---|---|
| Product Model | Cresta ZS-50i FL |
| Microscope Type | Inverted Fluorescence Microscope |
| Base Microscope | Cresta ZS-50i |
| Optical Configuration | Inverted |
| Viewing Head | Siedentopf Trinocular |
| Head Inclination | 30° |
| Head Rotation | 360° |
| Nosepiece | Reversed inward quadruple ball-bearing |
| Nosepiece Positioning | Positive click stops |
| Focusing | Coaxial coarse & fine |
| Fine Focus Graduation | 0.002 mm |
| Stage | Ball-bearing mechanical stage |
| Condenser | Movable Abbe condenser |
| Condenser NA | 1.25 |
| Transmitted Illumination | Built-in LED |
| LED Control | Intensity control |
| Fluorescence Light Source | Mercury lamp house |
| Mercury Lamp | 100W DC |
| Fluorescence Mode | Reflected-light / epi-fluorescence |
| Blue Excitation | 450–490 nm |
| Blue Dichroic Mirror | 510 nm |
| Blue Emission Barrier | 520 nm |
| Green Excitation | 480–550 nm |
| Green Dichroic Mirror | 570 nm |
| Green Emission Barrier | 590 nm |
| Blue Filter Applications | FITC, Alexa Fluor 488 |
| Green Filter Applications | TRITC, Cy3, Texas Red |
| Filter Configuration | Slider or revolving turret |
| UV Protection | UV protection barrier included |
| Camera Interface | C-mount compatible |
| Imaging | Trinocular camera and eyepiece light split |
| Structure | Single-mould rigid structure |
| Additional Capability | Brightfield and phase contrast |
5. Applications
- Live-cell fluorescence imaging
- Immunofluorescence
- Immunocytochemistry
- Fluorescence in situ hybridization (FISH)
- Cell viability assays
- Apoptosis studies
- Cell proliferation and division studies
- Fluorescent protein imaging
- GFP-based research
- Calcium imaging
- Intracellular pH studies
- Neuroscience research
- Developmental biology
- Pharmaceutical research
- Biotechnology research
- Clinical fluorescence microscopy
6. Suitable For
- Cell biology laboratories
- Biotechnology research laboratories
- Pharmaceutical R&D
- Academic research institutions
- Neuroscience laboratories
- Developmental biology laboratories
- Cell-culture facilities
- Immunology laboratories
- Molecular biology laboratories
- Clinical research laboratories
- Fluorescence imaging facilities
7. Product Benefits
- Inverted fluorescence platform: Suitable for observing specimens in culture vessels and other inverted-microscopy workflows.
- High-intensity fluorescence source: The 100W DC mercury lamp provides the specified fluorescence illumination.
- Dual filter capability: Blue and green filter sets support commonly used fluorophore groups.
- Camera-ready design: The trinocular head provides a dedicated imaging path and C-mount compatibility.
- Multi-mode microscopy: The base platform retains brightfield and phase-contrast capabilities.
- Precision focusing: Coaxial coarse/fine focusing with 0.002 mm divisions provides controlled focusing.
- Smooth specimen positioning: Ball-bearing mechanical stage supports X-Y movement.
- Operator protection: A UV protection barrier is included for fluorescence operation.
- Flexible filter mounting: Filter sets can be housed in a slider or revolving turret.
- Research versatility: Suitable for fluorescence imaging alongside conventional inverted microscopy applications.
- Regular price
- Rs.0.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
The Cresta ZS-50i FL Inverted Fluorescence Microscope combines an inverted research microscope platform with 100W DC mercury fluorescence illumination, dual fluorescence filter sets and a trinocular imaging head. It is designed for fluorescence, brightfield and phase-contrast microscopy, including live-cell and cell-culture applications.
Product Overview
The Cresta ZS-50i FL is an inverted fluorescence microscope built on the Cresta ZS-50i platform. It combines a rigid microscope structure, Siedentopf trinocular head, precision coaxial focusing, mechanical X-Y stage and built-in transmitted LED illumination with a dedicated reflected-light fluorescence module.
The fluorescence module uses a 100W DC mercury lamp house and includes blue and green fluorescence filter sets. The blue filter set has 450–490 nm excitation, a 510 nm dichroic mirror and 520 nm emission barrier, while the green filter set has 480–550 nm excitation, a 570 nm dichroic mirror and 590 nm emission barrier.
The trinocular head splits the optical path between the eyepieces and camera port and is specified as compatible with a wide range of C-mount cameras. A UV protection barrier is included for fluorescence operation.
The inverted configuration is particularly suited to specimens in culture vessels and supports applications such as live-cell fluorescence imaging, immunofluorescence, FISH and fluorescence-based cell assays.
Key Features and Benefits
- 100W DC mercury lamp for fluorescence illumination
- Blue and green fluorescence filter sets
- Blue excitation: 450–490 nm
- Green excitation: 480–550 nm
- FITC / Alexa Fluor 488 compatible blue filter set
- TRITC / Cy3 / Texas Red compatible green filter set
- 510 nm and 570 nm dichroic mirrors
- 520 nm and 590 nm emission barriers
- UV protection barrier
- Inverted microscope configuration
- Siedentopf trinocular head
- 30° inclined, 360° rotatable head
- Reversed inward quadruple ball-bearing nosepiece
- Coaxial coarse and fine focusing
- 0.002 mm fine-focus divisions
- Ball-bearing mechanical X-Y stage
- Movable Abbe condenser, NA 1.25
- Built-in transmitted LED illumination
- C-mount camera compatibility
- Brightfield and phase-contrast capability retained from the base platform
4. Technical Specifications
| Specification | Details |
|---|---|
| Product Model | Cresta ZS-50i FL |
| Microscope Type | Inverted Fluorescence Microscope |
| Base Microscope | Cresta ZS-50i |
| Optical Configuration | Inverted |
| Viewing Head | Siedentopf Trinocular |
| Head Inclination | 30° |
| Head Rotation | 360° |
| Nosepiece | Reversed inward quadruple ball-bearing |
| Nosepiece Positioning | Positive click stops |
| Focusing | Coaxial coarse & fine |
| Fine Focus Graduation | 0.002 mm |
| Stage | Ball-bearing mechanical stage |
| Condenser | Movable Abbe condenser |
| Condenser NA | 1.25 |
| Transmitted Illumination | Built-in LED |
| LED Control | Intensity control |
| Fluorescence Light Source | Mercury lamp house |
| Mercury Lamp | 100W DC |
| Fluorescence Mode | Reflected-light / epi-fluorescence |
| Blue Excitation | 450–490 nm |
| Blue Dichroic Mirror | 510 nm |
| Blue Emission Barrier | 520 nm |
| Green Excitation | 480–550 nm |
| Green Dichroic Mirror | 570 nm |
| Green Emission Barrier | 590 nm |
| Blue Filter Applications | FITC, Alexa Fluor 488 |
| Green Filter Applications | TRITC, Cy3, Texas Red |
| Filter Configuration | Slider or revolving turret |
| UV Protection | UV protection barrier included |
| Camera Interface | C-mount compatible |
| Imaging | Trinocular camera and eyepiece light split |
| Structure | Single-mould rigid structure |
| Additional Capability | Brightfield and phase contrast |
5. Applications
- Live-cell fluorescence imaging
- Immunofluorescence
- Immunocytochemistry
- Fluorescence in situ hybridization (FISH)
- Cell viability assays
- Apoptosis studies
- Cell proliferation and division studies
- Fluorescent protein imaging
- GFP-based research
- Calcium imaging
- Intracellular pH studies
- Neuroscience research
- Developmental biology
- Pharmaceutical research
- Biotechnology research
- Clinical fluorescence microscopy
6. Suitable For
- Cell biology laboratories
- Biotechnology research laboratories
- Pharmaceutical R&D
- Academic research institutions
- Neuroscience laboratories
- Developmental biology laboratories
- Cell-culture facilities
- Immunology laboratories
- Molecular biology laboratories
- Clinical research laboratories
- Fluorescence imaging facilities
7. Product Benefits
- Inverted fluorescence platform: Suitable for observing specimens in culture vessels and other inverted-microscopy workflows.
- High-intensity fluorescence source: The 100W DC mercury lamp provides the specified fluorescence illumination.
- Dual filter capability: Blue and green filter sets support commonly used fluorophore groups.
- Camera-ready design: The trinocular head provides a dedicated imaging path and C-mount compatibility.
- Multi-mode microscopy: The base platform retains brightfield and phase-contrast capabilities.
- Precision focusing: Coaxial coarse/fine focusing with 0.002 mm divisions provides controlled focusing.
- Smooth specimen positioning: Ball-bearing mechanical stage supports X-Y movement.
- Operator protection: A UV protection barrier is included for fluorescence operation.
- Flexible filter mounting: Filter sets can be housed in a slider or revolving turret.
- Research versatility: Suitable for fluorescence imaging alongside conventional inverted microscopy applications.
Similar Products
-
Vendor: Micron
INVERTED FLUORESCENCE MICROSCOPE INV-3i FL
Regular price Rs.0.00 -
Vendor: Micron
RESEARCH MICROSCOPE MODEL CRESTA ZS 50 PLUS
Regular price Rs.0.00 -
Vendor: Micron
BINOCULAR MICROSCOPE MODEL CRESTA XS 50 PLUS
Regular price Rs.0.00 -
Vendor: Micron
INVERTED MICROSCOPE MODEL INV-3
Sale price Rs.169,999.00Regular price Rs.289,999.00
