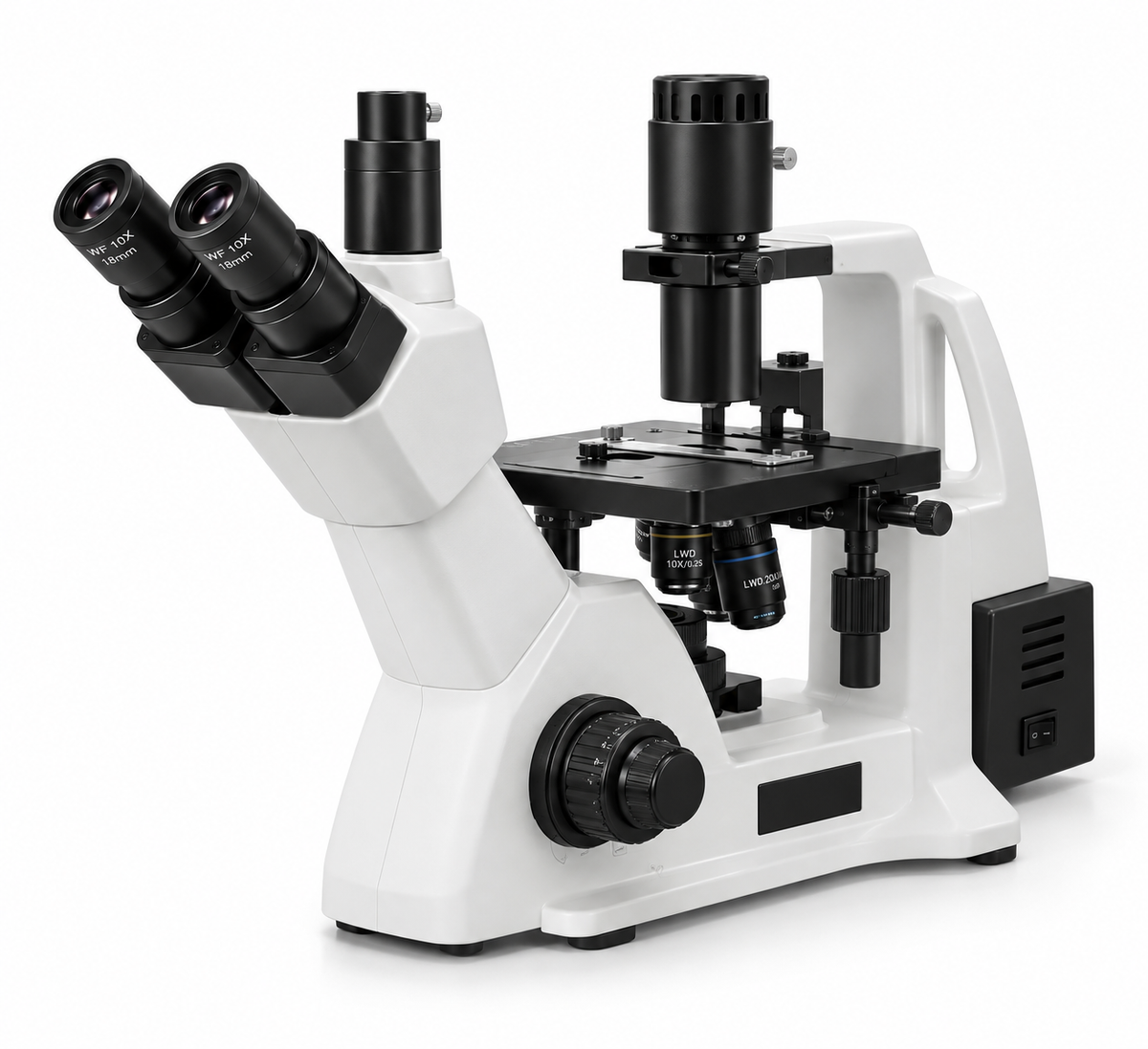

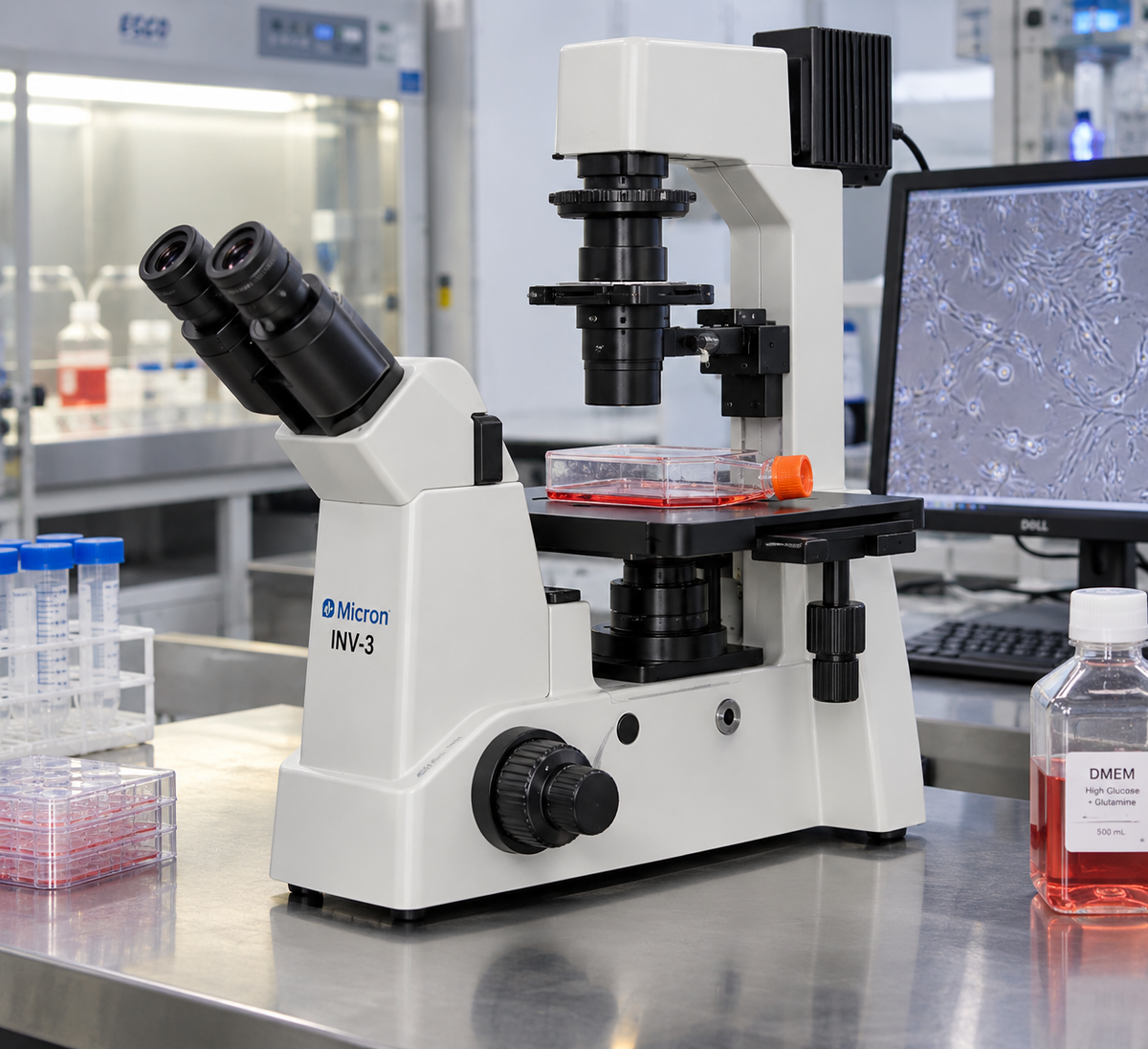

The INV-3 Inverted Microscope is designed for observation of living cells and specimens in culture vessels such as flasks, Petri dishes and multi-well plates. It features an infinity optical system, 30° inclined trinocular head, ELWD condenser, phase-contrast capability, long-working-distance objectives and an attachable mechanical X-Y stage.

Product Overview

The INV-3 Inverted Microscope is designed for routine and research observation of specimens that are difficult or impractical to transfer onto conventional microscope slides. Its inverted optical configuration places the objectives below the stage, making it suitable for examining specimens contained in culture flasks, Petri dishes and multi-well plates.

The microscope uses an infinity optical system and a 30° inclined trinocular head with an interpupillary distance adjustment of 48–75 mm. The trinocular arrangement is suitable for visual observation together with image documentation using a compatible microscope camera.

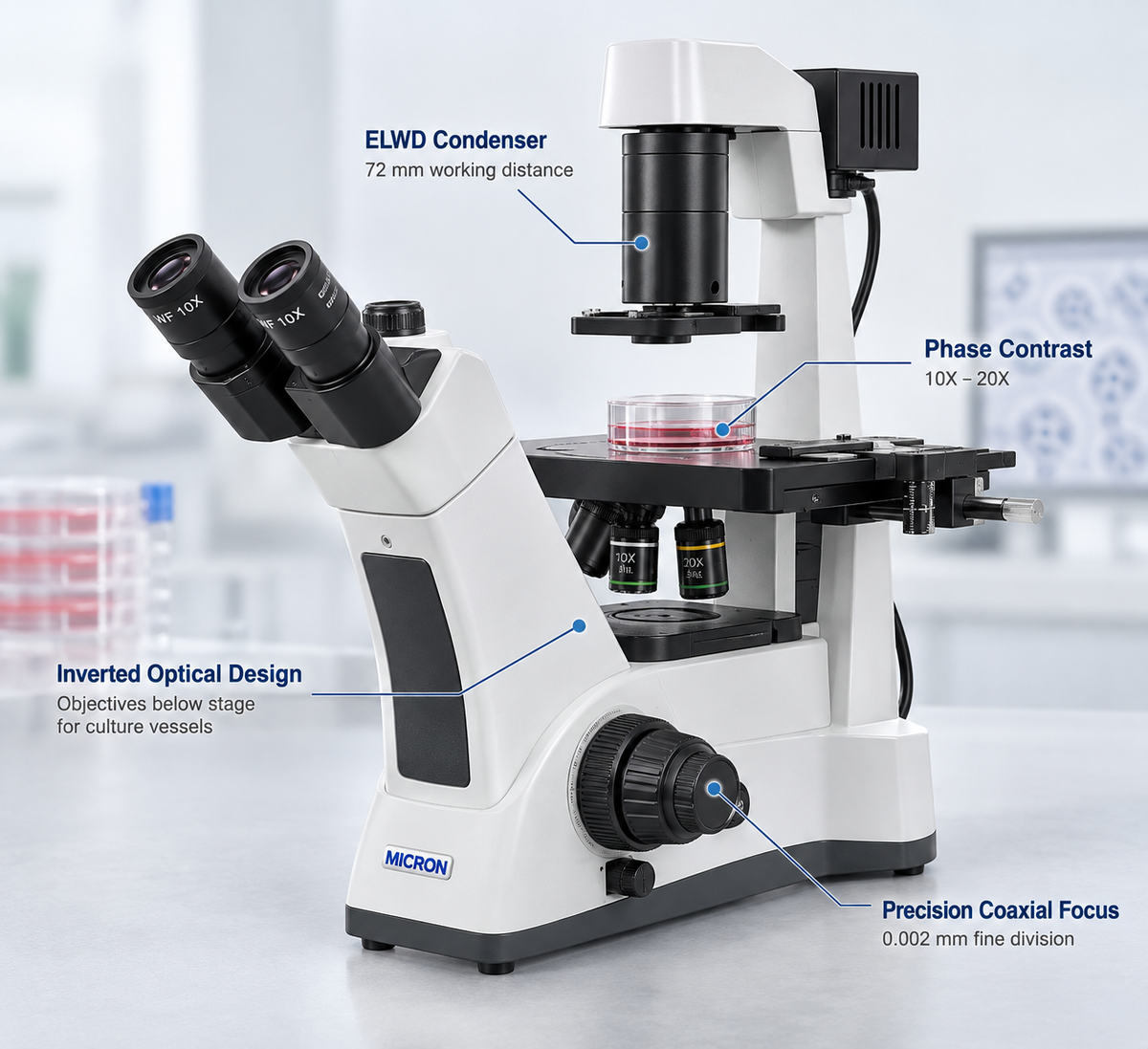

For specimens contained in vessels with significant working height, the microscope incorporates an ELWD condenser with NA 0.3 and 72 mm working distance. Removing the condenser provides approximately 150 mm of free space, according to the specified configuration.

The optical system includes an EW10X/20 extra-wide-field eyepiece, a 40X LWD Infinity Plan objective and 10X/20X Infinity Plan Phase objectives. A fixed 10X–20X phase annulus plate enables phase-contrast observation of suitable transparent specimens.

An attachable mechanical stage provides 120 × 78 mm X-Y movement, while coaxial coarse and fine focusing provides controlled adjustment with 0.002 mm fine division.

Key Features & Benefits

• Inverted optical design for culture vessels
• Infinity optical system
• 30° inclined trinocular head
• 48–75 mm interpupillary adjustment
• Extra-long-working-distance condenser
• NA 0.3 condenser
• 72 mm condenser working distance
• Approximately 150 mm free space without condenser
• Fixed 10X–20X phase annulus
• LWD Infinity Plan 40X objective
• Infinity Plan Phase 10X and 20X objectives
• Attachable mechanical X-Y stage
• 120 × 78 mm stage movement
• Coaxial coarse and fine focusing
• 0.002 mm fine-focus division
• 6V/30W halogen illumination
• Blue, green and ground-glass filters

4. Technical Specifications

5. Applications

• Tissue culture laboratories
• Cell culture monitoring
• Cell morphology observation
• Clinical and medical laboratory microscopy
• Pharmaceutical research
• Drug discovery research
• Cell-based screening
• Cytotoxicity studies
• Quality control of biological products
• Aquatic biology
• Environmental microbiology
• Food and beverage microbiological QC
• Fertility and IVF laboratory research
• Educational cell biology
• Phase-contrast microscopy

6. Suitable For

• Cell culture laboratories
• Biotechnology laboratories
• Pharmaceutical research laboratories
• Clinical research laboratories
• IVF and fertility research facilities
• University cell biology laboratories
• Pharmaceutical quality-control laboratories
• Food and beverage microbiology laboratories
• Aquatic biology research
• Environmental science laboratories

7. Product Benefits

• Inverted configuration: Allows observation of specimens directly in culture vessels without transferring them to conventional slides.
• Infinity optical system: Provides an infinity-corrected optical platform for microscopy.
• Long working distance: The ELWD condenser and LWD objectives provide working distances suitable for vessels and cultureware.
• Phase-contrast capability: Supports observation of suitable unstained, transparent specimens.
• Trinocular design: Provides a dedicated optical path for microscope-camera integration.
• Mechanical X-Y stage: Enables controlled positioning across culture vessels and specimen areas.
• Precision focusing: Coaxial coarse and fine controls provide controlled focusing.
• Large condenser clearance: Removing the condenser provides approximately 150 mm of free space.
• Ergonomic viewing: The 30° inclined head and adjustable interpupillary distance support extended laboratory observation.
• Multiple filtration options: Blue, green and ground-glass filters provide additional illumination options.
