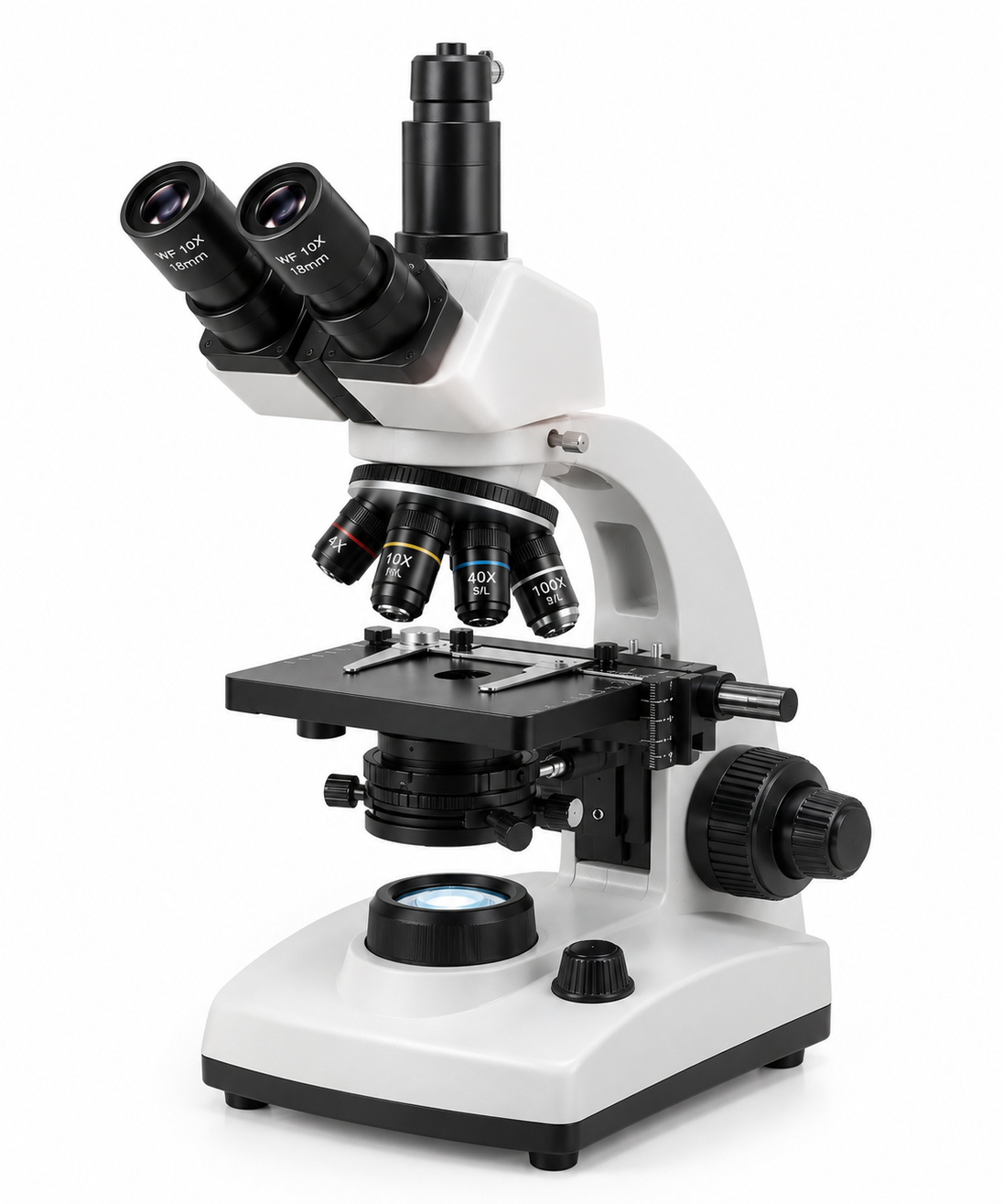

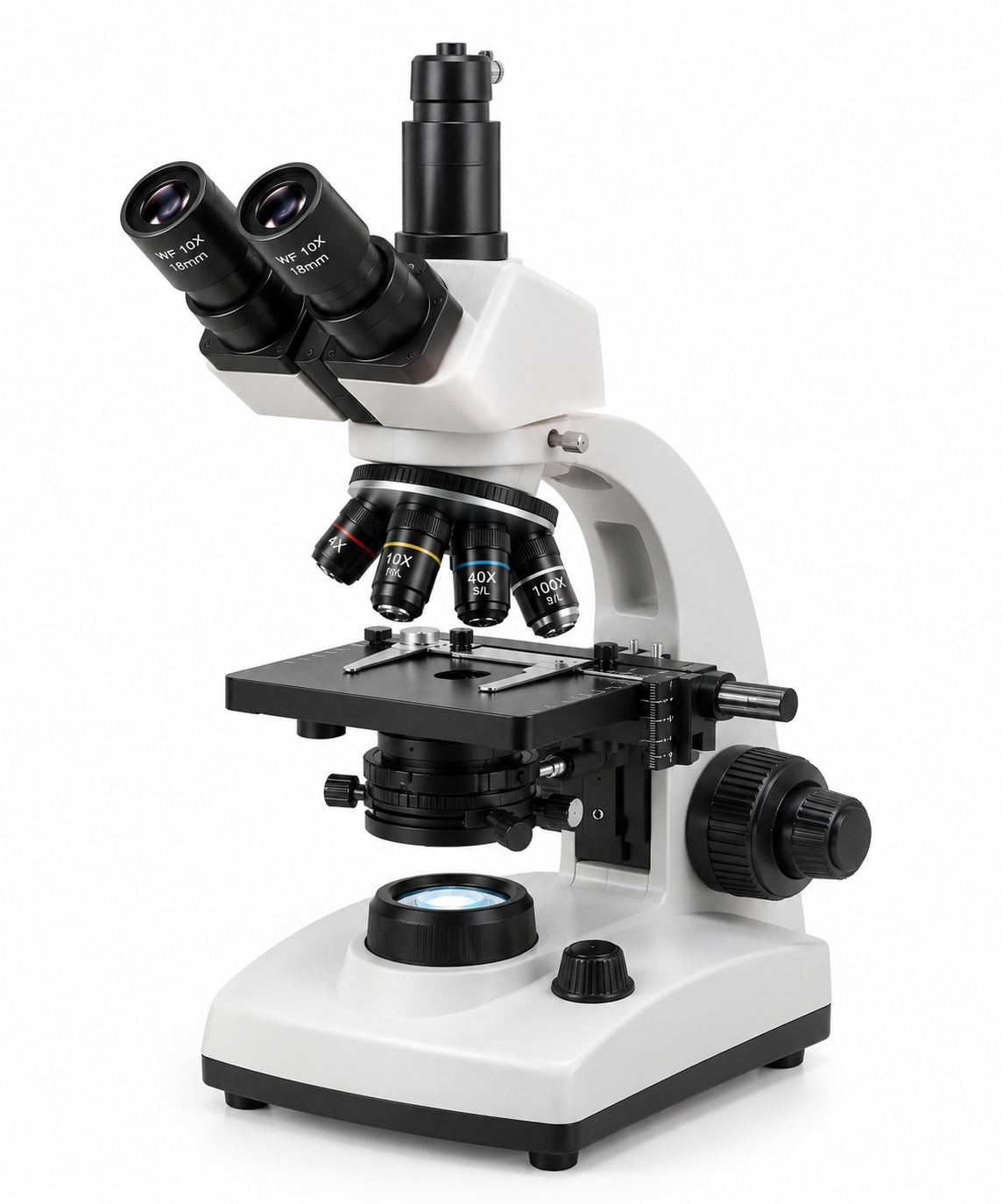

The TRINO MINI Pathological Trinocular Microscope is a compact microscopy platform designed for pathology laboratories, digital documentation, teaching and research. It combines a trinocular viewing head with camera light-path selection, 40X–1000X magnification, mechanical X-Y stage, 100X oil-immersion objective, NA 1.25 Abbe condenser and variable-intensity LED illumination.

Product Overview

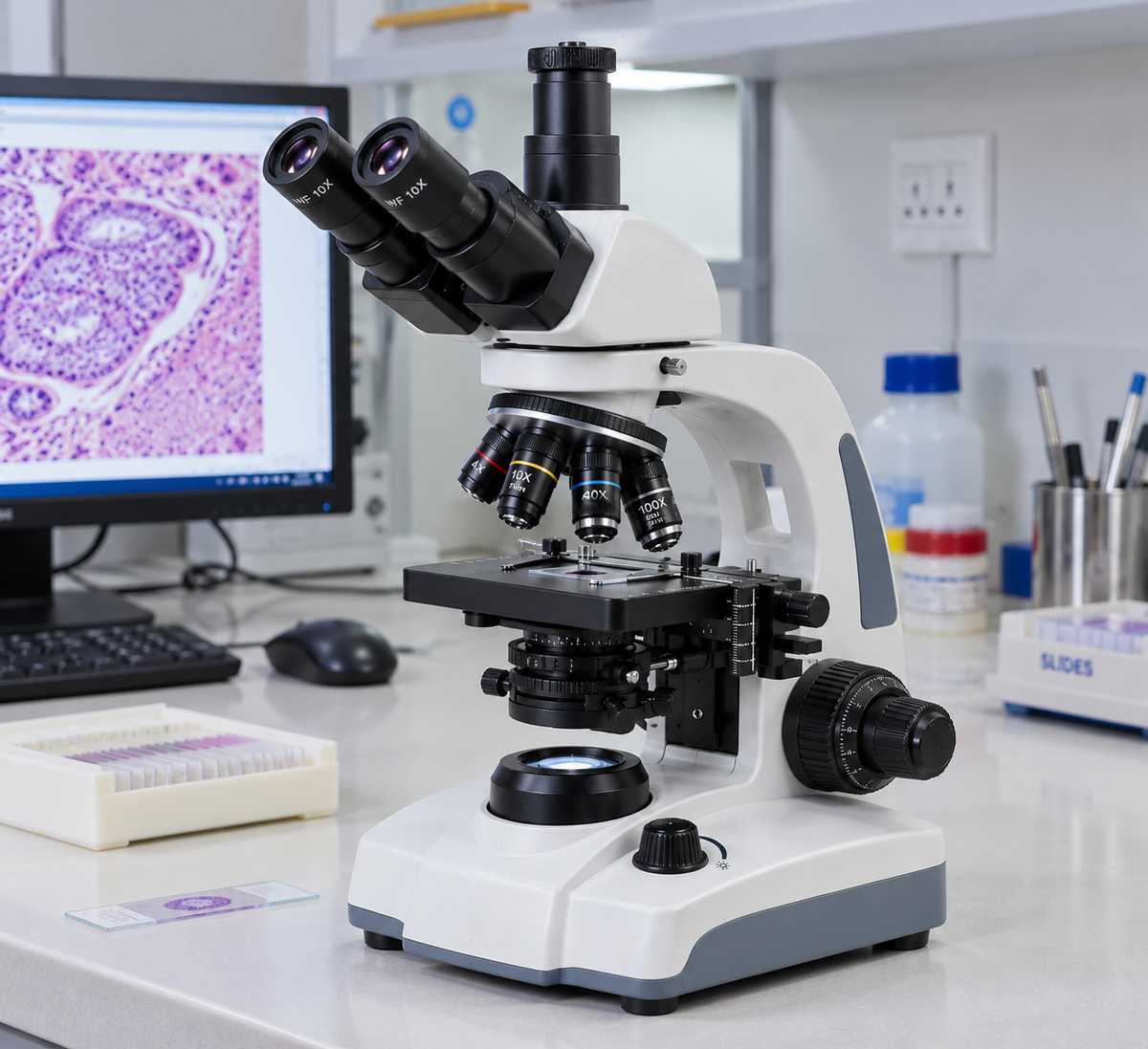

The TRINO MINI is designed for laboratories that require conventional microscopic observation together with digital image and video documentation. Its trinocular configuration provides a dedicated third optical path for connecting a compatible microscope camera, while the light-path selector allows the available light to be directed toward the eyepieces, camera, or shared between both.

The viewing head is rotatable through 360° and is available in monocular, binocular and trinocular configurations. The quadruple nosepiece incorporates positive click stops for objective positioning, while separate coarse and fine focusing controls provide precise adjustment with fine-focus graduation of 1 division = 0.002 mm.

A mechanical stage enables controlled X-Y slide movement, supporting systematic examination and image documentation. The movable NA 1.25 Abbe condenser incorporates an iris diaphragm and swing-out filter holder for illumination and contrast adjustment.

The optical combination includes a WF 10X eyepiece and 4X, 10X, 40X S/L and 100X S/L achromatic objectives, providing 40X–1000X magnification. The 100X S/L objective provides oil-immersion capability.

Built-in LED illumination with intensity control provides adjustable lighting for visual observation and digital imaging.

Key Features & Benefits

• Trinocular configuration for digital imaging
• Monocular, binocular and trinocular head options
• 360° rotatable viewing head
• Light-path selector with 100/0, 0/100 and 50/50 distribution
• 40X–1000X magnification
• WF 10X eyepiece
• 4X, 10X, 40X S/L and 100X S/L achromatic objectives
• 100X oil-immersion capability
• Mechanical X-Y stage
• Separate coarse and fine focusing
• 0.002 mm fine-focus graduation
• Movable NA 1.25 Abbe condenser
• Iris diaphragm and swing-out filter holder
• Variable-intensity built-in LED illumination
• Compact format for pathology and educational applications

4. Technical Specifications

5. Applications

• Digital pathology
• Telepathology image documentation
• Histopathology
• Clinical case documentation
• Medical and graduate education
• Pathology laboratory teaching
• Research data collection
• Veterinary diagnostic imaging
• Industrial quality assurance and QC
• Microscopic image archiving
• Microscopy-based presentations and publications

6. Suitable For

• Pathology laboratories
• Small diagnostic and clinic laboratories
• Medical colleges
• Teaching hospitals
• Universities
• Research laboratories
• Veterinary pathology laboratories
• Industrial QA/QC departments
• Laboratories requiring microscope-camera integration
• Educational institutions requiring live specimen display

7. Product Benefits

• Trinocular imaging capability: Provides a dedicated camera connection for digital microscopy and documentation.
• Flexible light-path selection: The optical path can be directed to the eyepieces, camera, or divided between both.
• 40X–1000X magnification: Supports routine examination through high-magnification microscopy.
• 100X oil immersion: Enables high-magnification observation using the supplied 100X S/L objective.
• Mechanical X-Y stage: Allows systematic slide movement and tracking of specific fields.
• Precision focusing: Separate coarse and fine focusing supports controlled specimen observation.
• 0.002 mm fine-focus graduation: Provides precise fine-focus adjustment.
• Adjustable LED illumination: Intensity can be varied for different specimens and imaging conditions.
• NA 1.25 condenser: Supports controlled illumination and contrast adjustment.
• 360° rotatable head: Provides flexible viewing and positioning for teaching and documentation.
