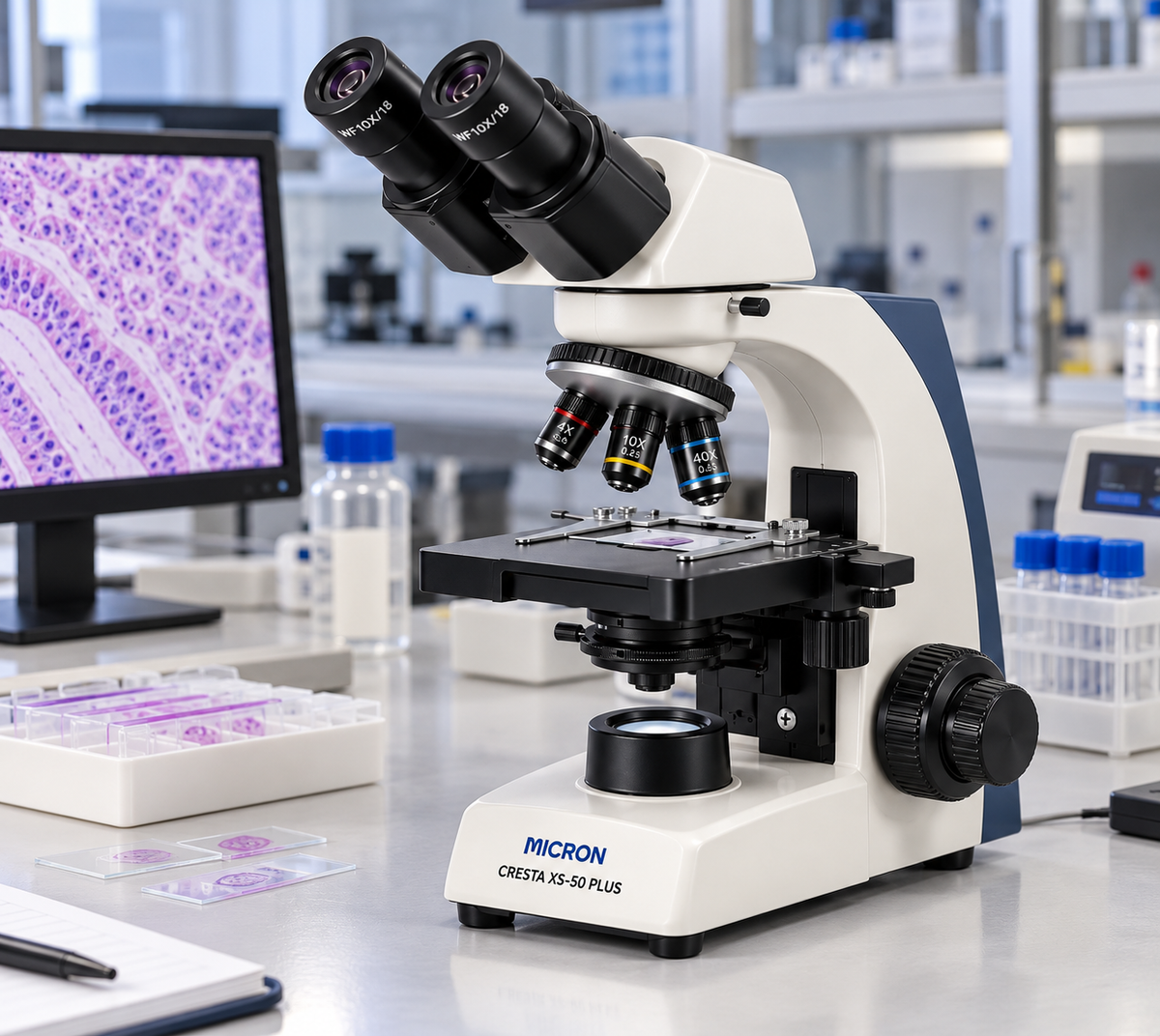

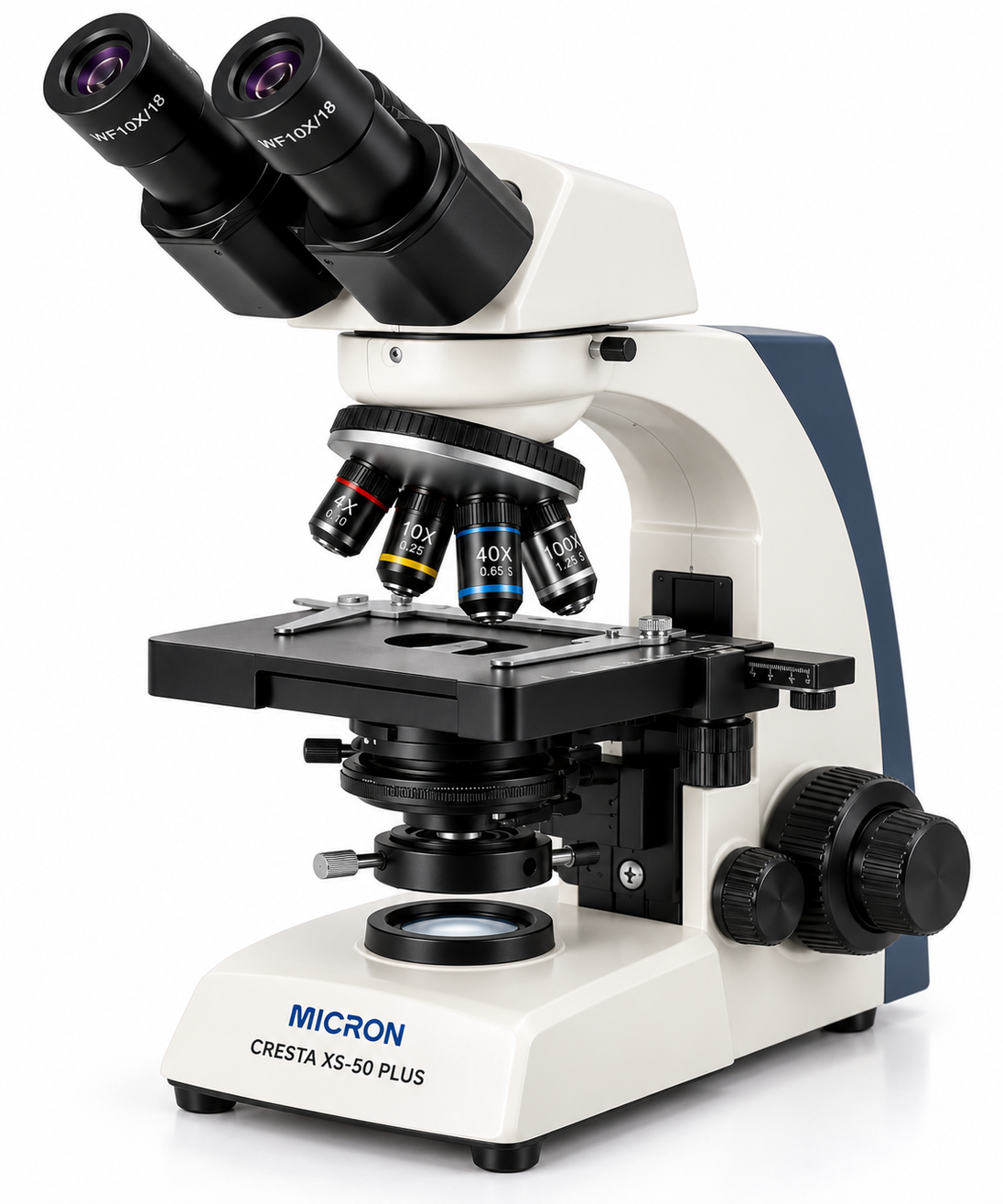

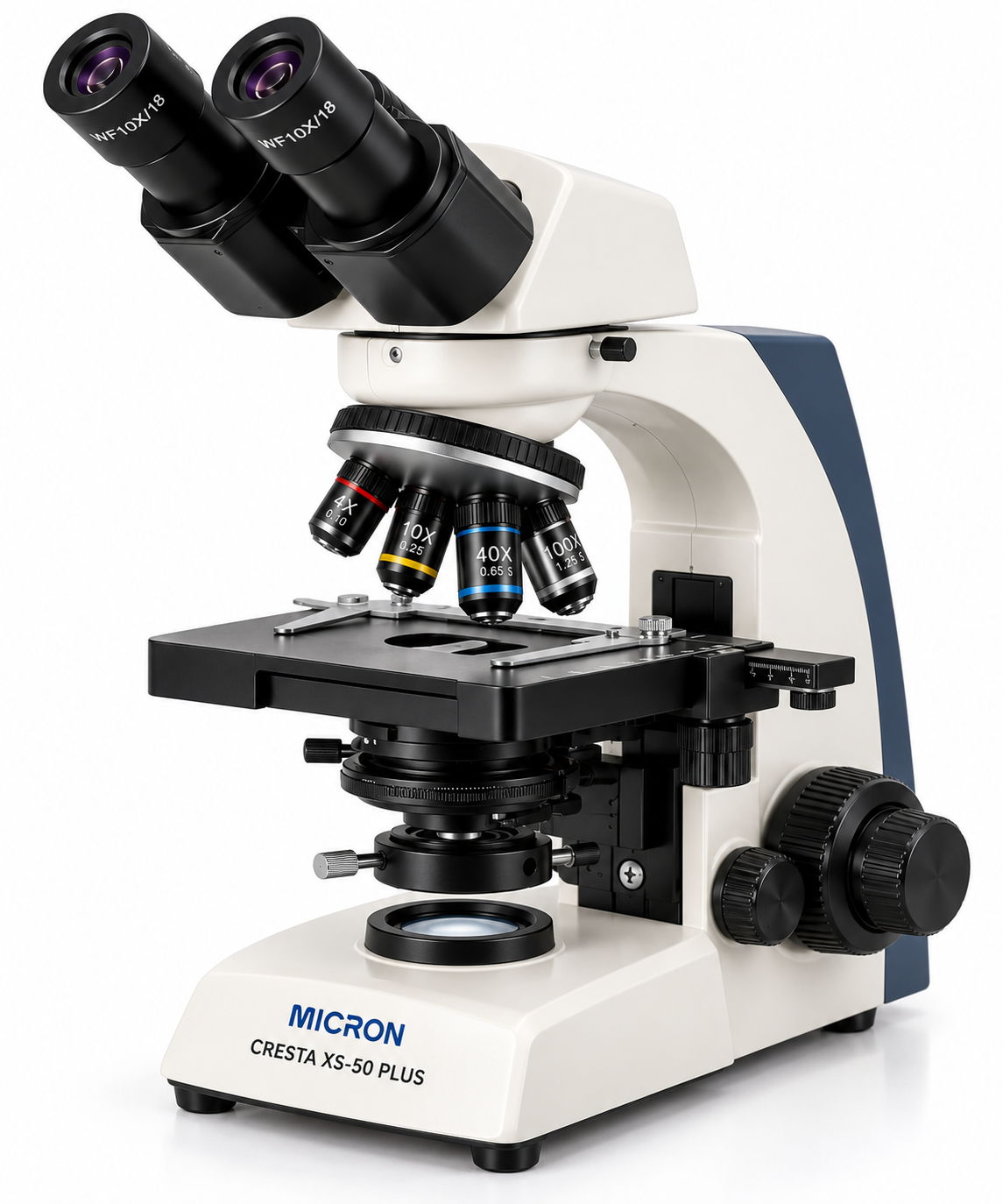

The CRESTA XS-50 Plus Binocular Microscope is a professional laboratory microscope featuring a 30° inclined, 360° rotatable Siedentopf head, semi-plan achromatic optics, precision coaxial focusing and a ball-bearing-driven mechanical X-Y stage. Its 40X–1000X optical configuration and adjustable LED illumination make it suitable for medical, educational, research and laboratory microscopy.

3. Detailed Product Description

Product Overview

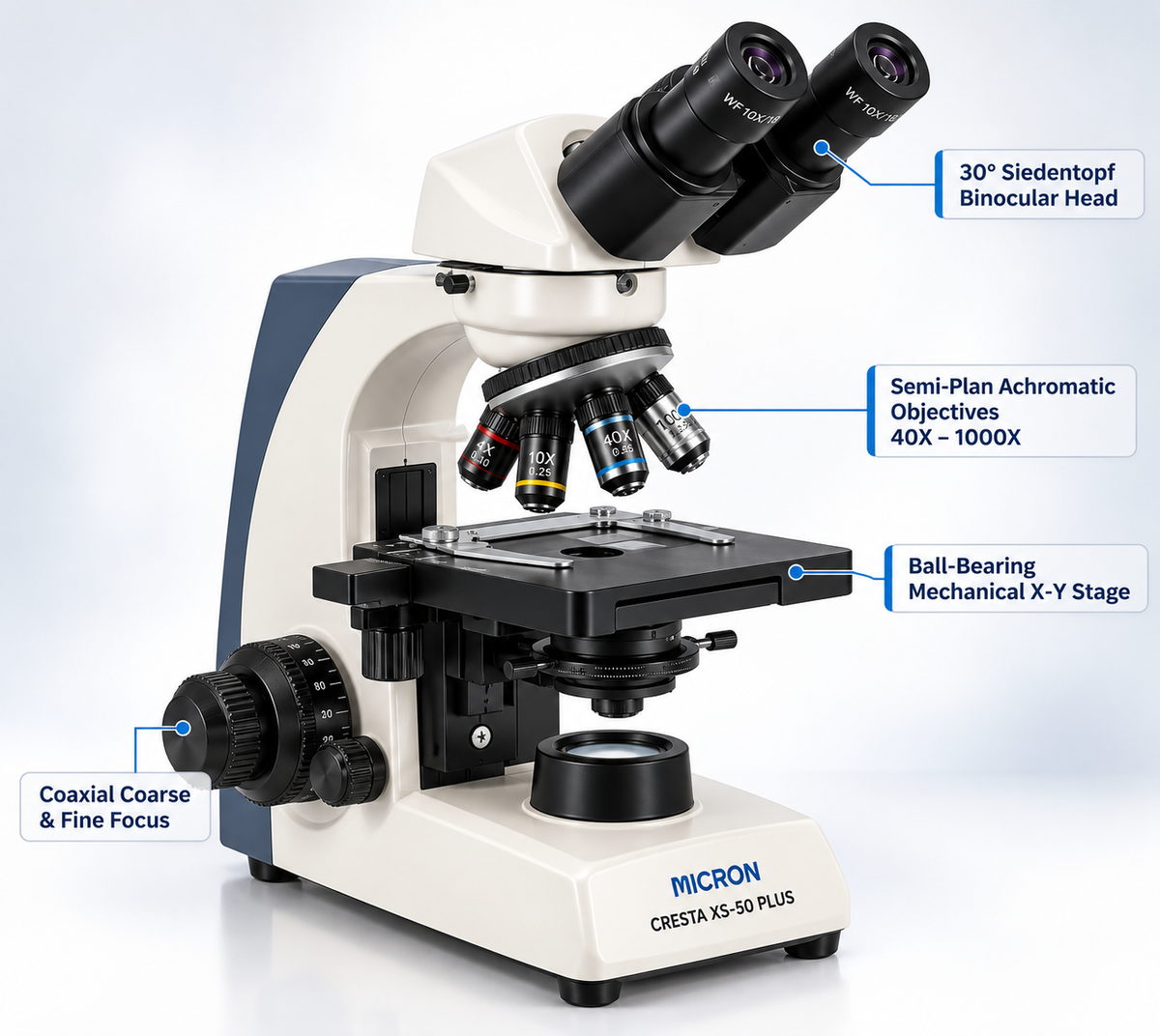

The CRESTA XS-50 Plus is a binocular compound microscope designed for professional laboratory and research applications. Its rigid single-mould construction provides a stable platform, while the Siedentopf viewing head offers a 30° inclined viewing position and 360° rotation.

The microscope uses a WF 10X/18 mm eyepiece with 4X, 10X, 40X S/L and 100X S/L Semi-Plan Achromatic objectives, providing a 40X–1000X magnification range.

A reversed inward quadruple ball-bearing nosepiece provides positive click-stop objective positioning. The coaxial coarse and fine focusing mechanism has 0.002 mm graduation, while the ball-bearing-driven mechanical stage provides X-Y slide movement.

A movable Abbe condenser with NA 1.25, iris diaphragm and swing-out filter holder provides control over specimen illumination. Built-in LED illumination with intensity control provides adjustable lighting for routine microscopy.

Key Features and Benefits

• 40X–1000X magnification
• Semi-Plan Achromatic optical system
• WF 10X/18 mm eyepiece
• 4X, 10X, 40X S/L and 100X S/L objectives
• Siedentopf-type viewing head
• 30° inclined and 360° rotatable head
• Reversed inward quadruple ball-bearing nosepiece
• Positive click stops for objective positioning
• Coaxial coarse and fine focusing
• 0.002 mm fine-focus graduation
• Ball-bearing-driven mechanical X-Y stage
• Movable Abbe condenser, NA 1.25
• Iris diaphragm and swing-out filter holder
• Built-in LED illumination with intensity control
• Rigid single-mould construction with carrying window
• Chemical-resistant stipple-grey finish

4. Technical Specifications

5. Applications

• Medical college laboratories
• Clinical laboratory microscopy
• Histology
• Pathology research
• Cytology
• Hematology
• Pharmaceutical research
• Biotechnology laboratories
• University research
• Forensic science laboratories
• Veterinary research
• Material and quality-control microscopy
• Routine biological microscopy
• Photomicrography applications

6. Suitable For

• Medical colleges
• Universities
• Research laboratories
• Clinical laboratories
• Pathology and histology laboratories
• Pharmaceutical laboratories
• Biotechnology laboratories
• Forensic laboratories
• Veterinary laboratories
• Industrial quality-control laboratories
• Biology teaching laboratories

7. Product Benefits

• Research-oriented optical configuration: Semi-Plan Achromatic objectives provide improved field flatness compared with conventional basic achromatic optics.
• Wide magnification range: 40X–1000X supports routine and higher-magnification specimen examination.
• Ergonomic viewing: The 30° inclined Siedentopf head is designed for comfortable observation.
• Flexible head positioning: 360° rotation allows convenient viewing and collaborative observation.
• Precision focusing: Coaxial coarse and fine controls with 0.002 mm graduation provide controlled focusing.
• Smooth slide movement: Ball-bearing-driven X-Y stage supports systematic specimen scanning.
• Protected nosepiece arrangement: The reversed inward design provides additional working space around the stage.
• Adjustable illumination: Built-in LED intensity control allows illumination to be adapted to different specimens.
• Controlled condenser system: NA 1.25 Abbe condenser with iris diaphragm supports illumination and contrast adjustment.
• Durable construction: Single-mould rigid construction and chemical-resistant finish support laboratory use.
