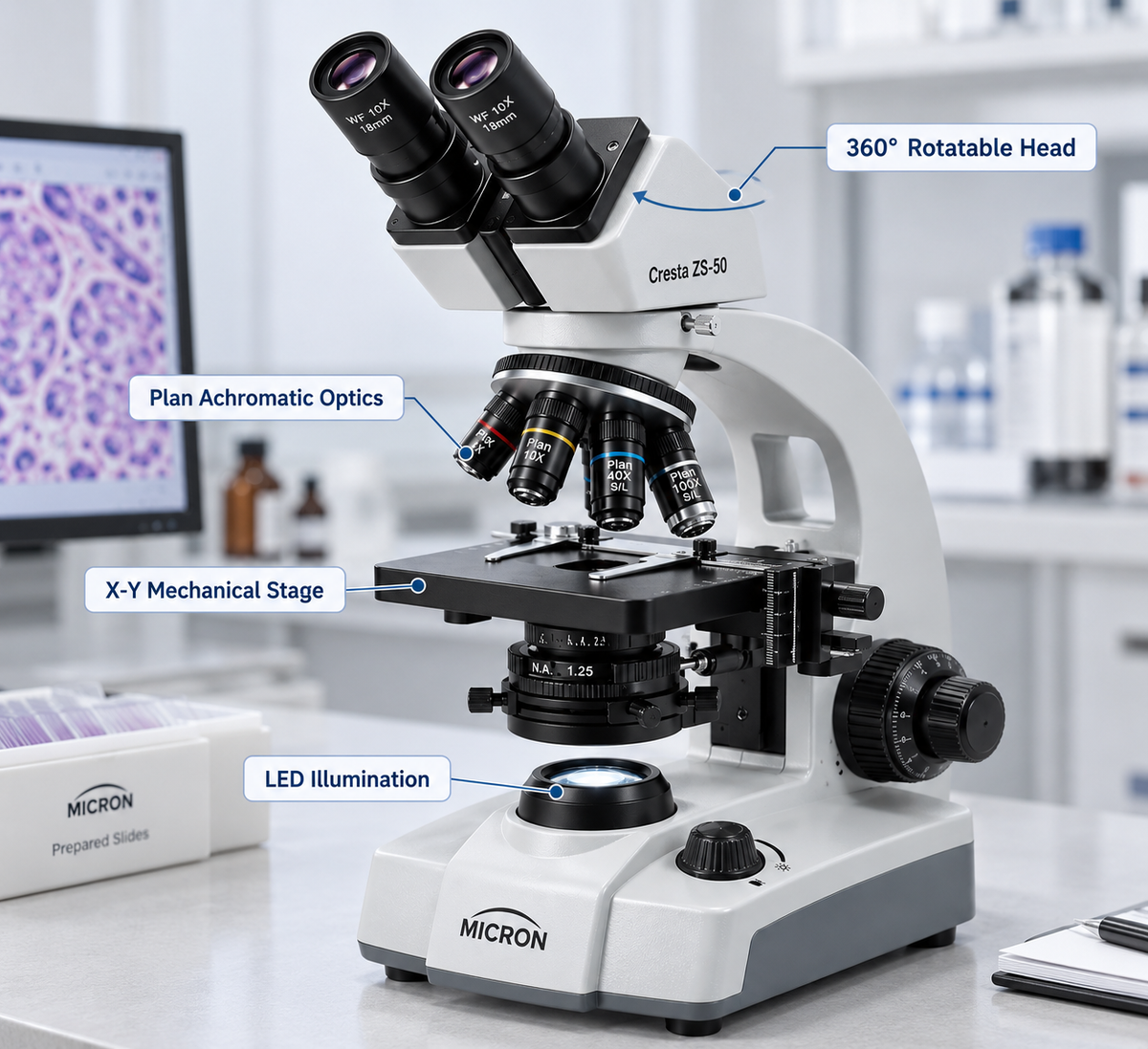

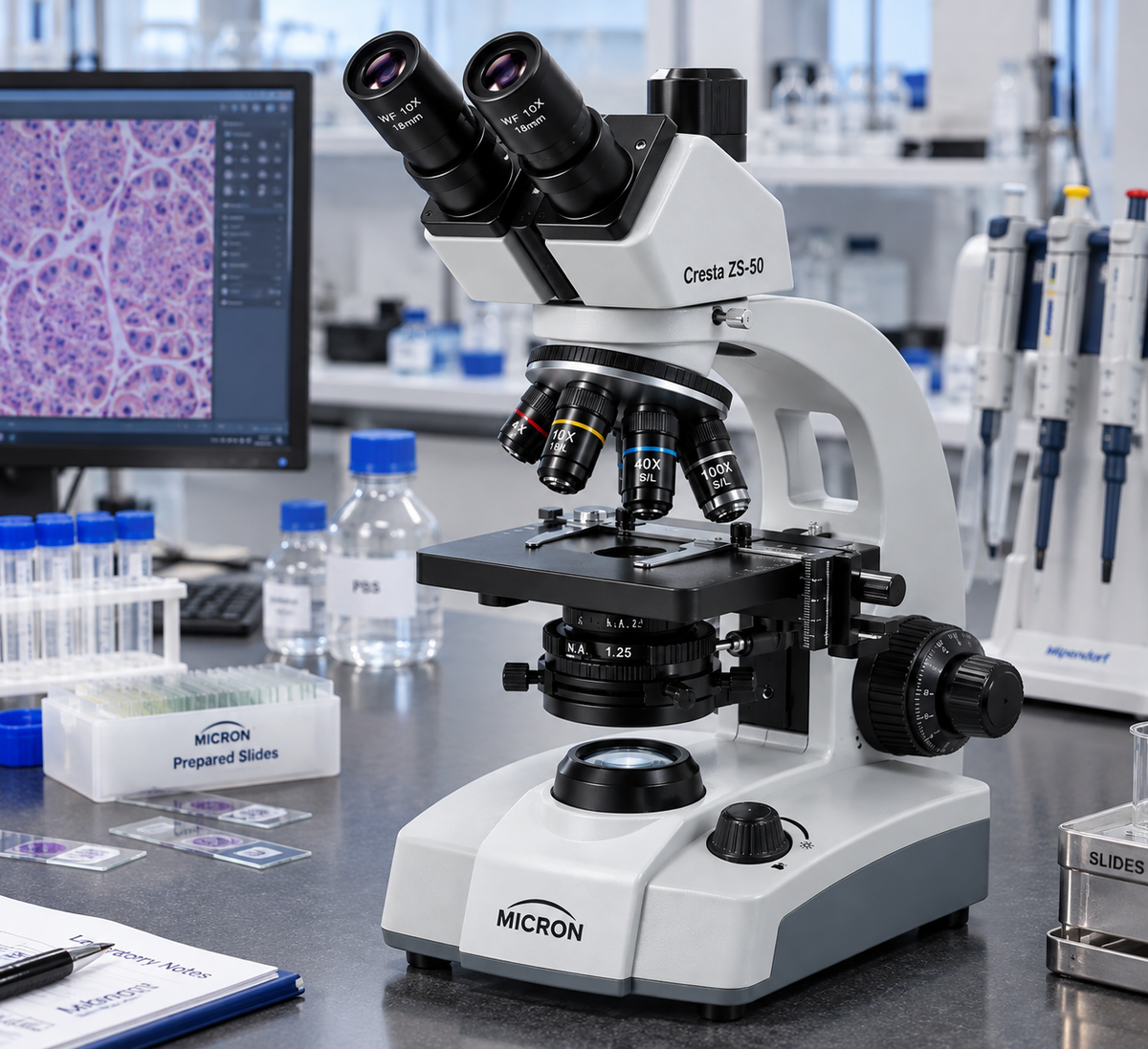

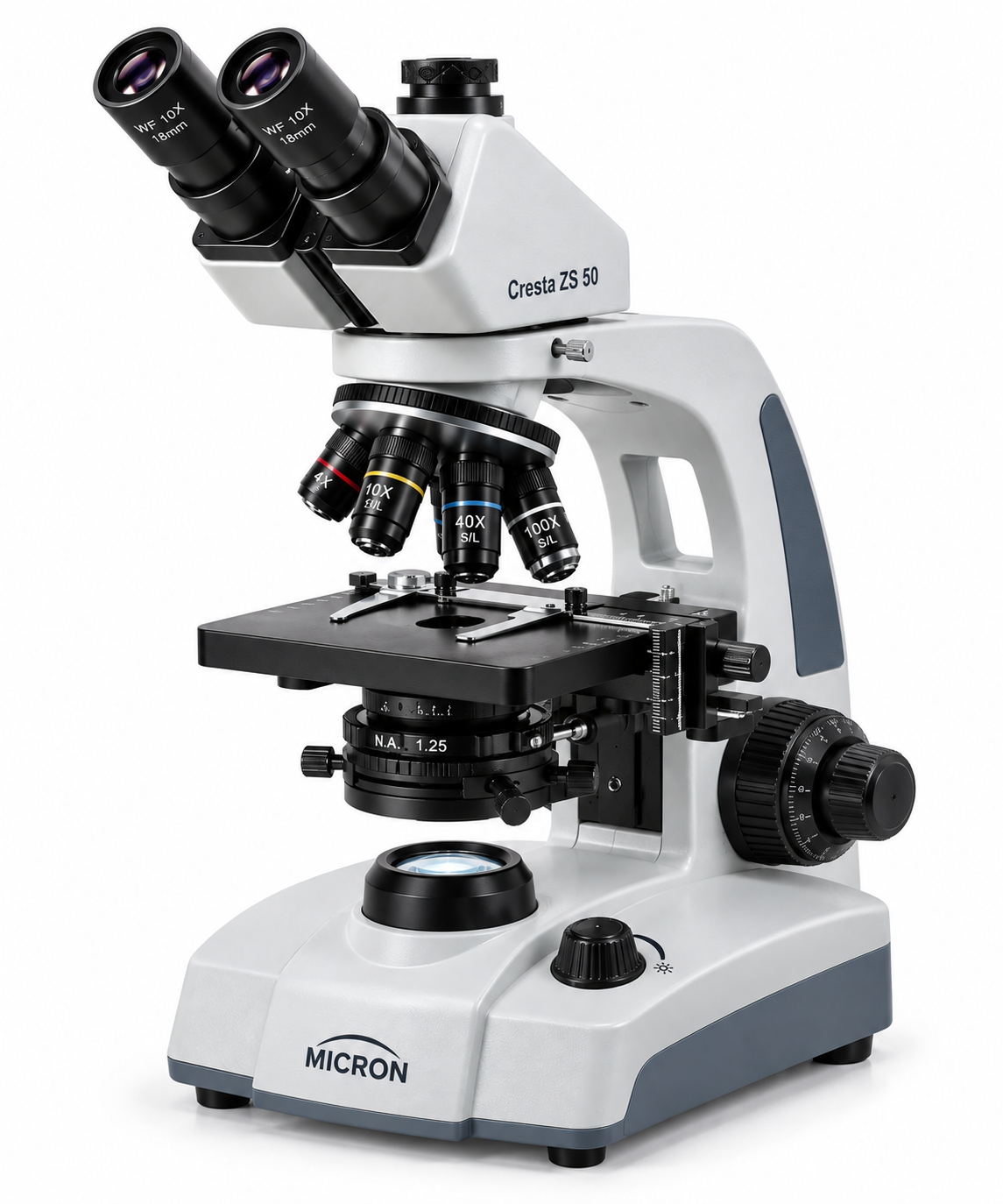

The CRESTA ZS-50 Research Microscope is a versatile laboratory microscope designed for educational and routine research applications. It features Plan Achromatic anti-fungal-treated objectives, a 45° inclined 360° rotatable viewing head, precision coaxial focusing, a ball-bearing mechanical X-Y stage, NA 1.25 Abbe condenser and adjustable LED illumination with battery-backup facility.

Product Overview

The CRESTA ZS-50 is part of the Cresta series of research microscopes and is designed for educational laboratories, routine research and applications requiring controlled specimen observation and documentation.

Its single-mould rigid structure incorporates a window in the arm for convenient carriage. The viewing head is available in monocular, binocular and trinocular configurations and features a sliding-type 45° inclined head with 360° rotation.

The microscope uses a quadruple ball-bearing nosepiece with positive click stops for controlled objective positioning. Coaxial coarse and fine focusing provides precise focus adjustment, with the fine-focus mechanism graduated to 1 division = 0.002 mm.

A ball-bearing-driven mechanical stage enables controlled X-Y movement of slides, while the movable Abbe condenser with NA 1.25, iris diaphragm and swing-out filter holder provides illumination control.

The optical combination consists of WF 10X/18 mm eyepieces and 4X, 10X, 40X S/L and 100X S/L Plan Achromatic anti-fungal-treated objectives, providing 40X–1000X total magnification.

Built-in LED illumination with intensity control and a battery-backup facility provides flexibility for laboratory use and extended observation sessions.

Key Features & Benefits

• 40X–1000X total magnification
• Plan Achromatic objectives
• Anti-fungal-treated optical system
• WF 10X/18 mm eyepiece
• Monocular, binocular and trinocular configurations
• 45° inclined, 360° rotatable viewing head
• Single-mould rigid structure
• Carrying window in the arm
• Quadruple ball-bearing nosepiece
• Positive click stops
• Coaxial coarse and fine focusing
• 0.002 mm fine-focus graduation
• Ball-bearing-driven mechanical X-Y stage
• Movable Abbe condenser, NA 1.25
• Iris diaphragm and swing-out filter holder
• Built-in LED illumination
• LED intensity control
• Battery-backup facility

4. Technical Specifications

5. Applications

• Routine research microscopy
• Educational research
• University laboratories
• Medical college laboratories
• Pharmaceutical research
• Clinical research
• Quality-control laboratories
• Histology research
• Biological research
• Cell biology studies
• Photomicrography applications
• Research specimen examination

6. Suitable For

• Universities and colleges
• Research institutions
• Pharmaceutical laboratories
• Biotechnology laboratories
• Clinical research laboratories
• Quality-control laboratories
• Medical research facilities
• Academic teaching laboratories
• Routine research laboratories
• Laboratories requiring photomicrographic documentation

7. Product Benefits

• Plan Achromatic optics: Designed for flatter-field observation across the specimen.
• 40X–1000X magnification: Supports both lower-power scanning and high-magnification observation.
• Precision fine focusing: 0.002 mm graduation enables controlled focusing.
• Mechanical X-Y stage: Allows systematic specimen positioning and scanning.
• Flexible viewing configuration: Available in monocular, binocular and trinocular versions.
• Ergonomic viewing: 45° inclination and 360° rotation provide flexible observation positions.
• Controlled illumination: LED intensity adjustment allows illumination to be adapted to specimens.
• NA 1.25 condenser: Provides controlled transmitted-light illumination.
• Battery-backup facility: Adds operational flexibility where backup illumination is required.
• Rigid construction: Single-mould structure supports stable laboratory operation.
• Anti-fungal optics: Optical components are specified with anti-fungal treatment.
