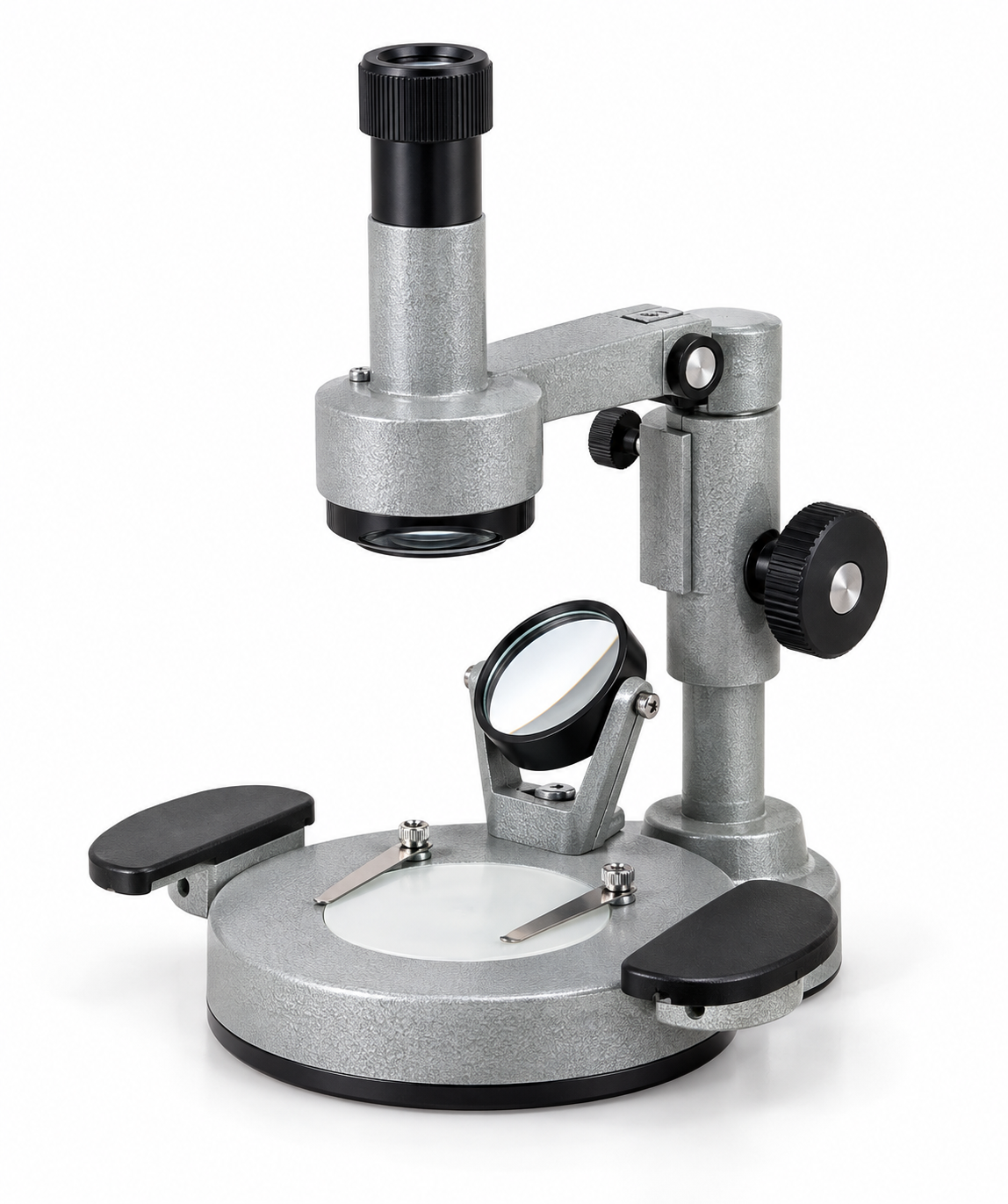

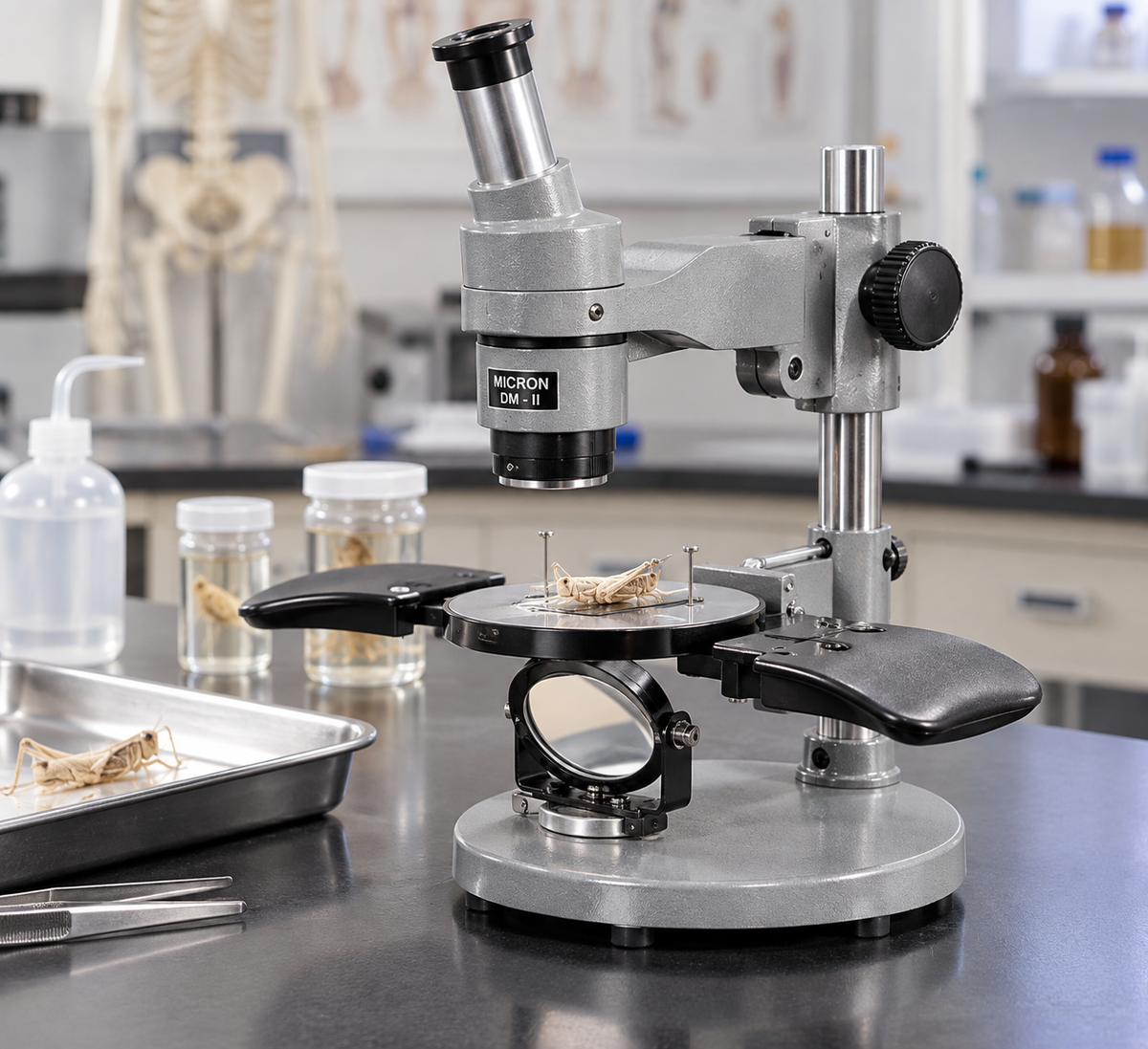

The DM-II Dissecting Microscope is a compact optical instrument designed for fine dissection, specimen examination, biological studies and educational laboratory work. It features a stable 120 mm round base, 180° revolving arm, brass rack-and-pinion focusing, detachable hand rests, plano-concave mirror illumination and an 80 mm optical-grade Bull Eye Lens.

Product Overview

The MODEL DM-II Dissecting Microscope is designed for detailed observation and fine dissection of small biological specimens. Its stable round base provides a low centre of gravity, while the joint revolving arm allows the magnifying lens to move across the stage for scanning a larger specimen area without repeatedly repositioning the specimen.

The microscope uses a brass rack-and-pinion focusing mechanism for controlled focus adjustment. Detachable hand rests are provided on both sides of the stage to support the user's hands during fine dissection work.

Illumination is provided by a 50 mm plano-concave mirror in a fork mount, together with an 80 mm Bull Eye Lens made from optical-grade glass for concentrating light from an external source.

The DM-II is supplied with 10X and 15X eyepieces, offering flexible magnification for specimen observation. Its chemical-resistant stipple grey finish is intended for routine laboratory environments.

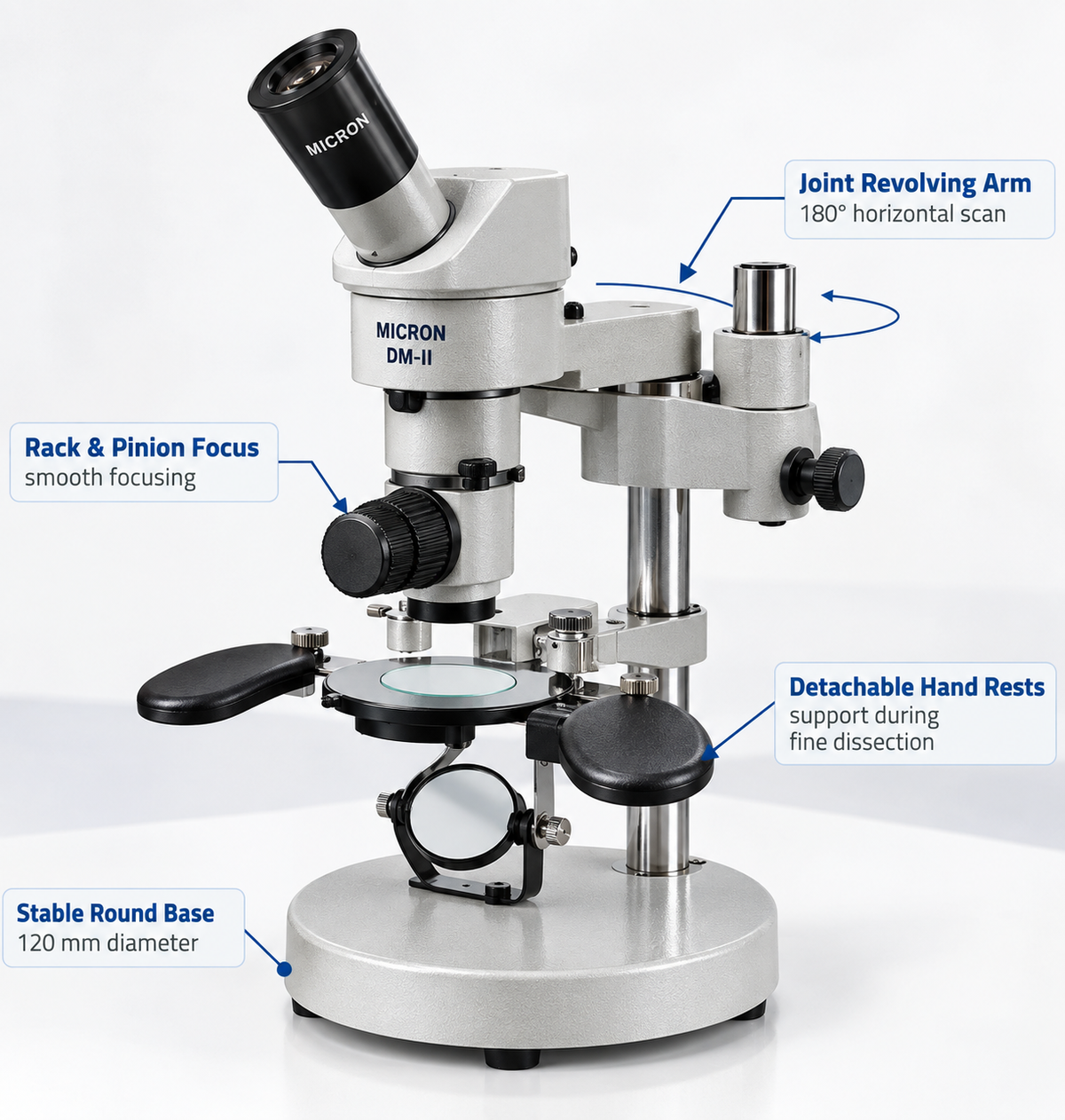

Key Features & Benefits

• Stable 120 mm diameter round base
• Low centre of gravity
• Joint revolving arm
• 180° horizontal scanning range
• Brass rack-and-pinion focusing
• Detachable hand rests on both sides
• 50 mm plano-concave mirror
• Fork-mounted mirror
• 80 mm optical-grade glass Bull Eye Lens
• 10X and 15X eyepieces
• Chemical-resistant stipple grey finish
• Approx. 3.5 kg total weight
• Ergonomically positioned focusing knobs

4. Technical Specifications

5. Applications

• Fine dissection
• Biology laboratory work
• Zoology studies
• Botany studies
• Insect examination
• Plant specimen examination
• Biological specimen observation
• Medical training demonstrations
• Veterinary studies
• Agricultural laboratory work
• Educational laboratory training
• Research and development
• Selected industrial surface inspection

6. Suitable For

• Schools and colleges
• Biology laboratories
• Zoology departments
• Botany departments
• Medical training institutions
• Veterinary laboratories
• Agricultural laboratories
• Research and development centres
• Educational dissection laboratories
• Selected industrial inspection applications

7. Product Benefits

• Stable working platform: The 120 mm round base has a low centre of gravity for stable positioning.
• Wide specimen scanning: The 180° horizontal movement of the revolving arm allows the magnifying lens to cover a broad area.
• Controlled focusing: Brass rack-and-pinion construction provides smooth mechanical focus adjustment.
• Hand support: Detachable rests on both sides provide support during detailed dissection work.
• Flexible illumination: The plano-concave mirror can reflect external light toward the specimen.
• Efficient light concentration: The 80 mm Bull Eye Lens concentrates light from an external source.
• Flexible magnification: Supplied 10X and 15X eyepieces provide two magnification options.
• Laboratory-ready finish: Chemical-resistant stipple grey finishing is suitable for routine laboratory environments.
• Portable construction: At approximately 3.5 kg, the microscope combines a stable base with manageable weight.
