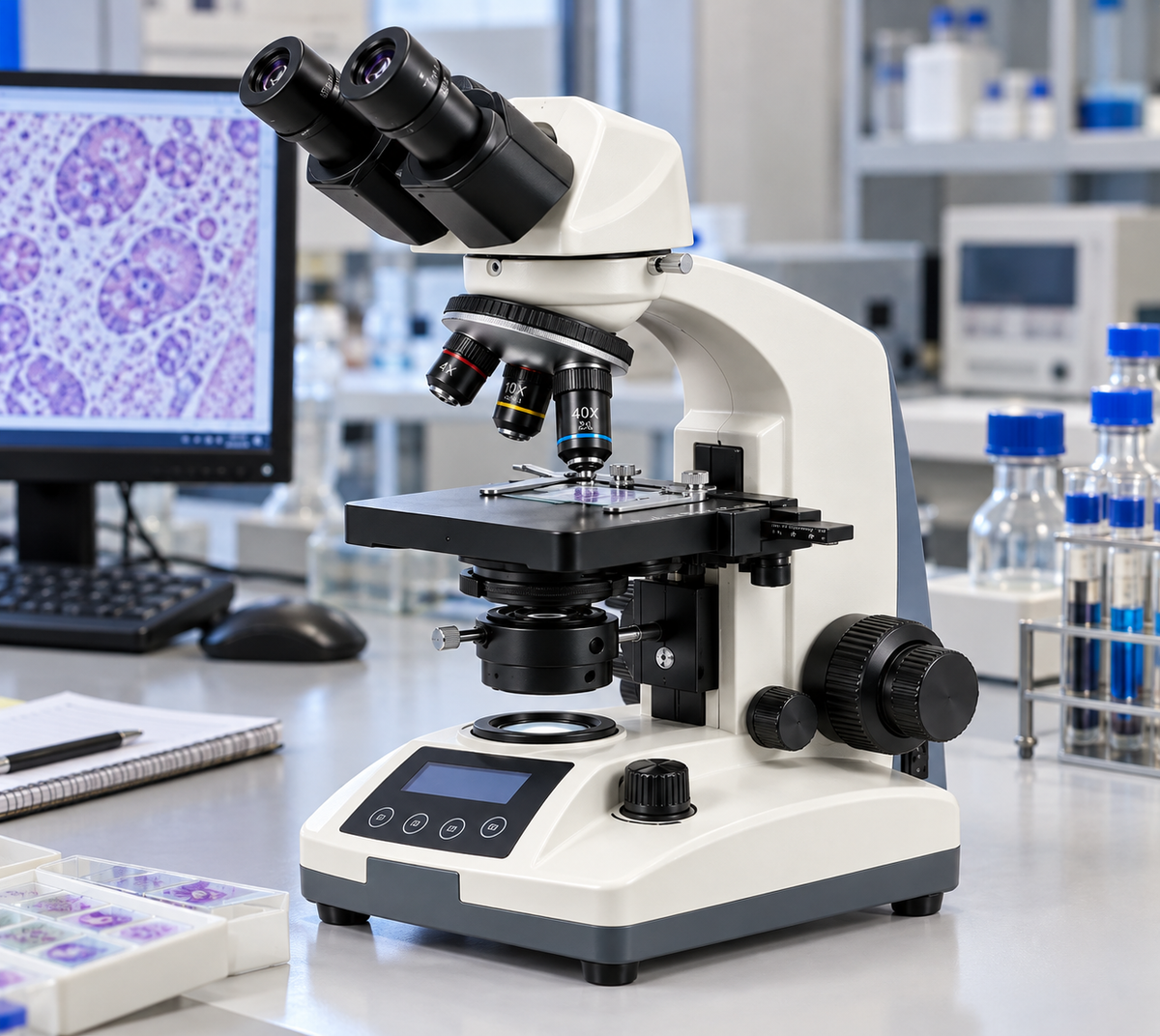

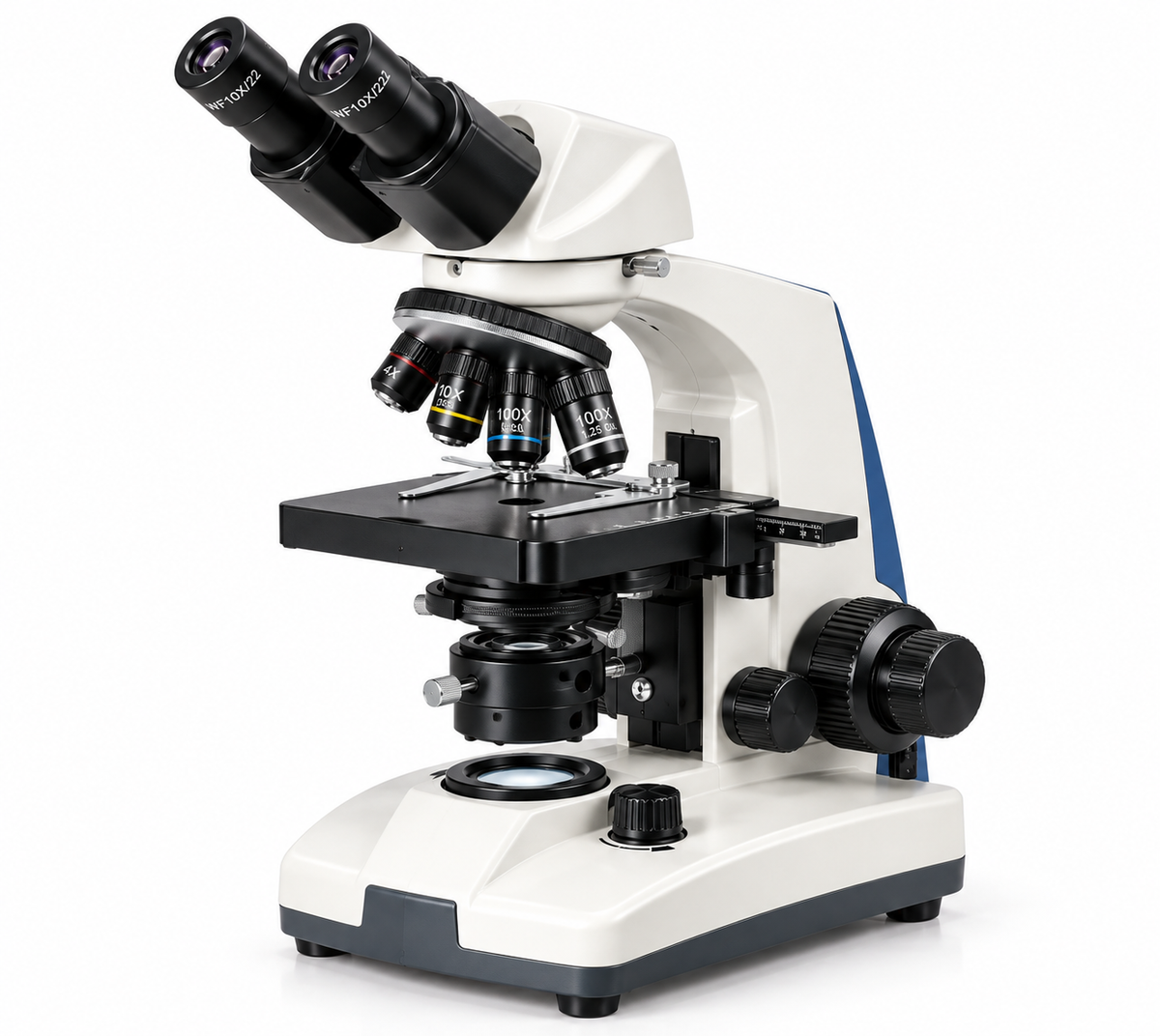

The BMC-550 Advance Research Microscope is an advanced research microscope featuring an Infinity Plan Achromatic optical system, Siedentopf binocular or trinocular viewing head, 40X–1000X magnification, precision coaxial focusing and a ball-bearing-driven mechanical X-Y stage. It also incorporates energy-saving illumination, LCD display, objective brightness memory and colour-temperature adjustment.

Product Overview

The Advance Research Microscope BMC-550 is designed for advanced laboratory research and specialized microscopy applications. Its Infinity Plan Achromatic optical system combines a broad objective selection with a precision mechanical platform for systematic specimen examination.

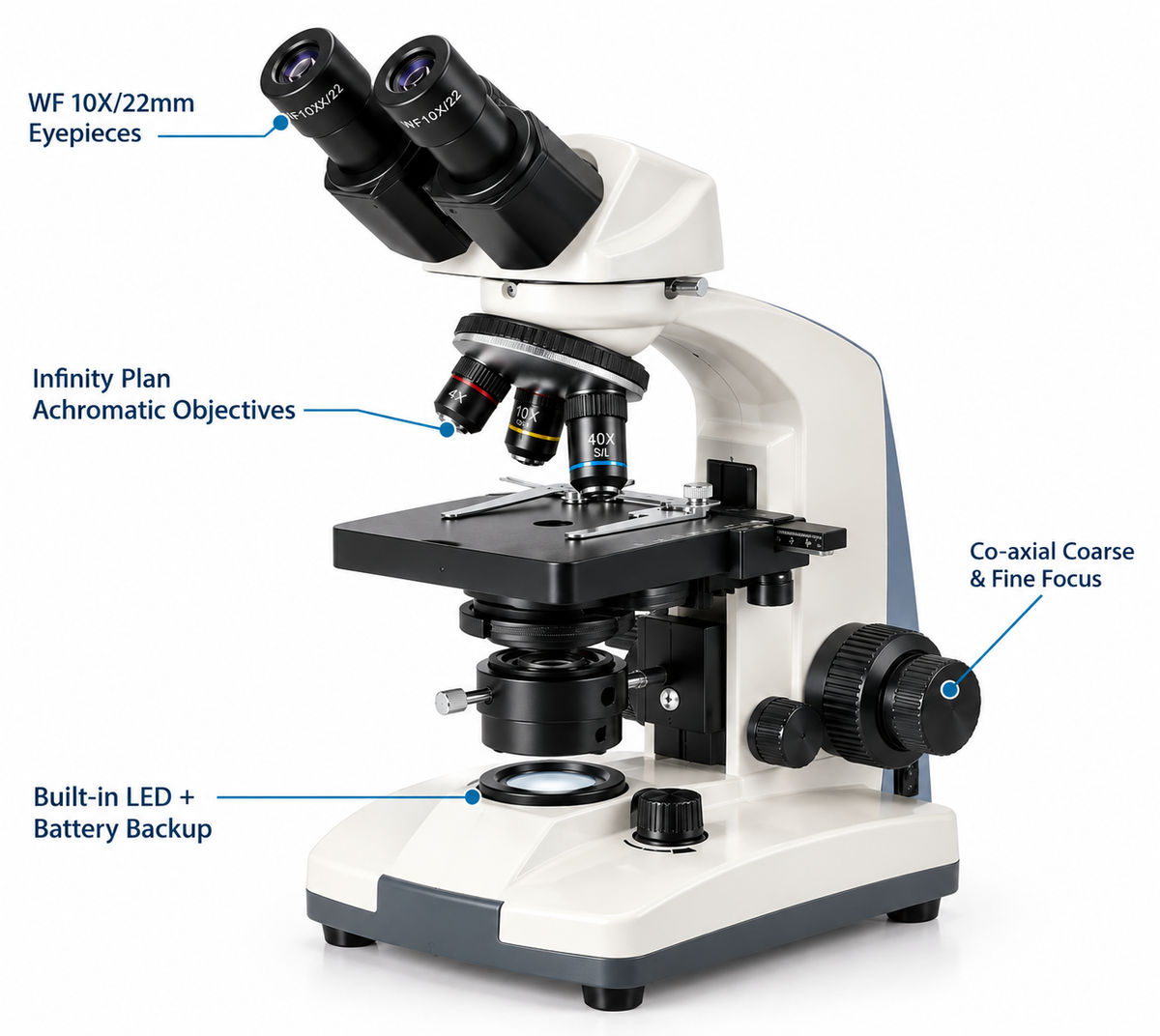

The microscope is available with binocular or trinocular viewing heads and uses a 30° inclined, 360° rotatable Siedentopf-type head. The optical configuration includes a WF 10X/22 mm eyepiece and 4X, 10X, 20X, 40X S/L and 100X S/L Infinity Plan Achromatic objectives, providing a specified magnification range of 40X–1000X.

A reversed inward quintuple ball-bearing nosepiece, coaxial coarse and fine focusing with 0.002 mm graduation, and ball-bearing-driven X-Y mechanical stage provide controlled specimen positioning and focusing.

The BMC-550 also features built-in LED illumination with intensity control and battery backup, along with an eco energy-saving function, LCD display, objective brightness memory and colour-temperature adjustment function.

The platform can be upgraded for fluorescence, metallurgical and polarizing microscopy.

Key Features and Benefits

• Infinity Plan Achromatic optical system
• 40X–1000X magnification
• WF 10X/22 mm wide-field eyepiece
• 4X, 10X, 20X, 40X S/L and 100X S/L objectives
• Binocular and trinocular viewing head options
• 30° inclined, 360° rotatable Siedentopf head
• Reversed inward quintuple ball-bearing nosepiece
• Positive click stops for objective positioning
• Coaxial coarse and fine focusing
• 0.002 mm fine-focus graduation
• Ball-bearing-driven mechanical X-Y stage
• Movable Abbe condenser, NA 1.25
• Iris diaphragm with swing-out filter holder
• Built-in LED illumination with intensity control
• Inbuilt battery backup
• Eco energy-saving function
• LCD display
• Objective brightness memory
• Colour-temperature adjustment
• Upgradeable for fluorescence, metallurgical and polarizing applications

4. Technical Specifications

5. Applications

• Advanced biological research
• Pharmaceutical research
• Academic and postgraduate research
• Fluorescence microscopy with appropriate attachment
• Metallurgical examination with appropriate configuration
• Polarizing microscopy with appropriate accessories
• Materials examination
• Research laboratory microscopy
• Drug development and formulation studies
• Graduate and postdoctoral research
• Specialized microscopy applications

6. Suitable For

• Research laboratories
• Pharmaceutical R&D laboratories
• Biotechnology laboratories
• University research departments
• Medical and life-science research centres
• Academic institutions
• Materials research laboratories
• Specialized microscopy laboratories
• Advanced microscopy facilities
• R&D and analytical laboratories

7. Product Benefits

• Advanced Infinity Plan optics: Supports research microscopy requiring an infinity-corrected optical platform.
• Broad objective selection: Five specified objectives provide flexibility across different magnification levels.
• High magnification: 40X–1000X range supports detailed specimen observation.
• Flexible viewing: Available in binocular and trinocular configurations.
• Precision focusing: Coaxial coarse/fine focusing with 0.002 mm graduation supports controlled focusing.
• Smooth specimen movement: Ball-bearing-driven X-Y stage facilitates systematic specimen examination.
• Controlled illumination: LED intensity control allows adjustment of specimen lighting.
• Illumination memory: Objective brightness memory helps maintain consistent illumination settings.
• Energy-conscious operation: Eco energy-saving function is incorporated into the illumination system.
• Colour-temperature adjustment: Provides additional control over illumination characteristics.
• Backup illumination: Inbuilt battery backup provides continued illumination support during power interruptions.
• Future expandability: The microscope can be upgraded for fluorescence, metallurgical and polarizing microscopy.
