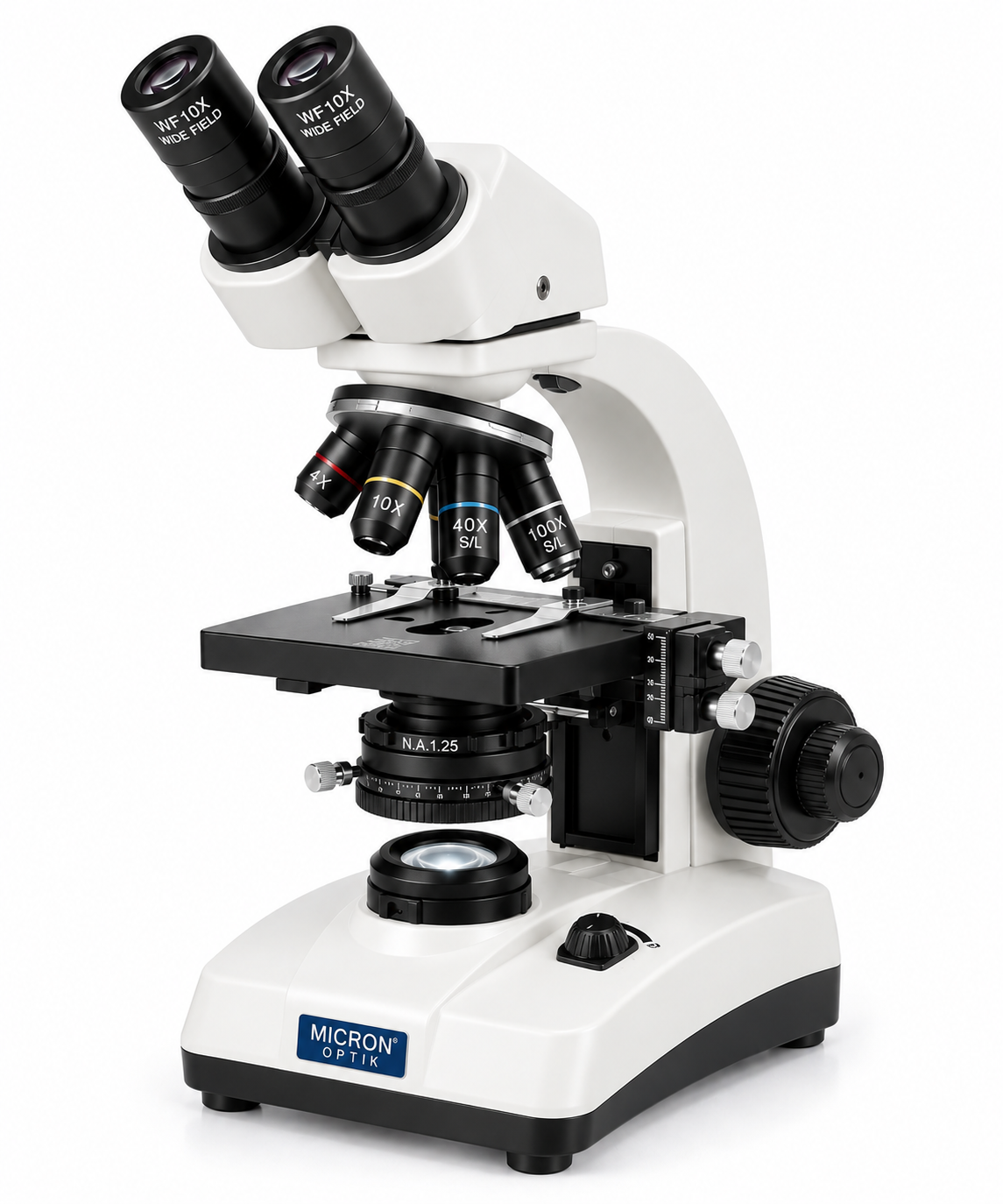

The Pathological Microscope BINO MINI is a compact laboratory microscope designed for pathology, histology, cytology, microbiology, advanced student studies and routine specimen examination. It offers 40X–1000X magnification, mechanical X-Y stage movement, separate coarse and fine focusing, a 1.25 NA Abbe condenser and variable-intensity LED illumination.

Product Overview

The BINO MINI Pathological Microscope combines a compact design with features required for routine pathological and biological microscopy. The viewing head is available in monocular, binocular and trinocular configurations, with a 360° rotatable head for flexible positioning.

Its optical configuration includes a WF 10X eyepiece and achromatic objectives of 4X, 10X, 40X S/L and 100X S/L, providing a total magnification range of 40X to 1000X. The 100X S/L objective supports oil-immersion microscopy.

A mechanical stage provides controlled X-Y slide movement, while separate coarse and fine focusing controls allow precise focusing. The fine focusing mechanism is graduated to 1 division = 0.002 mm.

The microscope incorporates a movable Abbe condenser NA 1.25 with iris diaphragm and swing-out filter holder. Built-in LED illumination with intensity control provides adjustable specimen illumination, with battery backup available as an option.

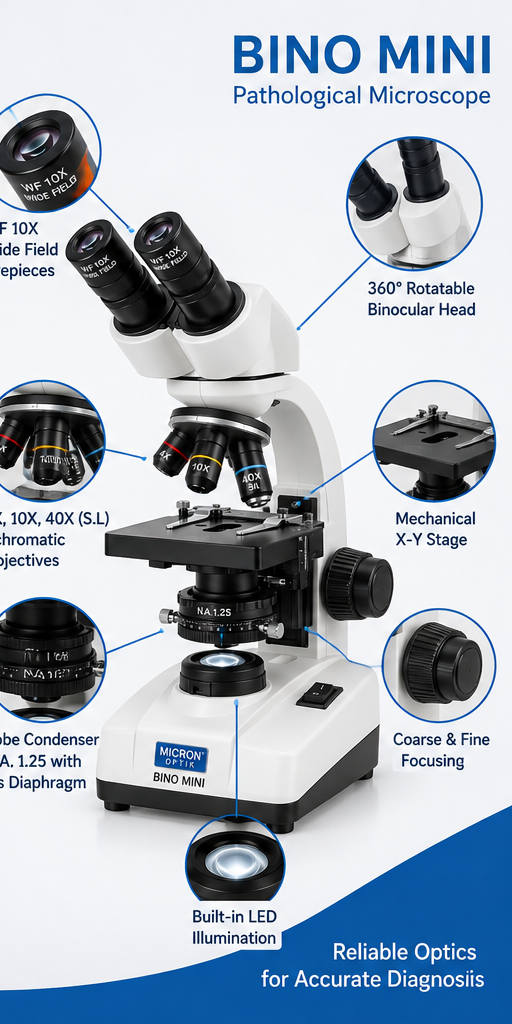

Key Features & Benefits

• 40X–1000X total magnification
• WF 10X eyepiece
• 4X, 10X, 40X S/L and 100X S/L achromatic objectives
• 100X S/L oil-immersion objective
• Monocular, binocular or trinocular head configurations available
• 360° rotatable viewing head
• Quadruple nosepiece with positive click stops
• Separate coarse and fine focusing
• Fine focusing graduated to 0.002 mm per division
• Mechanical stage with X-Y slide movement
• Movable Abbe condenser, NA 1.25
• Iris diaphragm and swing-out filter holder
• Built-in LED illumination with intensity control
• Optional battery backup
• Chemical-resistant stipple grey finish

4. Technical Specifications

5. Applications

• Pathology laboratories
• Histology and cytology studies
• Clinical microscopy
• Microbiology
• Small diagnostic laboratories
• Medical and pathology teaching
• Advanced student laboratory work
• Veterinary diagnostic laboratories
• Andrology and fertility laboratories
• Plant pathology research
• Agricultural research
• Cell biology studies

6. Suitable For

• Pathology laboratories
• Small clinics and diagnostic centres
• Medical colleges
• Teaching hospitals
• Veterinary laboratories
• Biology and microbiology laboratories
• Research and educational institutions
• Advanced students and researchers
• Private practitioners requiring routine microscopy

7. Product Benefits

• Wide 40X–1000X magnification: Suitable for routine and higher-magnification microscopic examination.
• Mechanical X-Y stage: Enables controlled positioning and systematic scanning of slides.
• Precision focusing: Separate coarse and fine focusing provides controlled specimen focusing.
• 100X oil immersion capability: Supports high-magnification microscopy applications.
• Adjustable illumination: LED intensity control allows illumination to be adjusted according to the specimen.
• Flexible viewing configuration: Available with monocular, binocular or trinocular viewing heads.
• Compact design: Suitable for laboratories where bench space is limited.
• Chemical-resistant finish: Designed for routine laboratory environments.
• Optional battery backup: Provides additional flexibility where required.
