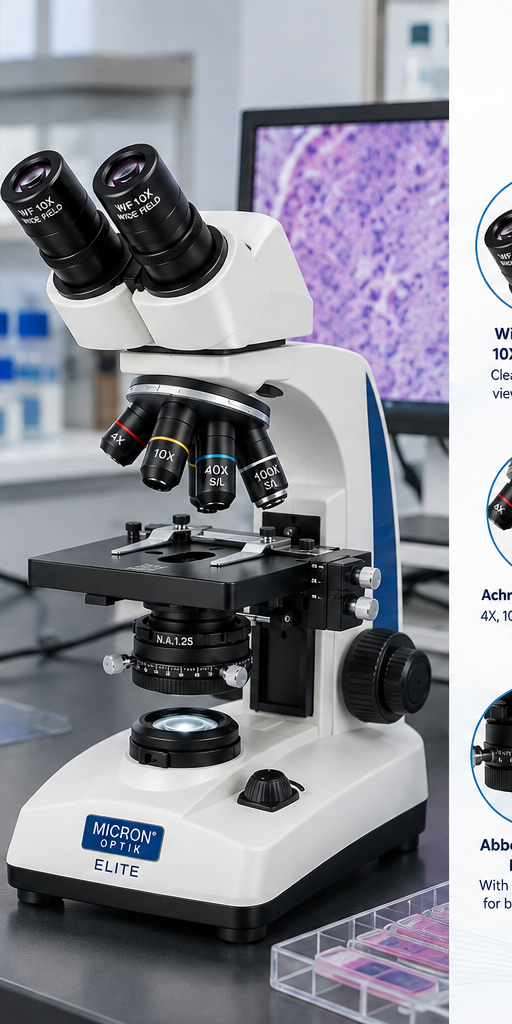

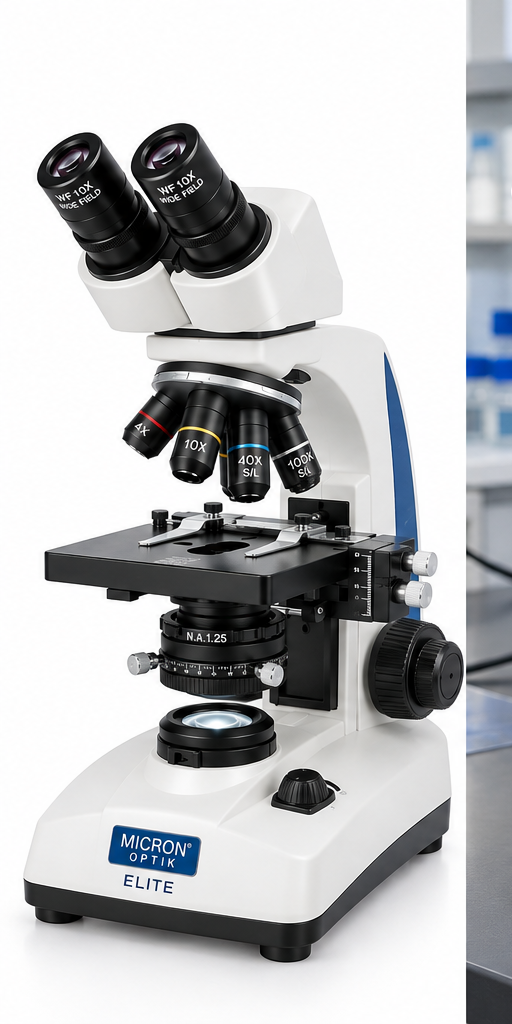

The Pathological Microscope Model ELITE is an advanced binocular laboratory microscope designed for pathology, histopathology, research and diagnostic applications. It combines a stable C-shaped stand, 45° inclined 360° rotatable binocular head, precision coaxial focusing, a low-drive mechanical stage and 40X–1000X JIS achromatic optics.

Product Overview

The ELITE Pathological Microscope is designed for laboratories requiring a combination of ergonomic operation, controlled slide positioning and high-magnification optical observation. Its C-shaped body stand with an integrated window in the arm provides a stable platform while also making the instrument easier to carry.

The microscope features a sliding-type binocular head inclined at 45°, with 360° rotation for comfortable viewing. Coaxial coarse and fine focusing provides controlled focusing, with a 50 mm coarse focusing range and fine focusing graduated to 0.002 mm. A torque adjustment ring allows adjustment of focusing feel, while an adjustable safety stopper helps protect slides and objectives.

For specimen positioning, the ELITE uses a 120 × 140 mm low-drive ball-bearing mechanical stage with coaxial X-Y controls. The outward-facing quadruple revolving nosepiece provides convenient access to the objectives.

The optical system comprises paired WF 10X eyepieces with an 18 mm field of view and JIS achromatic objectives of 4X, 10X, 40X S/L and 100X S/L, delivering 40X–1000X total magnification. Built-in 3W LED illumination with intensity control provides adjustable specimen illumination.

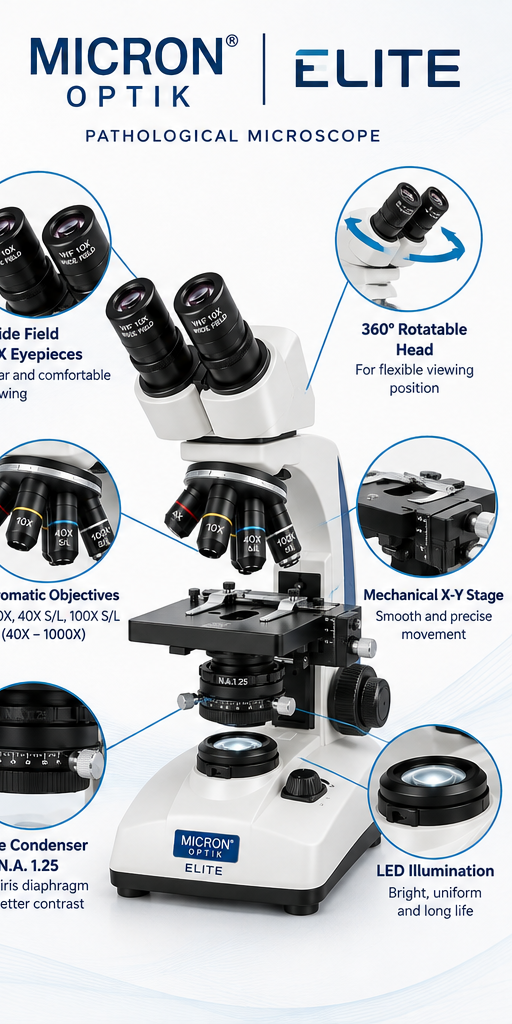

Key Features & Benefits

• C-shaped body stand with carrying window
• 45° inclined sliding binocular head
• 360° rotatable viewing head
• Coaxial coarse and fine focusing
• 50 mm coarse focusing range
• 0.002 mm fine-focus graduation
• Torque adjustment ring
• Adjustable safety stopper
• 120 × 140 mm low-drive mechanical stage
• Ball-bearing X-Y stage movement
• Outward-facing quadruple revolving nosepiece
• JIS achromatic 4X–100X objectives
• 40X–1000X total magnification
• Paired WF 10X eyepieces
• 18 mm eyepiece field of view
• 3W LED illumination with intensity control

4. Technical Specifications

5. Applications

• Advanced pathology diagnostics
• Histopathology slide examination
• Research pathology
• Reference laboratory microscopy
• Teaching hospital pathology
• Pathology resident training
• Diagnostic laboratory work
• Dermatopathology
• Neuropathology
• Academic and pharmaceutical research

6. Suitable For

• Pathology laboratories
• Histopathology laboratories
• Diagnostic centres
• Reference laboratories
• Teaching hospitals
• Medical colleges
• Research institutions
• Pharmaceutical research laboratories
• Specialized pathology departments
• Pathology training and teaching facilities

7. Product Benefits

• 40X–1000X magnification: Supports observation from low-power scanning through high-magnification microscopy.
• Ergonomic binocular viewing: The 45° inclined head is designed for comfortable observation.
• 360° head rotation: Allows flexible viewing positions without repositioning the microscope.
• Precision focusing: Coaxial coarse and fine controls simplify focusing during specimen examination.
• Fine 0.002 mm graduation: Supports controlled fine focusing for detailed microscopy.
• Safety stopper: Helps reduce the risk of contact between objectives and slides.
• Low-drive mechanical stage: Allows convenient X-Y specimen positioning with minimal hand movement.
• JIS achromatic optics: Provides a standardized objective configuration covering 4X to 100X.
• Adjustable LED illumination: Intensity can be adapted to different specimens and magnifications.
• Easy handling: The window in the C-shaped arm provides a convenient carrying point.
