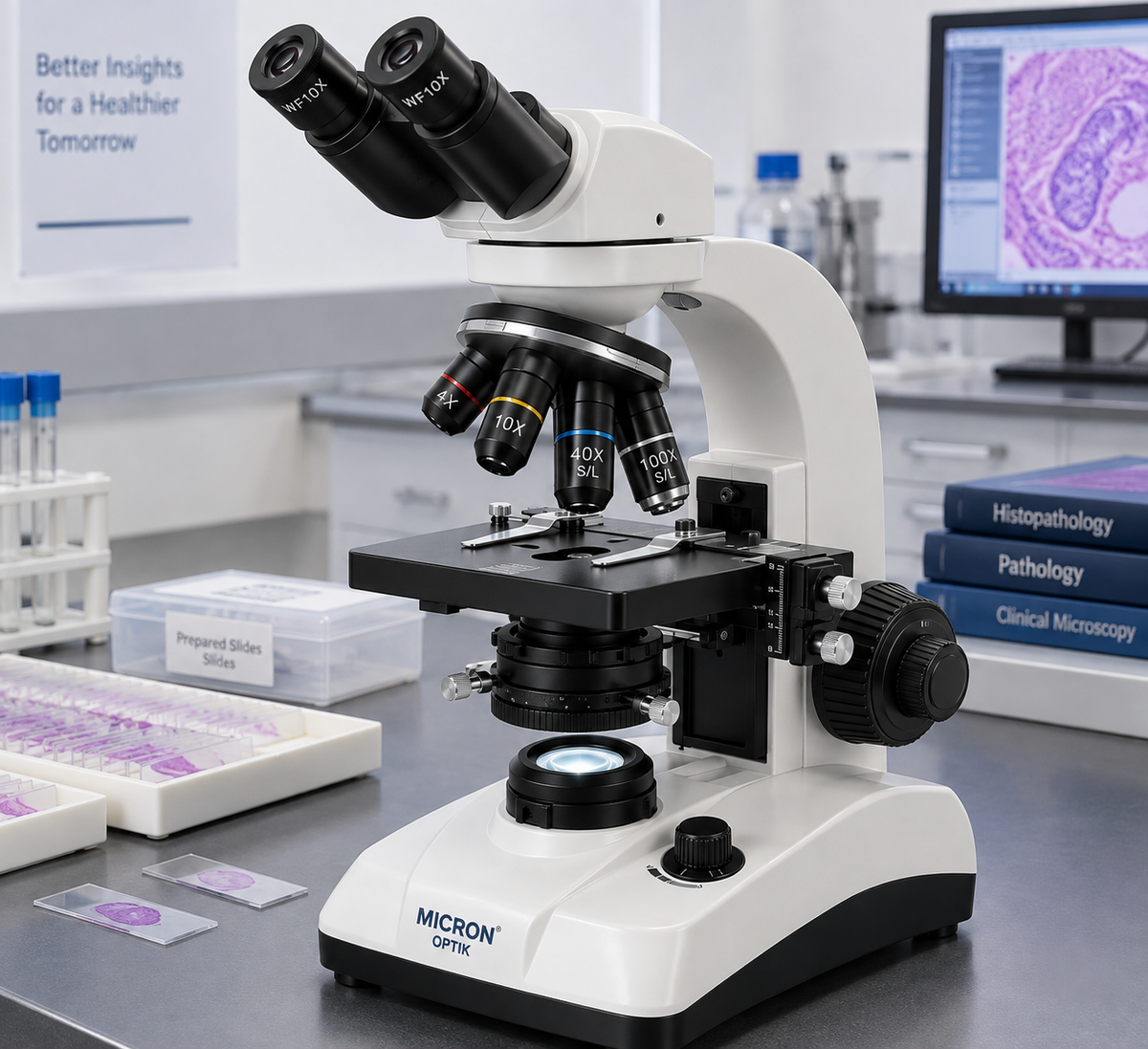

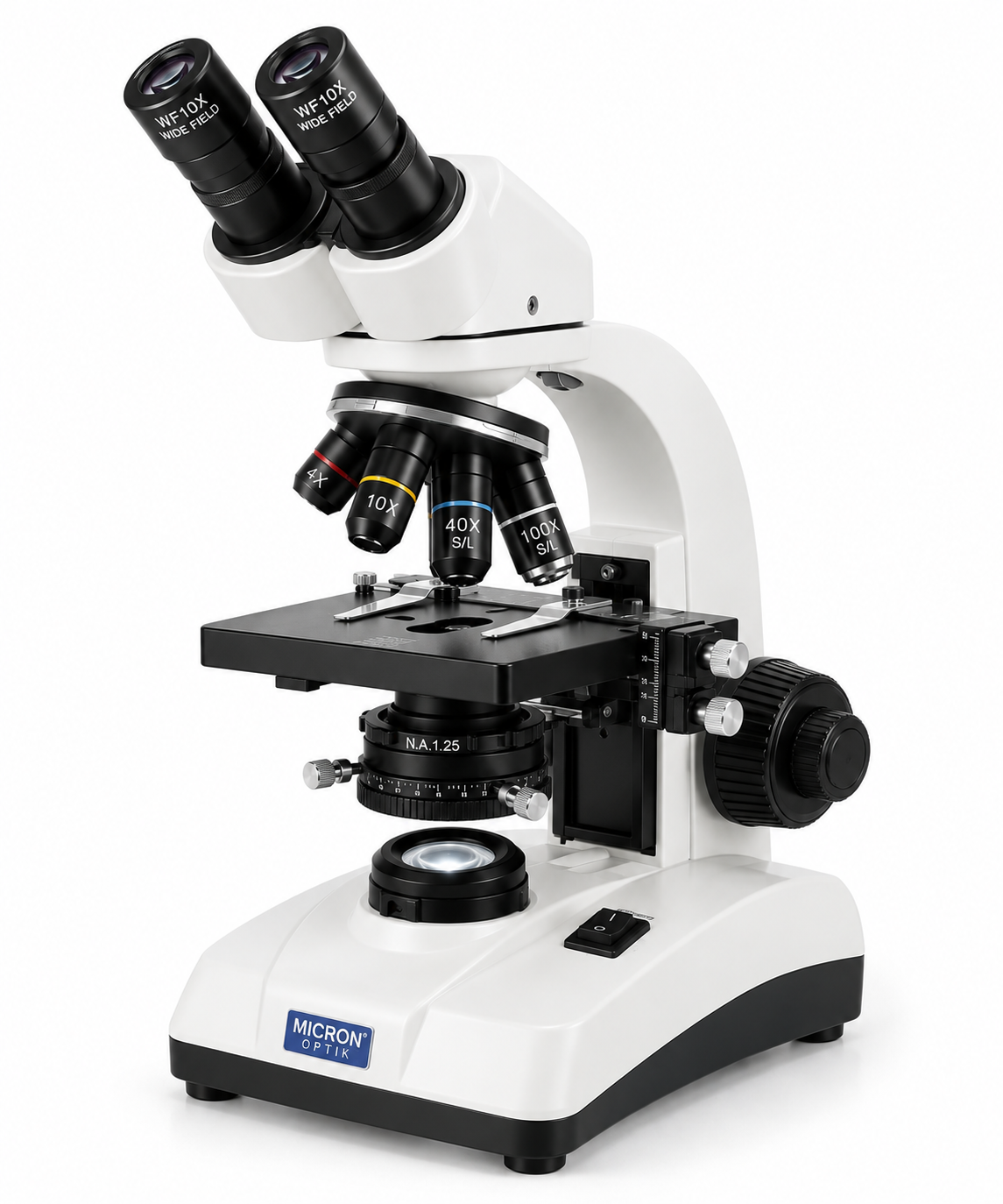

The BINO CXL Pathological Microscope is a binocular laboratory microscope designed for routine pathology, histopathology, cytology, hematology and clinical microscopy. It combines 40X–1000X magnification, a WF 10X eyepiece, 4X–100X achromatic objectives, coaxial coarse and fine focusing, a ball-bearing mechanical X-Y stage, NA 1.25 Abbe condenser and intensity-controlled LED illumination.
Product Overview
The BINO CXL is a dedicated pathological microscope designed for routine clinical laboratory and medical microscopy applications. Its binocular viewing configuration is intended to provide comfortable observation during extended microscopy sessions.

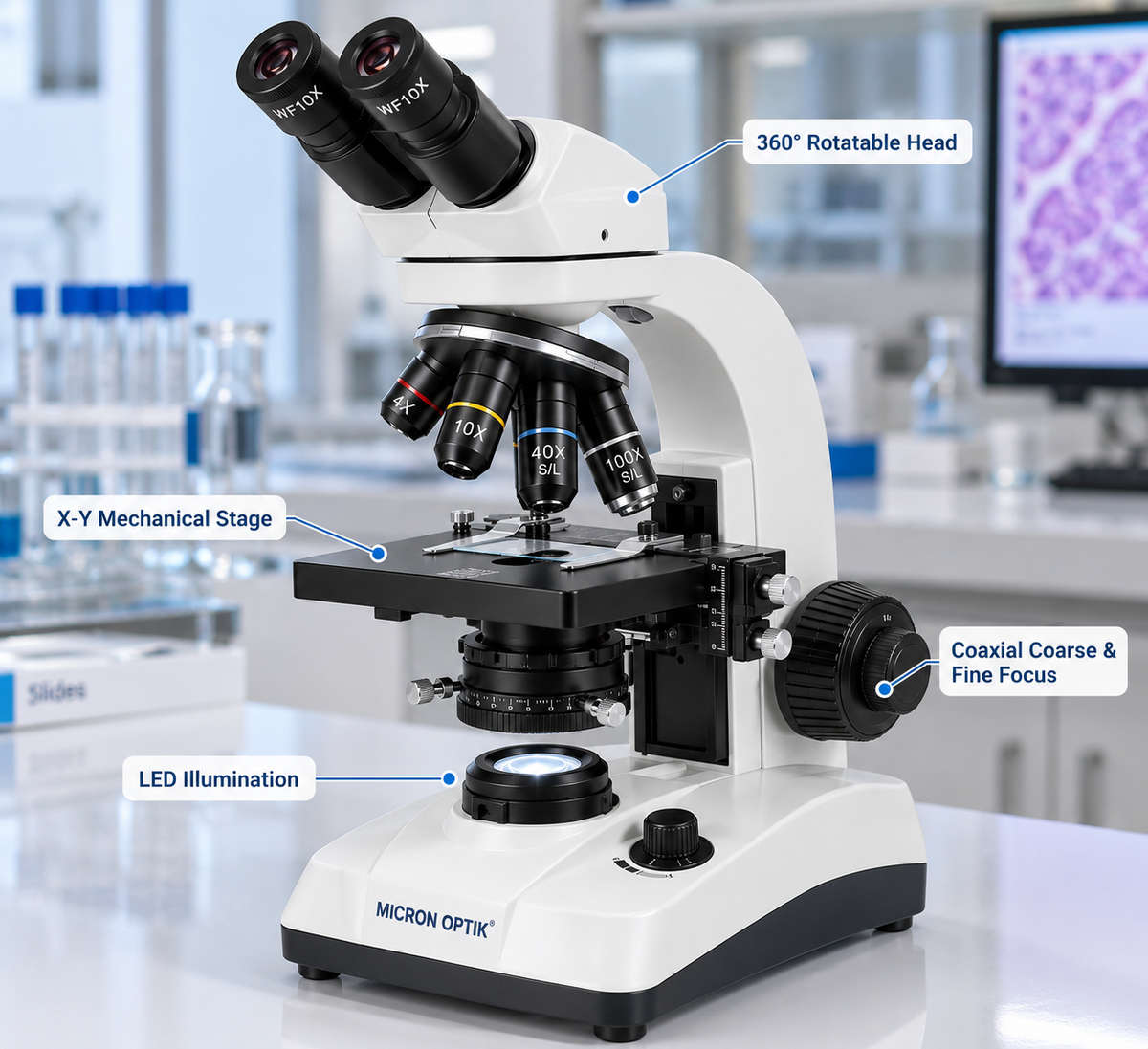

The viewing head is 360° rotatable, while the quadruple ball-bearing nosepiece provides smooth objective changes with positive click stops. The coaxial coarse and fine focusing system keeps the focusing controls together for convenient operation, with fine focusing graduated to 1 division = 0.002 mm.
A ball-bearing-driven mechanical stage provides smooth X-Y movement of the slide, allowing systematic examination of tissue sections and other prepared specimens.
The illumination system consists of built-in LED illumination with intensity control. A movable Abbe condenser with NA 1.25, iris diaphragm and swing-out filter holder provides control over specimen illumination.
Key Features & Benefits
- 40X–1000X magnification
- WF 10X eyepiece
- 4X, 10X, 40X S/L and 100X S/L achromatic objectives
- 100X S/L oil-immersion objective
- 360° rotatable binocular viewing head
- Monocular, binocular and trinocular configurations available
- Quadruple ball-bearing nosepiece
- Positive click stops
- Coaxial coarse and fine focusing
- Fine focus graduation: 1 division = 0.002 mm
- Ball-bearing-driven mechanical X-Y stage
- Movable Abbe condenser, NA 1.25
- Iris diaphragm and swing-out filter holder
- Built-in LED illumination with intensity control
- Optional battery backup
- Chemical-resistant stipple-grey finish
- Dust cover supplied
4. Technical Specifications
| Specification | Details |
|---|---|
| Model | BINO CXL |
| Product Type | Pathological Binocular Microscope |
| Viewing Head | Monocular / Binocular / Trinocular configurations available |
| Head Rotation | 360° |
| Eyepiece | WF 10X |
| Objectives | 4X, 10X, 40X S/L, 100X S/L Achromatic |
| Magnification | 40X–1000X |
| 100X Objective | S/L Oil Immersion |
| Nosepiece | Quadruple ball-bearing |
| Nosepiece Positioning | Positive click stops |
| Focusing | Coaxial coarse & fine |
| Fine Focus Graduation | 1 division = 0.002 mm |
| Stage | Ball-bearing-driven mechanical stage |
| Stage Movement | X-Y |
| Condenser | Movable Abbe type |
| Condenser NA | 1.25 |
| Diaphragm | Iris |
| Filter Holder | Swing-out |
| Illumination | Built-in LED |
| Illumination Control | Intensity control |
| Battery Backup | Optional |
| Body Finish | Stipple grey, chemical-resistant |
| Dust Cover | Supplied |
| Packing | Styrofoam |
| Optional Accessories | Wooden carrying case |
| Optional Objectives | 20X, 45X S/L, 60X S/L |
5. Applications
The BINO CXL is suitable for:
- Routine histopathology
- Histology slide examination
- Cytology
- Pap smear screening
- Hematology
- Blood smear examination
- Clinical microbiology
- Medical laboratory microscopy
- Pathology teaching
- Medical student training
- Pathology residency training
- Hospital pathology departments
- Reference laboratories
- Commercial clinical laboratories
- Biological research
6. Suitable For
- Pathology laboratories
- Histopathology laboratories
- Cytology laboratories
- Hematology laboratories
- Clinical diagnostic laboratories
- Hospital pathology departments
- Medical colleges
- Teaching hospitals
- Reference laboratories
- Commercial laboratories
- Biological research laboratories
- Medical training institutions
7. Product Benefits
- 40X–1000X magnification for routine pathological microscopy
- Binocular viewing designed for comfortable extended observation
- 360° rotatable head for flexible viewing orientation
- Coaxial focusing keeps coarse and fine controls conveniently positioned
- 0.002 mm fine-focus graduation for controlled focusing
- Ball-bearing mechanical stage for smooth X-Y slide movement
- NA 1.25 Abbe condenser for controlled illumination
- Iris diaphragm and swing-out filter holder for illumination adjustment
- Built-in LED illumination with variable intensity
- 100X oil-immersion objective for high-magnification examination
- Optional battery backup for additional operating flexibility
- Regular price
- Rs.37,899.00
- Sale price
- Rs.19,899.00
