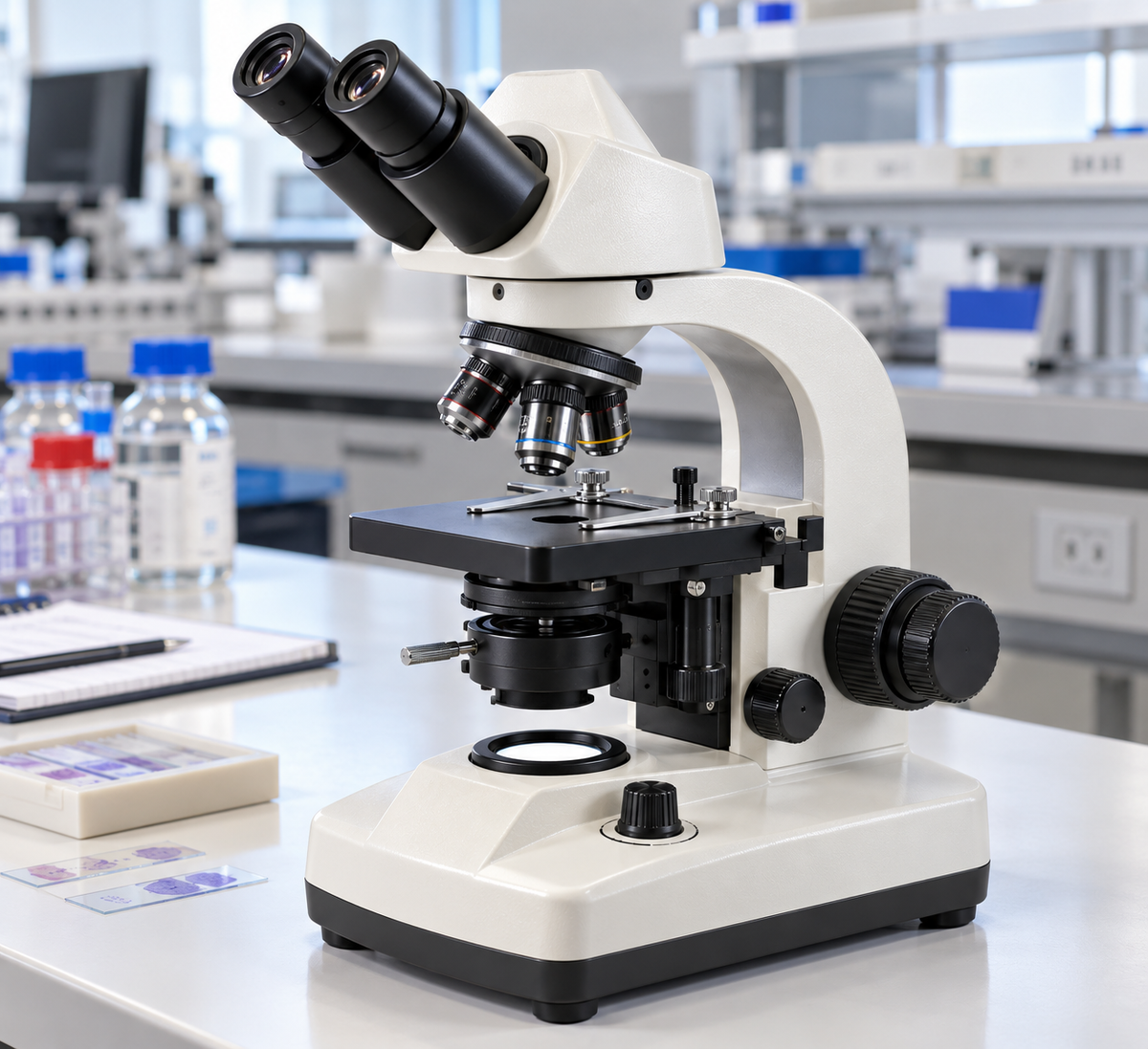

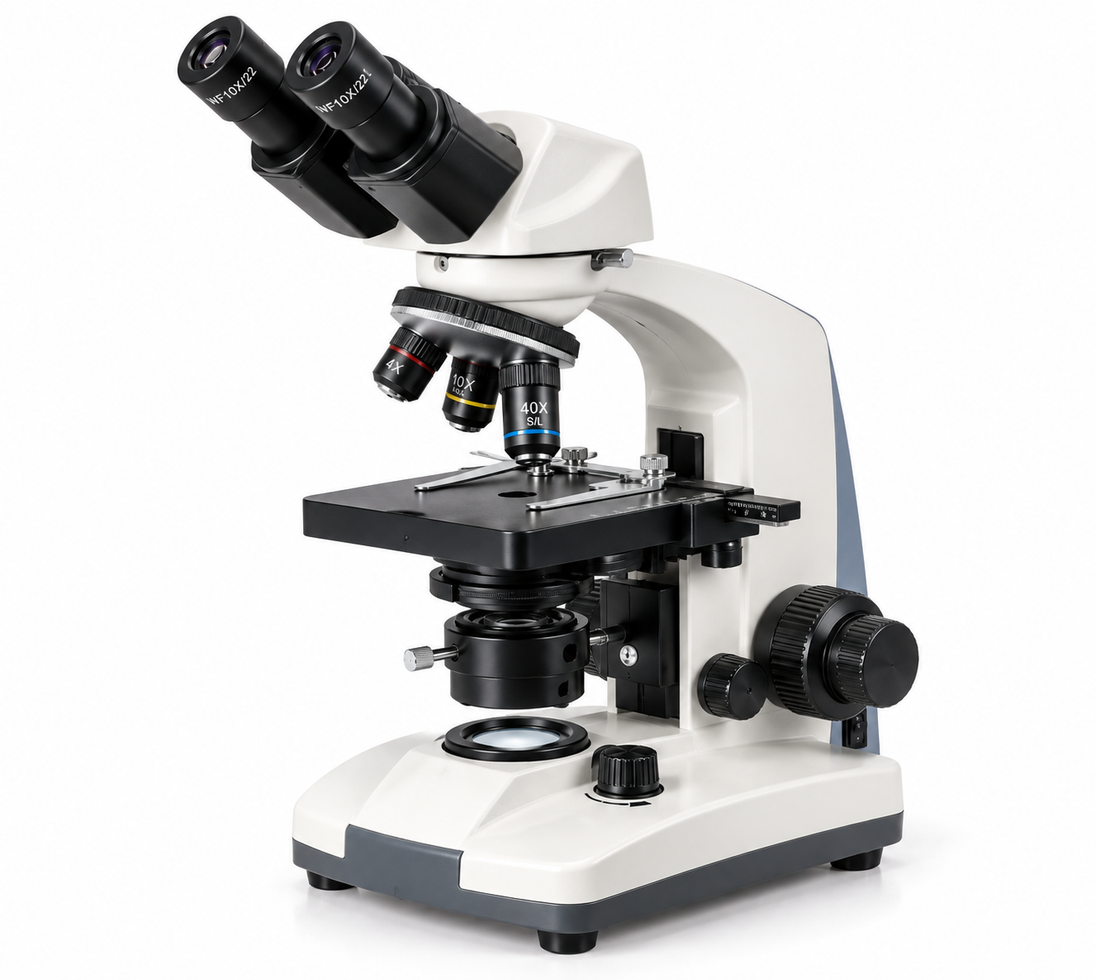

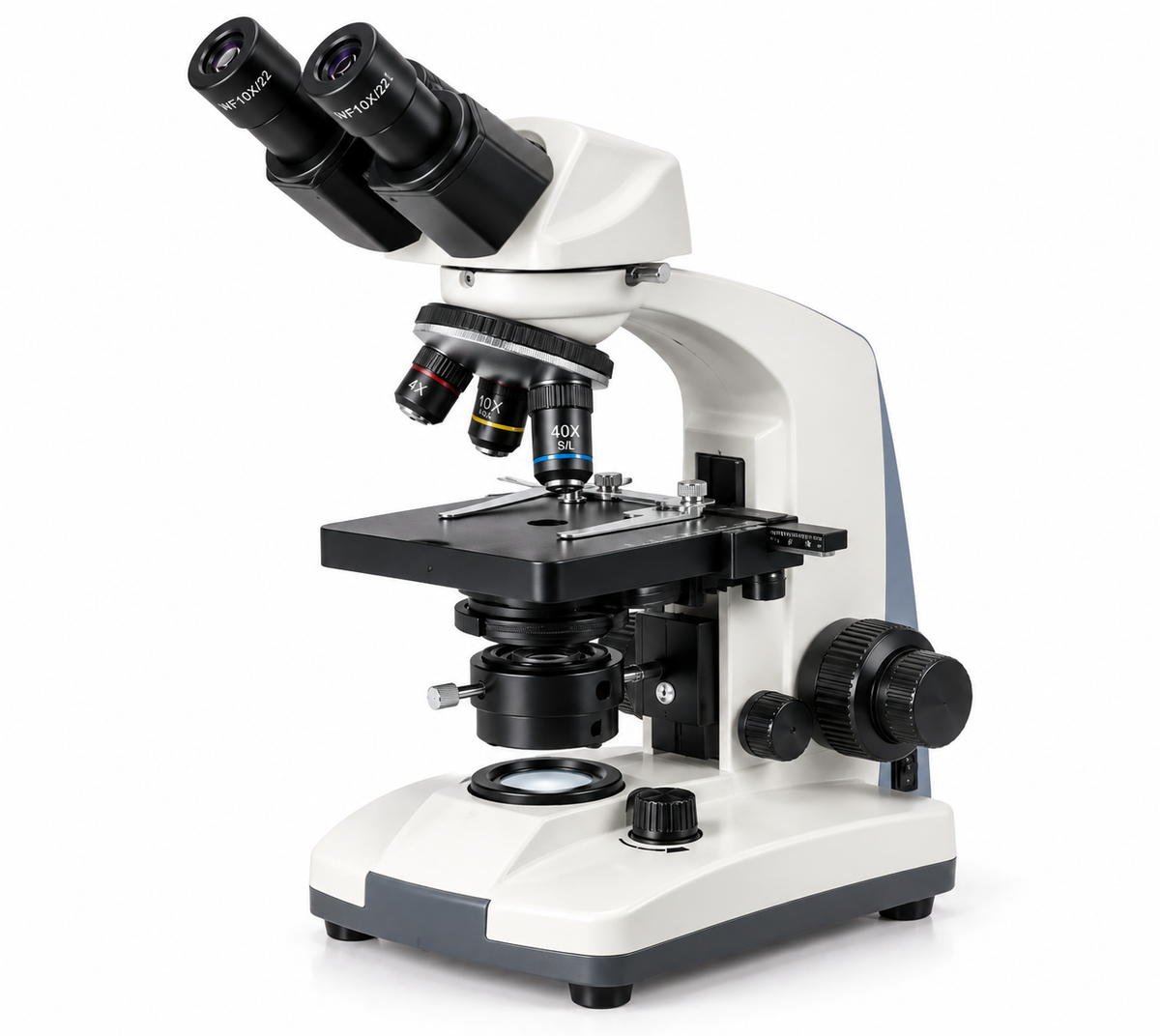

The BMC-330 Advance Research Microscope is a research-grade biological microscope featuring an Infinity Plan Achromatic optical system, Siedentopf binocular/trinocular viewing head, 40X–1000X magnification, precision coaxial focusing and a rackless mechanical stage. Its platform can be upgraded for fluorescence, metallurgical and polarizing microscopy applications.

Product Overview

The Advance Research Microscope BMC-330 is designed as a versatile research microscopy platform for laboratories requiring infinity-corrected optics, precision specimen positioning and flexible viewing configurations.

It incorporates Infinity Plan Achromatic objectives from 4X to 100X, a WF 10X/22 mm eyepiece, and a total magnification range of 40X–1000X. The Siedentopf-type head is inclined at 30° and rotates through 360°, with binocular and trinocular configurations available.

The microscope features a reversed inward quadruple ball-bearing nosepiece, coaxial coarse and fine focusing with 0.002 mm graduation, a rackless mechanical X-Y stage, and a movable Abbe condenser with NA 1.25. Built-in LED illumination includes intensity control and an inbuilt battery backup facility.

The BMC-330 can also be upgraded for fluorescence, metallurgical and polarizing microscopy, making it suitable for laboratories with changing or specialized microscopy requirements.

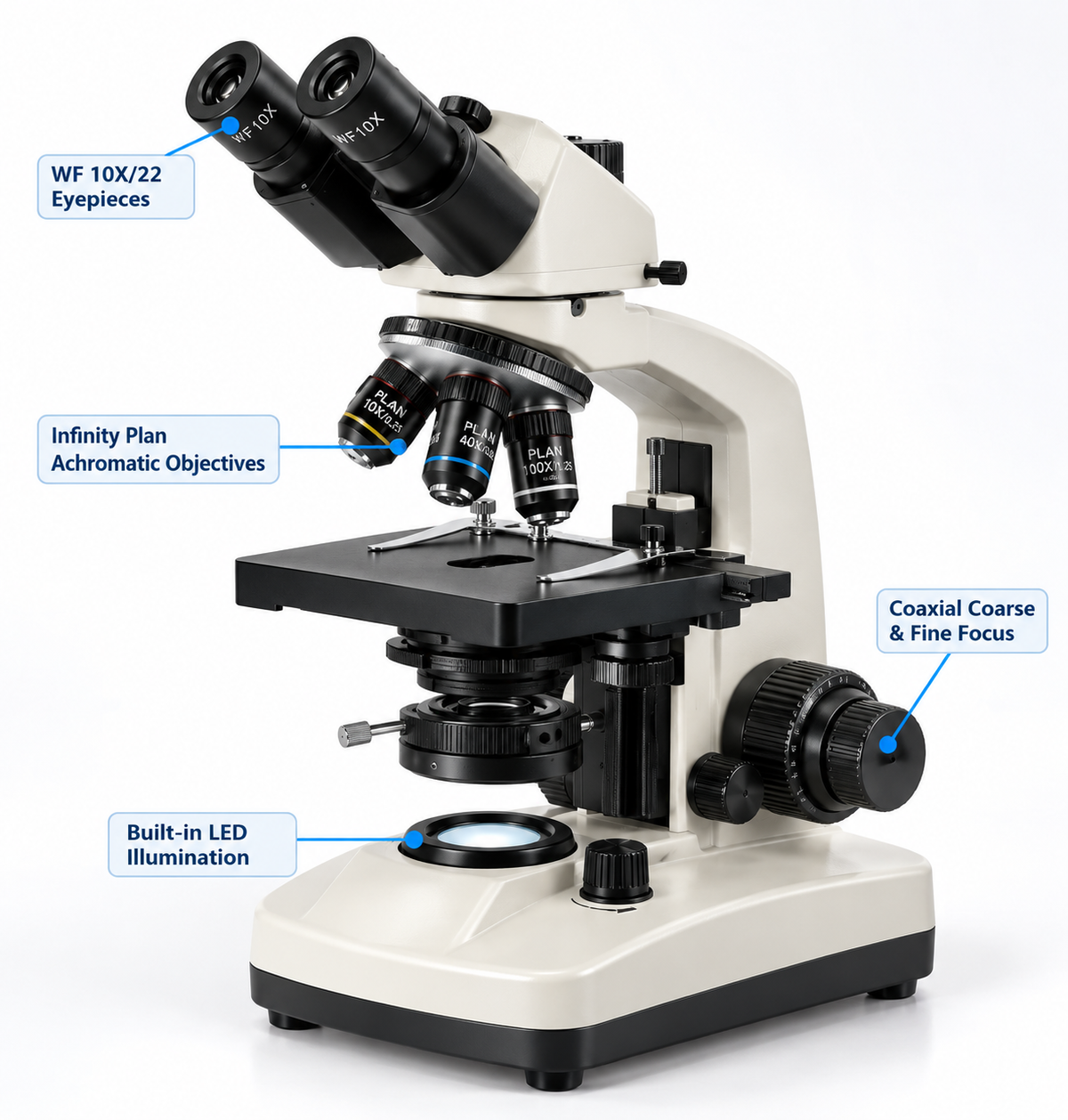

Key Features and Benefits

• Infinity Plan Achromatic optical system
• 40X–1000X magnification
• WF 10X/22 mm wide-field eyepiece
• 4X, 10X, 40X S/L and 100X S/L objectives
• Binocular and trinocular viewing head options
• Siedentopf-type head with 30° inclination
• 360° rotatable viewing head
• Reversed inward quadruple ball-bearing nosepiece
• Coaxial coarse and fine focusing
• 0.002 mm fine-focus graduation
• Rackless mechanical X-Y stage
• Abbe condenser NA 1.25 with iris diaphragm
• Swing-out filter holder
• Built-in LED illumination with intensity control
• Inbuilt battery backup
• Upgradeable to fluorescence, metallurgical and polarizing configurations

4. Technical Specifications

5. Applications

• Advanced biological research
• Pharmaceutical research
• Academic and postgraduate research
• Graduate and postdoctoral microscopy
• Fluorescence microscopy with appropriate attachment
• Metallurgical examination with appropriate configuration
• Polarizing microscopy with appropriate accessories
• Materials research
• Specialized laboratory microscopy
• Research specimen examination
• Pharmaceutical formulation and drug research

6. Suitable For

• Research laboratories
• Pharmaceutical laboratories
• Biotechnology laboratories
• University research departments
• Medical and life-science research centres
• Academic institutions
• Materials research laboratories
• Specialized microscopy laboratories
• R&D facilities
• Quality-control and analytical laboratories requiring advanced microscopy

7. Product Benefits

• Infinity Plan optics: Provides a platform designed for advanced specimen observation and compatibility with specialized accessories.
• High magnification: 40X–1000X range supports examination from low to high magnification.
• Flexible viewing: Available in binocular and trinocular configurations.
• Precision focusing: Coaxial focusing with 0.002 mm graduation supports detailed specimen focusing.
• Smooth specimen positioning: Mechanical X-Y stage enables systematic specimen movement.
• Enhanced illumination: Built-in LED illumination provides adjustable light intensity.
• Operational continuity: Inbuilt battery backup supports illumination during power interruptions.
• Specialized upgrade path: The platform can be configured for fluorescence, metallurgical and polarizing microscopy.
• Protected objectives: Reversed inward nosepiece helps position the objectives toward the protected inner side of the assembly.
• Ergonomic viewing: 30° inclined Siedentopf head supports comfortable observation.
