The KG-5I Inclined Medical Microscope is a monocular medical microscope designed for routine clinical and educational microscopy. It features a 45° inclined viewing tube, graduated X-Y mechanical stage, coarse and fine focusing, a focusable NA 1.25 Abbe condenser with iris diaphragm, and an optical combination of 5X and 10X Huygenian eyepieces with 10X, 40X S/L and 100X S/L achromatic objectives, providing 50X–1000X magnification.

3. Detailed Product Description

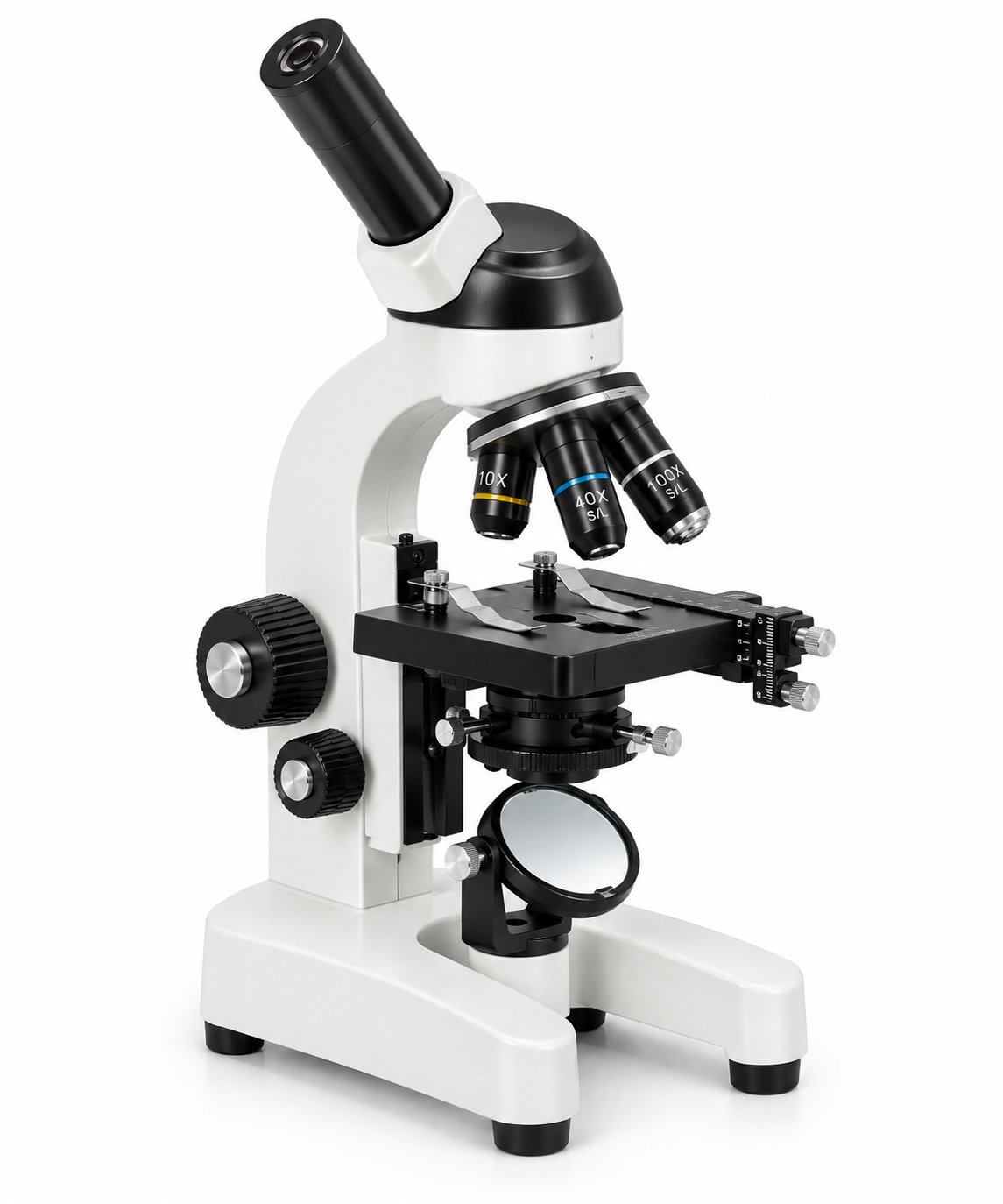

Product Overview

The KG-5I Inclined Medical Microscope is designed for comfortable seated operation in medical, clinical and educational laboratory environments. Its 45° inclined monocular tube provides an ergonomic viewing position for extended microscopy sessions.

The microscope incorporates a 120 × 120 mm graduated X-Y mechanical stage for systematic slide positioning. A dust-proof triple revolving nosepiece with positive click stops provides convenient objective selection.

Focusing is provided through separate coarse and fine adjustments with a scale. The substage Abbe condenser has NA 1.25, iris diaphragm and rack-and-pinion focusing, allowing the condenser position and illumination to be adjusted according to the specimen and objective.

The standard optical combination includes 5X and 10X Huygenian eyepieces and 10X, 40X S/L and 100X S/L achromatic objectives, providing a magnification range of 50X–1000X.

The 100X S/L objective provides an oil-immersion configuration for high-magnification microscopy.

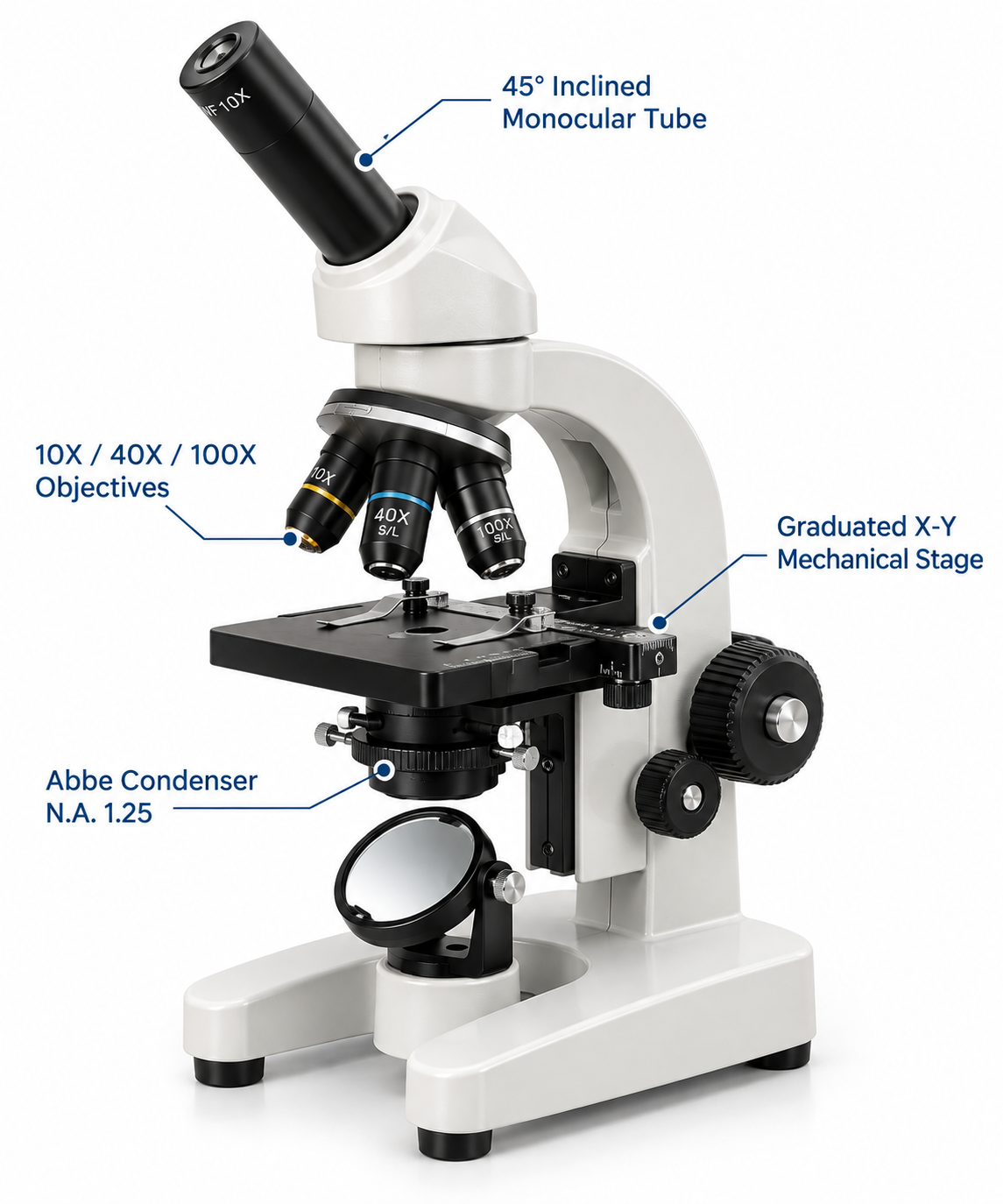

Key Features & Benefits

• 45° inclined monocular viewing tube
• 50X–1000X magnification
• 5X and 10X Huygenian eyepieces
• 10X, 40X S/L and 100X S/L achromatic objectives
• 100X S/L oil-immersion capability
• 120 × 120 mm graduated X-Y mechanical stage
• 75 × 25 mm vernier-scale movement
• Focusable Abbe condenser, NA 1.25
• Iris diaphragm
• Rack-and-pinion condenser focusing
• Coarse and fine focusing with scale
• Dust-proof triple revolving nosepiece
• Positive click stops
• Plano-concave mirror illumination
• Chemical-resistant stipple-grey finish
• Dust cover and protective Styrofoam packing

4. Technical Specifications

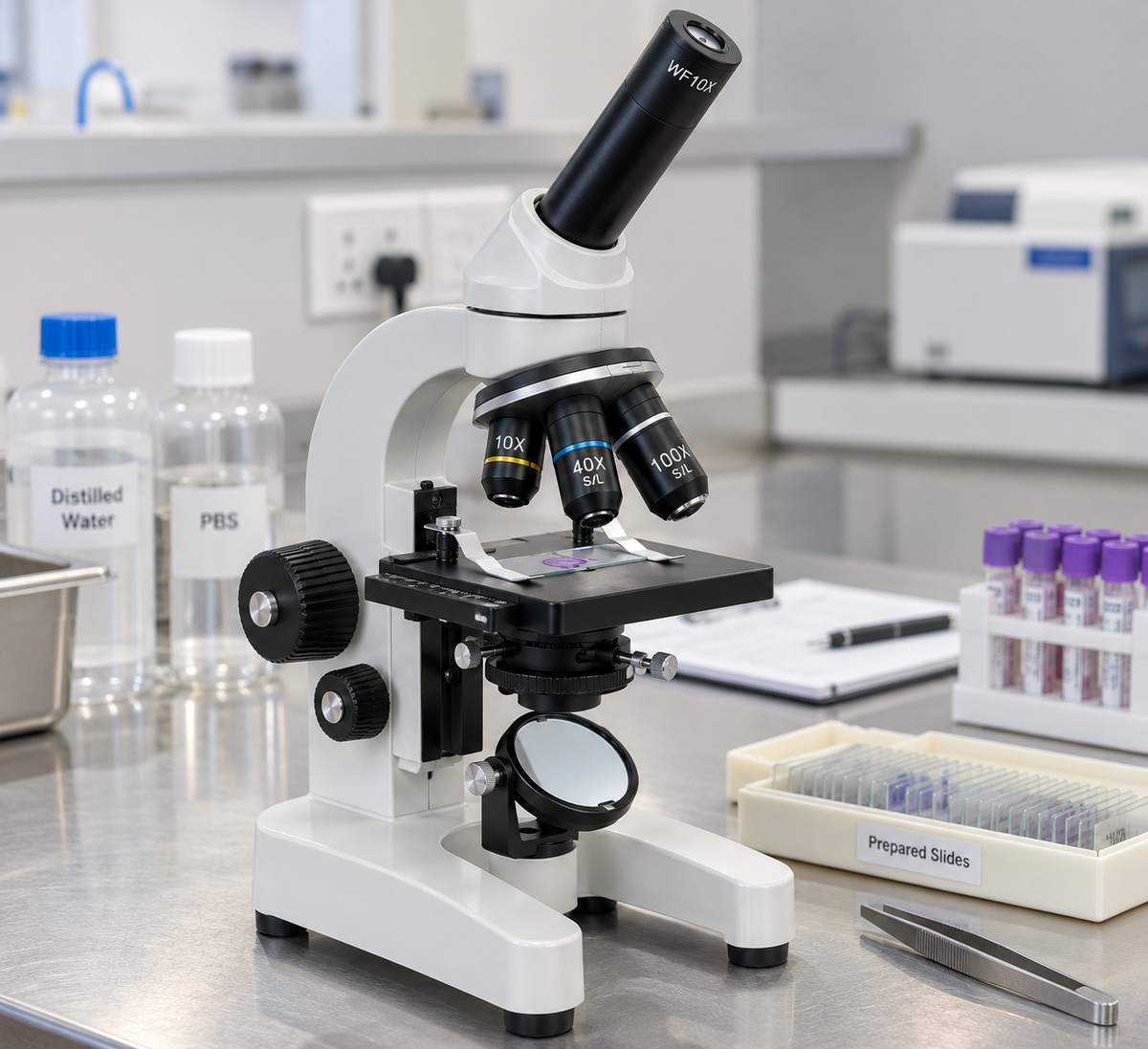

5. Applications

The KG-5I is suitable for:

• Clinical laboratory microscopy
• Hematology teaching and examination
• Blood smear observation
• Urine sediment examination
• Routine microbiology microscopy
• Medical college laboratory training
• Pathology laboratory education
• Clinical research
• Hospital laboratory microscopy
• Reference laboratory applications
• Medical student practical training
• Routine examination of prepared clinical specimens

6. Suitable For

• Clinical diagnostic laboratories
• Medical colleges
• Pathology teaching laboratories
• Hospital laboratories
• Physician office laboratories
• Reference laboratories
• Clinical research facilities
• Medical and allied-health institutions
• Biology and clinical microscopy teaching laboratories

7. Product Benefits

• 45° inclined viewing provides a comfortable seated observation position
• 50X–1000X magnification covers routine educational and clinical microscopy
• 100X S/L oil-immersion objective supports high-magnification observation
• Graduated X-Y mechanical stage enables systematic slide positioning
• 75 × 25 mm vernier movement provides controlled specimen movement
• NA 1.25 Abbe condenser provides controlled illumination
• Iris diaphragm allows illumination adjustment
• Coarse and fine focusing provides controlled image adjustment
• Dust-proof nosepiece helps protect objective mechanisms
• Plano-concave mirror provides non-electrical illumination
• Ergonomic 45° monocular tube is suited to extended seated use
