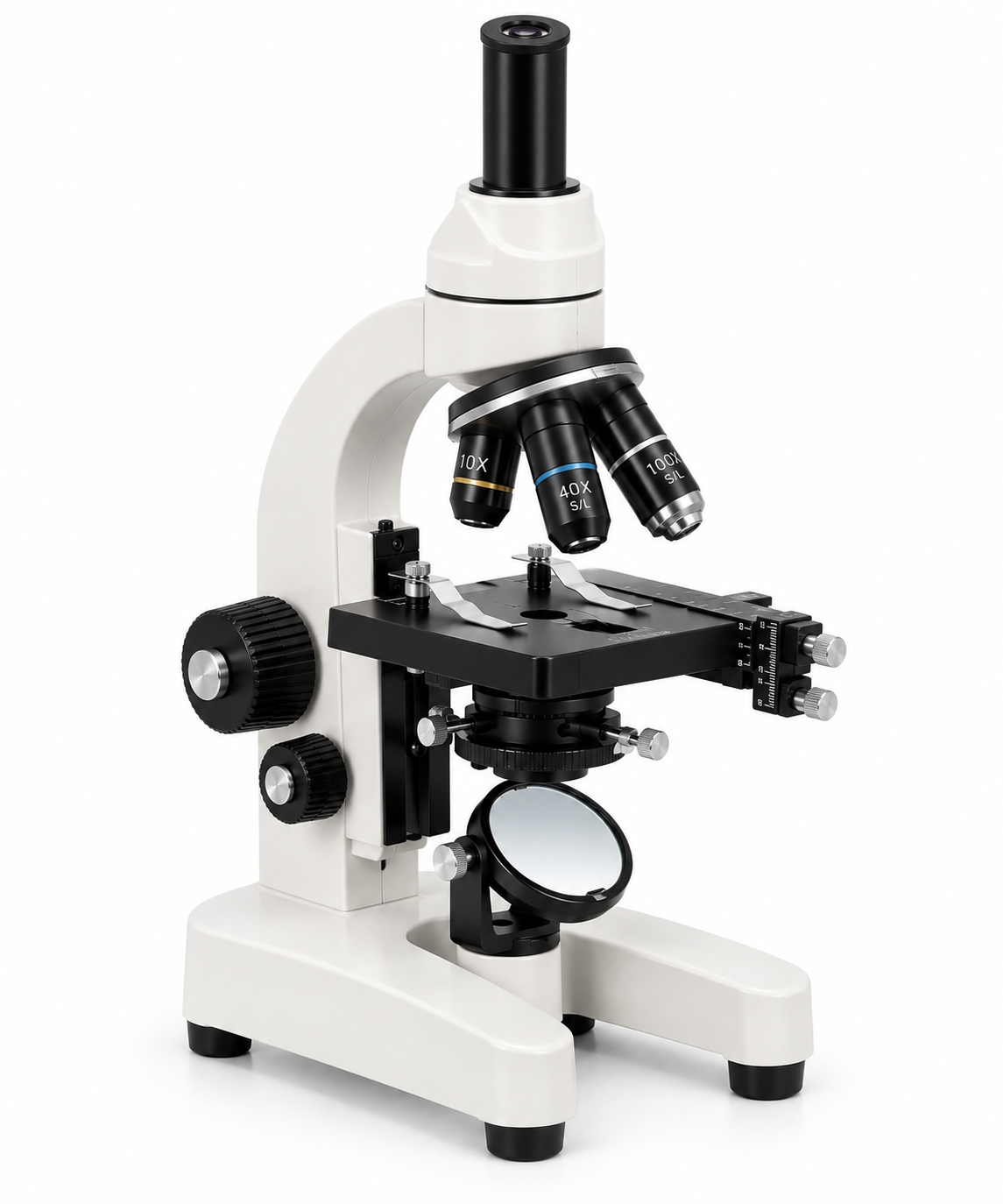

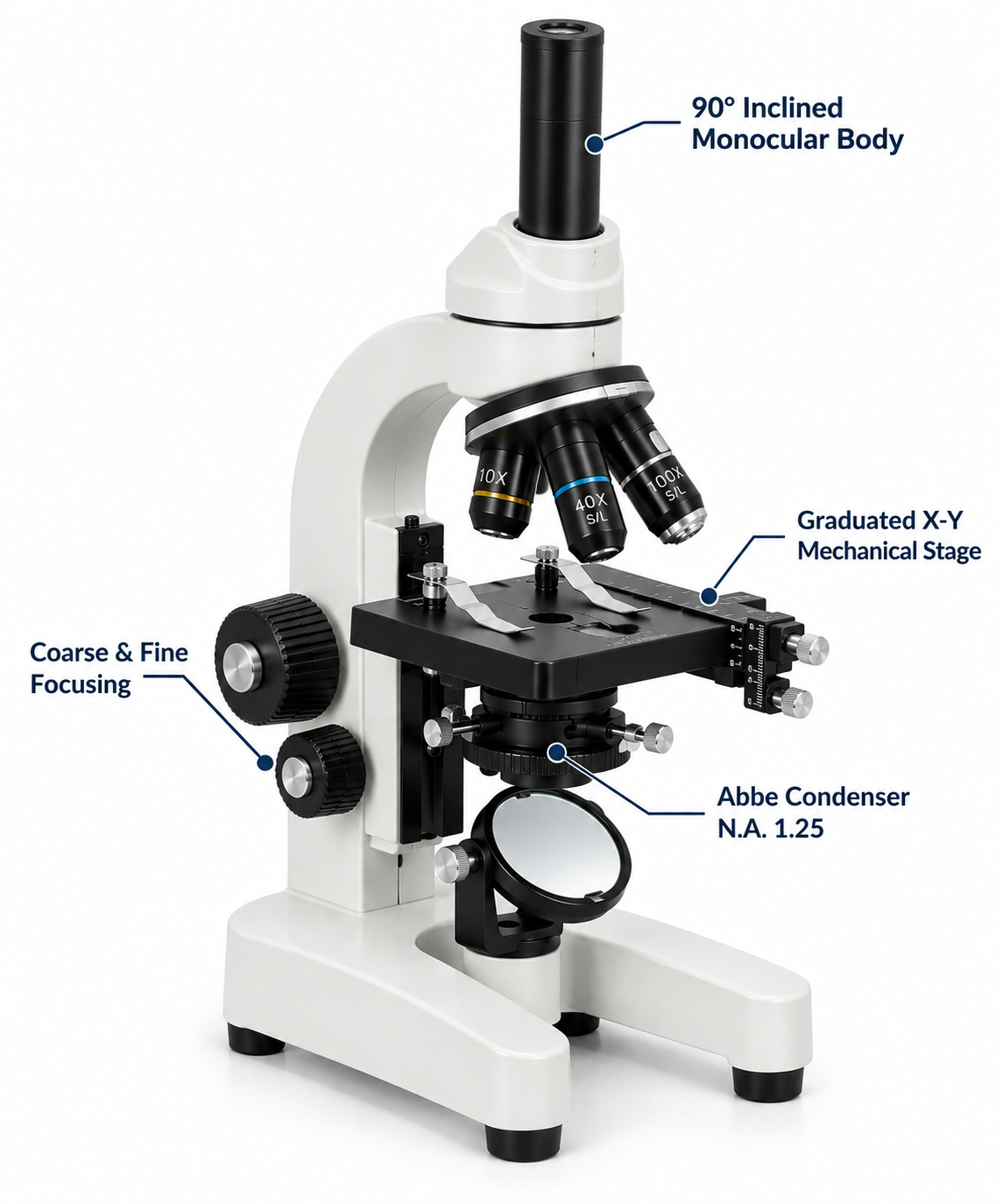

The KG-5 Medical Microscope is a monocular laboratory microscope designed for medical, clinical, educational and biological microscopy. It features 50X–1000X magnification, a graduated X-Y mechanical stage, coarse and fine focusing, a focusable Abbe condenser with iris diaphragm, and 10X, 40X S/L and 100X S/L achromatic objectives.
3. Detailed Product Description
Product Overview
The Medical Microscope Model KG-5 is designed for routine medical and laboratory microscopy where controlled specimen positioning, focusing and illumination are required.
Its mechanical stage allows the specimen to be moved systematically in the X-Y directions, while the coarse and fine focusing controls provide controlled image adjustment. The dust-proof triple revolving nosepiece uses positive click stops for convenient objective selection.
The microscope is equipped with a focusable substage Abbe condenser with NA 1.25 and iris diaphragm, allowing illumination to be adjusted according to the specimen and selected objective.
The standard optical configuration includes 5X and 10X Huygenian eyepieces with 10X, 40X S/L and 100X S/L achromatic objectives, providing a stated magnification range of 50X–1000X. The 100X objective is specified for oil-immersion use.
4. Technical Specifications
| Specification | Details |
|---|---|
| Model | KG-5 |
| Product Type | Medical Microscope |
| Microscope Type | Monocular |
| Eyepieces | 5X & 10X Huygenian |
| Objectives | 10X, 40X S/L & 100X S/L Achromatic |
| Magnification | 50X–1000X |
| 100X Objective | S/L Oil Immersion |
| Nosepiece | Triple revolving |
| Nosepiece Type | Dust-proof with positive click stops |
| Stage | Graduated X-Y mechanical stage |
| Stage Size | Not specified in the available product information |
| Focusing | Coarse and fine adjustment |
| Condenser | Focusable substage Abbe type |
| Condenser NA | 1.25 |
| Diaphragm | Iris diaphragm |
| Condenser Adjustment | Rack and pinion |
| Illumination | Plano-concave mirror |
| Mirror Mount | Fork mount |
| Body Finish | Stipple grey, chemical-resistant |
| Optional Illumination | 15W, 220V substage pin-type lamp, Model ML-1 |
| Optional Eyepiece | WF 10X |
| Optional Objectives | 4X, 20X, 45X S/L, 60X S/L, 100X S/L Oil Immersion |
| Optional Stage | Mechanical X-Y stage |
5. Applications
The KG-5 is suitable for:
- Medical laboratory education
- Clinical microscopy
- Biology laboratories
- Pathology teaching
- Hematology education
- Microbiology education
- Medical college practical training
- Pre-medical education
- Botany and zoology studies
- Clinical research
- Routine examination of prepared slides
- Laboratory demonstrations
6. Suitable For
- Medical colleges
- Clinical laboratories
- Pathology teaching laboratories
- Biology departments
- Medical training institutions
- Nursing and allied-health education
- Research laboratories
- Hospital laboratory training
- Educational microscopy laboratories
7. Product Benefits
- 50X–1000X magnification for routine high-magnification microscopy
- 100X oil-immersion objective for high-magnification observation
- NA 1.25 Abbe condenser for controlled illumination
- Iris diaphragm for illumination adjustment
- Coarse and fine focusing for precise image positioning
- Dust-proof triple nosepiece with positive click stops
- Mechanical X-Y stage configuration for controlled specimen movement
- Plano-concave mirror for external-light illumination
- Optional electrical substage illumination
- Suitable for medical and educational laboratory environments
