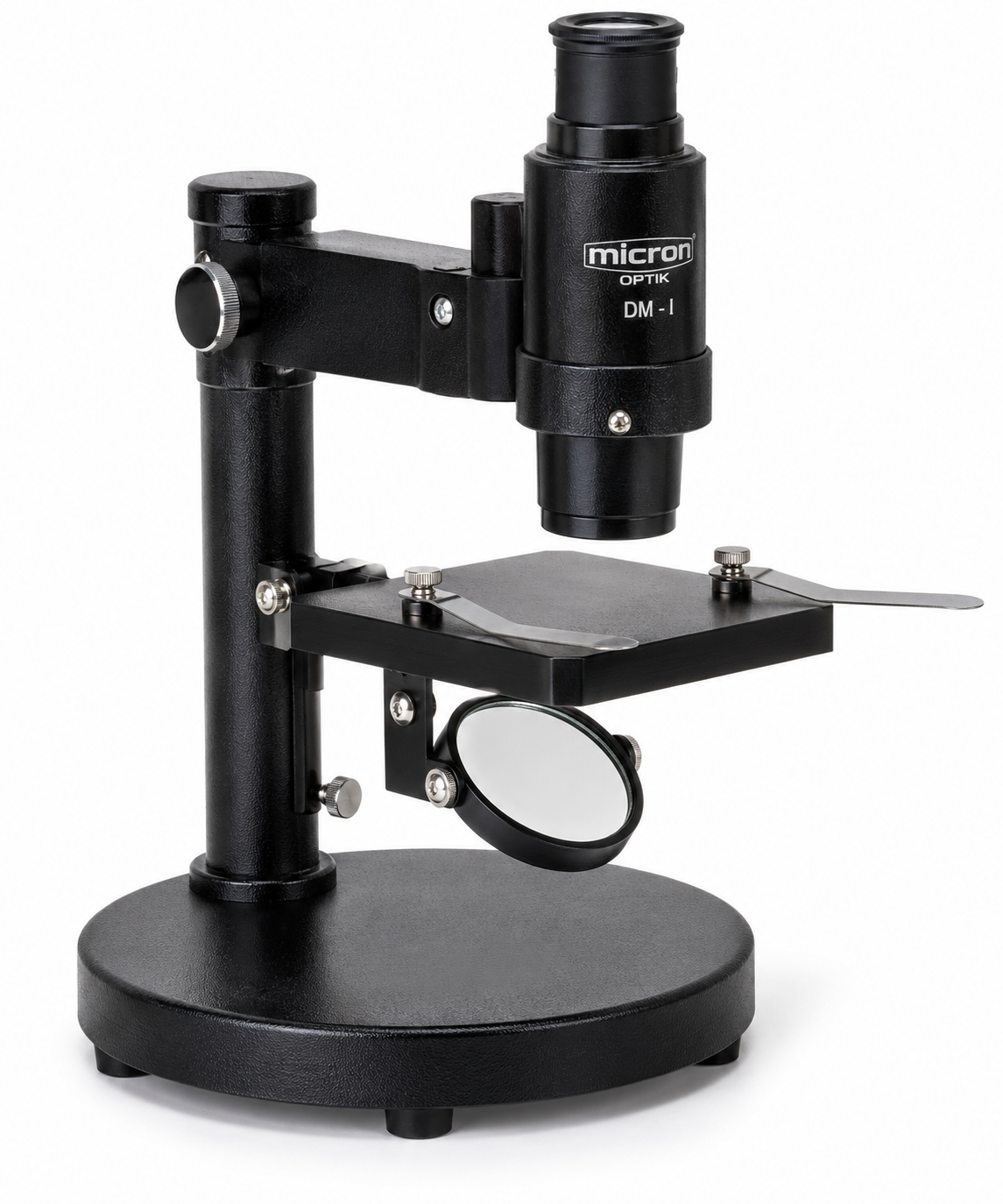

The DM-I Dissecting Microscope is an entry-level laboratory microscope designed for student training, specimen observation and basic dissection work. It features a stable cast-iron round base, joint revolving arm, rack-and-pinion focusing, detachable hand rests, plano-concave mirror illumination, an inclined monocular viewing tube and 10X and 15X eyepieces.

Product Overview

The DM-I Dissecting Microscope is designed as a straightforward, durable instrument for introductory microscopy, biological observation and basic dissection exercises. Its stable round base provides support during specimen manipulation, while the joint revolving arm allows the magnifying lens to move across the stage for broader specimen scanning.

The microscope uses a rack-and-pinion focusing mechanism with 40 mm vertical travel and adjustable tension. Detachable hand rests on both sides of the stage provide support during fine observation and basic dissection work.

Its 45° inclined monocular body tube provides a comfortable viewing position. Illumination is provided by a 45 mm plano-concave mirror mounted in a fork with 360° rotation, allowing external light to be directed toward the specimen.

Key Features & Benefits

• Stable cast-iron round base
• 110 mm base diameter
• Joint revolving arm with 160° horizontal movement
• Rack-and-pinion focusing with 40 mm vertical travel
• Adjustable focusing tension
• Detachable 80 mm hand rests
• Fixed 90 × 95 mm stage
• Two spring-loaded stage clips
• 45° inclined monocular viewing tube
• 45 mm plano-concave mirror
• Fork-mounted mirror with 360° rotation
• 10X and 15X eyepieces
• Chemical-resistant stipple-grey finish

4. Technical Specifications

5. Applications

The DM-I is suitable for:

• School biology laboratories
• Middle and high school science classes
• Introductory college laboratories
• Basic biological observation
• Botany studies
• Zoology studies
• Basic dissection exercises
• Flower and insect-part examination
• Teacher demonstrations
• Youth science programs
• Science clubs and educational workshops
• Homeschool science education
• Hobby and natural-history observation

6. Suitable For

• Schools
• Colleges
• Universities
• Educational laboratories
• Biology teaching laboratories
• Botany and zoology classrooms
• Science clubs
• Youth science programs
• Homeschool education
• Introductory laboratory training

7. Product Benefits

• Stable cast-iron base for routine educational use
• 160° revolving-arm movement for scanning different areas of a specimen
• 40 mm focusing travel for controlled vertical adjustment
• Detachable hand rests for greater stability during fine work
• 45° inclined viewing tube for comfortable monocular observation
• Rotatable plano-concave mirror for flexible external-light illumination
• 10X and 15X eyepieces for different observation requirements
• Fixed stage with spring-loaded specimen clips
• Simple mechanical design suitable for introductory microscopy training
• Chemical-resistant external finish
