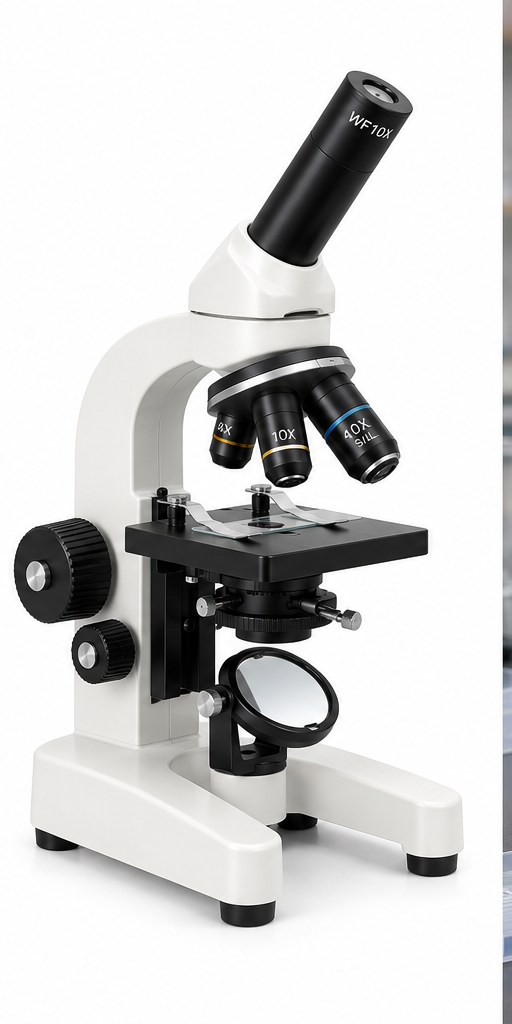

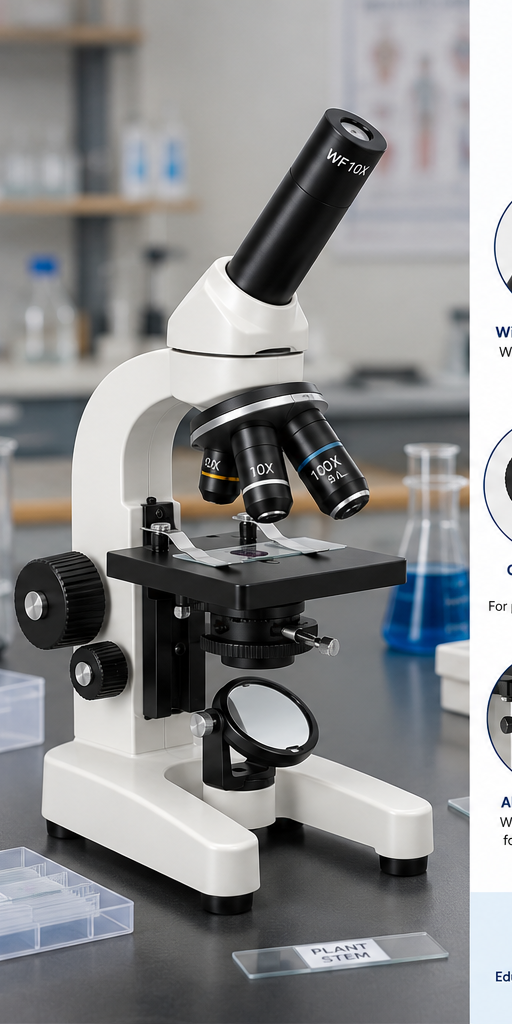

The KG-3 Senior Student Microscope is a sturdy monocular microscope designed for senior school, medical, pre-medical and introductory college biology education. It combines 100X–600X magnification, 10X and 15X Huygenian eyepieces, 10X and 40X S/L achromatic objectives, a focusable Abbe condenser with iris diaphragm, coarse and fine focusing, and plano-concave mirror illumination.

Product Overview

The Senior Student Microscope Model KG-3 is designed for more advanced educational microscopy, bridging the requirements between a basic student microscope and more sophisticated laboratory instruments.

Its sturdy, well-balanced 90° inclined monocular body provides a practical viewing position for extended classroom and laboratory sessions. A fixed 110 × 110 mm square stage provides a stable platform for microscope slides, while the dust-proof triple revolving nosepiece uses positive click stops for objective positioning.

A key feature of the KG-3 is its focusable rack-and-pinion substage Abbe condenser, specified with NA 1.25 and an iris diaphragm. This allows the condenser position and illumination to be adjusted according to the objective and specimen being examined.

The microscope is supplied with 10X and 15X Huygenian eyepieces and 10X and 40X S/L achromatic objectives, providing a stated magnification range of 100X–600X.

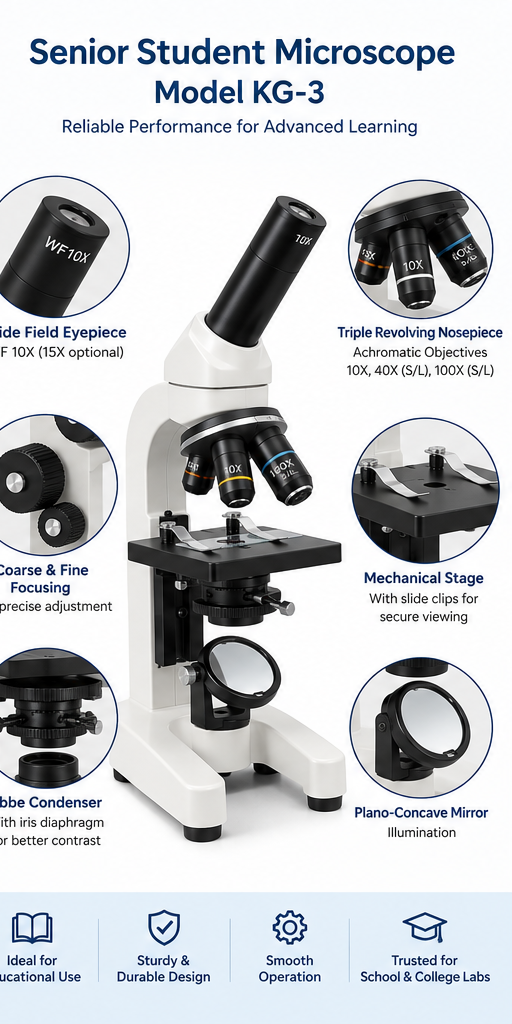

Key Features & Benefits

• 100X–600X magnification range
• 10X and 15X Huygenian eyepieces
• 10X and 40X S/L achromatic objectives
• Focusable Abbe-type NA 1.25 condenser
• Iris diaphragm for illumination control
• Rack-and-pinion condenser adjustment
• Separate coarse and fine focusing
• Dust-proof triple revolving nosepiece
• Positive click stops for objective positioning
• Fixed 110 × 110 mm square stage
• Plano-concave mirror in fork mount
• Sturdy, well-balanced monocular body
• 90° inclined viewing configuration
• Chemical-resistant stipple-grey finish
• Dust cover supplied
• Optional mechanical X-Y stage

4. Technical Specifications

5. Applications

The KG-3 is suitable for:

• Senior high-school biology
• Advanced school microscopy
• College-level introductory biology
• Botany studies
• Zoology studies
• Pre-medical education
• Pre-dental education
• Histology education
• Cytology studies
• Introductory microbiology
• Medical laboratory training
• Science-fair research projects
• Student biological research

6. Suitable For

• Senior secondary schools
• AP/IB biology programs
• Colleges and universities
• Medical and pre-medical institutions
• Dental and pre-dental programs
• Biology laboratories
• Botany and zoology departments
• Science research programs
• Educational microscopy laboratories
• Student research projects

7. Product Benefits

• 100X–600X magnification for advanced educational microscopy
• NA 1.25 Abbe condenser for controlled specimen illumination
• Iris diaphragm for illumination and contrast adjustment
• Rack-and-pinion condenser focusing for controlled condenser positioning
• Separate coarse and fine focusing for more precise image adjustment
• Dust-proof triple nosepiece with positive click stops
• 110 × 110 mm fixed stage for stable slide positioning
• Sturdy metallic construction suited to educational laboratory use
• Plano-concave mirror illumination permits operation using external light
• Optional mechanical X-Y stage for controlled slide movement
• Optional 100X oil-immersion objective for more advanced microscopy applications
