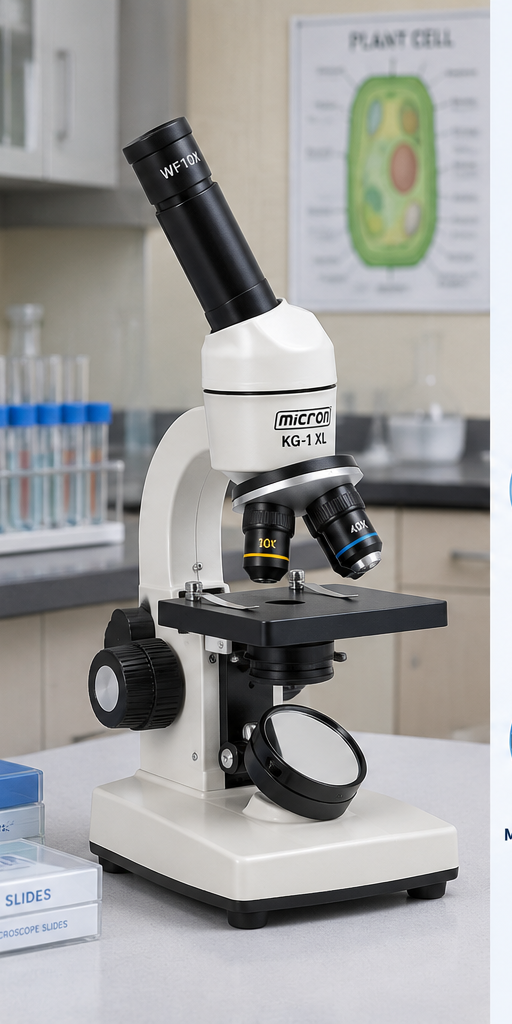

The Micron KG-1 XL Basic Educational Microscope is a lightweight, durable student microscope designed for introductory biology and science education. It features built-in LED illumination, a fixed 90 × 90 mm stage, dust-proof triple revolving nosepiece, dual-side focusing knobs, and 4X, 10X and 40X spring-loaded achromatic objectives with a 10X WF eyepiece.
Product Overview
The KG-1 XL is designed as an accessible introduction to microscopy for students and educational laboratories. Its lightweight ABS construction and non-slip base make it convenient to move between classrooms or use in shared educational environments.
The microscope uses a fixed square 90 × 90 mm metal stage with two stage clips for securing slides. A dust-proof triple revolving nosepiece with positive click stops provides straightforward objective selection and alignment.
Focusing is controlled through knobs positioned on both sides of the microscope, making the instrument convenient for both right- and left-handed users. Built-in LED illumination provides consistent lighting without requiring an external light source.
The supplied optical combination consists of a 10X wide-field eyepiece and 4X, 10X and 40X S/L DIN achromatic objectives, providing a stated magnification range of 40X to 400X.

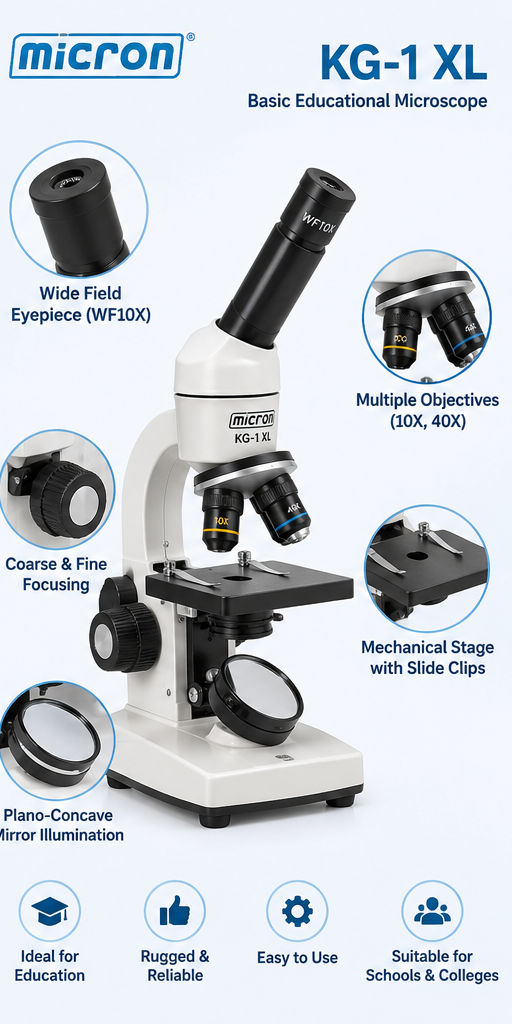

Key Features & Benefits
- 40X–400X magnification range
- 10X WF eyepiece with 16 mm field number
- 4X, 10X and 40X S/L achromatic objectives
- Spring-loaded 40X objective
- Dust-proof triple revolving nosepiece
- Positive click stops for objective alignment
- Fixed 90 × 90 mm metal stage
- Two stage clips
- Dual-side focusing knobs
- Rack-and-pinion focusing with 25 mm travel
- Built-in LED illumination
- Approximately 20,000-hour LED rated life
- Lightweight ABS body
- Non-slip base
- Approximate weight of 1.2 kg
4. Technical Specifications
| Specification | Details |
|---|---|
| Model | KG-1 XL |
| Product Type | Basic Educational Microscope |
| Microscope Type | Educational / Student Microscope |
| Optical Configuration | Monocular |
| Eyepiece | 10X WF |
| Eyepiece Field Number | 16 mm |
| Objectives | 4X, 10X & 40X S/L Achromatic |
| Objective Standard | DIN |
| Magnification Range | 40X–400X |
| Parfocal Distance | 45 mm |
| 40X Objective | Spring-loaded |
| Nosepiece | Triple revolving |
| Nosepiece | Dust-proof with positive click stops |
| Stage | Fixed square metal stage |
| Stage Size | 90 × 90 mm |
| Stage Clips | 2 |
| Focusing | Rack and pinion |
| Focusing Controls | Dual knobs, left and right |
| Focusing Travel | 25 mm |
| Illumination | Built-in LED |
| LED Rated Life | 20,000 hours |
| Power | 2 × AA batteries or optional AC adapter |
| Batteries | 2 × AA, not included |
| Body Material | High-impact ABS plastic |
| Base | Non-slip |
| Approx. Weight | 1.2 kg |
| Optional Accessories | Plano-concave mirror, battery backup system, 10X pointer eyepiece |
5. Applications
The KG-1 XL is suitable for:
- Elementary school science classes
- Middle school biology laboratories
- Introductory microscopy
- Basic biology education
- Plant cell observation
- Tissue section observation
- Insect specimen observation
- Botany studies
- Zoology studies
- Science clubs
- Homeschool science education
- Community science programs
- Basic slide-preparation training
6. Suitable For
- Schools
- Biology classrooms
- Educational laboratories
- Science clubs
- Homeschooling environments
- Colleges for introductory biology
- Community science programs
- Educational workshops
- Basic botany and zoology teaching
7. Product Benefits
- 40X–400X magnification for common educational specimens
- Built-in LED illumination for convenient slide observation
- Lightweight 1.2 kg construction for easy handling
- Dual-side focusing controls suitable for right- and left-handed users
- Dust-proof triple nosepiece helps protect the optical system
- Positive click stops make objective selection straightforward
- Spring-loaded 40X objective helps reduce the risk of slide/objective contact damage
- 90 × 90 mm metal stage provides a stable platform for slides
- Battery operation supports use where mains power is unavailable
- Optional battery backup and mirror accessories provide additional flexibility
- Regular price
- Rs.12,099.00
- Sale price
- Rs.7,199.00
The Micron KG-1 XL Basic Educational Microscope is a lightweight, durable student microscope designed for introductory biology and science education. It features built-in LED illumination, a fixed 90 × 90 mm stage, dust-proof triple revolving nosepiece, dual-side focusing knobs, and 4X, 10X and 40X spring-loaded achromatic objectives with a 10X WF eyepiece.
Product Overview
The KG-1 XL is designed as an accessible introduction to microscopy for students and educational laboratories. Its lightweight ABS construction and non-slip base make it convenient to move between classrooms or use in shared educational environments.
The microscope uses a fixed square 90 × 90 mm metal stage with two stage clips for securing slides. A dust-proof triple revolving nosepiece with positive click stops provides straightforward objective selection and alignment.
Focusing is controlled through knobs positioned on both sides of the microscope, making the instrument convenient for both right- and left-handed users. Built-in LED illumination provides consistent lighting without requiring an external light source.
The supplied optical combination consists of a 10X wide-field eyepiece and 4X, 10X and 40X S/L DIN achromatic objectives, providing a stated magnification range of 40X to 400X.
Key Features & Benefits
- 40X–400X magnification range
- 10X WF eyepiece with 16 mm field number
- 4X, 10X and 40X S/L achromatic objectives
- Spring-loaded 40X objective
- Dust-proof triple revolving nosepiece
- Positive click stops for objective alignment
- Fixed 90 × 90 mm metal stage
- Two stage clips
- Dual-side focusing knobs
- Rack-and-pinion focusing with 25 mm travel
- Built-in LED illumination
- Approximately 20,000-hour LED rated life
- Lightweight ABS body
- Non-slip base
- Approximate weight of 1.2 kg
4. Technical Specifications
| Specification | Details |
|---|---|
| Model | KG-1 XL |
| Product Type | Basic Educational Microscope |
| Microscope Type | Educational / Student Microscope |
| Optical Configuration | Monocular |
| Eyepiece | 10X WF |
| Eyepiece Field Number | 16 mm |
| Objectives | 4X, 10X & 40X S/L Achromatic |
| Objective Standard | DIN |
| Magnification Range | 40X–400X |
| Parfocal Distance | 45 mm |
| 40X Objective | Spring-loaded |
| Nosepiece | Triple revolving |
| Nosepiece | Dust-proof with positive click stops |
| Stage | Fixed square metal stage |
| Stage Size | 90 × 90 mm |
| Stage Clips | 2 |
| Focusing | Rack and pinion |
| Focusing Controls | Dual knobs, left and right |
| Focusing Travel | 25 mm |
| Illumination | Built-in LED |
| LED Rated Life | 20,000 hours |
| Power | 2 × AA batteries or optional AC adapter |
| Batteries | 2 × AA, not included |
| Body Material | High-impact ABS plastic |
| Base | Non-slip |
| Approx. Weight | 1.2 kg |
| Optional Accessories | Plano-concave mirror, battery backup system, 10X pointer eyepiece |
5. Applications
The KG-1 XL is suitable for:
- Elementary school science classes
- Middle school biology laboratories
- Introductory microscopy
- Basic biology education
- Plant cell observation
- Tissue section observation
- Insect specimen observation
- Botany studies
- Zoology studies
- Science clubs
- Homeschool science education
- Community science programs
- Basic slide-preparation training
6. Suitable For
- Schools
- Biology classrooms
- Educational laboratories
- Science clubs
- Homeschooling environments
- Colleges for introductory biology
- Community science programs
- Educational workshops
- Basic botany and zoology teaching
7. Product Benefits
- 40X–400X magnification for common educational specimens
- Built-in LED illumination for convenient slide observation
- Lightweight 1.2 kg construction for easy handling
- Dual-side focusing controls suitable for right- and left-handed users
- Dust-proof triple nosepiece helps protect the optical system
- Positive click stops make objective selection straightforward
- Spring-loaded 40X objective helps reduce the risk of slide/objective contact damage
- 90 × 90 mm metal stage provides a stable platform for slides
- Battery operation supports use where mains power is unavailable
- Optional battery backup and mirror accessories provide additional flexibility
- Regular price
- Rs.12,099.00
- Sale price
- Rs.7,199.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
The Micron KG-1 XL Basic Educational Microscope is a lightweight, durable student microscope designed for introductory biology and science education. It features built-in LED illumination, a fixed 90 × 90 mm stage, dust-proof triple revolving nosepiece, dual-side focusing knobs, and 4X, 10X and 40X spring-loaded achromatic objectives with a 10X WF eyepiece.
Product Overview
The KG-1 XL is designed as an accessible introduction to microscopy for students and educational laboratories. Its lightweight ABS construction and non-slip base make it convenient to move between classrooms or use in shared educational environments.
The microscope uses a fixed square 90 × 90 mm metal stage with two stage clips for securing slides. A dust-proof triple revolving nosepiece with positive click stops provides straightforward objective selection and alignment.
Focusing is controlled through knobs positioned on both sides of the microscope, making the instrument convenient for both right- and left-handed users. Built-in LED illumination provides consistent lighting without requiring an external light source.
The supplied optical combination consists of a 10X wide-field eyepiece and 4X, 10X and 40X S/L DIN achromatic objectives, providing a stated magnification range of 40X to 400X.
Key Features & Benefits
- 40X–400X magnification range
- 10X WF eyepiece with 16 mm field number
- 4X, 10X and 40X S/L achromatic objectives
- Spring-loaded 40X objective
- Dust-proof triple revolving nosepiece
- Positive click stops for objective alignment
- Fixed 90 × 90 mm metal stage
- Two stage clips
- Dual-side focusing knobs
- Rack-and-pinion focusing with 25 mm travel
- Built-in LED illumination
- Approximately 20,000-hour LED rated life
- Lightweight ABS body
- Non-slip base
- Approximate weight of 1.2 kg
4. Technical Specifications
| Specification | Details |
|---|---|
| Model | KG-1 XL |
| Product Type | Basic Educational Microscope |
| Microscope Type | Educational / Student Microscope |
| Optical Configuration | Monocular |
| Eyepiece | 10X WF |
| Eyepiece Field Number | 16 mm |
| Objectives | 4X, 10X & 40X S/L Achromatic |
| Objective Standard | DIN |
| Magnification Range | 40X–400X |
| Parfocal Distance | 45 mm |
| 40X Objective | Spring-loaded |
| Nosepiece | Triple revolving |
| Nosepiece | Dust-proof with positive click stops |
| Stage | Fixed square metal stage |
| Stage Size | 90 × 90 mm |
| Stage Clips | 2 |
| Focusing | Rack and pinion |
| Focusing Controls | Dual knobs, left and right |
| Focusing Travel | 25 mm |
| Illumination | Built-in LED |
| LED Rated Life | 20,000 hours |
| Power | 2 × AA batteries or optional AC adapter |
| Batteries | 2 × AA, not included |
| Body Material | High-impact ABS plastic |
| Base | Non-slip |
| Approx. Weight | 1.2 kg |
| Optional Accessories | Plano-concave mirror, battery backup system, 10X pointer eyepiece |
5. Applications
The KG-1 XL is suitable for:
- Elementary school science classes
- Middle school biology laboratories
- Introductory microscopy
- Basic biology education
- Plant cell observation
- Tissue section observation
- Insect specimen observation
- Botany studies
- Zoology studies
- Science clubs
- Homeschool science education
- Community science programs
- Basic slide-preparation training
6. Suitable For
- Schools
- Biology classrooms
- Educational laboratories
- Science clubs
- Homeschooling environments
- Colleges for introductory biology
- Community science programs
- Educational workshops
- Basic botany and zoology teaching
7. Product Benefits
- 40X–400X magnification for common educational specimens
- Built-in LED illumination for convenient slide observation
- Lightweight 1.2 kg construction for easy handling
- Dual-side focusing controls suitable for right- and left-handed users
- Dust-proof triple nosepiece helps protect the optical system
- Positive click stops make objective selection straightforward
- Spring-loaded 40X objective helps reduce the risk of slide/objective contact damage
- 90 × 90 mm metal stage provides a stable platform for slides
- Battery operation supports use where mains power is unavailable
- Optional battery backup and mirror accessories provide additional flexibility
Similar Products
-
Vendor: I-micro
Stereo Binocular Microscope with 45degree Inclined Head, LED, Black and White Stage, Bilateral Coarse Focus and Dustcover
Sale price Rs.7,000.00Regular price Rs.13,000.00 -
Vendor: I-micro
Trinocular Microscopes
Sale price Rs.9,999.00Regular price Rs.17,000.00 -
Vendor: Micron

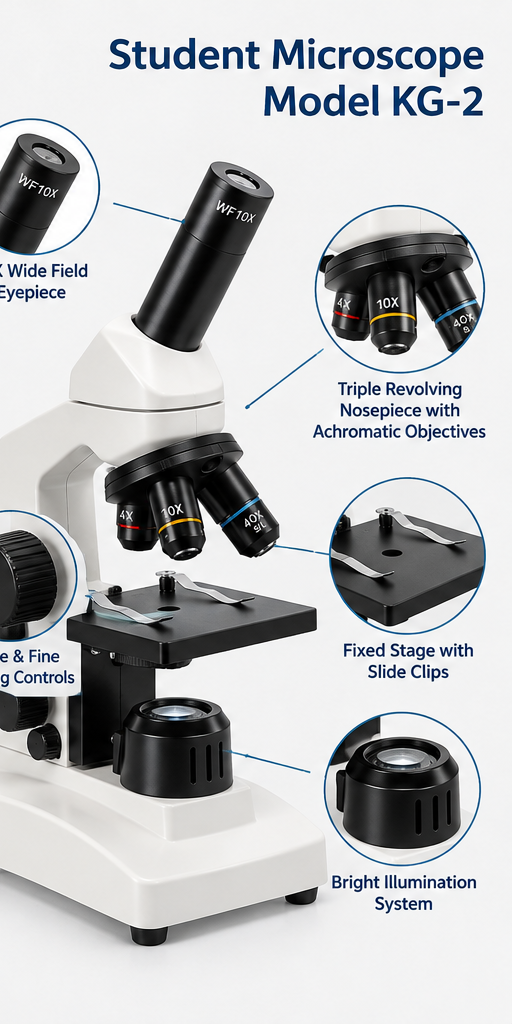

STUDENT MICROSCOPE MODEL KG-2
Sale price Rs.5,599.00Regular price Rs.8,599.00 -
Vendor: Micron

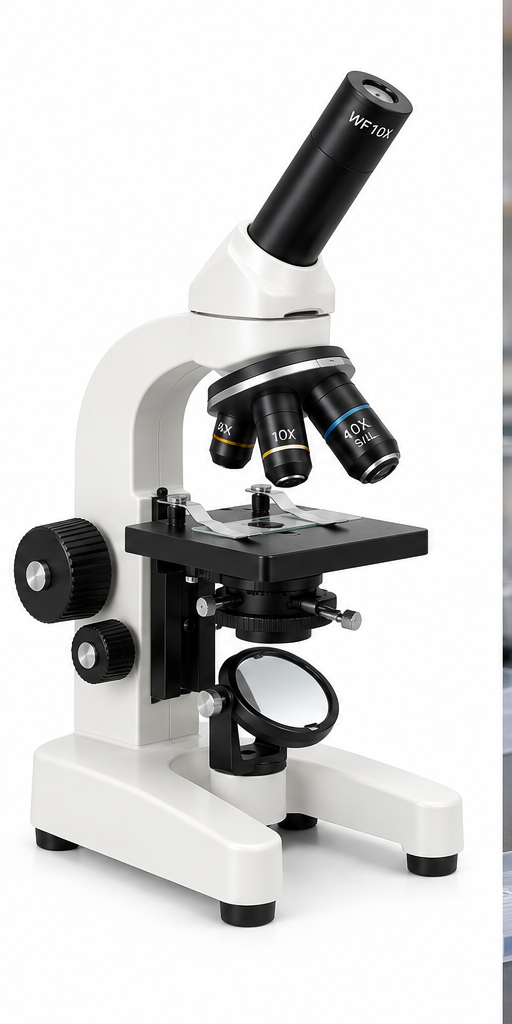

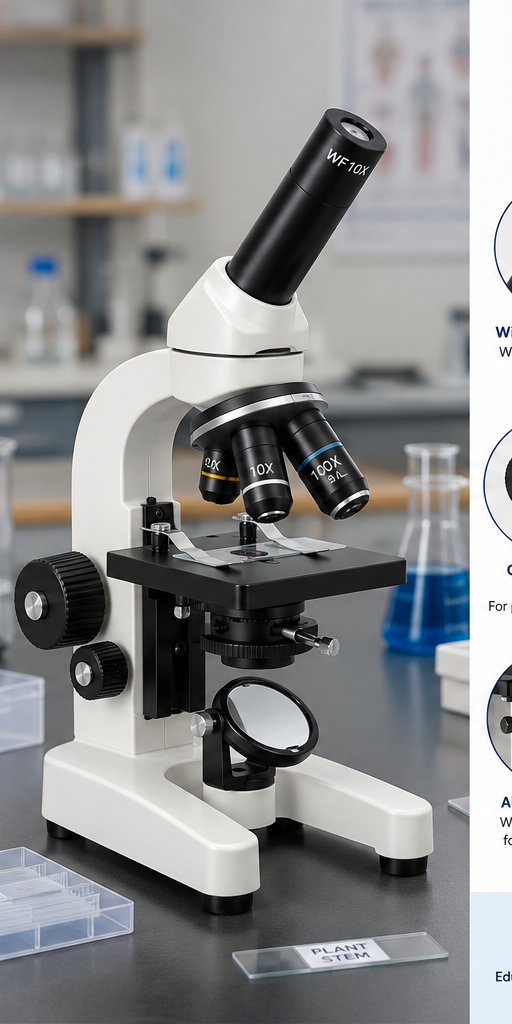

SENIOR STUDENT MICROSCOPE MODEL KG-3
