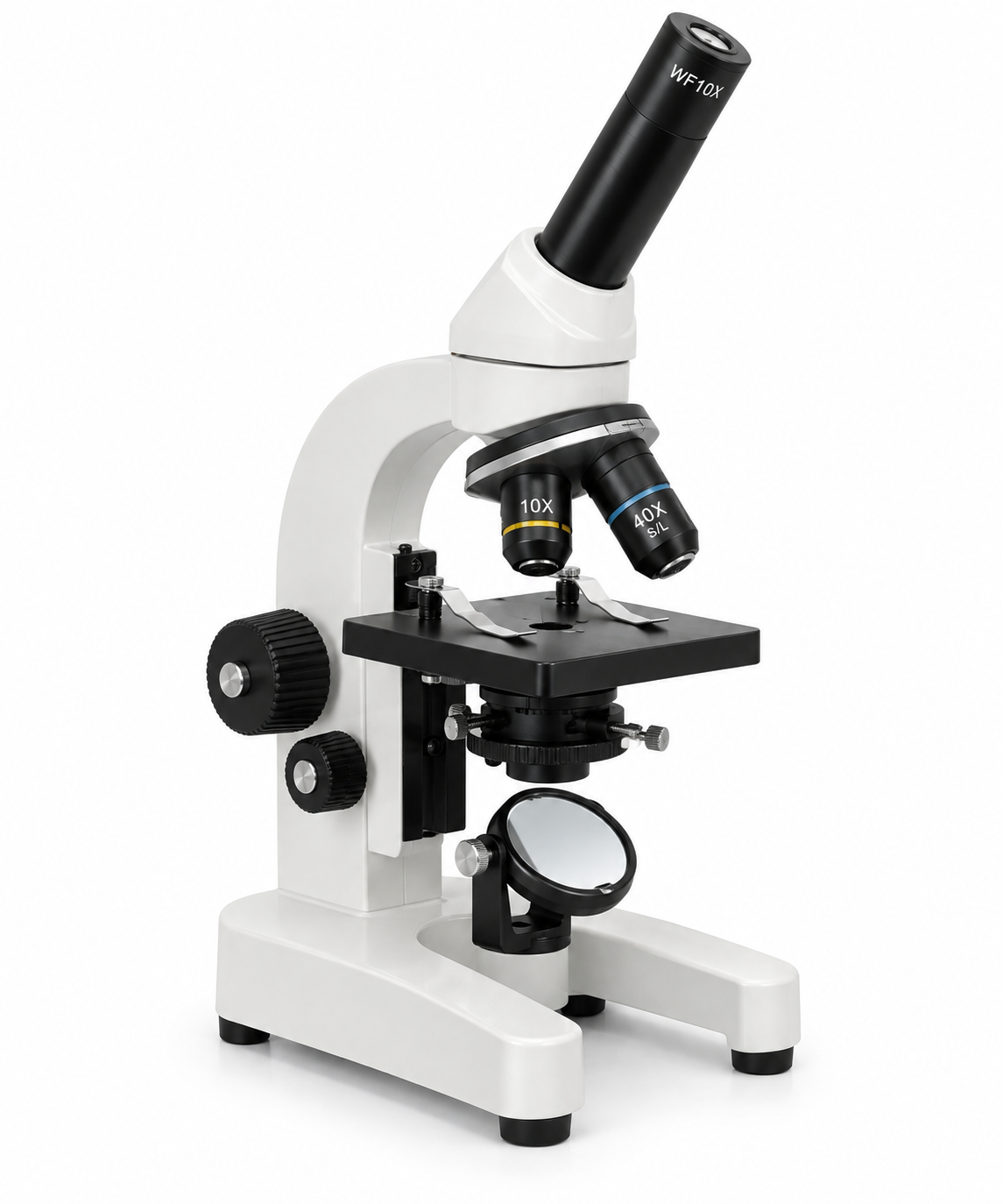

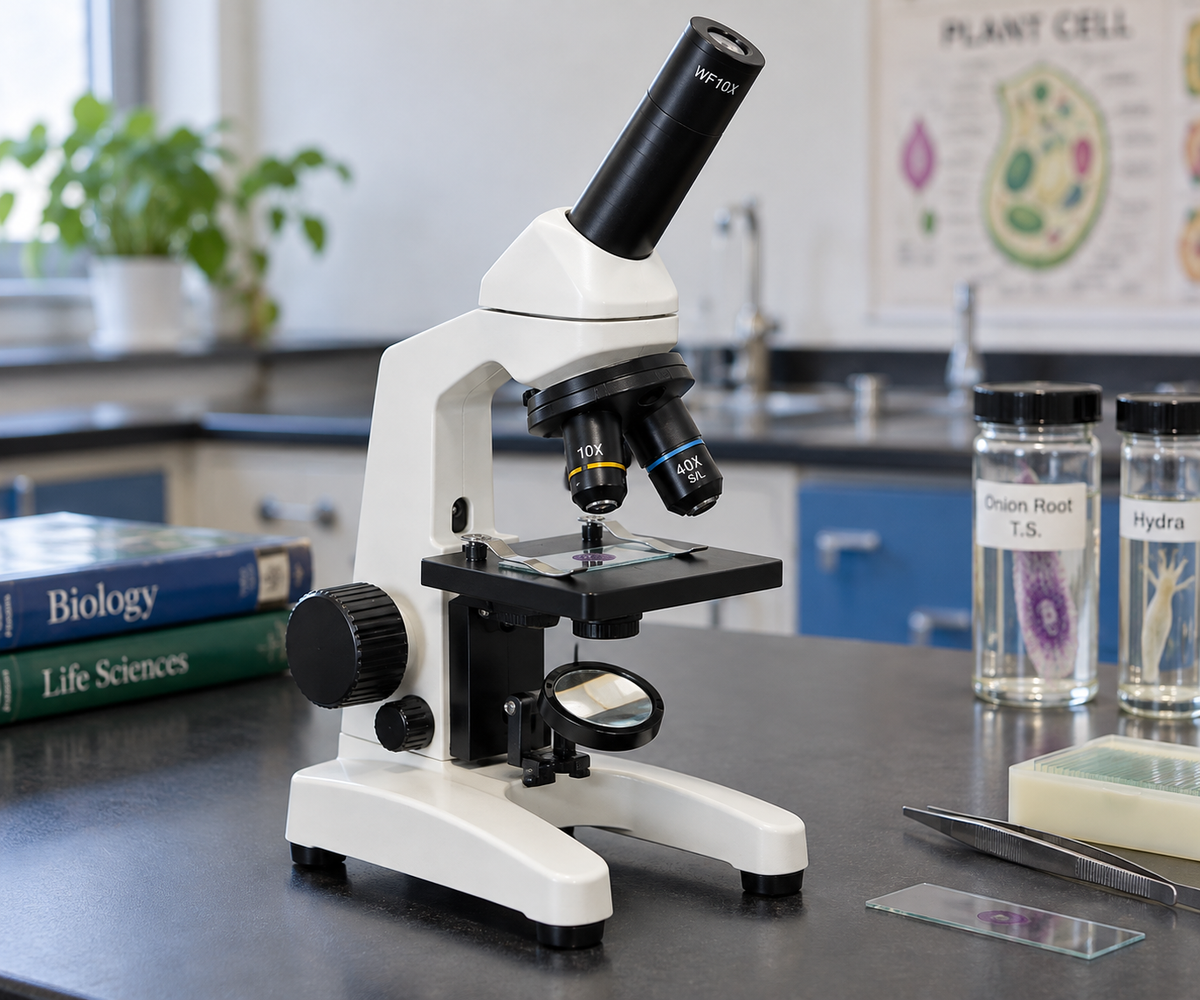

The KG-2 Student Microscope is a sturdy monocular educational microscope designed for school, medical, pre-medical and undergraduate laboratory education. It features 100X–600X magnification, 10X and 15X Huygenian eyepieces, 10X and 40X S/L achromatic objectives, a fixed Abbe condenser with iris diaphragm, coarse and fine focusing, and a plano-concave mirror illumination system.
Product Overview
The Student Microscope Model KG-2 is designed for educational microscopy where a durable mechanical construction and a practical optical configuration are required. Its sturdy metallic monocular body is inclined at 90° to the horizontal level, providing a viewing position designed for seated observation.
The microscope incorporates a 110 × 110 mm fixed square stage and a dust-proof triple revolving nosepiece with positive click stops for objective selection. Focusing is achieved through separate coarse and fine adjustment controls.
A fixed Abbe-type substage condenser with NA 1.25 and iris diaphragm provides control of illumination. The microscope also uses a plano-concave mirror in a fork mount, allowing illumination without an electrical light source.
The standard optical configuration consists of 10X and 15X Huygenian eyepieces and 10X and 40X S/L achromatic objectives, providing a stated magnification range of 100X–600X.
Key Features & Benefits
- 100X–600X magnification
- 10X and 15X Huygenian eyepieces
- 10X and 40X S/L achromatic objectives
- Fixed Abbe condenser, NA 1.25
- Iris diaphragm for illumination control
- Coarse and fine focusing
- Dust-proof triple revolving nosepiece
- Positive click stops for objective alignment
- 110 × 110 mm fixed square stage
- Plano-concave mirror illumination
- Sturdy metallic monocular body
- 90° inclined viewing body
- Chemical-resistant stipple-grey finish
- Dust cover supplied with protective Styrofoam packing
4. Technical Specifications
| Specification | Details |
|---|---|
| Model | KG-2 |
| Product Type | Student Microscope |
| Microscope Type | Monocular |
| Body | Sturdy metallic body |
| Body Inclination | 90° to horizontal level |
| Eyepieces | 10X & 15X Huygenian |
| Objectives | 10X & 40X S/L Achromatic |
| Magnification | 100X–600X |
| Nosepiece | Triple revolving |
| Nosepiece Type | Dust-proof with positive click stops |
| Stage | Fixed square stage |
| Stage Size | 110 × 110 mm |
| Condenser | Fixed substage Abbe type |
| Condenser NA | 1.25 |
| Diaphragm | Iris diaphragm |
| Focusing | Coarse and fine adjustment |
| Illumination | Plano-concave mirror |
| Mirror Mount | Fork mount |
| Finish | Stipple grey, chemical resistant |
| Dust Protection | Dust cover supplied |
| Optional Illumination | 15W, 220V substage pin-type lamp, Model ML-1 |
| Optional Stage | Mechanical X-Y stage |
| Optional Eyepiece | WF 10X |
| Optional Objectives | 4X, 20X, 45X S/L, 60X S/L, 100X S/L Oil Immersion |
5. Applications
The KG-2 is suitable for:
- School biology laboratories
- High-school microscopy
- Medical education
- Pre-medical education
- Dental education
- Nursing education
- Undergraduate biology
- Zoology laboratories
- Botany laboratories
- Veterinary technology training
- Pharmacy technician training
- Community college science programs
- Basic specimen examination
- Educational microscopy demonstrations
6. Suitable For
- Schools
- Colleges
- Universities
- Medical and pre-medical institutions
- Nursing colleges
- Dental education institutions
- Pharmacy training institutions
- Biology laboratories
- Zoology and botany departments
- Veterinary training institutions
- Community science programs
7. Product Benefits
- 100X–600X optical range for educational microscopy
- Achromatic objectives for routine specimen observation
- NA 1.25 Abbe condenser with iris diaphragm for illumination control
- Coarse and fine focusing for controlled image adjustment
- Large 110 × 110 mm stage for convenient slide positioning
- Dust-proof nosepiece helps protect the objective assembly
- Plano-concave mirror permits operation without electrical illumination
- Sturdy metallic body suited to regular classroom and laboratory use
- 90° inclined viewing body designed for seated observation
- Optional mechanical stage and additional objectives provide configuration flexibility
The KG-2 Student Microscope is a sturdy monocular educational microscope designed for school, medical, pre-medical and undergraduate laboratory education. It features 100X–600X magnification, 10X and 15X Huygenian eyepieces, 10X and 40X S/L achromatic objectives, a fixed Abbe condenser with iris diaphragm, coarse and fine focusing, and a plano-concave mirror illumination system.
Product Overview
The Student Microscope Model KG-2 is designed for educational microscopy where a durable mechanical construction and a practical optical configuration are required. Its sturdy metallic monocular body is inclined at 90° to the horizontal level, providing a viewing position designed for seated observation.
The microscope incorporates a 110 × 110 mm fixed square stage and a dust-proof triple revolving nosepiece with positive click stops for objective selection. Focusing is achieved through separate coarse and fine adjustment controls.
A fixed Abbe-type substage condenser with NA 1.25 and iris diaphragm provides control of illumination. The microscope also uses a plano-concave mirror in a fork mount, allowing illumination without an electrical light source.
The standard optical configuration consists of 10X and 15X Huygenian eyepieces and 10X and 40X S/L achromatic objectives, providing a stated magnification range of 100X–600X.
Key Features & Benefits
- 100X–600X magnification
- 10X and 15X Huygenian eyepieces
- 10X and 40X S/L achromatic objectives
- Fixed Abbe condenser, NA 1.25
- Iris diaphragm for illumination control
- Coarse and fine focusing
- Dust-proof triple revolving nosepiece
- Positive click stops for objective alignment
- 110 × 110 mm fixed square stage
- Plano-concave mirror illumination
- Sturdy metallic monocular body
- 90° inclined viewing body
- Chemical-resistant stipple-grey finish
- Dust cover supplied with protective Styrofoam packing
4. Technical Specifications
| Specification | Details |
|---|---|
| Model | KG-2 |
| Product Type | Student Microscope |
| Microscope Type | Monocular |
| Body | Sturdy metallic body |
| Body Inclination | 90° to horizontal level |
| Eyepieces | 10X & 15X Huygenian |
| Objectives | 10X & 40X S/L Achromatic |
| Magnification | 100X–600X |
| Nosepiece | Triple revolving |
| Nosepiece Type | Dust-proof with positive click stops |
| Stage | Fixed square stage |
| Stage Size | 110 × 110 mm |
| Condenser | Fixed substage Abbe type |
| Condenser NA | 1.25 |
| Diaphragm | Iris diaphragm |
| Focusing | Coarse and fine adjustment |
| Illumination | Plano-concave mirror |
| Mirror Mount | Fork mount |
| Finish | Stipple grey, chemical resistant |
| Dust Protection | Dust cover supplied |
| Optional Illumination | 15W, 220V substage pin-type lamp, Model ML-1 |
| Optional Stage | Mechanical X-Y stage |
| Optional Eyepiece | WF 10X |
| Optional Objectives | 4X, 20X, 45X S/L, 60X S/L, 100X S/L Oil Immersion |
5. Applications
The KG-2 is suitable for:
- School biology laboratories
- High-school microscopy
- Medical education
- Pre-medical education
- Dental education
- Nursing education
- Undergraduate biology
- Zoology laboratories
- Botany laboratories
- Veterinary technology training
- Pharmacy technician training
- Community college science programs
- Basic specimen examination
- Educational microscopy demonstrations
6. Suitable For
- Schools
- Colleges
- Universities
- Medical and pre-medical institutions
- Nursing colleges
- Dental education institutions
- Pharmacy training institutions
- Biology laboratories
- Zoology and botany departments
- Veterinary training institutions
- Community science programs
7. Product Benefits
- 100X–600X optical range for educational microscopy
- Achromatic objectives for routine specimen observation
- NA 1.25 Abbe condenser with iris diaphragm for illumination control
- Coarse and fine focusing for controlled image adjustment
- Large 110 × 110 mm stage for convenient slide positioning
- Dust-proof nosepiece helps protect the objective assembly
- Plano-concave mirror permits operation without electrical illumination
- Sturdy metallic body suited to regular classroom and laboratory use
- 90° inclined viewing body designed for seated observation
- Optional mechanical stage and additional objectives provide configuration flexibility
- Regular price
- Rs.8,599.00
- Sale price
- Rs.5,599.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
The KG-2 Student Microscope is a sturdy monocular educational microscope designed for school, medical, pre-medical and undergraduate laboratory education. It features 100X–600X magnification, 10X and 15X Huygenian eyepieces, 10X and 40X S/L achromatic objectives, a fixed Abbe condenser with iris diaphragm, coarse and fine focusing, and a plano-concave mirror illumination system.
Product Overview
The Student Microscope Model KG-2 is designed for educational microscopy where a durable mechanical construction and a practical optical configuration are required. Its sturdy metallic monocular body is inclined at 90° to the horizontal level, providing a viewing position designed for seated observation.
The microscope incorporates a 110 × 110 mm fixed square stage and a dust-proof triple revolving nosepiece with positive click stops for objective selection. Focusing is achieved through separate coarse and fine adjustment controls.
A fixed Abbe-type substage condenser with NA 1.25 and iris diaphragm provides control of illumination. The microscope also uses a plano-concave mirror in a fork mount, allowing illumination without an electrical light source.
The standard optical configuration consists of 10X and 15X Huygenian eyepieces and 10X and 40X S/L achromatic objectives, providing a stated magnification range of 100X–600X.
Key Features & Benefits
- 100X–600X magnification
- 10X and 15X Huygenian eyepieces
- 10X and 40X S/L achromatic objectives
- Fixed Abbe condenser, NA 1.25
- Iris diaphragm for illumination control
- Coarse and fine focusing
- Dust-proof triple revolving nosepiece
- Positive click stops for objective alignment
- 110 × 110 mm fixed square stage
- Plano-concave mirror illumination
- Sturdy metallic monocular body
- 90° inclined viewing body
- Chemical-resistant stipple-grey finish
- Dust cover supplied with protective Styrofoam packing
4. Technical Specifications
| Specification | Details |
|---|---|
| Model | KG-2 |
| Product Type | Student Microscope |
| Microscope Type | Monocular |
| Body | Sturdy metallic body |
| Body Inclination | 90° to horizontal level |
| Eyepieces | 10X & 15X Huygenian |
| Objectives | 10X & 40X S/L Achromatic |
| Magnification | 100X–600X |
| Nosepiece | Triple revolving |
| Nosepiece Type | Dust-proof with positive click stops |
| Stage | Fixed square stage |
| Stage Size | 110 × 110 mm |
| Condenser | Fixed substage Abbe type |
| Condenser NA | 1.25 |
| Diaphragm | Iris diaphragm |
| Focusing | Coarse and fine adjustment |
| Illumination | Plano-concave mirror |
| Mirror Mount | Fork mount |
| Finish | Stipple grey, chemical resistant |
| Dust Protection | Dust cover supplied |
| Optional Illumination | 15W, 220V substage pin-type lamp, Model ML-1 |
| Optional Stage | Mechanical X-Y stage |
| Optional Eyepiece | WF 10X |
| Optional Objectives | 4X, 20X, 45X S/L, 60X S/L, 100X S/L Oil Immersion |
5. Applications
The KG-2 is suitable for:
- School biology laboratories
- High-school microscopy
- Medical education
- Pre-medical education
- Dental education
- Nursing education
- Undergraduate biology
- Zoology laboratories
- Botany laboratories
- Veterinary technology training
- Pharmacy technician training
- Community college science programs
- Basic specimen examination
- Educational microscopy demonstrations
6. Suitable For
- Schools
- Colleges
- Universities
- Medical and pre-medical institutions
- Nursing colleges
- Dental education institutions
- Pharmacy training institutions
- Biology laboratories
- Zoology and botany departments
- Veterinary training institutions
- Community science programs
7. Product Benefits
- 100X–600X optical range for educational microscopy
- Achromatic objectives for routine specimen observation
- NA 1.25 Abbe condenser with iris diaphragm for illumination control
- Coarse and fine focusing for controlled image adjustment
- Large 110 × 110 mm stage for convenient slide positioning
- Dust-proof nosepiece helps protect the objective assembly
- Plano-concave mirror permits operation without electrical illumination
- Sturdy metallic body suited to regular classroom and laboratory use
- 90° inclined viewing body designed for seated observation
- Optional mechanical stage and additional objectives provide configuration flexibility
Similar Products
-
Vendor: Micron

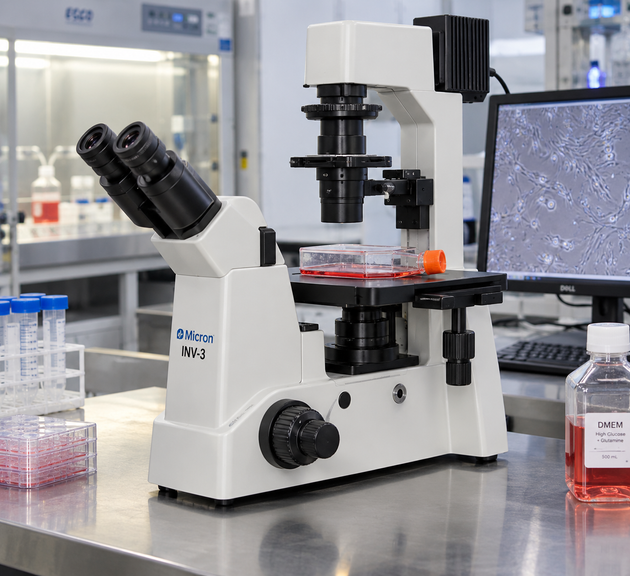

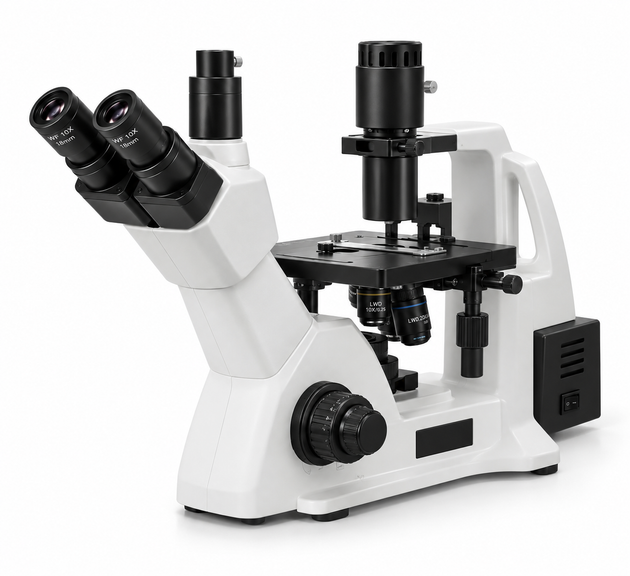

INVERTED MICROSCOPE MODEL INV-3
Sale price Rs.169,999.00Regular price Rs.289,999.00 -
Vendor: Micron

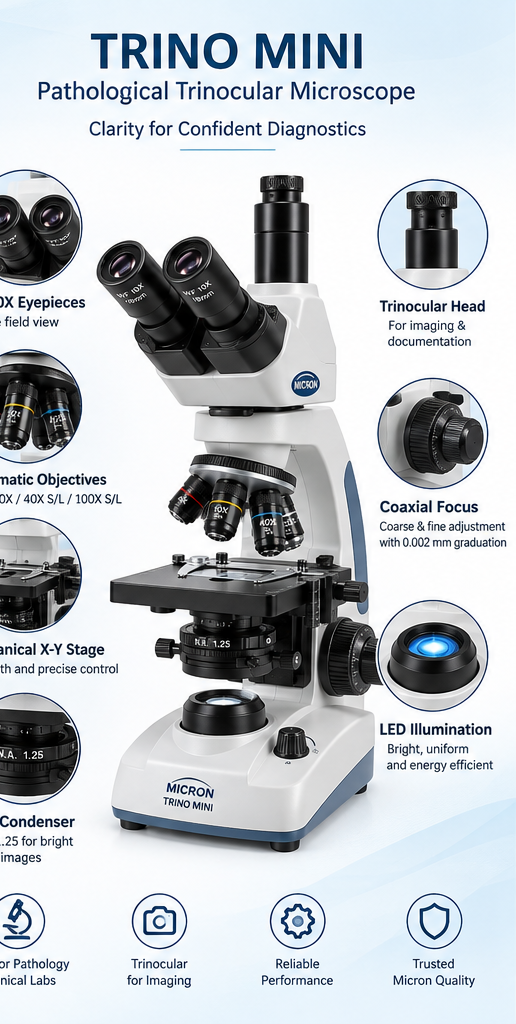

ATHOLOGICAL TRINOCULAR MICROSCOPE MODEL TRINO MINI
Sale price Rs.19,199.00Regular price Rs.31,199.00 -
Vendor: Micron

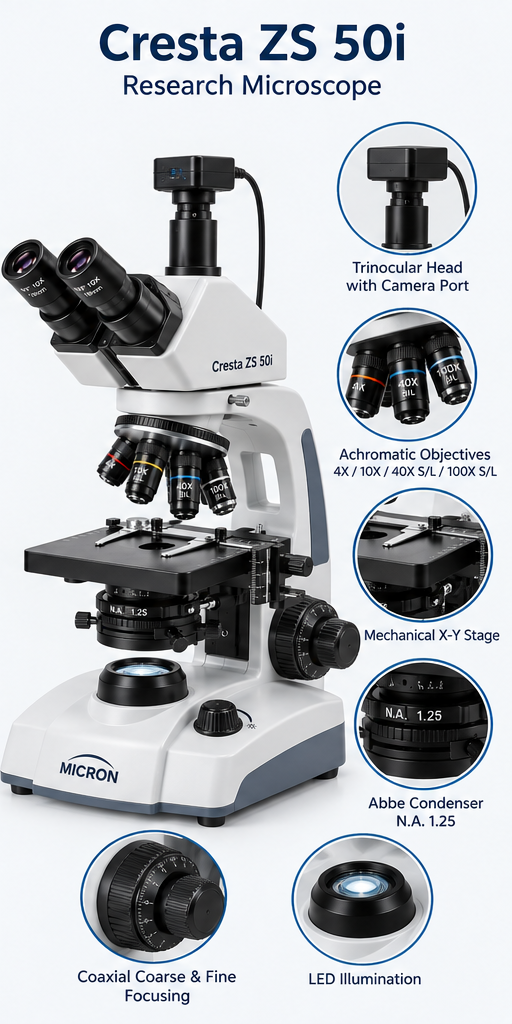

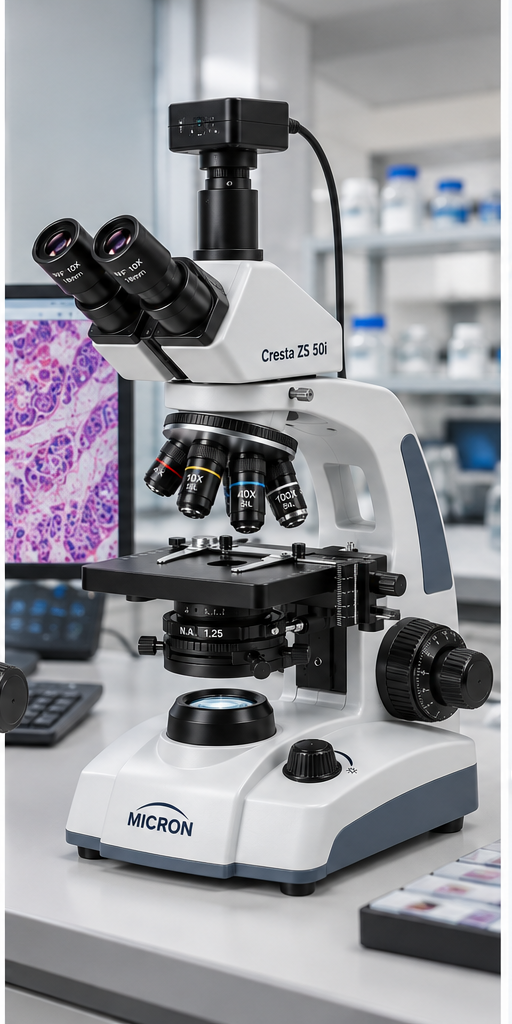

RESEARCH MICROSCOPE MODEL CRESTA ZS 50I
Sale price Rs.44,799.00Regular price Rs.82,799.00 -
Vendor: Micron

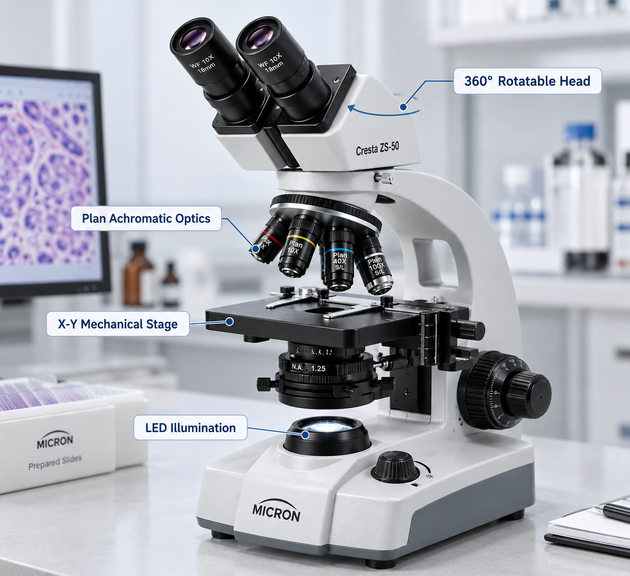

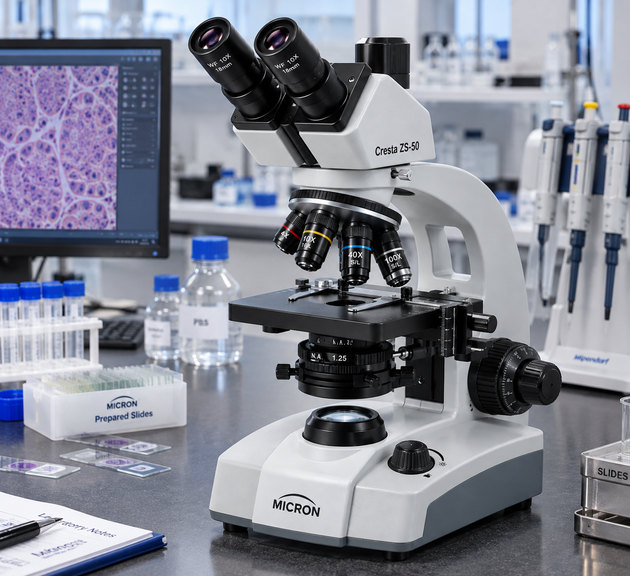

RESEARCH MICROSCOPE MODEL CRESTA ZS 50
