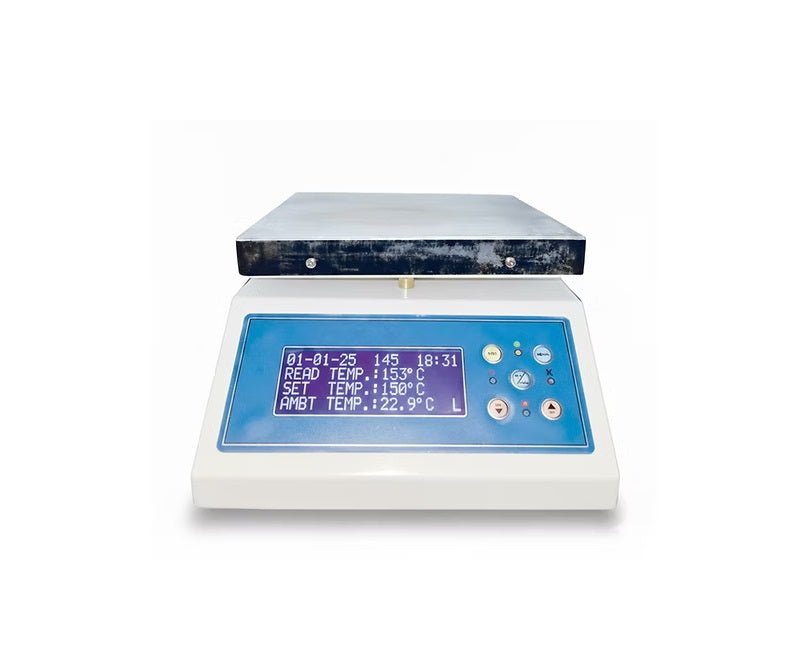

Hotplate Magnetic Stirrer
The hotplate stirrer (or hot plate stirrer or hot plate magnetic stirrer) is used for mixing and heating aqueous solutions for a great variety of chemical reactions such as synthesis. VELP hotplate stirrers are available in various models and combinations in both analog and digital configurations.
A hotplate magnetic stirrer works by using a rotating magnetic field to stir a liquid in a container. The hot plate heats the liquid to the desired temperature, while the stirrer ensures that the temperature is even throughout the solution.
Safety:
Safety: Wear appropriate personal protective equipment (PPE), including lab coats, safety goggles, and gloves.
Ventilation: Work in a well-ventilated area or inside a fume hood when dealing with hazardous chemicals.
Emergency shutdown: Familiarize yourself with the emergency shutdown procedures for both the hotplate and the stirrer.
Don’t leave it unattended: Don’t let the vessel boil dry.
Don’t touch it: Don’t touch the heating surface, or other parts of the unit except the control knobs.
Avoid spills: Avoid spilling liquid on the base as it will damage the unit.
Don’t use near flammable vapors: Avoid using the unit near flammable vapors or to heat flammable liquid.
Applications
A hotplate magnetic stirrer is a laboratory tool used to mix and heat liquids for a variety of scientific applications, including:
Chemical reactions: Used to mix and heat solutions for chemical reactions, such as synthesis
Cell culture: Used to mix and heat liquids for cell culture
Microbiology: Used to mix and heat liquids for microbiology
Dissolving solids: Used to dissolve solids
Mixing reagents: Used to mix reagents
Preparing samples: Used to prepare samples for analysis
Features of LS-HS–2H/3H:
-
Cast Aluminum / SS304 with surface spraying plate
-
Max. Temp.: 380°C, max. speed: 2000rpm
-
Heating and stirring can proceed simultaneously
-
Heating power and stirring speed is steplessly adjusted
Features of LS-HS–4H/4HC:
-
Ceramic plate / SS 304
-
PT 100 sensor is standard for LS-HS–4HC
-
With the adjustable rack and stirrer bar
-
Max. Temp.: 380°C, max. speed: 2000rpm
-
Heating and stirring can proceed simultaneously
-
Heating power and stirring speed is steplessly adjusted
-
Enclosed hot plate with flame protection, fast warm-up and durability
| Model | LS-HS–2H | LS-HS–3H | LS-HS–4H | LS-HS–4HC |
|---|---|---|---|---|
| Work Plate Size | 120×120mm | 170×170mm | 190×190mm | 190×190mm |
| Plate Load (kg) | 3 | 10 | — | — |
| Work Plate Material | Cast Aluminum with surface spraying | — | Ceramic | Ceramic |
| Max. Stirring Capacity | 2L | 5L | — | — |
| Speed Range | 100–2000rpm | — | 200–2000rpm | 200–2000rpm |
| Heating Temp | 380°C | 380°C | 380°C | 350°C |
| Power Consumption | 180W | 500W | 600W | — |
| Power Supply | AC110/220V ±10%, 50/60Hz | AC110/220V ±10%, 50/60Hz | AC110/220V ±10%, 50/60Hz | AC110/220V ±10%, 50/60Hz |
| Standard Accessory | Adjustable rack, stirrer bar; PT100 sensor (only for LS-HS–4HC) | |||
| External Size (W×D×H) mm | 200×120×90 | 265×185×190 | 320×190×125 | — |
| Package Size (W×D×H) mm | 250×180×120 | 280×210×220 | 390×240×230 | — |
| Net Weight (kg) | 1.9 | 2.2 | 5 | — |
| Gross Weight (kg) | 3 | 3.4 | 6 | — |
