Application Range:

Applicable to health services, scientific research, agriculture and other units, to the lab equipment, dressings, glassware, solution culture medium to carry out sterilization, also is a necessary test equipment food factory, drinking water plant to QS, HACCP certification.

There are 6 fixed programs and 2 DIY programs according to different sterilization objects such as dressings, equipment, tools, rubber, liquid, culture medium, waste, etc.

Safety Features:

  • Over pressure. Safety valve can automatically open to release pressure.

  • Over temperature. The system will power off automatically.

  • Door sensor. Sensor at door closing position, to check the door status. If door is open, operation will stop.

  • Anti-dry out function. If water level is too low, system will power off and error code displays on screen.

  • Over current. Over voltage or electric leakage protection apparatus air switch.

  • Door cover. The door is covered with safety shell made of thermal insulation material, which can protect operator from burning by heat and looks nice.

Technical Features:

  • Water inlet filter to keep high water quality.

  • Optional printer for recording sterilization data.

  • Upgraded LCD Display screen displays all steps of full process as well as error codes.

  • Independent quick service window, easy for repairing and maintenance.

  • Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.

  • Sterilization program for dressings, equipment, rubber, culture medium, waste, etc.

  • Hand wheel type of quick-open door structure, well-expandable healing ring, easy operating and safe.

  • Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs automatically.

  • Adopting certain temperature (98–102°C) exhaust method and dynamic pulse exhaust method to empty the cold air inside chamber for ensuring steam saturation.

  • Inner stainless steel water tank for water and steam to circulate inside. Steam does not exhaust during sterilization, so as to keep the outside clean and dry.

  • Drying function.

  • Optional stainless steel bucket and tray.

  • Standard 1 pc stainless steel tray.

Model LM-VA50V LM-VA75V LM-VA100V LM-VA120V LM-VA150V LM-VA200V
Capacity 50L 75L 100L 120L 150L 200L
Chamber Size (mm) φ385×514 φ386×695 φ386×875 φ386×1055 φ500×760 φ500×1000
Chamber Material SUS304
Designed Pressure 0.28MPa 0.217MPa
Designed Temp 134°C 138°C
Working Pressure 0.23MPa 0.217MPa
Working Temp 105–136°C 50–134°C
Temp. Display Accuracy 0.1°C
Timing Range 0–99min 0–99h
Dynamic Pulse 0–9 times
Exhaust Temp 105–136°C
Temp. Holding Range 45–60°C 50–100°C (Programmable)
Consumption 4.4KW 4.7KW 5.2KW 5.2KW 6KW
Power Supply AC110/220V±10%, 50/60Hz 380V, 50Hz/60Hz
SS Basket 1 pc 2 pcs 2 pcs 3 pcs 3 pcs 4 pcs
External Size (W×D×H) mm 640×550×970 640×550×1080 640×550×1280 640×550×1380 650×650×1400 650×650×1700
Package Size (W×D×H) mm 750×745×1100 750×745×1240 750×745×1450 750×745×1540 800×760×1530 800×760×1720
Gross Weight (kg) 70 90 100 125 175 190

Luxmed

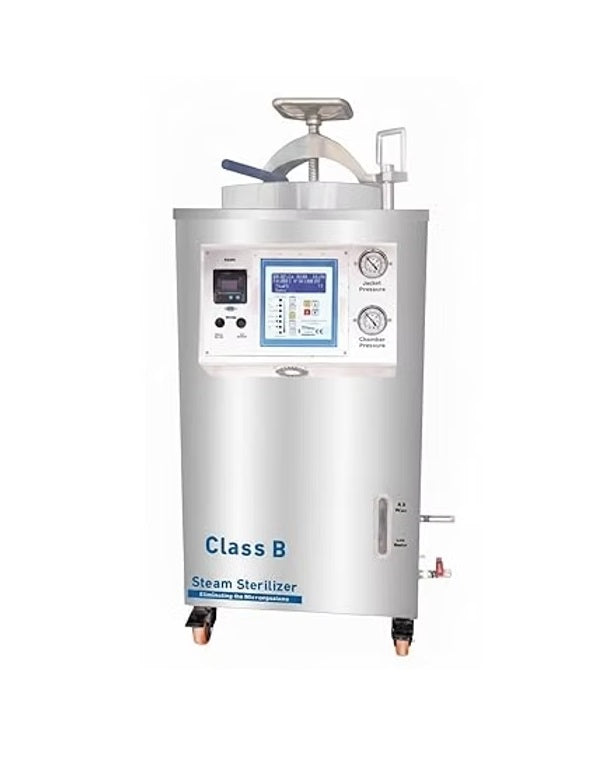

Steam Sterilizer (Cylindrical Vertical)

SKU LM-VA50V
Rs.0.00

Application Range:

Applicable to health services, scientific research, agriculture and other units, to the lab equipment, dressings, glassware, solution culture medium to carry out sterilization, also is a necessary test equipment food factory, drinking water plant to QS, HACCP certification.

There are 6 fixed programs and 2 DIY programs according to different sterilization objects such as dressings, equipment, tools, rubber, liquid, culture medium, waste, etc.

Safety Features:

  • Over pressure. Safety valve can automatically open to release pressure.

  • Over temperature. The system will power off automatically.

  • Door sensor. Sensor at door closing position, to check the door status. If door is open, operation will stop.

  • Anti-dry out function. If water level is too low, system will power off and error code displays on screen.

  • Over current. Over voltage or electric leakage protection apparatus air switch.

  • Door cover. The door is covered with safety shell made of thermal insulation material, which can protect operator from burning by heat and looks nice.

Technical Features:

  • Water inlet filter to keep high water quality.

  • Optional printer for recording sterilization data.

  • Upgraded LCD Display screen displays all steps of full process as well as error codes.

  • Independent quick service window, easy for repairing and maintenance.

  • Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.

  • Sterilization program for dressings, equipment, rubber, culture medium, waste, etc.

  • Hand wheel type of quick-open door structure, well-expandable healing ring, easy operating and safe.

  • Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs automatically.

  • Adopting certain temperature (98–102°C) exhaust method and dynamic pulse exhaust method to empty the cold air inside chamber for ensuring steam saturation.

  • Inner stainless steel water tank for water and steam to circulate inside. Steam does not exhaust during sterilization, so as to keep the outside clean and dry.

  • Drying function.

  • Optional stainless steel bucket and tray.

  • Standard 1 pc stainless steel tray.

Model LM-VA50V LM-VA75V LM-VA100V LM-VA120V LM-VA150V LM-VA200V
Capacity 50L 75L 100L 120L 150L 200L
Chamber Size (mm) φ385×514 φ386×695 φ386×875 φ386×1055 φ500×760 φ500×1000
Chamber Material SUS304
Designed Pressure 0.28MPa 0.217MPa
Designed Temp 134°C 138°C
Working Pressure 0.23MPa 0.217MPa
Working Temp 105–136°C 50–134°C
Temp. Display Accuracy 0.1°C
Timing Range 0–99min 0–99h
Dynamic Pulse 0–9 times
Exhaust Temp 105–136°C
Temp. Holding Range 45–60°C 50–100°C (Programmable)
Consumption 4.4KW 4.7KW 5.2KW 5.2KW 6KW
Power Supply AC110/220V±10%, 50/60Hz 380V, 50Hz/60Hz
SS Basket 1 pc 2 pcs 2 pcs 3 pcs 3 pcs 4 pcs
External Size (W×D×H) mm 640×550×970 640×550×1080 640×550×1280 640×550×1380 650×650×1400 650×650×1700
Package Size (W×D×H) mm 750×745×1100 750×745×1240 750×745×1450 750×745×1540 800×760×1530 800×760×1720
Gross Weight (kg) 70 90 100 125 175 190
Rs.0.00
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday

Product Description

Application Range:

Applicable to health services, scientific research, agriculture and other units, to the lab equipment, dressings, glassware, solution culture medium to carry out sterilization, also is a necessary test equipment food factory, drinking water plant to QS, HACCP certification.

There are 6 fixed programs and 2 DIY programs according to different sterilization objects such as dressings, equipment, tools, rubber, liquid, culture medium, waste, etc.

Safety Features:

  • Over pressure. Safety valve can automatically open to release pressure.

  • Over temperature. The system will power off automatically.

  • Door sensor. Sensor at door closing position, to check the door status. If door is open, operation will stop.

  • Anti-dry out function. If water level is too low, system will power off and error code displays on screen.

  • Over current. Over voltage or electric leakage protection apparatus air switch.

  • Door cover. The door is covered with safety shell made of thermal insulation material, which can protect operator from burning by heat and looks nice.

Technical Features:

  • Water inlet filter to keep high water quality.

  • Optional printer for recording sterilization data.

  • Upgraded LCD Display screen displays all steps of full process as well as error codes.

  • Independent quick service window, easy for repairing and maintenance.

  • Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.

  • Sterilization program for dressings, equipment, rubber, culture medium, waste, etc.

  • Hand wheel type of quick-open door structure, well-expandable healing ring, easy operating and safe.

  • Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs automatically.

  • Adopting certain temperature (98–102°C) exhaust method and dynamic pulse exhaust method to empty the cold air inside chamber for ensuring steam saturation.

  • Inner stainless steel water tank for water and steam to circulate inside. Steam does not exhaust during sterilization, so as to keep the outside clean and dry.

  • Drying function.

  • Optional stainless steel bucket and tray.

  • Standard 1 pc stainless steel tray.

Model LM-VA50V LM-VA75V LM-VA100V LM-VA120V LM-VA150V LM-VA200V
Capacity 50L 75L 100L 120L 150L 200L
Chamber Size (mm) φ385×514 φ386×695 φ386×875 φ386×1055 φ500×760 φ500×1000
Chamber Material SUS304
Designed Pressure 0.28MPa 0.217MPa
Designed Temp 134°C 138°C
Working Pressure 0.23MPa 0.217MPa
Working Temp 105–136°C 50–134°C
Temp. Display Accuracy 0.1°C
Timing Range 0–99min 0–99h
Dynamic Pulse 0–9 times
Exhaust Temp 105–136°C
Temp. Holding Range 45–60°C 50–100°C (Programmable)
Consumption 4.4KW 4.7KW 5.2KW 5.2KW 6KW
Power Supply AC110/220V±10%, 50/60Hz 380V, 50Hz/60Hz
SS Basket 1 pc 2 pcs 2 pcs 3 pcs 3 pcs 4 pcs
External Size (W×D×H) mm 640×550×970 640×550×1080 640×550×1280 640×550×1380 650×650×1400 650×650×1700
Package Size (W×D×H) mm 750×745×1100 750×745×1240 750×745×1450 750×745×1540 800×760×1530 800×760×1720
Gross Weight (kg) 70 90 100 125 175 190
