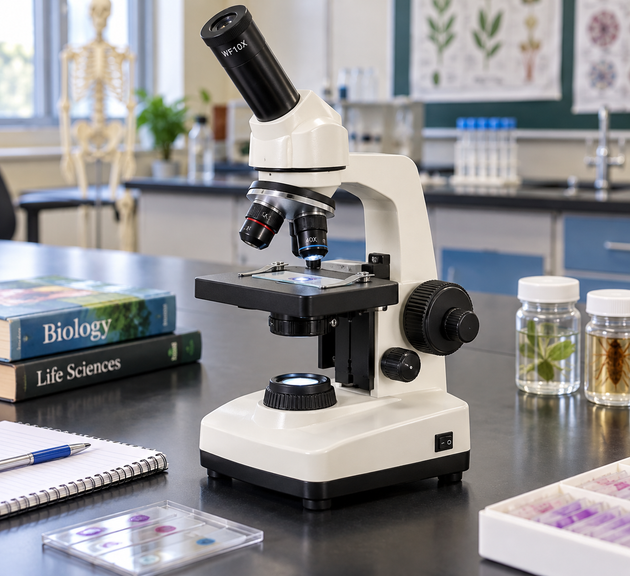

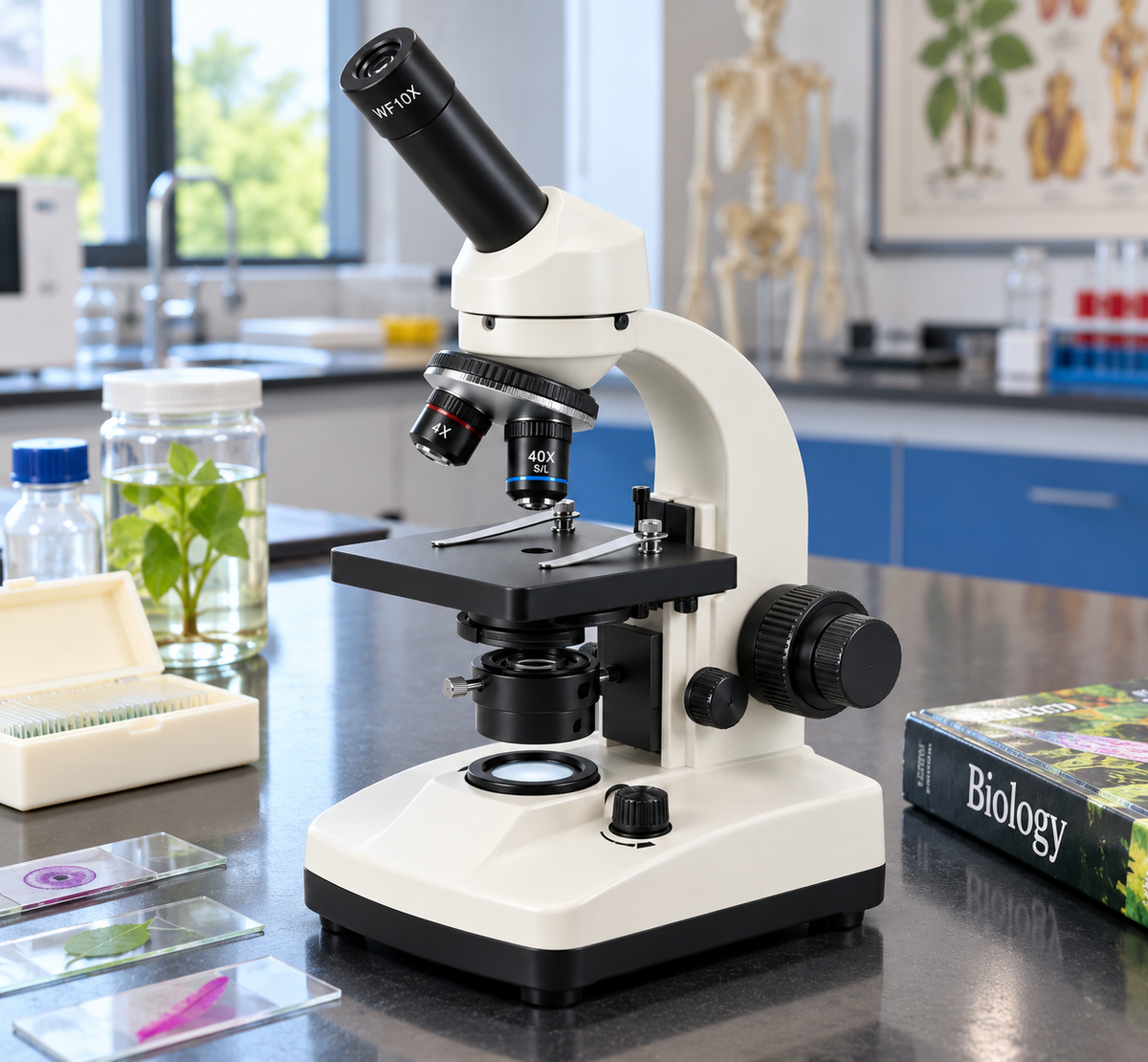

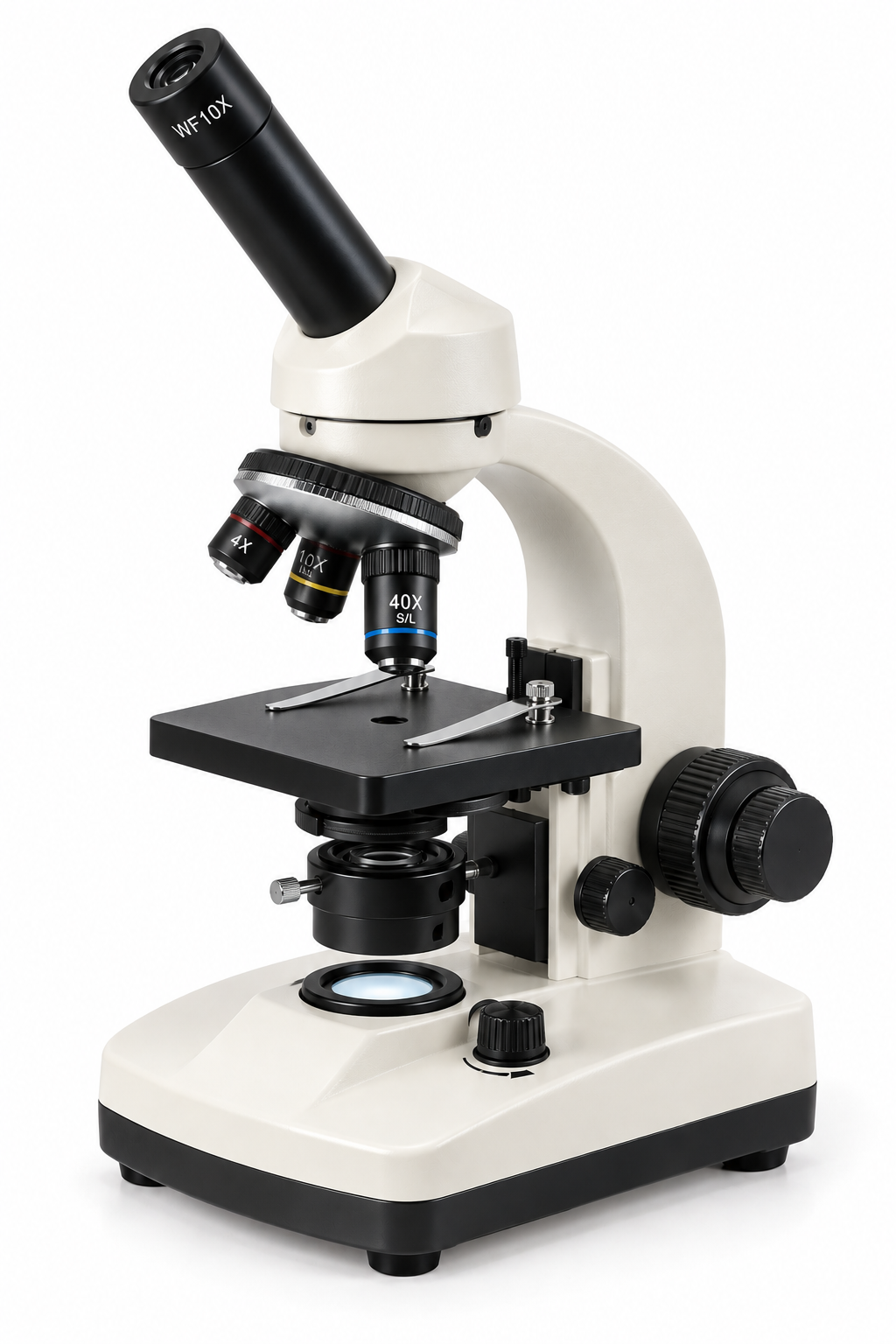

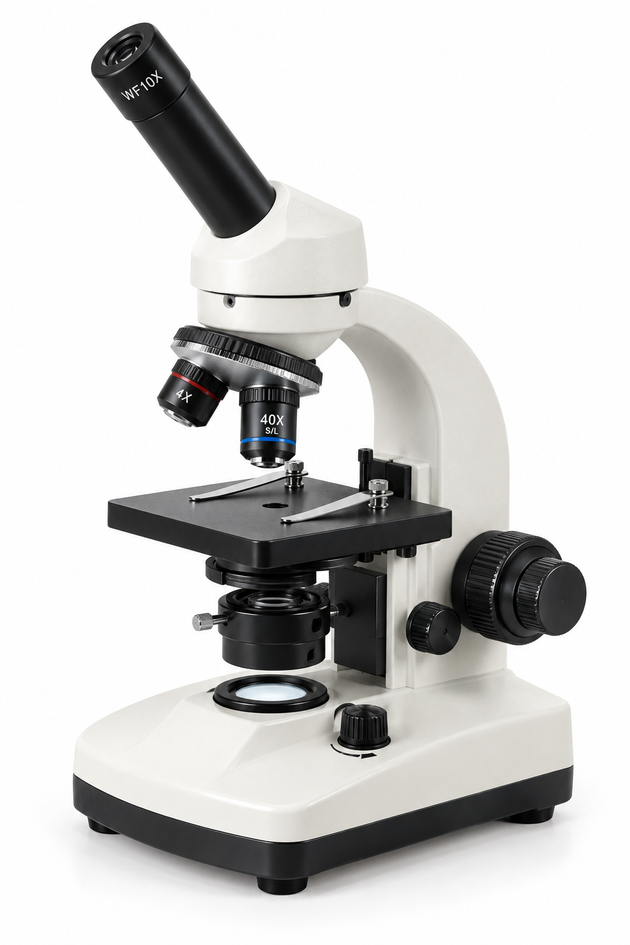

The Educational Microscope KG-1 XLB is a student-focused biological microscope designed for classroom and laboratory learning. It features a 10X wide-field eyepiece, 4X/10X/40X spring-loaded achromatic objectives, dust-proof triple revolving nosepiece, dual-sided coarse and fine focusing, and adjustable LED illumination.

Product Overview

The KG-1 XLB Educational Microscope is designed for hands-on microscopy education across biology, botany, zoology, forensic science and introductory earth science. Its fixed 110 × 110 mm stage provides a practical working platform, while separate coarse and fine focusing controls on both sides make focusing convenient for different users.

The microscope combines a 10X WF eyepiece with 4X, 10X and 40X S/L achromatic objectives, providing a calculated magnification range of 40X to 400X. The 40X objective is spring-loaded for added protection during routine student use.

Built-in LED illumination with an intensity controller provides adjustable specimen lighting without requiring mirror alignment. The microscope also supports optional accessories such as a plano-concave mirror, battery backup, pointer eyepiece, graduated XY stage and quadruple nosepiece.

Key Features and Benefits

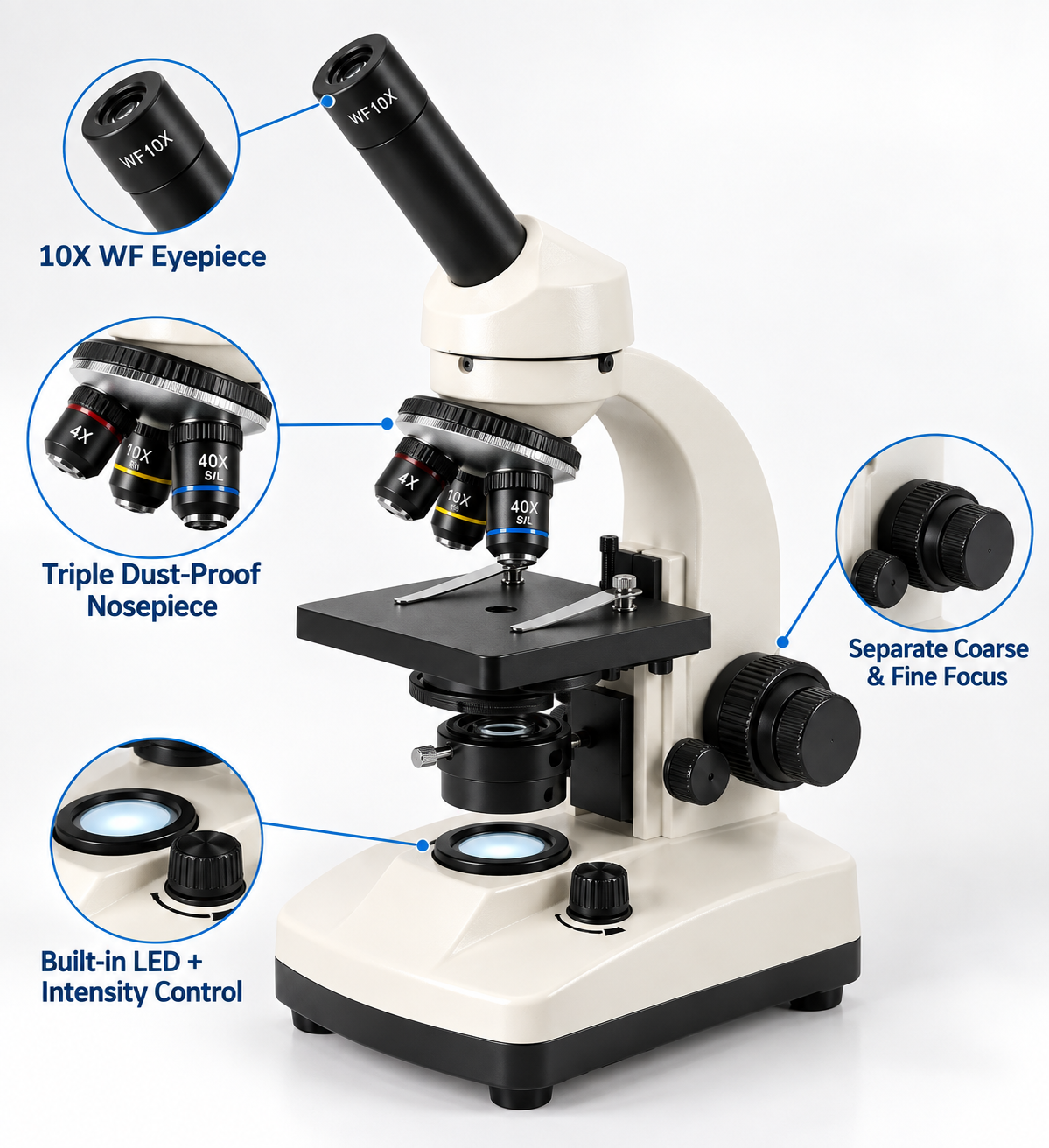

• 40X–400X magnification using 10X WF eyepiece and 4X–40X objectives
• 10X wide-field eyepiece for a broader viewing area
• 4X, 10X and 40X S/L achromatic objectives
• Spring-loaded 40X objective for added slide/objective protection
• 110 × 110 mm fixed square stage
• Dust-proof triple revolving nosepiece with positive click stops
• Separate coarse and fine focusing knobs on both sides
• Fine focusing with 0.002 mm divisions
• Built-in LED illumination with variable intensity control
• Durable die-cast aluminum body with chemical-resistant stipple grey finish
• Optional accessories for expanded teaching applications

4. Technical Specifications

5. Applications

• School and college biology laboratories
• Classroom microscopy demonstrations
• Botany and plant anatomy studies
• Zoology and invertebrate studies
• Introductory forensic science education
• Earth science and geology sample observation
• Examination of leaves, pollen and plant sections
• Observation of insects, fibres and small specimens
• Science workshops and summer science camps
• Library and museum educational programs

6. Suitable For

• Schools
• High school science laboratories
• Colleges and universities
• Biology teaching laboratories
• Botany and zoology departments
• Educational institutions
• Science training centres
• Forensic science teaching programs
• STEM learning environments
• Science outreach programs

7. Product Benefits

• Easy student operation: Separate coarse and fine controls make focusing straightforward.
• Adjustable illumination: LED intensity can be varied according to specimen and viewing conditions.
• Wide working stage: The 110 × 110 mm stage provides useful space for slide handling.
• Objective protection: The spring-loaded 40X objective helps reduce the risk of accidental contact with slides.
• Repeatable objective positioning: Positive click stops help position objectives consistently.
• Durable construction: Die-cast aluminum construction and chemical-resistant finish support routine educational use.
• Expandable configuration: Optional accessories allow the microscope to be adapted for different teaching activities.
• Convenient operation: Focusing controls are provided on both sides of the microscope.
