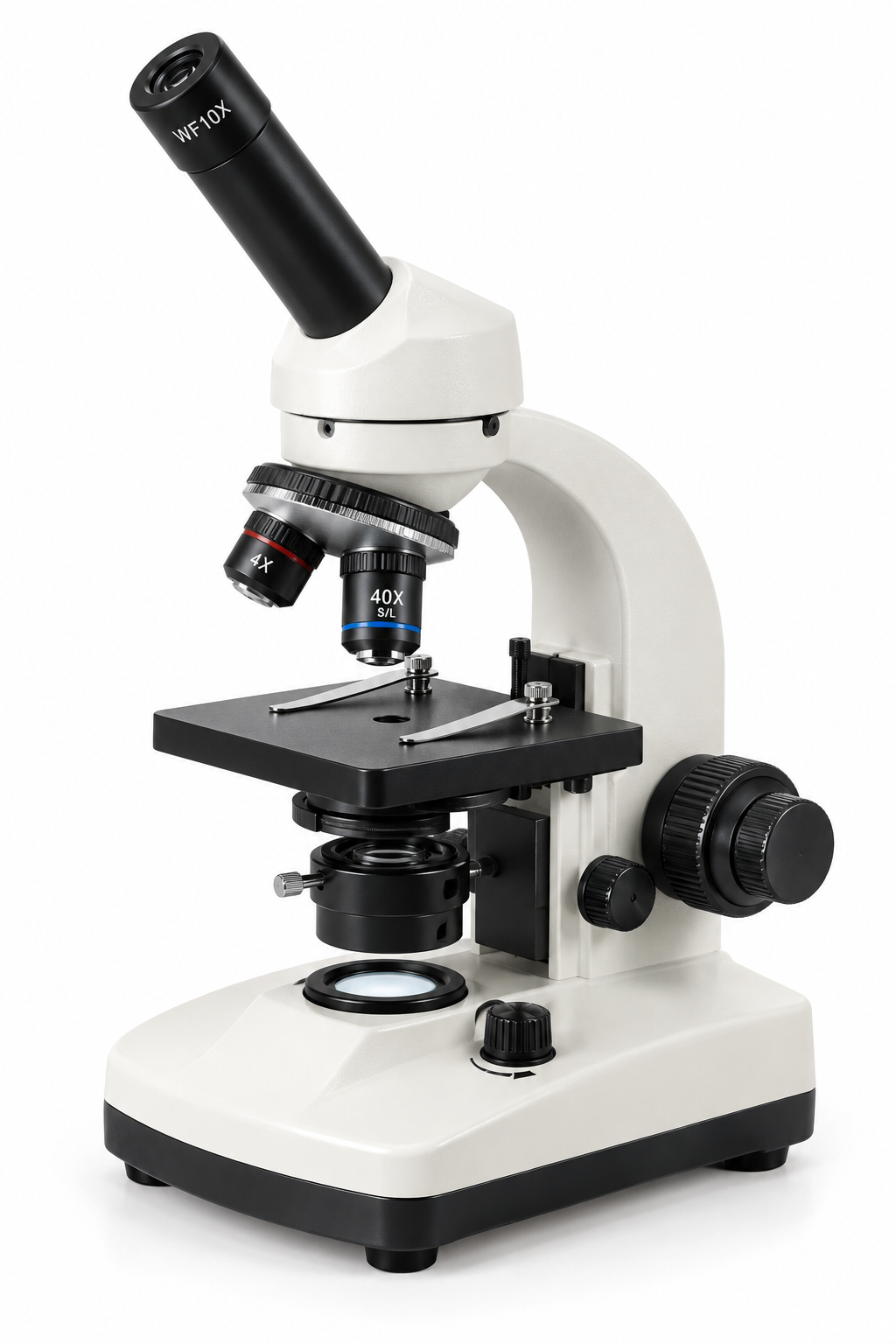

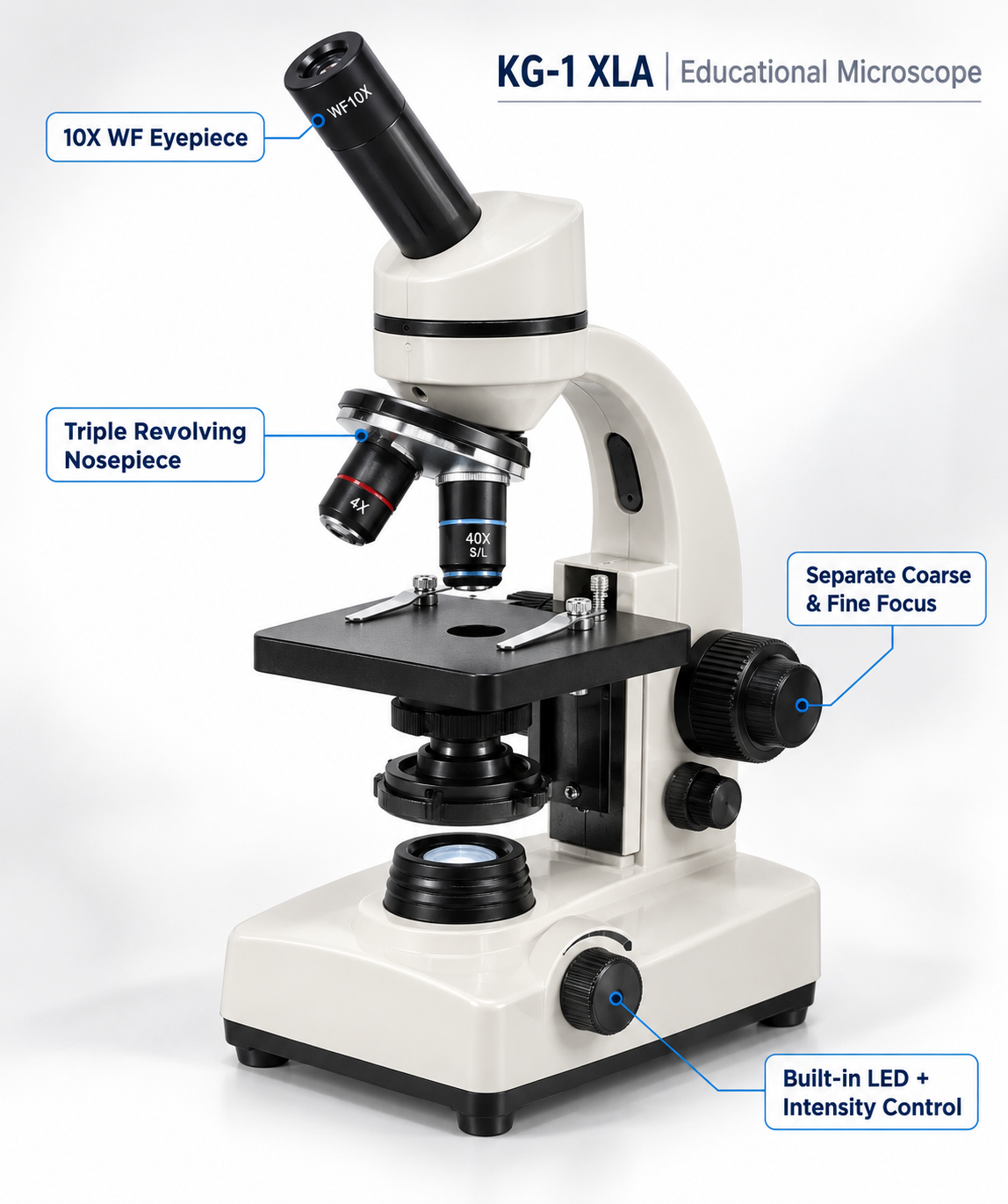

The KG-1 XLA Educational Microscope is designed for intermediate-level biology education, college science laboratories and routine specimen observation. It features a 110 × 110 mm fixed square stage, 10X WF eyepiece, 4X/10X/40X S/L achromatic objectives, separate coarse and fine focusing and built-in LED illumination with intensity control.

Product Overview

The KG-1 XLA is an enhanced educational microscope designed for students progressing from introductory to more advanced biological microscopy. Its larger 110 × 110 mm fixed square stage provides a stable platform for specimen observation, while the dust-proof triple revolving nosepiece incorporates positive click stops for reliable objective positioning.

The microscope uses separate coarse and fine focusing knobs on both sides, providing greater control during focusing compared with a single focusing mechanism. Built-in LED illumination with an intensity controller allows the brightness to be adjusted according to the specimen and viewing conditions.

The optical combination comprises a 10X WF eyepiece and 4X, 10X and 40X S/L achromatic objectives, providing a 40X–400X magnification range. The 40X S/L objective is spring-loaded to help protect the objective and slide in case of accidental contact.

Optional accessories include a plano-concave mirror attachment, battery backup system, 10X pointer eyepiece, XY graduated stage and quadruple nosepiece, allowing the microscope to be adapted for different educational and laboratory requirements.

Key Features & Benefits

• 40X–400X magnification
• 10X WF eyepiece
• 4X, 10X and 40X S/L achromatic objectives
• Spring-loaded 40X objective
• Fixed 110 × 110 mm square stage
• Dust-proof triple revolving nosepiece
• Positive click stops
• Separate coarse and fine focusing knobs on both sides
• Built-in LED illumination
• LED intensity controller
• Chemical-resistant stipple grey finish
• Optional battery backup
• Optional XY graduated stage
• Optional pointer eyepiece
• Optional quadruple nosepiece

4. Technical Specifications

5. Applications

• Intermediate-level school biology
• College biology laboratories
• Botany practicals
• Zoology practicals
• Microbiology education
• Cell biology studies
• Tissue structure observation
• Basic blood smear observation
• Pre-nursing laboratory education
• Allied health education
• Environmental science studies
• Plant pathology education
• Teacher training
• Basic educational quality-control exercises
• Advanced school science projects

6. Suitable For

• High schools
• Senior secondary biology laboratories
• Colleges
• Universities
• Medical and allied-health training institutions
• Nursing and pre-nursing programs
• Teacher preparation programs
• Homeschool science laboratories
• Vocational education
• Biology, botany and zoology departments

7. Product Benefits

• 40X–400X magnification: Provides a useful range for school and introductory college microscopy.
• Larger working stage: The 110 × 110 mm fixed stage provides a stable specimen platform.
• Precise focusing: Separate coarse and fine focusing controls allow more controlled image adjustment.
• Dual-side focusing: Focusing knobs on both sides provide convenient operation.
• Spring-loaded 40X objective: Helps protect the objective and slide from accidental contact.
• Adjustable LED illumination: Brightness can be adjusted to suit different specimens.
• Dust-proof nosepiece: Helps protect the objective mounting mechanism from contamination.
• Positive click stops: Help position objectives securely.
• Expandable configuration: Optional accessories allow the microscope to be adapted for measurement, field work and teaching.
• Chemical-resistant finish: Suitable for routine educational laboratory environments.
