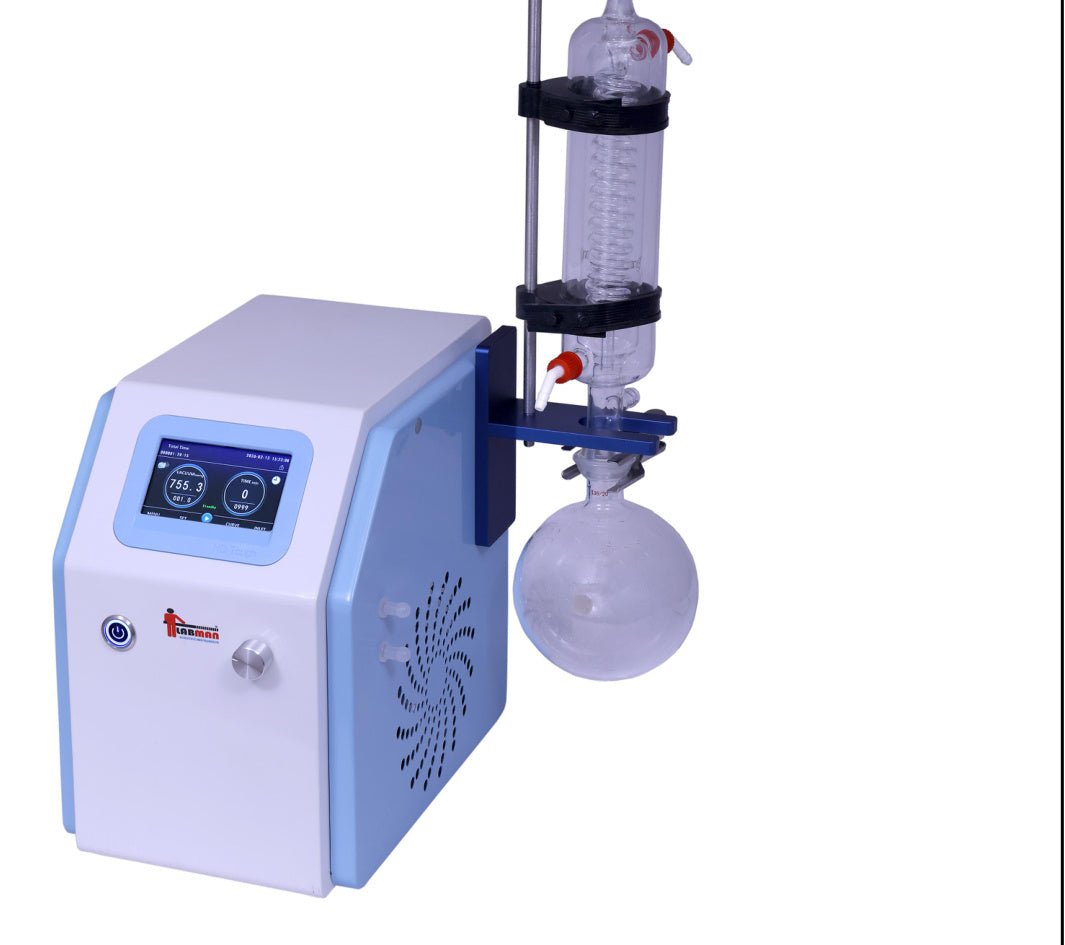

The VSRS300 Vacuum Solvent Recovery System is an advanced, eco-friendly solution designed for the efficient recovery, purification, and reuse of laboratory solvents. Operating under reduced pressure (vacuum), the system enables solvents to evaporate at lower temperatures, ensuring faster recovery rates while preventing thermal degradation of heat-sensitive compounds.
Engineered with a modular integrated design, the VSRS300 combines a diaphragm vacuum pump, vacuum controller, and exhaust adsorption system into a compact unit. Its touchscreen interface with real-time vacuum monitoring and programmable gradient distillation makes it ideal for chemical, pharmaceutical, petrochemical, and research laboratories.
The system is optimized for solvent recovery applications such as ethanol and toluene, delivering high efficiency, safety, and operational convenience in modern laboratory workflows.
⚙️ Key Features
-
🔄 Modular Integrated Design
Built-in diaphragm pump, vacuum controller, and exhaust adsorption system -
🎯 High-Precision Vacuum Control
Compatible with rotary evaporators; optimized for solvent recovery -
📊 Smart Touchscreen Interface
Real-time vacuum graph display with RS485 communication -
📉 Real-Time Monitoring
Displays both set and actual vacuum levels for accurate control -
⚙️ Programmable Vacuum Functions
Supports 5-stage gradient vacuum distillation -
⏱️ Timer & Scheduling Function
Enables automatic ON/OFF operation -
🔧 Vacuum Adjustment Knob
Fine-tune vacuum levels easily -
🌱 Eco-Friendly Operation
Enables solvent recycling and reduces waste
📊 Specifications Table
| Parameter | Specification |
|---|---|
| Model | VSRS300 |
| Make | LABMAN |
| Display | 4.2” Color Touch Screen |
| Vacuum Pump | In-built Diaphragm Pump |
| Vacuum Control System | In-built |
| Setting Range | 0–760 mmHg (Torr), 0–1013 hPa, 0–101.3 kPa |
| Measurement Range | 1–300 mmHg, up to 1066 hPa |
| Ultimate Vacuum | 3 mbar |
| Max Pumping Rate | 20 L/min |
| Interface Size | Inner φ6 mm / Outer φ10 mm |
| Recovery Bottle | 1000 ml |
| Applicable Media | Strong acid & alkali gases |
| Gradient Distillation | 5 stages |
| Diaphragm Material | PTFE Composite |
| Real-Time Vacuum Graph | Yes |
| Interface | RS485 |
| Noise Level | 55 dB |
| Ambient Temperature | 5°C – 40°C |
| Power | 120 W |
| Power Supply | AC 220V / 50–60 Hz |
| Dimensions (L×W×H) | 330 × 350 × 600 mm |
| Packing Dimensions | 445 × 495 × 470 mm |
| Net Weight | 16 kg |
| Gross Weight | 22 kg |
| Packing Type | Wooden Packing |
📦 Standard Accessories
-
Main Instrument
-
Condenser
-
1000 ml Recovery Bottle
-
Waste Gas Adsorption Device
-
Instruction Manual
-
Test Certificate
