Product Details:

Minimum Order Quantity	1 Piece
Brand	Weswox
Model Name/Number	SZM-150 CL
Eyepiece	Focusable Extra Wide Field 10X (paired) F.O.V. 22 mm
Zooming Range and Ratio	Zoom 0.8X to 8X with Magnification Ratio of 1:10
Plan Achromatic Objective	1X
Magnification Range	8X-80X
Working Distance	78 mm
Base Size	270x250 mm
Observation Head Inclined	20 Degree
Interpupillary Distance	55 mm To 75 mm

Mechanical Body:

Illumination System:

Incident and transmitted light system with LED lamps.
Both lights are regulated with power supply and has separate brightness controls.

Standard Accessories:

Cell Pad:

8” Touch screen, high resolution ( 1024x 768) color LCD.
Built-in camera with 2.0 Megapixel resolution.
Pre loaded capture & measurement software.
LCD screen can be rotated at 360° Horizontally, 90° vertically.
OS : Android 4.1.1
CPU : Dual core 1.5 GHz, 1G(DDR3) Memory, Internal 5GB or external Mini SD card HDMI display.
Output ports : one HDMI, one USB 2.0, one Mini USB.

our all products bears 2 year warranty.

Weswox

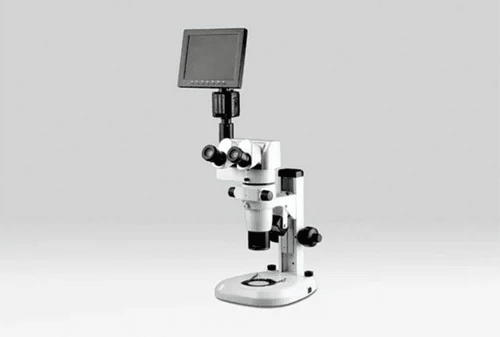

Stereo Zoom Fluorescent Microscope
