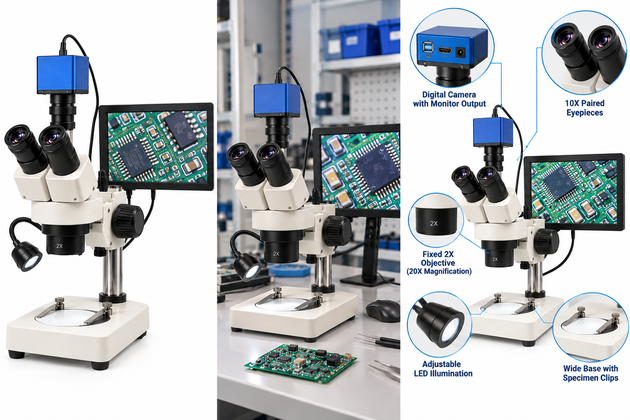

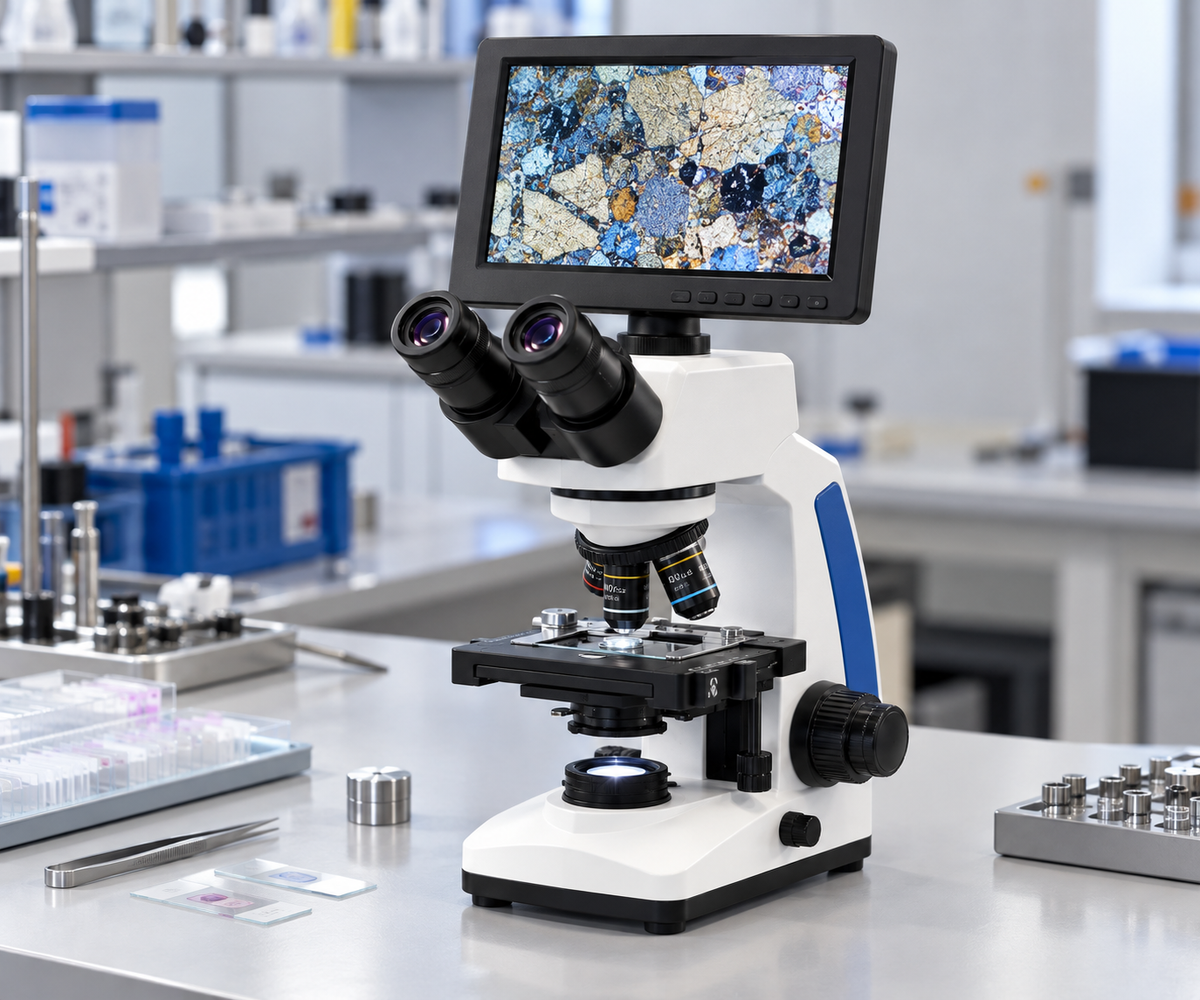

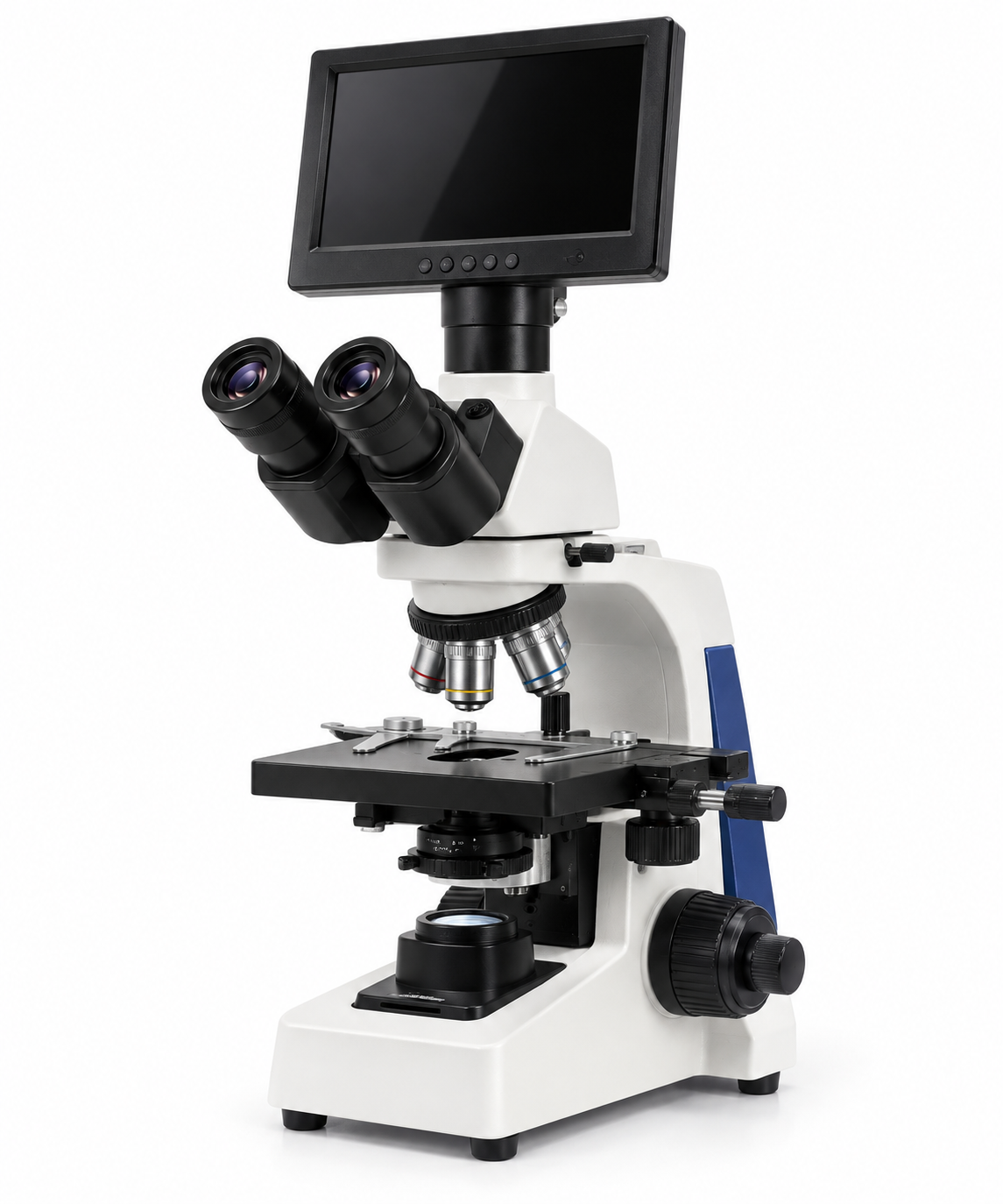

The Labmart Digital LCD Microscope is an integrated digital imaging solution that combines a microscope camera with an LCD display for direct viewing of microscope images. It features a 2MP display camera, 1/3" sensor, Full HD output, 1024 × 600 resolution at 30 fps and USB 2.0 connectivity. It can be used with monocular, binocular or trinocular microscopes and is suitable for inspection, education and laboratory documentation.

Product Overview

The Digital LCD Microscope provides a convenient way to view microscopic images on an integrated display rather than relying solely on conventional eyepiece observation or a separate computer monitor.

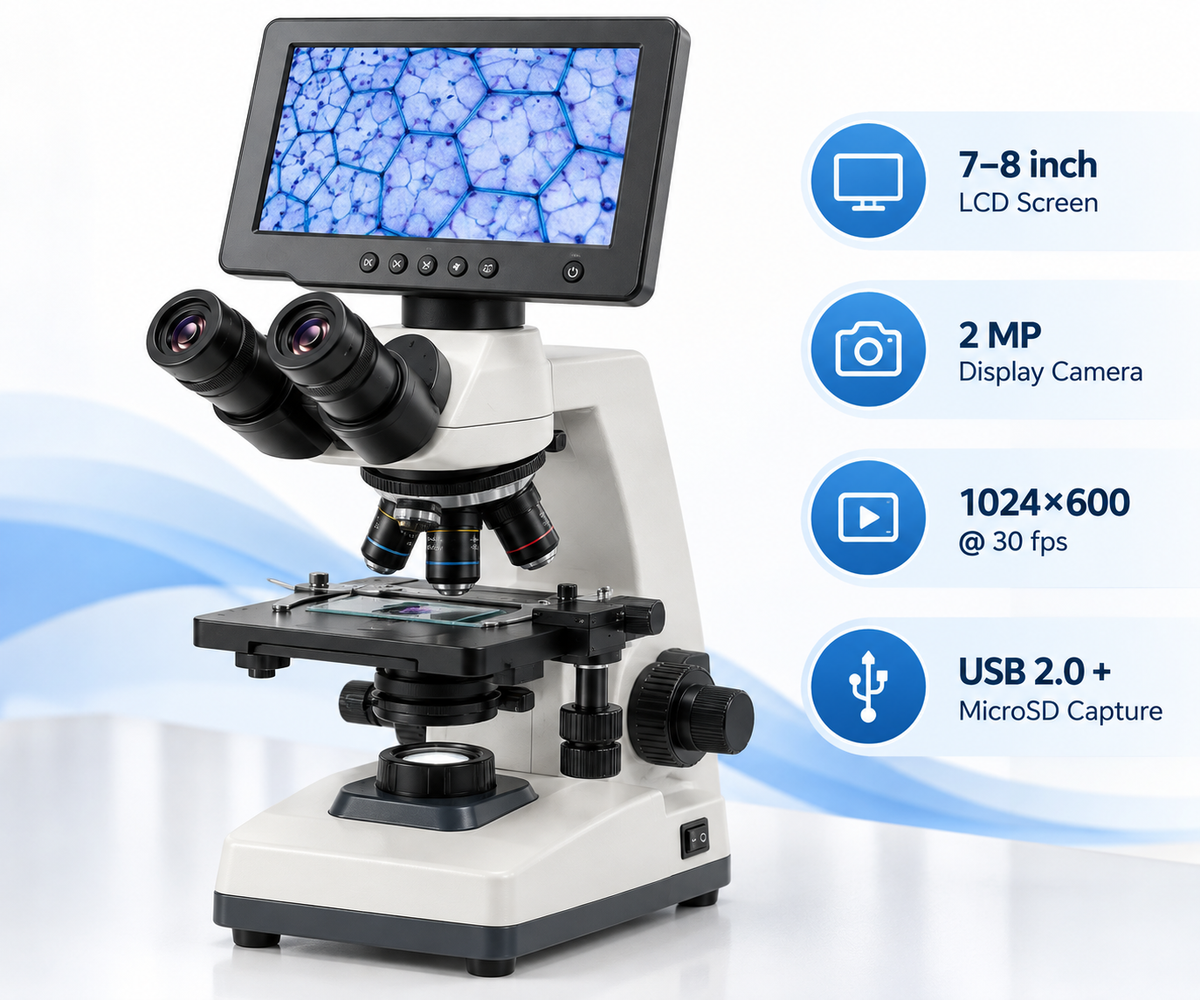

The system incorporates a 2MP display camera with a 1/3" sensor and provides a 1024 × 600 display resolution at 30 fps. Its USB 2.0 output also allows connection to a computer when additional digital processing or documentation is required.

The unit can be used with monocular, binocular or trinocular microscopes, as well as compatible existing microscope configurations. The compact system is supplied with a USB 2.0 cable, mouse and DC 12V power adaptor.

The LCD-based viewing arrangement is useful for applications where several users need to observe the same microscopic image, as well as for inspection, teaching, assembly and documentation.

Key Features and Benefits

• Integrated 2MP Display Camera: Captures the microscope image for direct digital viewing.
• 1/3" Sensor: Provides the imaging sensor for the integrated camera system.
• Full HD Imaging: Supports 1024 × 600 at 30 fps for smooth live observation.
• USB 2.0 Output: Allows connection to a computer for additional digital applications.
• Broad Microscope Compatibility: Designed for use with monocular, binocular and trinocular microscopes.
• Integrated LCD Viewing: Allows users to observe the microscopic image directly on the display.
• Compact Design: Measuring 225 × 52 × 175 mm, the unit is convenient for laboratory and inspection environments.
• Complete Basic Accessories: Supplied with USB 2.0 cable, mouse and DC 12V power adaptor.

4. Technical Specifications

5. Applications

• Industrial inspection
• Quality-control inspection
• Electronics assembly
• Soldering and micro-assembly
• Small-component examination
• Laboratory demonstrations
• Educational microscopy
• Research observation
• Biological specimen observation
• Field laboratory work
• Jewelry and watch inspection
• Hobby microscopy
• Group teaching and demonstrations
• Digital microscope image viewing

6. Suitable For

• Schools and colleges
• Teaching laboratories
• Research laboratories
• Industrial QC departments
• Electronics assembly teams
• Manufacturing inspection
• Workshops
• Jewelry and watchmaking applications
• Biology laboratories
• Field laboratories
• Training and demonstration environments

7. Product Benefits

• Direct digital viewing: Users can observe the microscope image on the integrated display.
• Reduced dependence on eyepiece viewing: Useful for demonstrations and collaborative inspection.
• Smooth live display: 30 fps output provides real-time observation.
• Computer connectivity: USB 2.0 allows the system to interface with a computer.
• Flexible microscope integration: Can be used with monocular, binocular and trinocular microscope configurations.
• Compact footprint: The 225 × 52 × 175 mm unit can fit into laboratory and inspection workspaces.
• Ready-to-use accessories: USB cable, mouse and power adaptor are included.
