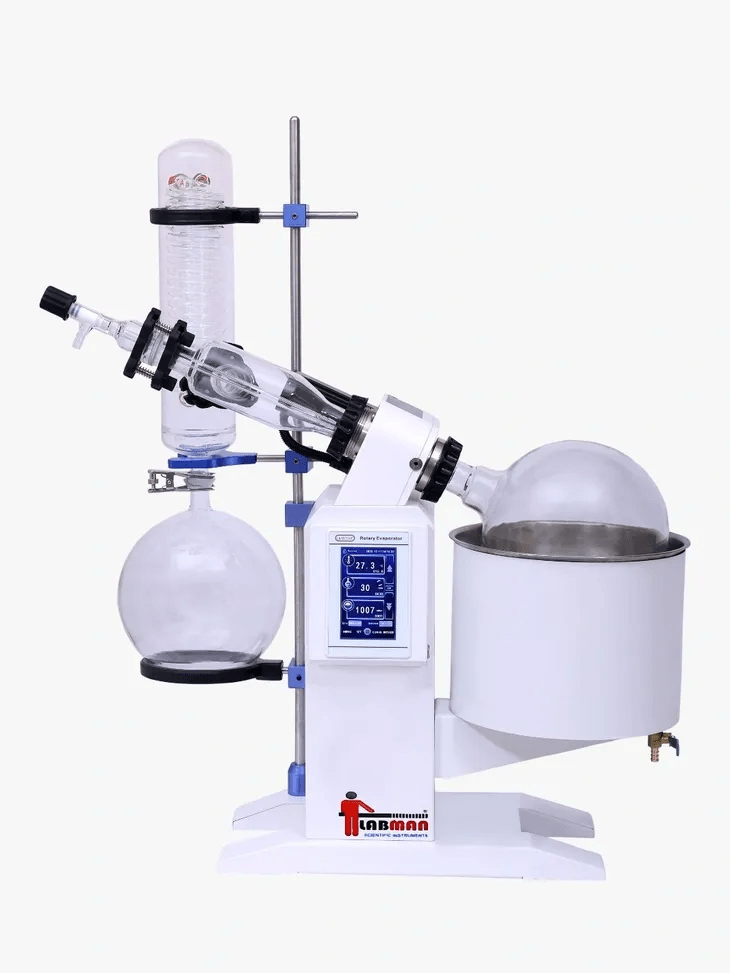

The LMRE10VC Industrial Rotary Evaporator is a high-capacity (10L) solvent evaporation system engineered for pilot-scale processing, industrial R&D, and continuous laboratory workflows. Designed with an in-built vacuum controller, programmable operation, and advanced PID temperature control, this system ensures precise, efficient, and large-volume solvent recovery.
⚙️ Key Industrial Features
🏭 High Capacity & Throughput
-
10 Liter evaporation capacity for bulk processing
-
Large collection bottle (10L) for continuous operation
-
Suitable for pilot plants and industrial-scale labs
🎛️ Advanced Automation & Control
-
In-built vacuum controller for precise pressure regulation
-
PID temperature control for stable heating
-
Programmable operation + timing function
-
7-inch touchscreen display with data storage (43 programs)
🔄 Continuous Processing Design
-
Automatic switching valve for continuous solvent collection
-
Anti-backflow condenser design prevents contamination
-
Double-layer condenser for high condensation efficiency
🔥 Industrial-Grade Heating System
-
Water bath temperature range: RT +5°C to 180°C
-
±1°C accuracy ensures reproducible results
-
Automatic lifting bath (160 mm stroke) for safe operation
🧪 Durable & Chemical-Resistant Build
-
PTFE + fluorine rubber sealing system (corrosion-resistant)
-
Aluminium alloy structure + stainless steel bath liner
-
Designed for aggressive solvents and long-term industrial use
⚡ Vacuum & Performance
-
Maximum vacuum: ≤ 399.9 Pa (≈3 mmHg)
-
Rotation speed: 20–140 RPM
-
Ensures fast evaporation at reduced temperatures
SPECIFICATIONS.
| Parameter | LMRE5VC | LMRE10VC |
|---|---|---|
| Capacity | 5 L | 10 L |
| Rotation Speed | 20 – 140 RPM | 20 – 140 RPM |
| Rotating Bottle | 5 L (Φ50 mm) | 10 L (Φ125 mm) |
| Collecting Bottle | 5 L | 10 L |
| Display | 5" Touch Screen | 7" Touch Screen |
| Database | NA | 43 |
| Vacuum Controller | In-built | In-built |
| Temperature Control | PID Control | PID Control |
| Timer | Available | Available |
| Program Setting | Programmable | Programmable |
| Function Display | Vacuum Degree, Rotational Speed | |
| Curve | Available | Available |
| Maximum Vacuum | 399.9 Pa (Below 3 mmHg) | |
| Lifting Method | Automatic Lifting Bath | |
| Bracket Material | Aluminium Alloy | |
| Sealing Method | Teflon + Fluorine Rubber Bidirectional Seal | |
| Temperature Display | Digital | |
| Water Bath Temperature Range | RT +5°C to 180°C | |
| Temperature Accuracy | ±1°C | |
| Feeding Valve | PTFE Valve | |
| Power | 2.0 kW | 3.0 kW |
| Heating Size | 280 × 170 mm | 350 × 220 mm |
| Lift Stroke | 150 mm | 160 mm |
| Gross Weight | 52 kg | 119 kg |
| Packing Size | 770 × 780 × 750 mm | 1220 × 720 × 1330 mm |
| Power Phase | Single Phase | |
| Power Supply | AC 220V, 50/60Hz |
- Regular price
- Rs.400,000.00
- Sale price
- Rs.329,000.00
The LMRE10VC Industrial Rotary Evaporator is a high-capacity (10L) solvent evaporation system engineered for pilot-scale processing, industrial R&D, and continuous laboratory workflows. Designed with an in-built vacuum controller, programmable operation, and advanced PID temperature control, this system ensures precise, efficient, and large-volume solvent recovery.
⚙️ Key Industrial Features
🏭 High Capacity & Throughput
-
10 Liter evaporation capacity for bulk processing
-
Large collection bottle (10L) for continuous operation
-
Suitable for pilot plants and industrial-scale labs
🎛️ Advanced Automation & Control
-
In-built vacuum controller for precise pressure regulation
-
PID temperature control for stable heating
-
Programmable operation + timing function
-
7-inch touchscreen display with data storage (43 programs)
🔄 Continuous Processing Design
-
Automatic switching valve for continuous solvent collection
-
Anti-backflow condenser design prevents contamination
-
Double-layer condenser for high condensation efficiency
🔥 Industrial-Grade Heating System
-
Water bath temperature range: RT +5°C to 180°C
-
±1°C accuracy ensures reproducible results
-
Automatic lifting bath (160 mm stroke) for safe operation
🧪 Durable & Chemical-Resistant Build
-
PTFE + fluorine rubber sealing system (corrosion-resistant)
-
Aluminium alloy structure + stainless steel bath liner
-
Designed for aggressive solvents and long-term industrial use
⚡ Vacuum & Performance
-
Maximum vacuum: ≤ 399.9 Pa (≈3 mmHg)
-
Rotation speed: 20–140 RPM
-
Ensures fast evaporation at reduced temperatures
SPECIFICATIONS.
| Parameter | LMRE5VC | LMRE10VC |
|---|---|---|
| Capacity | 5 L | 10 L |
| Rotation Speed | 20 – 140 RPM | 20 – 140 RPM |
| Rotating Bottle | 5 L (Φ50 mm) | 10 L (Φ125 mm) |
| Collecting Bottle | 5 L | 10 L |
| Display | 5" Touch Screen | 7" Touch Screen |
| Database | NA | 43 |
| Vacuum Controller | In-built | In-built |
| Temperature Control | PID Control | PID Control |
| Timer | Available | Available |
| Program Setting | Programmable | Programmable |
| Function Display | Vacuum Degree, Rotational Speed | |
| Curve | Available | Available |
| Maximum Vacuum | 399.9 Pa (Below 3 mmHg) | |
| Lifting Method | Automatic Lifting Bath | |
| Bracket Material | Aluminium Alloy | |
| Sealing Method | Teflon + Fluorine Rubber Bidirectional Seal | |
| Temperature Display | Digital | |
| Water Bath Temperature Range | RT +5°C to 180°C | |
| Temperature Accuracy | ±1°C | |
| Feeding Valve | PTFE Valve | |
| Power | 2.0 kW | 3.0 kW |
| Heating Size | 280 × 170 mm | 350 × 220 mm |
| Lift Stroke | 150 mm | 160 mm |
| Gross Weight | 52 kg | 119 kg |
| Packing Size | 770 × 780 × 750 mm | 1220 × 720 × 1330 mm |
| Power Phase | Single Phase | |
| Power Supply | AC 220V, 50/60Hz |
- Regular price
- Rs.400,000.00
- Sale price
- Rs.329,000.00
- Delivery Period :5-7 Working Days
- Replacement :3 Days Replacement as standard, Free of Cost
- Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
Product Description
The LMRE10VC Industrial Rotary Evaporator is a high-capacity (10L) solvent evaporation system engineered for pilot-scale processing, industrial R&D, and continuous laboratory workflows. Designed with an in-built vacuum controller, programmable operation, and advanced PID temperature control, this system ensures precise, efficient, and large-volume solvent recovery.
⚙️ Key Industrial Features
🏭 High Capacity & Throughput
-
10 Liter evaporation capacity for bulk processing
-
Large collection bottle (10L) for continuous operation
-
Suitable for pilot plants and industrial-scale labs
🎛️ Advanced Automation & Control
-
In-built vacuum controller for precise pressure regulation
-
PID temperature control for stable heating
-
Programmable operation + timing function
-
7-inch touchscreen display with data storage (43 programs)
🔄 Continuous Processing Design
-
Automatic switching valve for continuous solvent collection
-
Anti-backflow condenser design prevents contamination
-
Double-layer condenser for high condensation efficiency
🔥 Industrial-Grade Heating System
-
Water bath temperature range: RT +5°C to 180°C
-
±1°C accuracy ensures reproducible results
-
Automatic lifting bath (160 mm stroke) for safe operation
🧪 Durable & Chemical-Resistant Build
-
PTFE + fluorine rubber sealing system (corrosion-resistant)
-
Aluminium alloy structure + stainless steel bath liner
-
Designed for aggressive solvents and long-term industrial use
⚡ Vacuum & Performance
-
Maximum vacuum: ≤ 399.9 Pa (≈3 mmHg)
-
Rotation speed: 20–140 RPM
-
Ensures fast evaporation at reduced temperatures
SPECIFICATIONS.
| Parameter | LMRE5VC | LMRE10VC |
|---|---|---|
| Capacity | 5 L | 10 L |
| Rotation Speed | 20 – 140 RPM | 20 – 140 RPM |
| Rotating Bottle | 5 L (Φ50 mm) | 10 L (Φ125 mm) |
| Collecting Bottle | 5 L | 10 L |
| Display | 5" Touch Screen | 7" Touch Screen |
| Database | NA | 43 |
| Vacuum Controller | In-built | In-built |
| Temperature Control | PID Control | PID Control |
| Timer | Available | Available |
| Program Setting | Programmable | Programmable |
| Function Display | Vacuum Degree, Rotational Speed | |
| Curve | Available | Available |
| Maximum Vacuum | 399.9 Pa (Below 3 mmHg) | |
| Lifting Method | Automatic Lifting Bath | |
| Bracket Material | Aluminium Alloy | |
| Sealing Method | Teflon + Fluorine Rubber Bidirectional Seal | |
| Temperature Display | Digital | |
| Water Bath Temperature Range | RT +5°C to 180°C | |
| Temperature Accuracy | ±1°C | |
| Feeding Valve | PTFE Valve | |
| Power | 2.0 kW | 3.0 kW |
| Heating Size | 280 × 170 mm | 350 × 220 mm |
| Lift Stroke | 150 mm | 160 mm |
| Gross Weight | 52 kg | 119 kg |
| Packing Size | 770 × 780 × 750 mm | 1220 × 720 × 1330 mm |
| Power Phase | Single Phase | |
| Power Supply | AC 220V, 50/60Hz |
