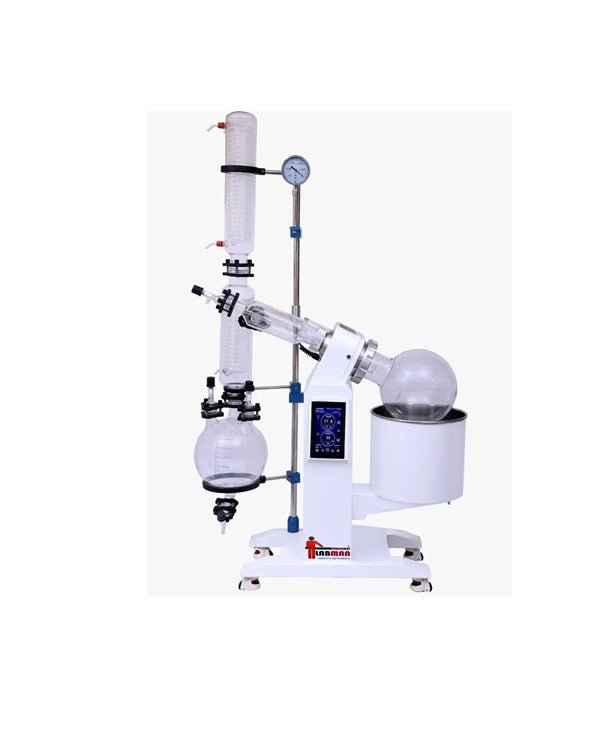

The LABMAN LMRE5VC is a 5 L rotary evaporator with an automatic lifting bath and a built-in vacuum controller. It rotates the 5 L (Φ50 mm) flask at 20–140 RPM, heats the SS304 bath from RT+5°C to 180°C with PID control and reaches a maximum vacuum below 3 mmHg. A vacuum pump and a water chiller are needed to run it and are supplied at extra cost.
Key features
- 5 L evaporation capacity with automatic lifting bath
- Built-in vacuum controller, PID temperature control, programmable, timing function and curve option
- Touch screen display showing vacuum degree and rotational speed
- Adjustable double-layer condenser with anti-backflow design
- Durable corrosion-resistant PTFE and fluorine-rubber sealing system
- Automatic switching valve for continuous collection; PTFE discharge valve
- Aluminium alloy bracket and SS304 water bath
Technical specifications
| Parameter | Specification |
|---|---|
| Model | LMRE5VC |
| Make | LABMAN |
| Capacity | 5 L |
| Rotation speed | 20–140 RPM |
| Rotating bottle | 5 L (Φ50 mm) |
| Collecting bottle | 5 L |
| Condenser area | 0.27 m² |
| Display | 5" touch screen |
| Condenser tube | Vertical double serpentine |
| In-built vacuum controller | Yes |
| Temperature control mode | PID |
| Program setting | Programmable |
| Curve | Available |
| Maximum vacuum | 399.9 Pa (below 3 mmHg) |
| Lifting method | Automatic lifting bath |
| Bath material | SS304 |
| Bracket material | Aluminium alloy |
| Sealing method | Teflon + fluorine rubber bidirectional seal |
| Water bath temperature range | RT+5°C to 180°C, ±1°C |
| Feeding valve | PTFE valve |
| Ambient temperature | 5°C to 30°C |
| Power supply | AC 220 V, 50/60 Hz, single-phase |
| Complete machine power | 2.0 kW |
| Water bath pot size | 280 × 170 mm |
| Lift stroke | 150 mm |
| Gross weight | 52 kg |
| Packaging | Wooden packing |
| HSN code | 84198990 |
Supplied with
Main instrument, water bath, distillation flask, collection bottle, condenser and fitting accessories, power cord, instruction manual, test certificate. Vacuum pump and water chiller are essential accessories supplied at extra cost.
Frequently asked questions
What is the capacity of the LMRE5VC?
5 L evaporation capacity, with a 5 L (Φ50 mm) rotating bottle and 5 L collecting bottle.
What bath temperature does it reach?
RT+5°C to 180°C with ±1°C PID control, in an SS304 bath that is raised and lowered automatically.
Does it need a separate vacuum controller?
No. A vacuum controller is built in, with programmable gradients and a curve option. A vacuum pump and a water chiller are still needed.
Are the vacuum pump and chiller included?
No. They are essential accessories supplied at an additional cost.
How far does the bath lift?
The automatic lifting bath has a 150 mm stroke.
What is the condenser?
A vertical double serpentine condenser with 0.27 m² area.
What power supply does it need?
AC 220 V, 50/60 Hz, single-phase.
What is supplied with it?
Main instrument, water bath, distillation flask, collection bottle, condenser and fitting accessories, power cord, instruction manual, test certificate. Vacuum pump and water chiller are essential accessories supplied at extra cost.
Can I get a GST invoice and a bulk or institutional quotation?
Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.
What is the warranty and delivery time?
LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
Labman
LMRE5VC Rotary Evaporator – 5 L, 20–140 RPM, RT+5 to 180°C Bath, Built-in Vacuum Controller, Automatic Lift, Free Onsite Installation
- Regular price
- Rs.408,999.00
- Sale price
- Rs.272,999.00
The LABMAN LMRE5VC is a 5 L rotary evaporator with an automatic lifting bath and a built-in vacuum controller. It rotates the 5 L (Φ50 mm) flask at 20–140 RPM, heats the SS304 bath from RT+5°C to 180°C with PID control and reaches a maximum vacuum below 3 mmHg. A vacuum pump and a water chiller are needed to run it and are supplied at extra cost.
Key features
- 5 L evaporation capacity with automatic lifting bath
- Built-in vacuum controller, PID temperature control, programmable, timing function and curve option
- Touch screen display showing vacuum degree and rotational speed
- Adjustable double-layer condenser with anti-backflow design
- Durable corrosion-resistant PTFE and fluorine-rubber sealing system
- Automatic switching valve for continuous collection; PTFE discharge valve
- Aluminium alloy bracket and SS304 water bath
Technical specifications
| Parameter | Specification |
|---|---|
| Model | LMRE5VC |
| Make | LABMAN |
| Capacity | 5 L |
| Rotation speed | 20–140 RPM |
| Rotating bottle | 5 L (Φ50 mm) |
| Collecting bottle | 5 L |
| Condenser area | 0.27 m² |
| Display | 5" touch screen |
| Condenser tube | Vertical double serpentine |
| In-built vacuum controller | Yes |
| Temperature control mode | PID |
| Program setting | Programmable |
| Curve | Available |
| Maximum vacuum | 399.9 Pa (below 3 mmHg) |
| Lifting method | Automatic lifting bath |
| Bath material | SS304 |
| Bracket material | Aluminium alloy |
| Sealing method | Teflon + fluorine rubber bidirectional seal |
| Water bath temperature range | RT+5°C to 180°C, ±1°C |
| Feeding valve | PTFE valve |
| Ambient temperature | 5°C to 30°C |
| Power supply | AC 220 V, 50/60 Hz, single-phase |
| Complete machine power | 2.0 kW |
| Water bath pot size | 280 × 170 mm |
| Lift stroke | 150 mm |
| Gross weight | 52 kg |
| Packaging | Wooden packing |
| HSN code | 84198990 |
Supplied with
Main instrument, water bath, distillation flask, collection bottle, condenser and fitting accessories, power cord, instruction manual, test certificate. Vacuum pump and water chiller are essential accessories supplied at extra cost.
Frequently asked questions
What is the capacity of the LMRE5VC?
5 L evaporation capacity, with a 5 L (Φ50 mm) rotating bottle and 5 L collecting bottle.
What bath temperature does it reach?
RT+5°C to 180°C with ±1°C PID control, in an SS304 bath that is raised and lowered automatically.
Does it need a separate vacuum controller?
No. A vacuum controller is built in, with programmable gradients and a curve option. A vacuum pump and a water chiller are still needed.
Are the vacuum pump and chiller included?
No. They are essential accessories supplied at an additional cost.
How far does the bath lift?
The automatic lifting bath has a 150 mm stroke.
What is the condenser?
A vertical double serpentine condenser with 0.27 m² area.
What power supply does it need?
AC 220 V, 50/60 Hz, single-phase.
What is supplied with it?
Main instrument, water bath, distillation flask, collection bottle, condenser and fitting accessories, power cord, instruction manual, test certificate. Vacuum pump and water chiller are essential accessories supplied at extra cost.
Can I get a GST invoice and a bulk or institutional quotation?
Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.
What is the warranty and delivery time?
LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
- Regular price
- Rs.408,999.00
- Sale price
- Rs.272,999.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
The LABMAN LMRE5VC is a 5 L rotary evaporator with an automatic lifting bath and a built-in vacuum controller. It rotates the 5 L (Φ50 mm) flask at 20–140 RPM, heats the SS304 bath from RT+5°C to 180°C with PID control and reaches a maximum vacuum below 3 mmHg. A vacuum pump and a water chiller are needed to run it and are supplied at extra cost.
Key features
- 5 L evaporation capacity with automatic lifting bath
- Built-in vacuum controller, PID temperature control, programmable, timing function and curve option
- Touch screen display showing vacuum degree and rotational speed
- Adjustable double-layer condenser with anti-backflow design
- Durable corrosion-resistant PTFE and fluorine-rubber sealing system
- Automatic switching valve for continuous collection; PTFE discharge valve
- Aluminium alloy bracket and SS304 water bath
Technical specifications
| Parameter | Specification |
|---|---|
| Model | LMRE5VC |
| Make | LABMAN |
| Capacity | 5 L |
| Rotation speed | 20–140 RPM |
| Rotating bottle | 5 L (Φ50 mm) |
| Collecting bottle | 5 L |
| Condenser area | 0.27 m² |
| Display | 5" touch screen |
| Condenser tube | Vertical double serpentine |
| In-built vacuum controller | Yes |
| Temperature control mode | PID |
| Program setting | Programmable |
| Curve | Available |
| Maximum vacuum | 399.9 Pa (below 3 mmHg) |
| Lifting method | Automatic lifting bath |
| Bath material | SS304 |
| Bracket material | Aluminium alloy |
| Sealing method | Teflon + fluorine rubber bidirectional seal |
| Water bath temperature range | RT+5°C to 180°C, ±1°C |
| Feeding valve | PTFE valve |
| Ambient temperature | 5°C to 30°C |
| Power supply | AC 220 V, 50/60 Hz, single-phase |
| Complete machine power | 2.0 kW |
| Water bath pot size | 280 × 170 mm |
| Lift stroke | 150 mm |
| Gross weight | 52 kg |
| Packaging | Wooden packing |
| HSN code | 84198990 |
Supplied with
Main instrument, water bath, distillation flask, collection bottle, condenser and fitting accessories, power cord, instruction manual, test certificate. Vacuum pump and water chiller are essential accessories supplied at extra cost.
Frequently asked questions
What is the capacity of the LMRE5VC?
5 L evaporation capacity, with a 5 L (Φ50 mm) rotating bottle and 5 L collecting bottle.
What bath temperature does it reach?
RT+5°C to 180°C with ±1°C PID control, in an SS304 bath that is raised and lowered automatically.
Does it need a separate vacuum controller?
No. A vacuum controller is built in, with programmable gradients and a curve option. A vacuum pump and a water chiller are still needed.
Are the vacuum pump and chiller included?
No. They are essential accessories supplied at an additional cost.
How far does the bath lift?
The automatic lifting bath has a 150 mm stroke.
What is the condenser?
A vertical double serpentine condenser with 0.27 m² area.
What power supply does it need?
AC 220 V, 50/60 Hz, single-phase.
What is supplied with it?
Main instrument, water bath, distillation flask, collection bottle, condenser and fitting accessories, power cord, instruction manual, test certificate. Vacuum pump and water chiller are essential accessories supplied at extra cost.
Can I get a GST invoice and a bulk or institutional quotation?
Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.
What is the warranty and delivery time?
LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
