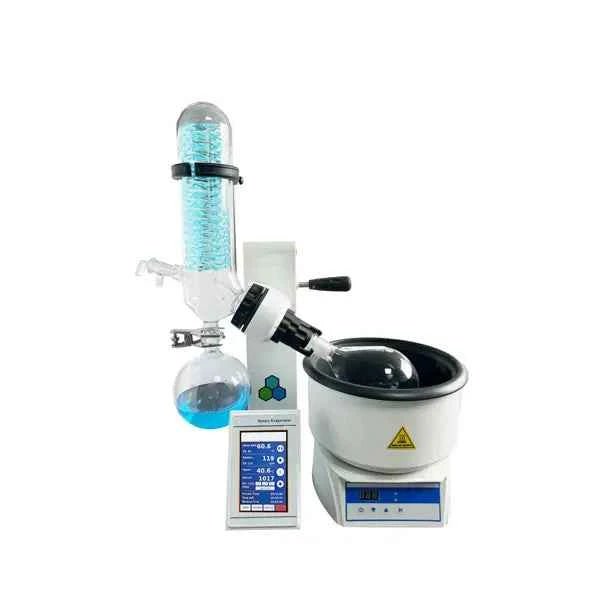

The Rotary Evaporator (with Touchscreen) is a high-performance laboratory instrument designed for efficient and gentle solvent evaporation under reduced pressure. Equipped with an intuitive touchscreen interface, it allows precise control of rotation speed, bath temperature, and vacuum parameters, ensuring accurate and reproducible results. This system is widely used in chemical, pharmaceutical, biotechnology, and research laboratories for concentration, purification, and solvent recovery processes.
SALIENT FEATURES:
- Safety features: Motor over-current protection, earth-leakage protection lifting overload protection
- 5°C above Set temp. Boil-dry protection mode activates
- In-built vacuum controller
- PTFE sealing rings
- Motorized lifting and rising of the condenser clamp
SPECIFICATIONS:
| Model |
RE-2T |
| Make |
Galaxy |
| Motor Type |
Brushless DC Motor |
| Speed Range |
20 to 300 RPM |
| Motor Power |
40 W |
| Display |
5″ Touchscreen LCD |
| Clockwise and Anti-clockwise |
Yes |
| Rotary Bottle Volume |
1 L / Ø131 mm opening |
| Collection Bottle Volume |
1 L / Ø131 mm opening |
| Heating Temperature Range |
RT to 199°C |
| Heating Control Accuracy |
± 1°C |
| Heating Power |
1300 W |
| Condensation Area |
0.15 m² |
| Evaporation Capacity |
— |
| Timer |
Yes |
| Time Setting Range |
0–9999 mins |
| Vacuum Controller |
In-built |
| Power Supply |
AC 220 V, 50 Hz |
| Dimensions & Weight |
700 × 410 × 880 mm, 43 kg |
STANDARD ACCESSORIES:
- Rotary Bottle
- Collection Bottle
- Condensor
- Adapter
- Instruction Manual
