Technical Specifications:

Observation Head: Trinocular Siedentopf observation head inclined at 30° rotatable at 360°.Vertical phototube for micro photography. Diopter adjustment ring on ocular tube (±5). Interpupillary distance from 55mm to 75mm.

Eyepiece: Wide field 10X (paired) F.O.V. 22mm.

Objectives: (Infinity corrected) M Long working distance plan 5X (W.D. 18.3 mm) M Long working distance plan 10X (W.D. 8.8 mm) M Long working distance plan 20X (W.D. 8.6 mm) M Long working distance plan 50X (S.L.) (W.D. 2.02 mm)

Illuminator: The Epi illuminator has 3W LED Bulb with variable brightness control, field diaphragm, aperture diaphragm and polarizer. Yellow, Blue & Green and ground glass filters are available on filter wheel mounted on epi –illuminator.

Mechanical Body Tension: Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & ADJUSTMENT RING. Reverse Quintuple nosepiece on ball bearing. Mechanical stage is 210mm X 140mm. Moving range 75mm x 50mm. The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.

Polarizing Outfit: Analyzer rotatable at 360°. Polarizer & Analyzer can be slide in/out of the optical path.

Standard Accessories: 3WLED Bulb, operating manual, dust cover, guarantee card and styrofoam molded  pack.

Warranty: 2 Years, 1 Years On Electronics.



Weswox

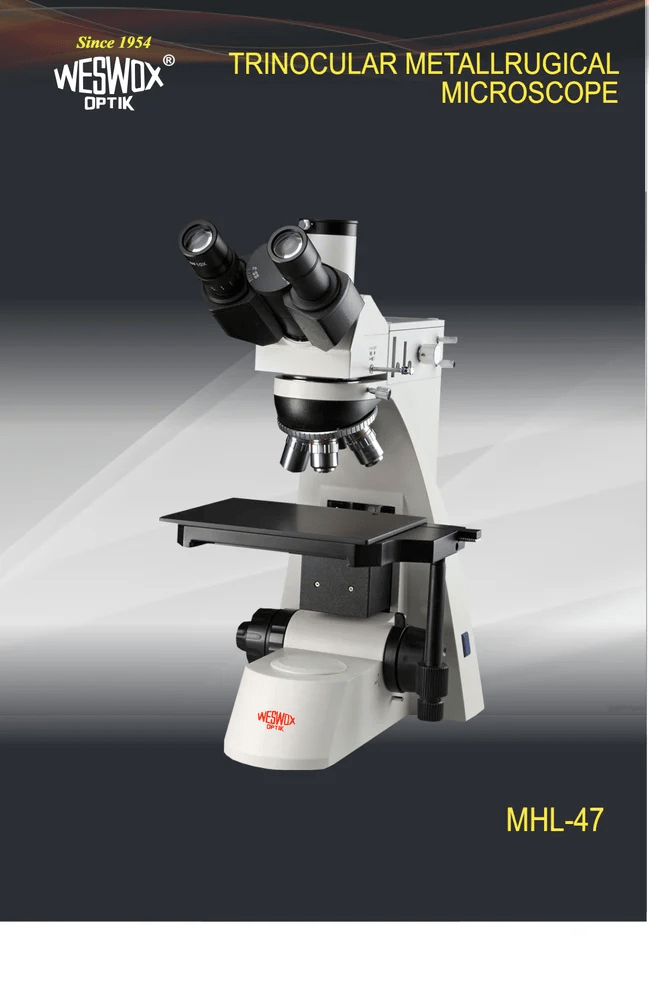

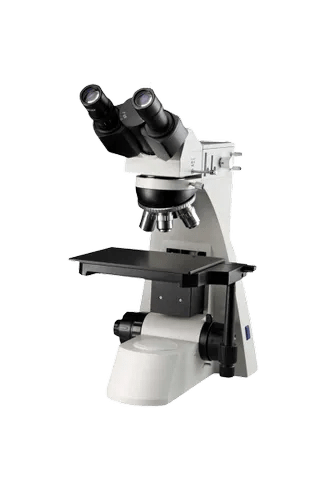

Research Upright Advance Metallurgical Microscope

SKU MHL-47
Rs.243,000.00
Rs.193,000.00

Technical Specifications:

Observation Head: Trinocular Siedentopf observation head inclined at 30° rotatable at 360°.Vertical phototube for micro photography. Diopter adjustment ring on ocular tube (±5). Interpupillary distance from 55mm to 75mm.

Eyepiece: Wide field 10X (paired) F.O.V. 22mm.

Objectives: (Infinity corrected) M Long working distance plan 5X (W.D. 18.3 mm) M Long working distance plan 10X (W.D. 8.8 mm) M Long working distance plan 20X (W.D. 8.6 mm) M Long working distance plan 50X (S.L.) (W.D. 2.02 mm)

Illuminator: The Epi illuminator has 3W LED Bulb with variable brightness control, field diaphragm, aperture diaphragm and polarizer. Yellow, Blue & Green and ground glass filters are available on filter wheel mounted on epi –illuminator.

Mechanical Body Tension: Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & ADJUSTMENT RING. Reverse Quintuple nosepiece on ball bearing. Mechanical stage is 210mm X 140mm. Moving range 75mm x 50mm. The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.

Polarizing Outfit: Analyzer rotatable at 360°. Polarizer & Analyzer can be slide in/out of the optical path.

Standard Accessories: 3WLED Bulb, operating manual, dust cover, guarantee card and styrofoam molded  pack.

Warranty: 2 Years, 1 Years On Electronics.


Rs.243,000.00
Rs.193,000.00
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
Research Upright Advance Metallurgical Microscope - Labmart.in Research Upright Advance Metallurgical Microscope - Labmart.in
Research Upright Advance Metallurgical Microscope - Labmart.in Research Upright Advance Metallurgical Microscope - Labmart.in

Product Description

Technical Specifications:

Observation Head: Trinocular Siedentopf observation head inclined at 30° rotatable at 360°.Vertical phototube for micro photography. Diopter adjustment ring on ocular tube (±5). Interpupillary distance from 55mm to 75mm.

Eyepiece: Wide field 10X (paired) F.O.V. 22mm.

Objectives: (Infinity corrected) M Long working distance plan 5X (W.D. 18.3 mm) M Long working distance plan 10X (W.D. 8.8 mm) M Long working distance plan 20X (W.D. 8.6 mm) M Long working distance plan 50X (S.L.) (W.D. 2.02 mm)

Illuminator: The Epi illuminator has 3W LED Bulb with variable brightness control, field diaphragm, aperture diaphragm and polarizer. Yellow, Blue & Green and ground glass filters are available on filter wheel mounted on epi –illuminator.

Mechanical Body Tension: Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & ADJUSTMENT RING. Reverse Quintuple nosepiece on ball bearing. Mechanical stage is 210mm X 140mm. Moving range 75mm x 50mm. The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.

Polarizing Outfit: Analyzer rotatable at 360°. Polarizer & Analyzer can be slide in/out of the optical path.

Standard Accessories: 3WLED Bulb, operating manual, dust cover, guarantee card and styrofoam molded  pack.

Warranty: 2 Years, 1 Years On Electronics.
