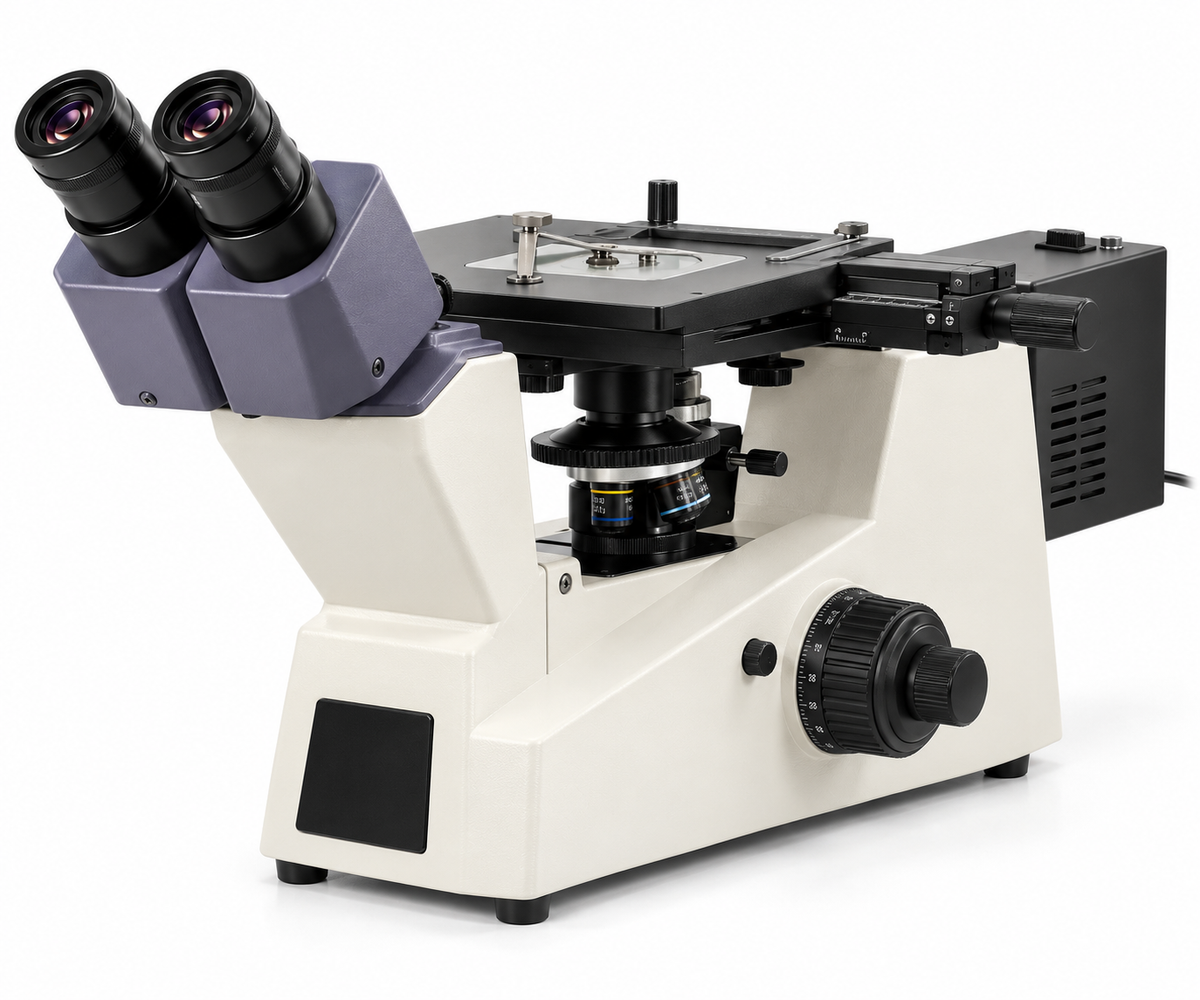

The Labmart Cresta ZS 50i-MET Metallurgical Microscope is an inverted microscope designed for high-resolution examination of opaque materials using reflected illumination. It features an infinite optical system, binocular Siedentopf head, coaxial X-Y mechanical stage, halogen reflected illumination and a 5-position filter unit for metallography, materials research and industrial quality control.
Product Overview
The Cresta ZS 50i-MET is an inverted metallurgical microscope designed for examining specimens that do not transmit light, including metals, alloys, ceramics, minerals and other solid materials.
Its infinite optical system is designed for flat, detailed imaging of specimen surfaces. The inverted configuration facilitates positioning of suitable large, heavy or irregularly shaped samples on the mechanical stage.
A 6V/30W halogen reflected-light system provides illumination of the specimen surface. The optical path incorporates field and aperture diaphragms for Köhler illumination, while the five-position filter unit provides blue, green, amber, grey and empty filter positions for contrast adjustment.
The microscope incorporates a low-positioned mechanical stage with coaxial X-Y controls, allowing systematic movement across a specimen surface. Coaxial coarse and fine focusing provides controlled focusing, with fine focusing specified at 0.002 mm.
Key Features and Benefits
- Inverted Metallurgical Configuration: Suitable for examination of opaque specimens and larger or irregular samples.
- Infinite Optical System: Designed for flat-field, high-resolution observation.
- Reflected Halogen Illumination: 6V/30W illumination provides light directed onto the specimen surface.
- Köhler Illumination Controls: Field and aperture diaphragms support controlled illumination of the specimen.
- Five-Position Filter Unit: Blue, green, amber, grey and empty positions allow contrast adjustment.
- Quadruple Ball-Bearing Nosepiece: Provides smooth objective positioning.
- Coaxial X-Y Mechanical Stage: Facilitates systematic movement across the specimen surface.
- Precision Coaxial Focusing: Coarse and fine focusing, with 0.002 mm fine division, supports detailed microstructural examination.
- Siedentopf Binocular Head: Provides comfortable binocular observation with adjustable interpupillary distance and diopter correction.
- Chemical-Resistant Construction: Cast-iron body with stipple-grey chemical-resistant finish.
4. Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Inverted Metallurgical Microscope |
| Model | Cresta ZS 50i-MET |
| Brand | Labmart |
| Optical System | Infinite Optical System |
| Viewing Head | Siedentopf Binocular |
| Head Inclination | 30° |
| Head Rotation | 360° |
| Interpupillary Distance | 48–75 mm |
| Diopter Adjustment | ±5 diopter |
| Nosepiece | Reversed inward quadruple ball-bearing type |
| Condenser | Abbe Condenser, NA 1.25 |
| Stage | Attachable Mechanical Stage |
| Stage Movement | Coaxial X-Y Control |
| Focusing | Coaxial Coarse and Fine Adjustment |
| Coarse Focus Range | 40 mm |
| Fine Focus | 2 mm; fine division 0.002 mm |
| Reflected Illumination | Halogen, 6V/30W |
| Illumination Control | Variable intensity |
| Illumination System | Field and aperture diaphragms for Köhler illumination |
| Filter Unit | 5-hole filter unit |
| Filters | Blue, Green, Amber, Grey, Empty |
| Body Material | Cast Iron |
| Finish | Stipple Grey Chemical-Resistant Finish |
| Weight | Approximately 12 kg |
| Objectives | Plan Achromatic objectives can be selected; recommended options include 5X, 10X, 20X and 50X |
| Transmitted-Light Condenser | Abbe NA 1.25 specified in the optical system |
| Power Supply | Not specified by the manufacturer |
5. Applications
- Metallography
- Materials science
- Metal and alloy microstructure examination
- Grain structure analysis
- Phase identification
- Heat-treatment evaluation
- Failure analysis
- Crack and fracture examination
- Corrosion examination
- Ceramics analysis
- Composite-material examination
- Mineral and ore examination
- Electronics and semiconductor inspection
- Solder-joint inspection
- Research and development
- Industrial quality control
- Automotive component examination
- Aerospace material inspection
6. Suitable For
- Metallurgical laboratories
- Materials research laboratories
- Industrial QC departments
- Materials testing laboratories
- Automotive manufacturing
- Aerospace manufacturing
- Foundries and metal-processing industries
- Engineering companies
- Ceramic and composite-material laboratories
- Electronics and semiconductor laboratories
- Universities and research institutes
- R&D departments
7. Product Benefits
- Designed for opaque materials: Reflected-light microscopy enables examination of specimens that cannot be viewed using conventional transmitted-light microscopy.
- Detailed surface examination: Infinite optics and plan achromatic objectives support observation of microstructural features.
- Systematic specimen scanning: Coaxial X-Y mechanical stage controls allow movement across different specimen areas.
- Controlled illumination: Field and aperture diaphragms support Köhler illumination.
- Contrast flexibility: Five filter positions allow the illumination conditions to be adjusted for different specimens.
- Precision focusing: Fine adjustment with 0.002 mm division supports detailed focusing.
- Convenient operator positioning: 30° inclined, 360° rotatable binocular head with 48–75 mm interpupillary adjustment.
- Suitable for industrial laboratories: Robust cast-iron construction and chemical-resistant finish support routine laboratory use.
