Product Details:

Minimum Order Quantity	1 Piece
Brand	Weswox
Portable	Yes
Model	HL-4A
Color	Black
Eyepieces	Wf 10x & H15x
Achromatic Objectives	Antifungus, Anti-reflection Coated
Magnification Range	40x - 1500x
Mechanical Tube Length	160 plus 1 mm
Fixed Square Stage	120 mm x 120 mm Fitted
X And Y Movement Detachable Graduated Mechanical Stage	Upto 40 mm To 75 mm
Condenser	Two Lens Abbe Condenser NA 1.25 With IRIS Diaphragm
Coarse Motion Through Rack And Pinion	Very Precise And Accurate Graduated Fine Motion Reading To .002 mm
Parafocal Objectives	10x, 40x/45x(SL) & 100 x Oil imm (SL)

Specification:

Monocular body with horse shoe shaped base hinged type, versatile designed inclinable through 90 Degree Aluminium Die-Cast parts.
Triple revolving nosepiece with positive centring and click stop.
A standard plano-concave mirror 50mm dia. in fork, replaceable by a substage microscope lamp.
Safety stopper, prevents damage to slide and objectives.
Black stoving finish and hard instrumental chromium finish.
Complete with optics, these microscopes are packed in shockproof Styrofoam molded box having provision for placing eyepieces, objectives and dust cover.

our all products bears 2 year warranty.

Weswox

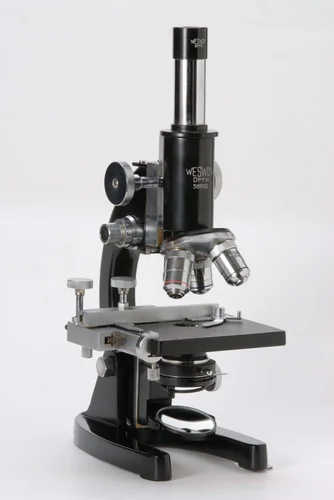

Medical Pathological Microscope for Colleges

SKU HL-4A

Product Details:

Minimum Order Quantity	1 Piece
Brand	Weswox
Portable	Yes
Model	HL-4A
Color	Black
Eyepieces	Wf 10x & H15x
Achromatic Objectives	Antifungus, Anti-reflection Coated
Magnification Range	40x - 1500x
Mechanical Tube Length	160 plus 1 mm
Fixed Square Stage	120 mm x 120 mm Fitted
X And Y Movement Detachable Graduated Mechanical Stage	Upto 40 mm To 75 mm
Condenser	Two Lens Abbe Condenser NA 1.25 With IRIS Diaphragm
Coarse Motion Through Rack And Pinion	Very Precise And Accurate Graduated Fine Motion Reading To .002 mm
Parafocal Objectives	10x, 40x/45x(SL) & 100 x Oil imm (SL)

Specification:

Monocular body with horse shoe shaped base hinged type, versatile designed inclinable through 90 Degree Aluminium Die-Cast parts.
Triple revolving nosepiece with positive centring and click stop.
A standard plano-concave mirror 50mm dia. in fork, replaceable by a substage microscope lamp.
Safety stopper, prevents damage to slide and objectives.
Black stoving finish and hard instrumental chromium finish.
Complete with optics, these microscopes are packed in shockproof Styrofoam molded box having provision for placing eyepieces, objectives and dust cover.

our all products bears 2 year warranty.

Quantity

Product Description

Product Details:

Minimum Order Quantity	1 Piece
Brand	Weswox
Portable	Yes
Model	HL-4A
Color	Black
Eyepieces	Wf 10x & H15x
Achromatic Objectives	Antifungus, Anti-reflection Coated
Magnification Range	40x - 1500x
Mechanical Tube Length	160 plus 1 mm
Fixed Square Stage	120 mm x 120 mm Fitted
X And Y Movement Detachable Graduated Mechanical Stage	Upto 40 mm To 75 mm
Condenser	Two Lens Abbe Condenser NA 1.25 With IRIS Diaphragm
Coarse Motion Through Rack And Pinion	Very Precise And Accurate Graduated Fine Motion Reading To .002 mm
Parafocal Objectives	10x, 40x/45x(SL) & 100 x Oil imm (SL)

Specification:

Monocular body with horse shoe shaped base hinged type, versatile designed inclinable through 90 Degree Aluminium Die-Cast parts.
Triple revolving nosepiece with positive centring and click stop.
A standard plano-concave mirror 50mm dia. in fork, replaceable by a substage microscope lamp.
Safety stopper, prevents damage to slide and objectives.
Black stoving finish and hard instrumental chromium finish.
Complete with optics, these microscopes are packed in shockproof Styrofoam molded box having provision for placing eyepieces, objectives and dust cover.

our all products bears 2 year warranty.
