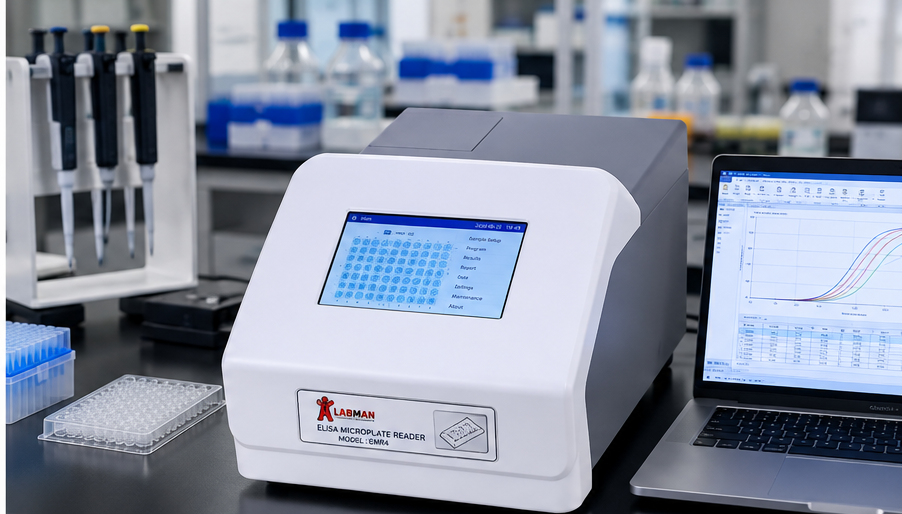

The Labmart EMR4 ELISA Microplate Reader is a specialized microplate analysis instrument designed for ELISA applications and scientific research requiring accurate and reliable absorbance measurement of samples in 96-well plates. It features a 7-inch colour touchscreen, Android operating system, halogen lamp, 8-position filter wheel and built-in software for instrument control and data analysis.
Product Overview
The EMR4 ELISA Microplate Reader is designed for enzyme-linked immunosorbent assay applications. The instrument uses a fixed-wavelength filter system to measure light absorbance in microplates and provides a means to quantify substances through analysis of colour changes in ELISA tests.
The supplied 2025–26 catalogue specifies an 8-position filter wheel, with four standard filters included at 405 nm, 450 nm, 492 nm and 630 nm, while allowing up to eight filters to be loaded. The wavelength range is 340–750 nm.
The EMR4 provides both Standard and Fast measurement modes, with whole-plate detection of a 96-hole plate in less than 6 seconds in fast measurement mode. It also incorporates automatic calibration and positioning, instrument self-diagnostics, built-in software and USB connectivity.

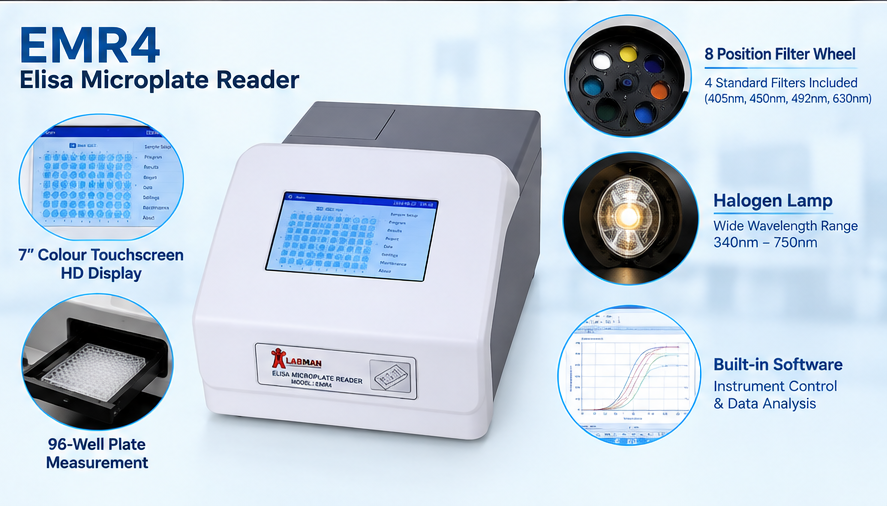

Key Features and Benefits
7-Inch Colour Touchscreen
The EMR4 features a 7-inch colour touchscreen for instrument operation and viewing results.
Android-Based Operation
The instrument uses an Android operating system, providing the platform for its built-in software and touchscreen interface.
8-Position Filter Wheel
The filter system provides 8 filter positions, with four standard filters supplied and provision for loading up to eight filters.
Standard Filters
The standard filter set includes:
- 405 nm
- 450 nm
- 492 nm
- 630 nm
Wide Wavelength Range
The specified wavelength range is 340–750 nm.
Automatic Calibration and Positioning
The EMR4 incorporates an Auto Calibration Positioning System for instrument calibration and positioning.
Self-Diagnostics
The system provides self-checking for the optical path and mechanical motion.
Standard and Fast Measurement Modes
Two measurement modes are specified:
- Standard measurement mode
- Fast measurement mode
Fast 96-Well Plate Reading
The specified measuring speed is less than 6 seconds for whole 96-hole plate detection in fast measurement mode.
Built-In Data Management
The system provides memory for 200 programs and 100,000 measurement results.
Built-In Software
Built-in software supports instrument control and data analysis, with 2 USB interfaces provided.
4. Technical Specifications
| Specification | EMR4 Catalogue Specification |
|---|---|
| Product | Elisa Microplate Reader |
| Model | EMR4 |
| Make in Catalogue | LABMAN |
| HSN Code | 90275090 |
| Filter Option | 8 filter wheel |
| Standard Filters | 4: 405 nm, 450 nm, 492 nm, 630 nm |
| Maximum Filter Loading | Up to 8 filters |
| Filter Bandwidth | 8–10 nm |
| Reading Range | 0.000–4.000 Abs |
| Wavelength Range | 340–750 nm |
| Linear Range at 405 nm | 0–3.0 Abs: ±1%; 3–4.0 Abs: ±2% |
| Accuracy at 405 nm | Abs ±1% (0–3 Abs), +2% (3–4 Abs) |
| Accuracy at 405 nm – CV | CV 0.2% (0–3 Abs), CV ≤1.0% (3–4 Abs) |
| Measuring Speed | <6 sec, 96-hole plate whole plate detection, fast measurement mode |
| Resolution | 0.001 Abs |
| Measurement Modes | Standard & Fast measurement mode |
| Light Source | Halogen lamp |
| Memory | 200 programs & 100,000 measurement results |
| Display | 7-inch Colour Touch screen |
| Interface | 2 USB |
| Operating System | Android |
| Calibration | Auto Calibration Positioning System |
| Software | Built-In Software |
| Adjustable Time & Speed Setting | Yes |
| Power | 60W |
| Power Supply | AC 220V / 50Hz |
| Dimensions (L × W × H) | 560 × 400 × 325 mm |
| Gross Weight | 11 kg |
| Standard Accessories | Main Instrument, Power Cord, Instruction Manual, Test Certificate |
The above specifications are taken directly from the EMR4 catalogue specification table.
5. Applications
- ELISA testing
- Microplate absorbance measurement
- Scientific research
- 96-well plate analysis
- Quantification through colour-change analysis in ELISA tests
- Laboratory sample measurement
- Research involving absorbance-based microplate assays
6. Suitable For
- ELISA laboratories
- Biotechnology laboratories
- Biochemistry laboratories
- Pharmaceutical research laboratories
- Clinical research laboratories
- Academic research institutions
- Scientific research laboratories
- Laboratories performing 96-well microplate analysis
7. FAQs
1. What is the EMR4?
The EMR4 is an ELISA Microplate Reader designed for absorbance measurement in microplates.
2. What type of assays is the EMR4 designed for?
The catalogue specifically describes the instrument for enzyme-linked immunosorbent assay (ELISA) applications.
3. How many wells can the EMR4 measure?
The catalogue specifies 96-hole plate whole-plate detection in its fast measurement mode.
4. What is the absorbance reading range?
The reading range is 0.000–4.000 Abs.
5. What is the resolution?
The specified resolution is 0.001 Abs.
6. What wavelength range does the EMR4 cover?
The specified wavelength range is 340–750 nm.
7. How many filters can the instrument accommodate?
The EMR4 has an 8-position filter wheel. Four standard filters are included, and up to eight filters can be loaded.
8. What standard filters are supplied?
The catalogue specifies 405 nm, 450 nm, 492 nm and 630 nm standard filters.
9. What is the filter bandwidth?
The specified filter bandwidth is 8–10 nm.
10. How fast can the EMR4 measure a plate?
The catalogue specifies less than 6 seconds for whole 96-hole plate detection in fast measurement mode.
11. Does the EMR4 have built-in software?
Yes. The catalogue specifies built-in software for instrument control and data analysis.
12. How much measurement data can the EMR4 store?
The specified memory is 200 programs and 100,000 measurement results.
13. Does the EMR4 have USB connectivity?
Yes. The specification lists 2 USB interfaces.
14. What type of display does it have?
The EMR4 has a 7-inch colour touchscreen.
15. What light source does the instrument use?
The specified light source is a halogen lamp.
- Regular price
- Rs.249,099.00
- Sale price
- Rs.195,599.00
The Labmart EMR4 ELISA Microplate Reader is a specialized microplate analysis instrument designed for ELISA applications and scientific research requiring accurate and reliable absorbance measurement of samples in 96-well plates. It features a 7-inch colour touchscreen, Android operating system, halogen lamp, 8-position filter wheel and built-in software for instrument control and data analysis.
Product Overview
The EMR4 ELISA Microplate Reader is designed for enzyme-linked immunosorbent assay applications. The instrument uses a fixed-wavelength filter system to measure light absorbance in microplates and provides a means to quantify substances through analysis of colour changes in ELISA tests.
The supplied 2025–26 catalogue specifies an 8-position filter wheel, with four standard filters included at 405 nm, 450 nm, 492 nm and 630 nm, while allowing up to eight filters to be loaded. The wavelength range is 340–750 nm.
The EMR4 provides both Standard and Fast measurement modes, with whole-plate detection of a 96-hole plate in less than 6 seconds in fast measurement mode. It also incorporates automatic calibration and positioning, instrument self-diagnostics, built-in software and USB connectivity.
Key Features and Benefits
7-Inch Colour Touchscreen
The EMR4 features a 7-inch colour touchscreen for instrument operation and viewing results.
Android-Based Operation
The instrument uses an Android operating system, providing the platform for its built-in software and touchscreen interface.
8-Position Filter Wheel
The filter system provides 8 filter positions, with four standard filters supplied and provision for loading up to eight filters.
Standard Filters
The standard filter set includes:
- 405 nm
- 450 nm
- 492 nm
- 630 nm
Wide Wavelength Range
The specified wavelength range is 340–750 nm.
Automatic Calibration and Positioning
The EMR4 incorporates an Auto Calibration Positioning System for instrument calibration and positioning.
Self-Diagnostics
The system provides self-checking for the optical path and mechanical motion.
Standard and Fast Measurement Modes
Two measurement modes are specified:
- Standard measurement mode
- Fast measurement mode
Fast 96-Well Plate Reading
The specified measuring speed is less than 6 seconds for whole 96-hole plate detection in fast measurement mode.
Built-In Data Management
The system provides memory for 200 programs and 100,000 measurement results.
Built-In Software
Built-in software supports instrument control and data analysis, with 2 USB interfaces provided.
4. Technical Specifications
| Specification | EMR4 Catalogue Specification |
|---|---|
| Product | Elisa Microplate Reader |
| Model | EMR4 |
| Make in Catalogue | LABMAN |
| HSN Code | 90275090 |
| Filter Option | 8 filter wheel |
| Standard Filters | 4: 405 nm, 450 nm, 492 nm, 630 nm |
| Maximum Filter Loading | Up to 8 filters |
| Filter Bandwidth | 8–10 nm |
| Reading Range | 0.000–4.000 Abs |
| Wavelength Range | 340–750 nm |
| Linear Range at 405 nm | 0–3.0 Abs: ±1%; 3–4.0 Abs: ±2% |
| Accuracy at 405 nm | Abs ±1% (0–3 Abs), +2% (3–4 Abs) |
| Accuracy at 405 nm – CV | CV 0.2% (0–3 Abs), CV ≤1.0% (3–4 Abs) |
| Measuring Speed | <6 sec, 96-hole plate whole plate detection, fast measurement mode |
| Resolution | 0.001 Abs |
| Measurement Modes | Standard & Fast measurement mode |
| Light Source | Halogen lamp |
| Memory | 200 programs & 100,000 measurement results |
| Display | 7-inch Colour Touch screen |
| Interface | 2 USB |
| Operating System | Android |
| Calibration | Auto Calibration Positioning System |
| Software | Built-In Software |
| Adjustable Time & Speed Setting | Yes |
| Power | 60W |
| Power Supply | AC 220V / 50Hz |
| Dimensions (L × W × H) | 560 × 400 × 325 mm |
| Gross Weight | 11 kg |
| Standard Accessories | Main Instrument, Power Cord, Instruction Manual, Test Certificate |
The above specifications are taken directly from the EMR4 catalogue specification table.
5. Applications
- ELISA testing
- Microplate absorbance measurement
- Scientific research
- 96-well plate analysis
- Quantification through colour-change analysis in ELISA tests
- Laboratory sample measurement
- Research involving absorbance-based microplate assays
6. Suitable For
- ELISA laboratories
- Biotechnology laboratories
- Biochemistry laboratories
- Pharmaceutical research laboratories
- Clinical research laboratories
- Academic research institutions
- Scientific research laboratories
- Laboratories performing 96-well microplate analysis
7. FAQs
1. What is the EMR4?
The EMR4 is an ELISA Microplate Reader designed for absorbance measurement in microplates.
2. What type of assays is the EMR4 designed for?
The catalogue specifically describes the instrument for enzyme-linked immunosorbent assay (ELISA) applications.
3. How many wells can the EMR4 measure?
The catalogue specifies 96-hole plate whole-plate detection in its fast measurement mode.
4. What is the absorbance reading range?
The reading range is 0.000–4.000 Abs.
5. What is the resolution?
The specified resolution is 0.001 Abs.
6. What wavelength range does the EMR4 cover?
The specified wavelength range is 340–750 nm.
7. How many filters can the instrument accommodate?
The EMR4 has an 8-position filter wheel. Four standard filters are included, and up to eight filters can be loaded.
8. What standard filters are supplied?
The catalogue specifies 405 nm, 450 nm, 492 nm and 630 nm standard filters.
9. What is the filter bandwidth?
The specified filter bandwidth is 8–10 nm.
10. How fast can the EMR4 measure a plate?
The catalogue specifies less than 6 seconds for whole 96-hole plate detection in fast measurement mode.
11. Does the EMR4 have built-in software?
Yes. The catalogue specifies built-in software for instrument control and data analysis.
12. How much measurement data can the EMR4 store?
The specified memory is 200 programs and 100,000 measurement results.
13. Does the EMR4 have USB connectivity?
Yes. The specification lists 2 USB interfaces.
14. What type of display does it have?
The EMR4 has a 7-inch colour touchscreen.
15. What light source does the instrument use?
The specified light source is a halogen lamp.
- Regular price
- Rs.249,099.00
- Sale price
- Rs.195,599.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
The Labmart EMR4 ELISA Microplate Reader is a specialized microplate analysis instrument designed for ELISA applications and scientific research requiring accurate and reliable absorbance measurement of samples in 96-well plates. It features a 7-inch colour touchscreen, Android operating system, halogen lamp, 8-position filter wheel and built-in software for instrument control and data analysis.
Product Overview
The EMR4 ELISA Microplate Reader is designed for enzyme-linked immunosorbent assay applications. The instrument uses a fixed-wavelength filter system to measure light absorbance in microplates and provides a means to quantify substances through analysis of colour changes in ELISA tests.
The supplied 2025–26 catalogue specifies an 8-position filter wheel, with four standard filters included at 405 nm, 450 nm, 492 nm and 630 nm, while allowing up to eight filters to be loaded. The wavelength range is 340–750 nm.
The EMR4 provides both Standard and Fast measurement modes, with whole-plate detection of a 96-hole plate in less than 6 seconds in fast measurement mode. It also incorporates automatic calibration and positioning, instrument self-diagnostics, built-in software and USB connectivity.
Key Features and Benefits
7-Inch Colour Touchscreen
The EMR4 features a 7-inch colour touchscreen for instrument operation and viewing results.
Android-Based Operation
The instrument uses an Android operating system, providing the platform for its built-in software and touchscreen interface.
8-Position Filter Wheel
The filter system provides 8 filter positions, with four standard filters supplied and provision for loading up to eight filters.
Standard Filters
The standard filter set includes:
- 405 nm
- 450 nm
- 492 nm
- 630 nm
Wide Wavelength Range
The specified wavelength range is 340–750 nm.
Automatic Calibration and Positioning
The EMR4 incorporates an Auto Calibration Positioning System for instrument calibration and positioning.
Self-Diagnostics
The system provides self-checking for the optical path and mechanical motion.
Standard and Fast Measurement Modes
Two measurement modes are specified:
- Standard measurement mode
- Fast measurement mode
Fast 96-Well Plate Reading
The specified measuring speed is less than 6 seconds for whole 96-hole plate detection in fast measurement mode.
Built-In Data Management
The system provides memory for 200 programs and 100,000 measurement results.
Built-In Software
Built-in software supports instrument control and data analysis, with 2 USB interfaces provided.
4. Technical Specifications
| Specification | EMR4 Catalogue Specification |
|---|---|
| Product | Elisa Microplate Reader |
| Model | EMR4 |
| Make in Catalogue | LABMAN |
| HSN Code | 90275090 |
| Filter Option | 8 filter wheel |
| Standard Filters | 4: 405 nm, 450 nm, 492 nm, 630 nm |
| Maximum Filter Loading | Up to 8 filters |
| Filter Bandwidth | 8–10 nm |
| Reading Range | 0.000–4.000 Abs |
| Wavelength Range | 340–750 nm |
| Linear Range at 405 nm | 0–3.0 Abs: ±1%; 3–4.0 Abs: ±2% |
| Accuracy at 405 nm | Abs ±1% (0–3 Abs), +2% (3–4 Abs) |
| Accuracy at 405 nm – CV | CV 0.2% (0–3 Abs), CV ≤1.0% (3–4 Abs) |
| Measuring Speed | <6 sec, 96-hole plate whole plate detection, fast measurement mode |
| Resolution | 0.001 Abs |
| Measurement Modes | Standard & Fast measurement mode |
| Light Source | Halogen lamp |
| Memory | 200 programs & 100,000 measurement results |
| Display | 7-inch Colour Touch screen |
| Interface | 2 USB |
| Operating System | Android |
| Calibration | Auto Calibration Positioning System |
| Software | Built-In Software |
| Adjustable Time & Speed Setting | Yes |
| Power | 60W |
| Power Supply | AC 220V / 50Hz |
| Dimensions (L × W × H) | 560 × 400 × 325 mm |
| Gross Weight | 11 kg |
| Standard Accessories | Main Instrument, Power Cord, Instruction Manual, Test Certificate |
The above specifications are taken directly from the EMR4 catalogue specification table.
5. Applications
- ELISA testing
- Microplate absorbance measurement
- Scientific research
- 96-well plate analysis
- Quantification through colour-change analysis in ELISA tests
- Laboratory sample measurement
- Research involving absorbance-based microplate assays
6. Suitable For
- ELISA laboratories
- Biotechnology laboratories
- Biochemistry laboratories
- Pharmaceutical research laboratories
- Clinical research laboratories
- Academic research institutions
- Scientific research laboratories
- Laboratories performing 96-well microplate analysis
7. FAQs
1. What is the EMR4?
The EMR4 is an ELISA Microplate Reader designed for absorbance measurement in microplates.
2. What type of assays is the EMR4 designed for?
The catalogue specifically describes the instrument for enzyme-linked immunosorbent assay (ELISA) applications.
3. How many wells can the EMR4 measure?
The catalogue specifies 96-hole plate whole-plate detection in its fast measurement mode.
4. What is the absorbance reading range?
The reading range is 0.000–4.000 Abs.
5. What is the resolution?
The specified resolution is 0.001 Abs.
6. What wavelength range does the EMR4 cover?
The specified wavelength range is 340–750 nm.
7. How many filters can the instrument accommodate?
The EMR4 has an 8-position filter wheel. Four standard filters are included, and up to eight filters can be loaded.
8. What standard filters are supplied?
The catalogue specifies 405 nm, 450 nm, 492 nm and 630 nm standard filters.
9. What is the filter bandwidth?
The specified filter bandwidth is 8–10 nm.
10. How fast can the EMR4 measure a plate?
The catalogue specifies less than 6 seconds for whole 96-hole plate detection in fast measurement mode.
11. Does the EMR4 have built-in software?
Yes. The catalogue specifies built-in software for instrument control and data analysis.
12. How much measurement data can the EMR4 store?
The specified memory is 200 programs and 100,000 measurement results.
13. Does the EMR4 have USB connectivity?
Yes. The specification lists 2 USB interfaces.
14. What type of display does it have?
The EMR4 has a 7-inch colour touchscreen.
15. What light source does the instrument use?
The specified light source is a halogen lamp.
Similar Products
-
Vendor: Labman

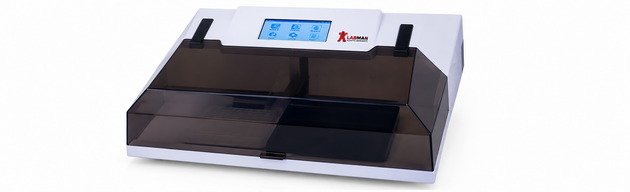

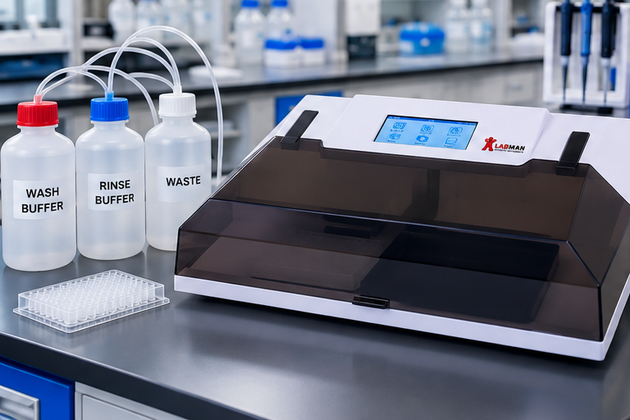

AEPW99 Automatic ELISA Plate Washer – 96-Well Microplate Washer
Sale price Rs.120,799.00Regular price Rs.177,799.00 -
Vendor: Labmart
Elisa Microplate Washer I Automatic 3 channel I Multiplate Operation
Sale price Rs.124,000.00Regular price Rs.250,000.00 -
Vendor: Spectrix
Elisa Microplate Reader Touch Screen Automatic
Sale price Rs.149,999.00Regular price Rs.250,000.00 -
Vendor: Labman
Graphite Hotplate
Sale price Rs.29,999.00Regular price Rs.35,000.00
