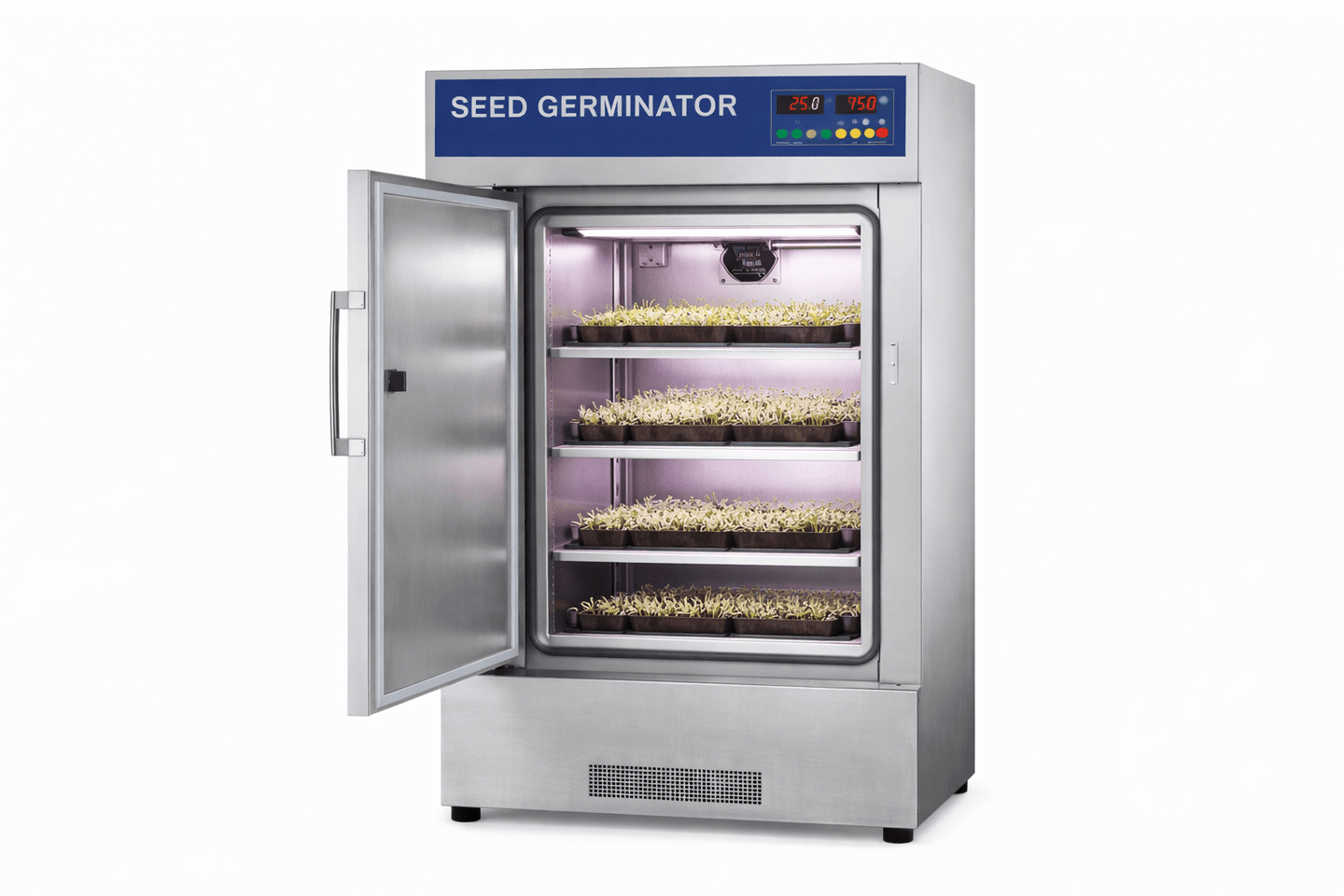

A Seed Germinator is a precision-controlled laboratory instrument designed for germination testing of seeds under controlled environmental conditions of temperature, humidity, and illumination. It is widely used in agricultural research institutes, seed testing laboratories, universities, and quality control labs.

Seed germinators help determine seed viability, germination percentage, vigor, and uniformity, in accordance with ISTA and IS specifications.

Applications

• Seed germination testing

• Seed viability & vigor analysis

• Agricultural & horticultural research

• Seed certification laboratories

• Plant breeding programs

• Quality control of seed lots

Construction

• Double / Triple walled construction

• Inner chamber made of Stainless Steel SS 304

• Exterior made of powder-coated mild steel

• High-density PUF insulation for thermal efficiency

• Leak-proof and corrosion-resistant chamber

• Mounted on caster wheels for easy mobility (optional)

Temperature & Humidity Control

• Temperature Range: 5°C to 60°C

• Temperature Accuracy: ±0.5°C

• Humidity Range: 40% to 95% RH

• Humidity Accuracy: ±3% RH

• Microprocessor-based PID controller

• Sensors: PT-100 temperature sensor & capacitive RH sensor

• Uniform air circulation using forced air blower

Illumination

• Uniform fluorescent / LED illumination

• Programmable day–night light cycle

• Digital timer for light control

• Suitable for light-sensitive germination tests

Controller & Display

• Digital / Graphical LCD display

• Set Value (SV) & Process Value (PV) indication

• Programmable timer

• Audio-visual alarm for deviation

• Optional PLC with Touch Screen & Data Logging

Shelves & Trays

• Removable and height-adjustable SS wire mesh trays

• Designed for Petri dishes, seed trays & blotter papers

• Uniform airflow across all trays

Safety Features

• Over-temperature protection

• Power failure restart with memory

• Door-open alarm (optional)

• Compressor overload protection (for cooling models)

Technical Specifications

Available Capacities

• 150 Liters

• 250 Liters

• 350 Liters

• 450 Liters

• 600 Liters

• Custom sizes available on request

Optional Accessories

• PLC with HMI touch screen

• Data logger with USB interface

• Password protection

• Door open alarm

• Validation ports

• IQ / OQ / PQ documentation
