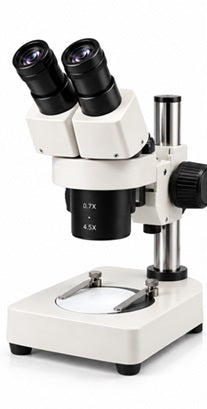

The Labmart ZSM-1 Zoom Stereo Microscope is a professional stereo microscope offering continuous 7X–45X magnification through a 1:6.4 zoom system. It features a 45° inclined, 360° rotatable viewing head, 100 mm standard working distance, WF20X paired eyepieces and both transmitted and reflected LED illumination.

Product Overview

The ZSM-1 Zoom Stereo Microscope is designed for applications where continuous magnification adjustment, comfortable binocular viewing and flexible illumination are required.

Its 1:6.4 zoom ratio provides continuous magnification from 7X to 45X with the supplied WF20X paired eyepieces, allowing the operator to adjust magnification without changing objectives.

The 45° inclined viewing head can rotate through 360° and provides 55–75 mm interpupillary adjustment. A standard 100 mm working distance provides useful space for specimen manipulation. Optional auxiliary lenses can alter the working distance within the specified 30–165 mm range.

The microscope incorporates both transmitted and reflected LED illumination, making it suitable for transparent, translucent and opaque specimens. The base includes interchangeable black/white glass and frosted glass plates for different specimen-contrast requirements.

A trinocular viewing-head option is available for camera attachment and digital documentation.

Key Features and Benefits

• 1:6.4 Continuous Zoom: Provides smooth magnification adjustment from 7X to 45X without changing objectives.
• WF20X Paired Eyepieces: Supports detailed binocular stereo observation.
• 45° Inclined, 360° Rotatable Head: Allows comfortable positioning for different users and applications.
• 55–75 mm IPD Adjustment: Accommodates different operator interpupillary distances.
• 100 mm Standard Working Distance: Provides useful room for specimen manipulation.
• Transmitted + Reflected LED Illumination: Supports observation of different specimen types.
• Co-Axial Focusing: Provides controlled and precise focusing.
• Interchangeable Base Plates: Black/white glass and frosted glass plates allow contrast selection.
• Optional Auxiliary Lenses: 0.5X, 1X, 1.5X and 2X options provide additional optical and working-distance configurations.
• Trinocular Option: Allows camera attachment for imaging and documentation.

4. Technical Specifications

5. Applications

• Electronics component inspection

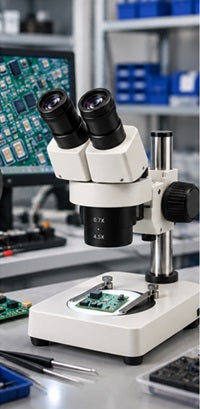

• PCB assembly inspection
• Industrial quality control
• Precision component inspection
• Medical and clinical specimen examination
• Research and development
• Prototype inspection
• Material examination
• Forensic examination
• Fiber and trace-material inspection
• Entomology
• Zoology
• Biological specimen observation
• Jewelry inspection
• Watchmaking
• Precision engineering
• Digital imaging and documentation

6. Suitable For

• Industrial QC departments
• Electronics manufacturers
• PCB inspection teams
• Research laboratories
• R&D departments
• Forensic laboratories
• Medical and clinical laboratories
• Entomology and zoology laboratories
• Jewelry manufacturers
• Watchmakers
• Precision engineering workshops
• Educational and research institutions

7. Product Benefits

• Continuous magnification adjustment: Move smoothly from 7X to 45X according to the inspection requirement.
• No objective changes during zooming: The zoom mechanism makes magnification adjustment convenient during observation.
• Flexible illumination: Transmitted and reflected LED lighting accommodates different specimen types.
• Generous working distance: The standard 100 mm distance provides useful access to the specimen.
• Comfortable ergonomics: The inclined and rotatable head supports different operator positions.
• Detailed observation: WF20X paired eyepieces provide high-magnification stereo viewing.
• Flexible contrast control: Interchangeable base plates help optimize specimen visibility.
• Imaging-ready configuration: The trinocular option allows camera attachment for documentation.
