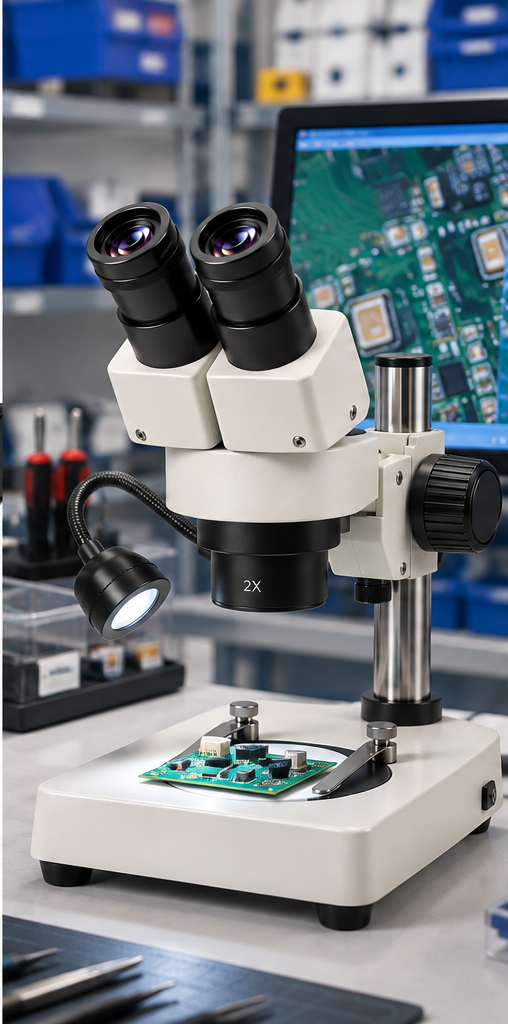

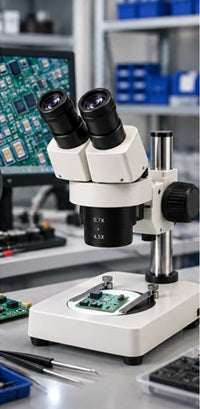

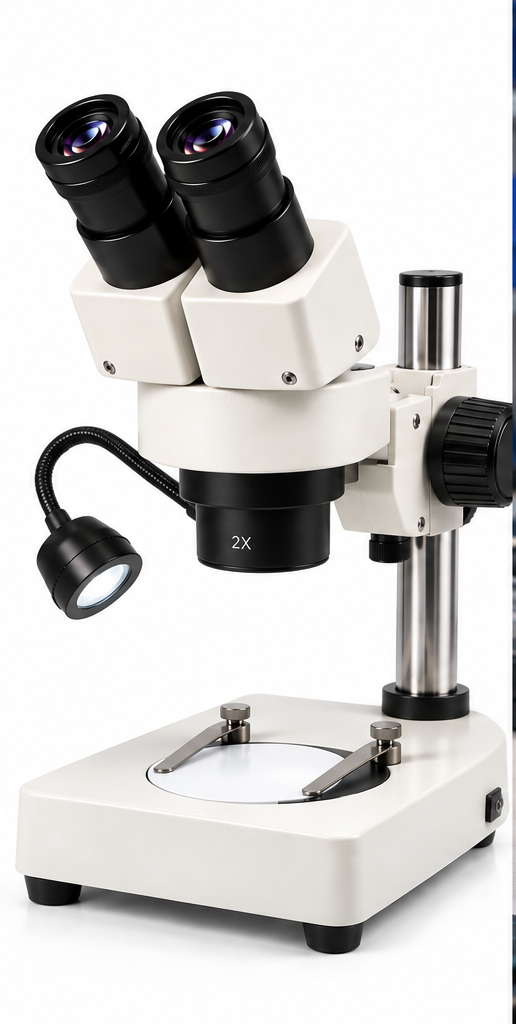

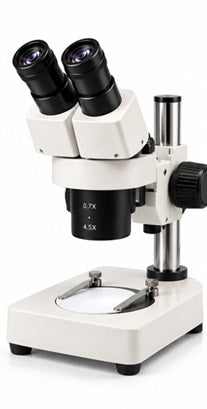

The Labmart KG-1848-PIL Vertical Stereo Microscope is a binocular stereo microscope featuring a fixed-objective optical system, an extension pillar base and incident illumination. It is designed for comfortable three-dimensional observation and inspection of specimens, components and other small objects where additional working height is useful.

Product Overview

The KG-1848-PIL is a vertical stereo microscope designed for applications requiring binocular stereoscopic observation combined with an extended pillar arrangement.

The microscope incorporates a fixed objective configuration, allowing a consistent magnification setup without requiring objective changes. Its extension pillar provides additional vertical positioning capability, making the configuration useful where increased clearance between the optical head and the work surface is required.

Incident illumination directs light onto the specimen from above, making the microscope suitable for opaque specimens, component inspection and surface examination.

The binocular viewing arrangement provides depth perception for three-dimensional observation, while the focusing mechanism allows the image to be adjusted according to specimen height.

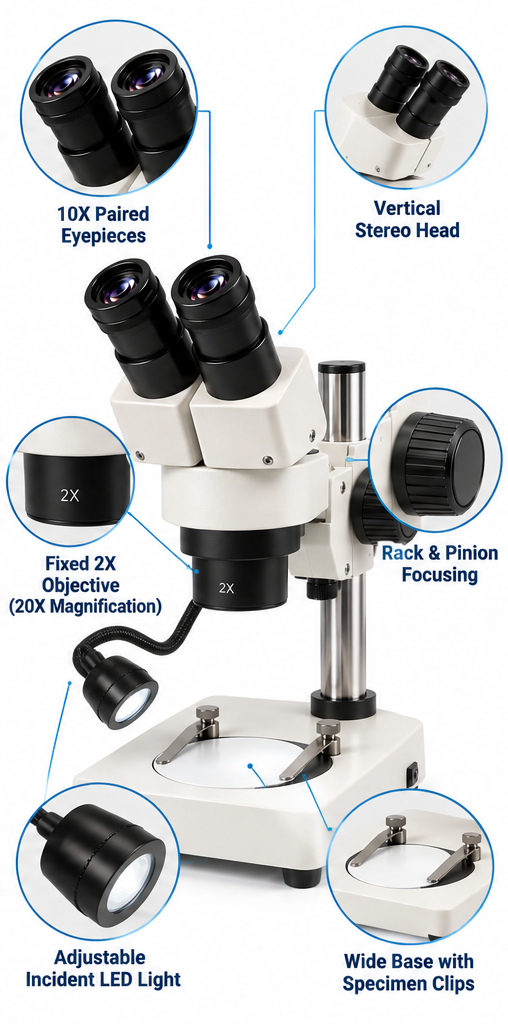

Key Features and Benefits

• Fixed Objective Configuration: Provides a consistent optical setup for routine observation.
• Extension Pillar Base: Provides additional working height and clearance for suitable specimens and components.
• Binocular Stereo Viewing: Supports three-dimensional observation with depth perception.
• Incident Illumination: Illuminates the specimen surface from above, making it suitable for opaque objects.
• Vertical Viewing Arrangement: Provides direct viewing of the specimen.
• Stable Base: Supports steady observation and inspection.
• Suitable for Component Inspection: The extended configuration can be useful when additional space around the specimen is required.

4. Technical Specifications

5. Applications

• Industrial component inspection
• Electronics inspection
• PCB and small-part examination
• Mechanical component inspection
• Surface inspection
• Jewelry examination
• Watch and precision-component inspection
• Biology specimen observation
• Entomology
• Educational microscopy
• Dissection and specimen handling
• Quality-control inspection
• Hobby and collector applications

6. Suitable For

• Industrial inspection departments
• Quality-control teams
• Electronics manufacturers
• Small-component manufacturers
• Jewelry and watchmaking applications
• Educational laboratories
• Biology laboratories
• Research and teaching environments
• Workshops requiring elevated specimen clearance
• Hobbyists and collectors

7. Product Benefits

• Extended working clearance: The pillar-base arrangement provides additional vertical positioning space.
• Three-dimensional observation: Binocular stereo viewing helps with depth perception.
• Surface illumination: Incident lighting is suitable for opaque objects and component surfaces.
• Consistent optical setup: Fixed objectives simplify routine observation.
• Flexible specimen positioning: The extension pillar can be useful for taller or larger workpieces.
• Stable inspection: The base supports controlled observation and manipulation.
