The MPA3P Portable Melting Point Apparatus is a compact laboratory instrument for determining the melting point of solid substances using capillary tubes. It can process 3 samples simultaneously, features a touchscreen display, PID temperature control, adjustable heating rate from 0.1°C to 10°C/min, and an optical lens for clear real-time observation of the melting process.

3. Detailed Product Description

Product Overview

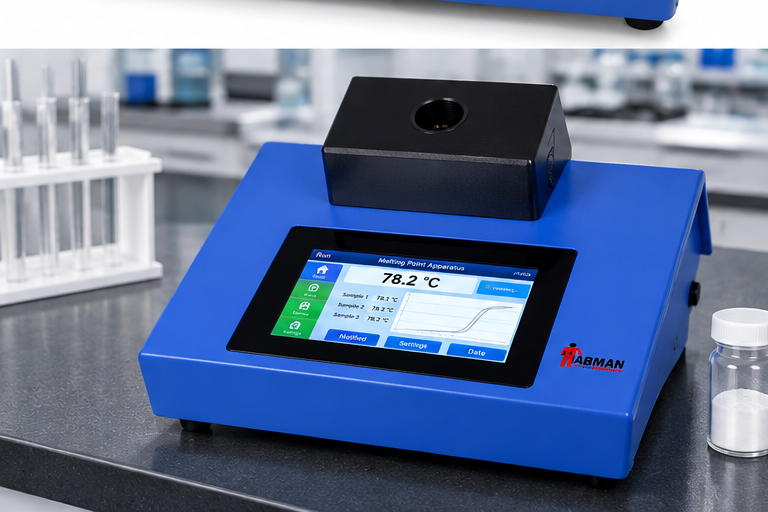

The Labmart MPA3P Portable Melting Point Apparatus is designed for melting-point determination under controlled and reproducible heating conditions. A sample is placed inside a capillary tube and heated while the melting process is observed.

Its compact format, touchscreen interface and ability to process three samples at the same time make it suitable for routine laboratory melting-point analysis. The instrument uses PID temperature control and allows the heating rate to be adjusted between 0.1°C/min and 10°C/min. An optical lens provides clear, real-time observation of the melting process.

Key Features & Benefits

• Portable melting point apparatus in a compact benchtop format.
• Processes 3 samples simultaneously.
• Touchscreen display for convenient operation.
• 0.1°C temperature resolution.
• PID temperature control.
• Adjustable heating rate from 0.1°C/min to 10°C/min.
• Optical lens for clear, real-time observation.
• RS232C interface for data communication.
• Designed for capillary-based melting-point determination.
• Supplied with capillary tubes, power cord with adaptor, instruction manual and test certificate.

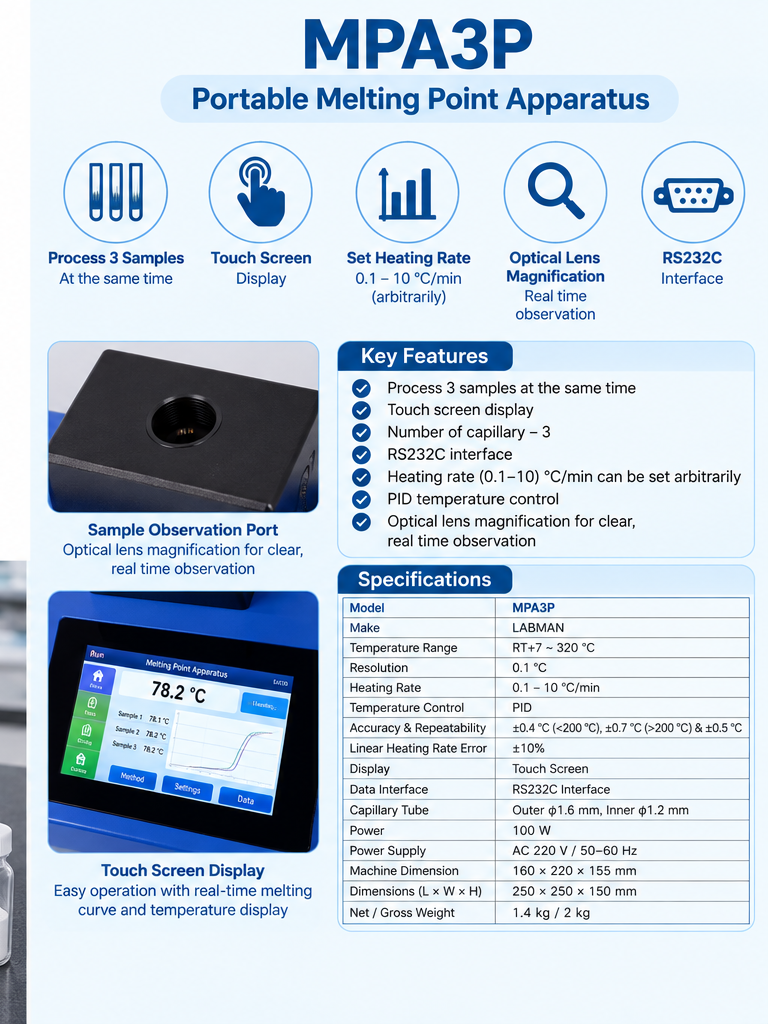

4. Technical Specifications

The supplied specification table gives the temperature range as RT+7°C to 320°C in the rendered catalogue image; the extracted text contains a formatting/OCR artifact around the upper limit.

5. Applications

The MPA3P is suitable for:

• Pharmaceutical laboratory analysis
• Chemical laboratory testing
• Organic compound analysis
• Research and development
• Quality-control laboratories
• Academic laboratory teaching
• Melting-point determination of solid substances
• Routine analytical testing

The catalogue describes melting-point determination as heating a sample under precise and reproducible conditions, with the sample contained in a capillary tube and the phase change observed visually.

6. Suitable For

The MPA3P is suitable for:

• Pharmaceutical laboratories
• Chemical laboratories
• R&D departments
• Quality-control laboratories
• Testing laboratories
• Colleges and universities
• Research institutions
• Laboratories requiring a compact melting-point tester

7. FAQs

1. What is the MPA3P used for?

The MPA3P is used to determine the melting point of solid substances using capillary tubes.

2. How many samples can be tested at once?

The MPA3P can process three samples simultaneously.

3. What is the temperature range?

The specified range is RT +7°C to 320°C.

4. What is the temperature resolution?

The resolution is 0.1°C.

5. What heating rate can be selected?

The heating rate can be set from 0.1°C/min to 10°C/min.

6. What type of temperature control does it use?

The MPA3P uses PID temperature control.

7. Does the MPA3P have a touchscreen?

Yes. It features a touchscreen display.

8. Can the melting process be observed directly?

Yes. The instrument incorporates an optical lens for clear, real-time observation.

9. What capillary size is specified?

The specified capillary has a 1.6 mm outer diameter and 1.2 mm inner diameter.

10. Does the apparatus have a data interface?

Yes. It provides an RS232C interface.

11. What is the power requirement?

The apparatus is rated at 100W and operates on AC 220V, 50–60Hz.

12. What accessories are supplied?

Standard accessories include the main instrument, capillary tubes, power cord with adaptor, instruction manual and test certificate.
