The MPA200CFR Automatic Video Melting Point Apparatus is an advanced laboratory instrument for automated melting-point determination with HD video observation, automatic/manual measurement, 4-capillary simultaneous testing, audit trail, electronic signatures and user permission management. It features a 10.1-inch Android touchscreen, 720P HD camera, PID & PWM temperature control, 40,000-set chart storage and 128GB data storage.

3. Detailed Product Description

Product Overview

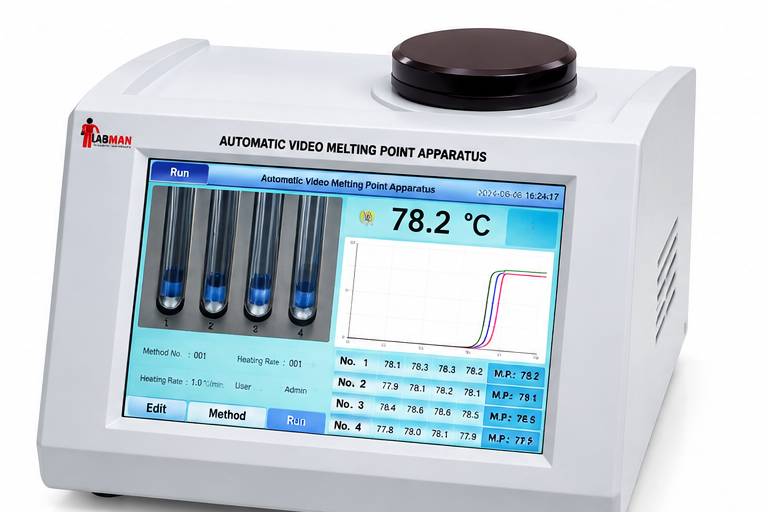

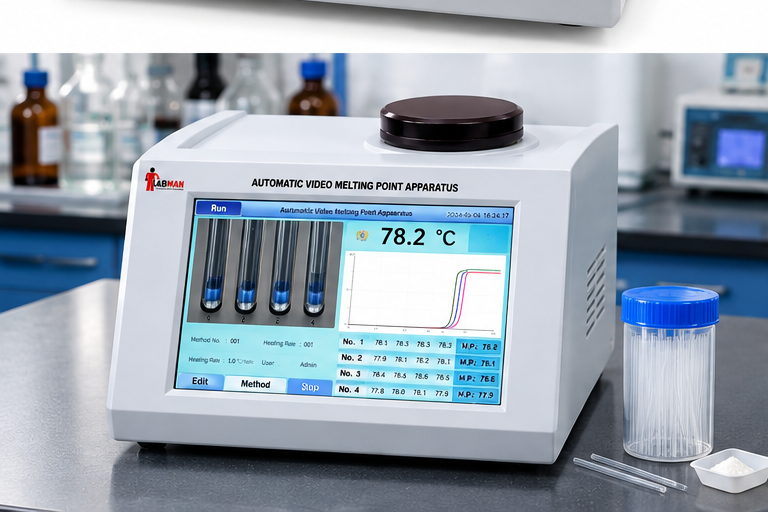

The Labmart MPA200CFR Automatic Video Melting Point Apparatus with CFR is designed for precise and documented melting-point analysis of solid substances. The system determines the temperature at which a sample changes from solid to liquid using capillary tubes while providing continuous visual monitoring through an integrated HD camera.

The instrument supports both automatic and manual measurement modes and can simultaneously measure four capillaries. Its 10.1-inch touchscreen Android interface provides access to measurement, calibration, user management, audit, data management, video playback and reporting functions.

The MPA200CFR is particularly suited to laboratories where data integrity, traceability, electronic records and controlled user access are important.

Key Features & Benefits

• Measurement range: RT +5°C to 400°C
• 0.01°C temperature resolution
• Four capillaries measured simultaneously
• 720P HD camera for clear sample observation
• Automatic and manual measurement modes
• Automatic melting video recording and playback
• 10.1-inch touchscreen display
• Android operating system
• PID & PWM temperature control
• Adjustable light-source brightness and detection sensitivity for dark-coloured samples
• 200 measurement method groups
• 200-user capacity
• Audit trail
• Electronic signature functionality
• User permission management
• GMP and GLP functions
• Features supporting FDA/21 CFR Part 11-oriented electronic record management
• 128GB data storage
• 40,000-set chart storage
• RS232C, USB, RJ-45 and Wi-Fi connectivity
• Measurement record export, upload and printing functions
• USB and FTP backup functions
• Standard accessories include capillary tubes, power cord, instruction manual and test certificate

4. Technical Specifications

5. Applications

The MPA200CFR can be used for melting-point determination in:

• Pharmaceutical laboratories
• Pharmaceutical quality control
• Chemical laboratories
• Dye-stuff analysis
• Perfume and fragrance testing
• Organic crystal analysis
• Research and development laboratories
• Quality-control laboratories
• GMP/GLP laboratory environments
• Laboratories requiring electronic records and audit trails

6. Suitable For

The instrument is suitable for:

• Pharmaceutical manufacturers
• Contract testing laboratories
• R&D laboratories
• Quality-control departments
• Chemical manufacturers
• Academic and research institutions
• Analytical laboratories
• Laboratories requiring controlled user access
• Laboratories requiring traceable electronic measurement records

7. FAQs

1. What is the temperature range of the MPA200CFR?

The measurement range is RT +5°C to 400°C.

2. What is the temperature resolution?

The MPA200CFR provides 0.01°C temperature resolution.

3. How many samples can be tested simultaneously?

The instrument can measure four capillaries simultaneously.

4. Does the MPA200CFR have a camera?

Yes. It incorporates a 720P HD camera for sample observation and video recording.

5. Does it support melting video playback?

Yes. Recorded melting videos can be played back on the instrument.

6. Does the instrument have automatic measurement?

Yes. It supports both Automatic and Manual measurement modes.

7. What heating rate can be selected?

The linear heating rate can be set from 0.1°C/min to 20°C/min.

8. What type of display does it use?

The instrument has a 10.1-inch touchscreen and operates on an Android system.

9. Does it provide an audit trail?

Yes. The specification lists an audit trail and electronic signature functionality.

10. Is user management available?

Yes. The system supports 200 users and provides user permission management.

11. How much data can be stored?

The instrument has 128GB data storage and can store 40,000 sets of charts.

12. What interfaces are available?

The MPA200CFR provides 1 × RS232C, 3 × USB, 1 × RJ-45 and Wi-Fi.
