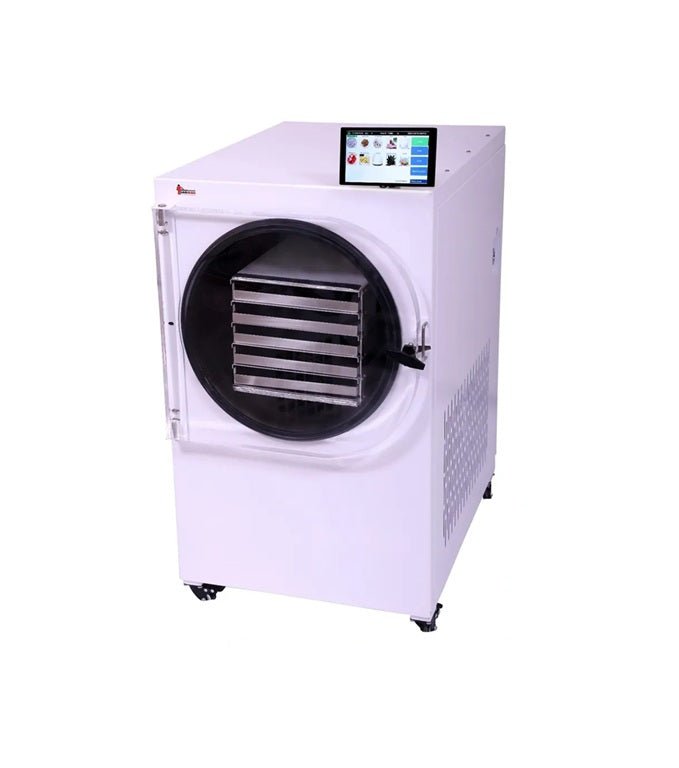

Food Freeze industrial dryer with digital display on a white background
  • Food Freeze industrial dryer with digital display on a white background

The Labmart Food Freeze Dryer (Model LMFD540H) is a professional-grade vacuum drying system designed for food processing labs, research institutes, and small-scale food manufacturers. Using the proven lyophilisation process, it removes moisture from food by converting frozen water directly into vapour — without forming liquid — so the food retains its original shape, colour, taste, and nutritional profile.

Ideal for freeze-drying fruits, vegetables, dairy products, seafood, meat, herbs, and nutraceuticals. The result is a shelf-stable product with up to 25-year shelf life potential — no preservatives required.

Salient Features

  • 7" Touch Screen Display

  • SS304 Tray

  • Graph viewing function

  • Password protection

  • Easy movement with wheels (locking wheels included)

  • Quick Mode, Professional Mode, Frozen Mode, Defrost Mode

  • Vacuum Pump (DSVP66) supplied as standard

  • Temperature range: –40°C

  • System can store 10 recipes

  • Transparent acrylic door for easy viewing

Technical Specifications

Model LMFD540H LMFD840H LMFD1040H LMFD1540H
Load Capacity 5–7 kg 8–12 kg 10–15 kg 15–20 kg
Drying Area 0.4 m² 0.8 m² 1.18 m² 1.5 m²
Tray Size 220 × 550 mm 265 × 612 mm 265 × 612 mm 270 × 800 mm
Number of Trays 4 5 6 7
Tray Distance 40 mm 54 mm 57 mm 50 mm
Make LABMAN
Tray Material SS304
Condenser Temperature –40°C
Ambient Temperature 10°C – 25°C
Display 7" Touch Screen
Vacuum <15 Pa
Vacuum Pump DSVP66
Noise Level 66 dB
Defrost Heating Coil
Data Memory 10 Recipes
Vacuum Control Not Available
Power Supply AC 220V / 50–60 Hz



Dimensions and Weight

Parameter LMFD540H LMFD840H LMFD1040H LMFD1540H
Machine Size 710 × 450 × 790 mm 820 × 560 × 1070 mm 820 × 560 × 1070 mm 1045 × 756 × 1342 mm
Packing Size 775 × 530 × 1070 mm 900 × 635 × 1270 mm 900 × 635 × 1270 mm 1100 × 820 × 1470 mm
Net Weight 76 kg 90 kg 95 kg 120 kg
Machine Gross Weight 101 kg 151 kg 160 kg 195 kg
Vacuum Pump Packing 600 × 235 × 410 mm
Vacuum Pump Weight 25 kg



Standard Accessories

  • Main Instrument

  • Vacuum Pump

  • Silicone Spring Hose

  • Funnel

  • Coupler

  • Coupler Seal

  • Display Stand

  • Touch Screen Display

  • Drain Tube

  • Vacuum Pump Tool Kit

  • Vacuum Filter

  • Rectangle Tray

  • Instruction Manual

  • Test Certificate

Touchscreen interface includes:

  • Choose Recipe

  • Running State

  • Data

  • Defrost

  • Recipe Management

  • Operation Panel

  • Graph Monitoring

  • Mode Selection

Modes available:

  • Quick Mode

  • Professional Mode

  • Frozen Mode

  • Defrost Mode

Labman

Food Freeze Dryer I -40 degree I Supplied with Vacuum Pump I Free Onsite Installation

SKU LMFD1040H
Rs.450,000.00
Rs.389,000.00

The Labmart Food Freeze Dryer (Model LMFD540H) is a professional-grade vacuum drying system designed for food processing labs, research institutes, and small-scale food manufacturers. Using the proven lyophilisation process, it removes moisture from food by converting frozen water directly into vapour — without forming liquid — so the food retains its original shape, colour, taste, and nutritional profile.

Ideal for freeze-drying fruits, vegetables, dairy products, seafood, meat, herbs, and nutraceuticals. The result is a shelf-stable product with up to 25-year shelf life potential — no preservatives required.

Salient Features

  • 7" Touch Screen Display

  • SS304 Tray

  • Graph viewing function

  • Password protection

  • Easy movement with wheels (locking wheels included)

  • Quick Mode, Professional Mode, Frozen Mode, Defrost Mode

  • Vacuum Pump (DSVP66) supplied as standard

  • Temperature range: –40°C

  • System can store 10 recipes

  • Transparent acrylic door for easy viewing

Technical Specifications

Model LMFD540H LMFD840H LMFD1040H LMFD1540H
Load Capacity 5–7 kg 8–12 kg 10–15 kg 15–20 kg
Drying Area 0.4 m² 0.8 m² 1.18 m² 1.5 m²
Tray Size 220 × 550 mm 265 × 612 mm 265 × 612 mm 270 × 800 mm
Number of Trays 4 5 6 7
Tray Distance 40 mm 54 mm 57 mm 50 mm
Make LABMAN
Tray Material SS304
Condenser Temperature –40°C
Ambient Temperature 10°C – 25°C
Display 7" Touch Screen
Vacuum <15 Pa
Vacuum Pump DSVP66
Noise Level 66 dB
Defrost Heating Coil
Data Memory 10 Recipes
Vacuum Control Not Available
Power Supply AC 220V / 50–60 Hz



Dimensions and Weight

Parameter LMFD540H LMFD840H LMFD1040H LMFD1540H
Machine Size 710 × 450 × 790 mm 820 × 560 × 1070 mm 820 × 560 × 1070 mm 1045 × 756 × 1342 mm
Packing Size 775 × 530 × 1070 mm 900 × 635 × 1270 mm 900 × 635 × 1270 mm 1100 × 820 × 1470 mm
Net Weight 76 kg 90 kg 95 kg 120 kg
Machine Gross Weight 101 kg 151 kg 160 kg 195 kg
Vacuum Pump Packing 600 × 235 × 410 mm
Vacuum Pump Weight 25 kg



Standard Accessories

  • Main Instrument

  • Vacuum Pump

  • Silicone Spring Hose

  • Funnel

  • Coupler

  • Coupler Seal

  • Display Stand

  • Touch Screen Display

  • Drain Tube

  • Vacuum Pump Tool Kit

  • Vacuum Filter

  • Rectangle Tray

  • Instruction Manual

  • Test Certificate

Touchscreen interface includes:

  • Choose Recipe

  • Running State

  • Data

  • Defrost

  • Recipe Management

  • Operation Panel

  • Graph Monitoring

  • Mode Selection

Modes available:

  • Quick Mode

  • Professional Mode

  • Frozen Mode

  • Defrost Mode
Rs.450,000.00
Rs.389,000.00
Capacity:
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
Food Freeze industrial dryer with digital display on a white background
Food Freeze industrial dryer with digital display on a white background

Product Description

The Labmart Food Freeze Dryer (Model LMFD540H) is a professional-grade vacuum drying system designed for food processing labs, research institutes, and small-scale food manufacturers. Using the proven lyophilisation process, it removes moisture from food by converting frozen water directly into vapour — without forming liquid — so the food retains its original shape, colour, taste, and nutritional profile.

Ideal for freeze-drying fruits, vegetables, dairy products, seafood, meat, herbs, and nutraceuticals. The result is a shelf-stable product with up to 25-year shelf life potential — no preservatives required.

Salient Features

  • 7" Touch Screen Display

  • SS304 Tray

  • Graph viewing function

  • Password protection

  • Easy movement with wheels (locking wheels included)

  • Quick Mode, Professional Mode, Frozen Mode, Defrost Mode

  • Vacuum Pump (DSVP66) supplied as standard

  • Temperature range: –40°C

  • System can store 10 recipes

  • Transparent acrylic door for easy viewing

Technical Specifications

Model LMFD540H LMFD840H LMFD1040H LMFD1540H
Load Capacity 5–7 kg 8–12 kg 10–15 kg 15–20 kg
Drying Area 0.4 m² 0.8 m² 1.18 m² 1.5 m²
Tray Size 220 × 550 mm 265 × 612 mm 265 × 612 mm 270 × 800 mm
Number of Trays 4 5 6 7
Tray Distance 40 mm 54 mm 57 mm 50 mm
Make LABMAN
Tray Material SS304
Condenser Temperature –40°C
Ambient Temperature 10°C – 25°C
Display 7" Touch Screen
Vacuum <15 Pa
Vacuum Pump DSVP66
Noise Level 66 dB
Defrost Heating Coil
Data Memory 10 Recipes
Vacuum Control Not Available
Power Supply AC 220V / 50–60 Hz



Dimensions and Weight

Parameter LMFD540H LMFD840H LMFD1040H LMFD1540H
Machine Size 710 × 450 × 790 mm 820 × 560 × 1070 mm 820 × 560 × 1070 mm 1045 × 756 × 1342 mm
Packing Size 775 × 530 × 1070 mm 900 × 635 × 1270 mm 900 × 635 × 1270 mm 1100 × 820 × 1470 mm
Net Weight 76 kg 90 kg 95 kg 120 kg
Machine Gross Weight 101 kg 151 kg 160 kg 195 kg
Vacuum Pump Packing 600 × 235 × 410 mm
Vacuum Pump Weight 25 kg



Standard Accessories

  • Main Instrument

  • Vacuum Pump

  • Silicone Spring Hose

  • Funnel

  • Coupler

  • Coupler Seal

  • Display Stand

  • Touch Screen Display

  • Drain Tube

  • Vacuum Pump Tool Kit

  • Vacuum Filter

  • Rectangle Tray

  • Instruction Manual

  • Test Certificate

Touchscreen interface includes:

  • Choose Recipe

  • Running State

  • Data

  • Defrost

  • Recipe Management

  • Operation Panel

  • Graph Monitoring

  • Mode Selection

Modes available:

  • Quick Mode

  • Professional Mode

  • Frozen Mode

  • Defrost Mode
