Rotary Evaporator Automatic LMRE25 - Labmart.in
  • Rotary Evaporator Automatic LMRE25 - Labmart.in

LMRE25 Rotary Evaporator is a compact laboratory evaporation system designed for the efficient and gentle removal of solvents under reduced pressure. Combining controlled heating, vacuum evaporation, and precise rotation, it delivers rapid solvent recovery while protecting heat-sensitive samples. Ideal for pilot-scale applications, the LMRE25 is widely used in pharmaceutical, chemical, biotechnology, food, and research laboratories for concentration, distillation, purification, and solvent recycling.

Featuring an automatic lifting water bath, digital temperature control, adjustable rotation speed, corrosion-resistant PTFE sealing, and a high-efficiency vertical condenser, the LMRE25 ensures safe, reliable, and repeatable evaporation performance. Optional vacuum pump and recirculating water chiller further enhance system efficiency for demanding laboratory applications.

Features

  • Maximum water evaporation capacity of 25 mL/min

  • 1 L rotating evaporation flask for efficient solvent evaporation

  • Gentle solvent removal using controlled heating and vacuum

  • Automatic lifting water bath for convenient operation

  • Adjustable rotation speed from 20–300 RPM

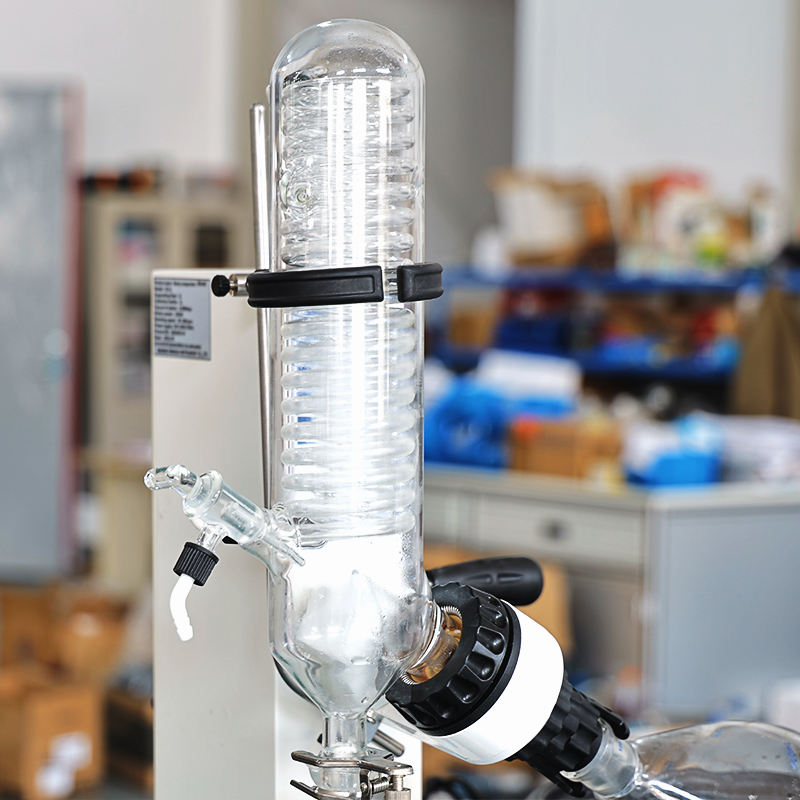

  • High-efficiency double-layer vertical condenser

  • Anti-backflow condenser design minimizes solvent loss

  • Durable PTFE and fluorine rubber bidirectional sealing system

  • Corrosion-resistant PTFE feeding/discharge valve

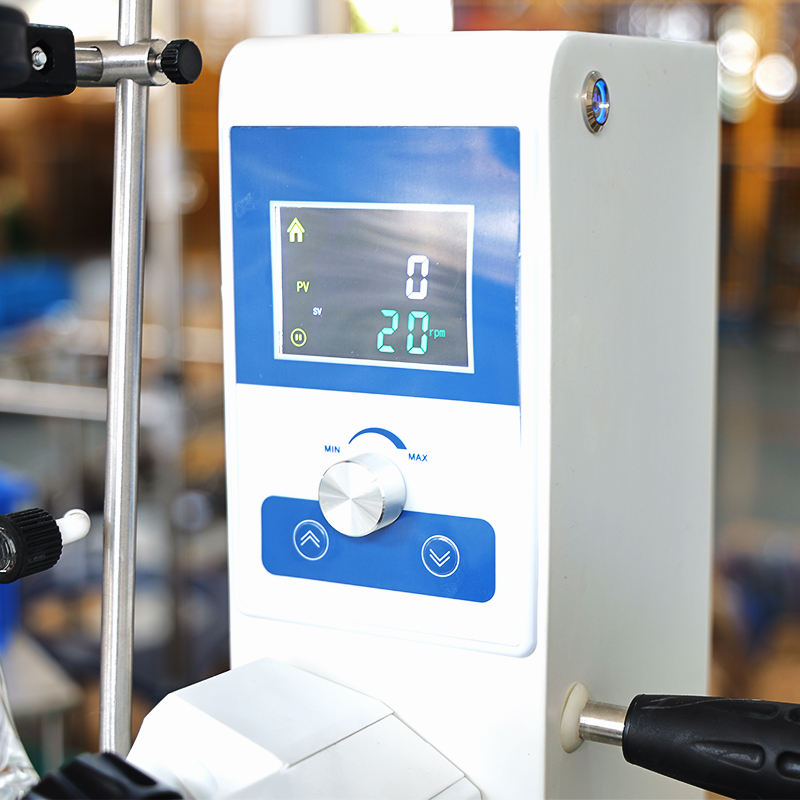

  • Digital LCD display with knob and keypad control

  • Automatic over-temperature protection with auto-stop function

  • Stable, low-noise operation

  • Aluminium alloy frame with stainless steel water bath liner

  • Suitable for concentration, distillation, solvent recovery, extraction, and purification

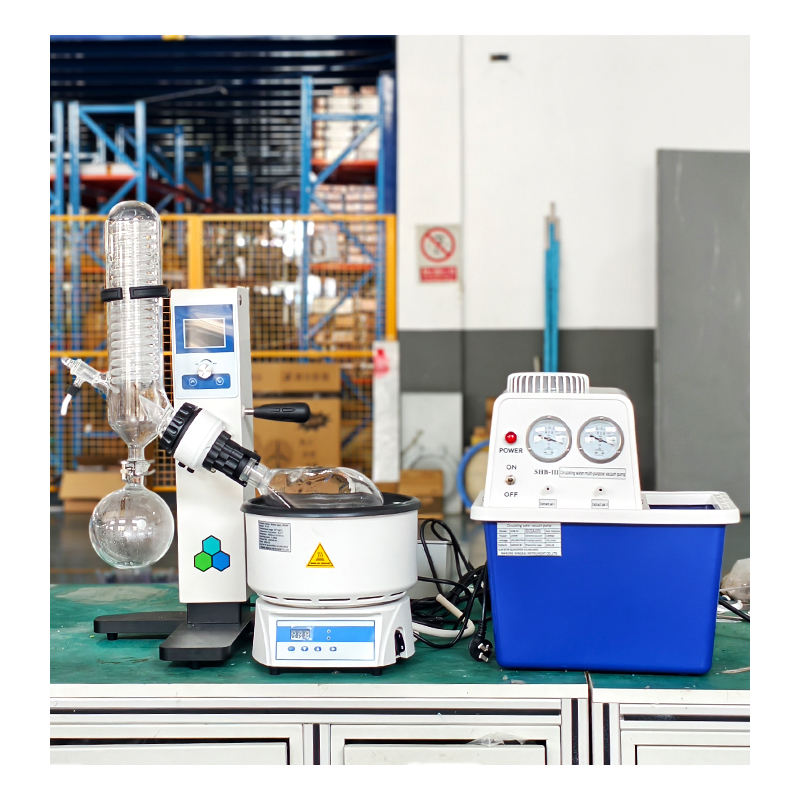

  • Optional vacuum pump and water chiller available for complete evaporation setup

Technical Specifications

Parameter Specification
Model LMRE25
Make LABMART
Evaporation Capacity (Water) Max. 25 mL/min
Rotation Speed 20–300 RPM
Rotating Flask 1 L, Ø131 mm / 29 Joint
Receiving Flask 1 L, Ø131 mm / 35 Joint
Lifting Method Automatic
Display LCD Display
Control Method Knob & Keypad
Bracket Material Aluminium Alloy
Sealing Method PTFE + Fluorine Rubber Bidirectional Seal
Rotating Motor Power 40 W
Heating Power 1.5 kW
Temperature Display Digital
Heating Bath Size 230 × 135 mm
Water Bath Temperature Range Ambient +5°C to 180°C
Temperature Control Accuracy ±1°C
Safety Protection Auto Stop when set temperature exceeds 5°C
Lift Stroke 120 mm
Condenser Type Vertical Double-Layer Condenser
Condensation Area 0.15 m²
Condenser Size 80 × 420 mm
Feeding Valve PTFE
Power Supply AC 220 V, 50/60 Hz
Packing Dimensions (L × W × H) 775 × 610 × 750 mm
Net Weight 18 kg
Gross Weight 36 kg

Standard Accessories

  • Main Instrument

  • Water Bath

  • 1 L Distillation Flask

  • 1 L Receiving Flask

  • Vertical Condenser

  • Fitting Accessories

  • Power Cord

  • Instruction Manual

  • Test Certificate

Optional Accessories

  • Vacuum Pump

  • Recirculating Water Chiller

Labman

Rotary Vaccum Evaporator IAutomatic Lift I Digital RPM & Temperature I FREE ONSITE INSTALLATION

SKU LMRE25
Rs.200,000.00
Rs.134,999.00

LMRE25 Rotary Evaporator is a compact laboratory evaporation system designed for the efficient and gentle removal of solvents under reduced pressure. Combining controlled heating, vacuum evaporation, and precise rotation, it delivers rapid solvent recovery while protecting heat-sensitive samples. Ideal for pilot-scale applications, the LMRE25 is widely used in pharmaceutical, chemical, biotechnology, food, and research laboratories for concentration, distillation, purification, and solvent recycling.

Featuring an automatic lifting water bath, digital temperature control, adjustable rotation speed, corrosion-resistant PTFE sealing, and a high-efficiency vertical condenser, the LMRE25 ensures safe, reliable, and repeatable evaporation performance. Optional vacuum pump and recirculating water chiller further enhance system efficiency for demanding laboratory applications.

Features

  • Maximum water evaporation capacity of 25 mL/min

  • 1 L rotating evaporation flask for efficient solvent evaporation

  • Gentle solvent removal using controlled heating and vacuum

  • Automatic lifting water bath for convenient operation

  • Adjustable rotation speed from 20–300 RPM

  • High-efficiency double-layer vertical condenser

  • Anti-backflow condenser design minimizes solvent loss

  • Durable PTFE and fluorine rubber bidirectional sealing system

  • Corrosion-resistant PTFE feeding/discharge valve

  • Digital LCD display with knob and keypad control

  • Automatic over-temperature protection with auto-stop function

  • Stable, low-noise operation

  • Aluminium alloy frame with stainless steel water bath liner

  • Suitable for concentration, distillation, solvent recovery, extraction, and purification

  • Optional vacuum pump and water chiller available for complete evaporation setup

Technical Specifications

Parameter Specification
Model LMRE25
Make LABMART
Evaporation Capacity (Water) Max. 25 mL/min
Rotation Speed 20–300 RPM
Rotating Flask 1 L, Ø131 mm / 29 Joint
Receiving Flask 1 L, Ø131 mm / 35 Joint
Lifting Method Automatic
Display LCD Display
Control Method Knob & Keypad
Bracket Material Aluminium Alloy
Sealing Method PTFE + Fluorine Rubber Bidirectional Seal
Rotating Motor Power 40 W
Heating Power 1.5 kW
Temperature Display Digital
Heating Bath Size 230 × 135 mm
Water Bath Temperature Range Ambient +5°C to 180°C
Temperature Control Accuracy ±1°C
Safety Protection Auto Stop when set temperature exceeds 5°C
Lift Stroke 120 mm
Condenser Type Vertical Double-Layer Condenser
Condensation Area 0.15 m²
Condenser Size 80 × 420 mm
Feeding Valve PTFE
Power Supply AC 220 V, 50/60 Hz
Packing Dimensions (L × W × H) 775 × 610 × 750 mm
Net Weight 18 kg
Gross Weight 36 kg

Standard Accessories

  • Main Instrument

  • Water Bath

  • 1 L Distillation Flask

  • 1 L Receiving Flask

  • Vertical Condenser

  • Fitting Accessories

  • Power Cord

  • Instruction Manual

  • Test Certificate

Optional Accessories

  • Vacuum Pump

  • Recirculating Water Chiller
Rs.200,000.00
Rs.134,999.00

GST Invoice included
(Save 18% on business purchases)
Get a Quote- Bulk Quantity Enquiry
Rotary Evaporator Automatic LMRE25 - Labmart.in
Rotary Evaporator Automatic LMRE25 - Labmart.in

  • Free Shipping

    Orders above Rs. 1000.

  • On Time Delivery

    Within 7 days.

  • Money Back Guarantee

    14 day Return*

  • Service Support

    Online Installation Support.

Product Description

LMRE25 Rotary Evaporator is a compact laboratory evaporation system designed for the efficient and gentle removal of solvents under reduced pressure. Combining controlled heating, vacuum evaporation, and precise rotation, it delivers rapid solvent recovery while protecting heat-sensitive samples. Ideal for pilot-scale applications, the LMRE25 is widely used in pharmaceutical, chemical, biotechnology, food, and research laboratories for concentration, distillation, purification, and solvent recycling.

Featuring an automatic lifting water bath, digital temperature control, adjustable rotation speed, corrosion-resistant PTFE sealing, and a high-efficiency vertical condenser, the LMRE25 ensures safe, reliable, and repeatable evaporation performance. Optional vacuum pump and recirculating water chiller further enhance system efficiency for demanding laboratory applications.

Features

  • Maximum water evaporation capacity of 25 mL/min

  • 1 L rotating evaporation flask for efficient solvent evaporation

  • Gentle solvent removal using controlled heating and vacuum

  • Automatic lifting water bath for convenient operation

  • Adjustable rotation speed from 20–300 RPM

  • High-efficiency double-layer vertical condenser

  • Anti-backflow condenser design minimizes solvent loss

  • Durable PTFE and fluorine rubber bidirectional sealing system

  • Corrosion-resistant PTFE feeding/discharge valve

  • Digital LCD display with knob and keypad control

  • Automatic over-temperature protection with auto-stop function

  • Stable, low-noise operation

  • Aluminium alloy frame with stainless steel water bath liner

  • Suitable for concentration, distillation, solvent recovery, extraction, and purification

  • Optional vacuum pump and water chiller available for complete evaporation setup

Technical Specifications

Parameter Specification
Model LMRE25
Make LABMART
Evaporation Capacity (Water) Max. 25 mL/min
Rotation Speed 20–300 RPM
Rotating Flask 1 L, Ø131 mm / 29 Joint
Receiving Flask 1 L, Ø131 mm / 35 Joint
Lifting Method Automatic
Display LCD Display
Control Method Knob & Keypad
Bracket Material Aluminium Alloy
Sealing Method PTFE + Fluorine Rubber Bidirectional Seal
Rotating Motor Power 40 W
Heating Power 1.5 kW
Temperature Display Digital
Heating Bath Size 230 × 135 mm
Water Bath Temperature Range Ambient +5°C to 180°C
Temperature Control Accuracy ±1°C
Safety Protection Auto Stop when set temperature exceeds 5°C
Lift Stroke 120 mm
Condenser Type Vertical Double-Layer Condenser
Condensation Area 0.15 m²
Condenser Size 80 × 420 mm
Feeding Valve PTFE
Power Supply AC 220 V, 50/60 Hz
Packing Dimensions (L × W × H) 775 × 610 × 750 mm
Net Weight 18 kg
Gross Weight 36 kg

Standard Accessories

  • Main Instrument

  • Water Bath

  • 1 L Distillation Flask

  • 1 L Receiving Flask

  • Vertical Condenser

  • Fitting Accessories

  • Power Cord

  • Instruction Manual

  • Test Certificate

Optional Accessories

  • Vacuum Pump

  • Recirculating Water Chiller
