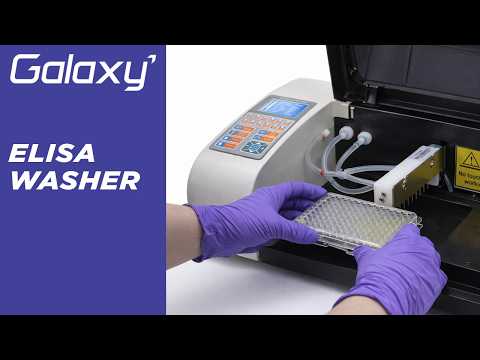

ELISA Washer with <0.7 μl/Well Channel and CV < 1.5 % Dispensing Uniformity, EW-812, ensures precise and uniform washing of microplates. Its high-accuracy dispensing system reduces reagent waste and minimizes variability between wells. The low residual volume and consistent flow rate support sensitive immunoassays, improving overall assay reliability.

Built with durable, corrosion-resistant components, EW-812 offers long-term operational stability. Its user-friendly interface simplifies programming and operation, while the compact design conserves laboratory space. This washer is suitable for high-throughput laboratories, providing dependable, efficient washing for ELISA and other plate-based assays with minimal reagent consumption and high reproducibility.

Features :

* 3.5-inch LCD display. Easy to name, edit and save different 100 wash programs. ． Any line and hole can be easily cleaned, unnecessary to complement the whole plate or strip .

* Stop or Pause key in the panel can be chosen to stop or

pauseduring working.

* Aspirating in 2 positions, residual volume <0.7µ1.

* Multi-plate can be selected by default settings or manual operation. ． Microplate holder is detachable, which makes easy to disinfect and maintain 1.

* Suitable for flat, U and V-bottom microplates. ． Special rinse procedure makes easy to maintain the device and reduces contamination between plates.
* Wash bottle filter keeps sediment in the solution away the pipes.
* The control technology for pump pressure can avoid clogging in needles
* Automatical rinse procedure by distilled water when turn on or turn off can avoid crystallizing in the pipes.
* Detachable manifolds makes easy to clear particles in the manifolds.
* Waste water sensor avoids overflow in the waste bottle.
* Scientific structure design avoids bottom contaminating.

Volume	Residual: 1-12 Lines Selectable
No. of Channels	Dispensing: 3 Channel, Can be extended to 5 Channels
Time	Aspiration: 0.1 to 9.9 seconds adjustable, interval 0.1 second, Pipeline Wash: 0 to 240 seconds Adjustable, Soaking and Shaking: 0 to 999 (seconds/minutes/hours) Adjustable
Plate Type	Flat-, Round-, U-, V- plate (96-well and 48-well)
Name of Manufacturer/Packer/Importer	Galaxy
Channel	<0.7 μl/well
Wash Lines	1 to 99 times adjustable
Dispensing Uniformity	CV<1.5%
Wash Time	8 and 12 way
Distilled Water Wash Interval	0 to 20 plates
Wash Model	Plates or Strips
Dispensing Volume	50 to 950 μl, interval of 50 μl

Frequently Asked Questions (FAQs)

1. What is an ELISA Microplate Washer used for?
An ELISA Microplate Washer is used to automatically wash microplate wells during ELISA assays, removing unbound substances and ensuring accurate, reliable test results.

2. How does a microplate washer improve ELISA results?
It provides uniform and consistent washing across all wells, reducing background noise and variability, which enhances the accuracy and reproducibility of assay results.

3. Is the ELISA Microplate Washer compatible with all plates?
Most ELISA microplate washers are compatible with standard 96-well microplates, and some models also support 48-well or 384-well plates depending on configuration.

4. Can wash cycles be customized?
Yes, the washer typically allows programmable settings such as number of wash cycles, soak time, dispense volume, and aspiration parameters.

5. Is the system fully automated?
Yes, it is designed for automated operation, minimizing manual intervention and reducing human error in repetitive washing steps.

6. What type of laboratories can use this instrument?
It is suitable for clinical laboratories, diagnostic centers, research institutions, pharmaceutical labs, and biotechnology facilities.

7. Does the washer reduce reagent consumption?
Yes, optimized dispensing and aspiration help minimize reagent usage while maintaining effective washing performance.

8. Is maintenance required for the ELISA washer?
Routine cleaning and periodic maintenance are recommended to ensure optimal performance and long-term durability.

9. What are the key benefits of using an ELISA plate washer?
Benefits include improved accuracy, time efficiency, reduced manual workload, reproducible results, and enhanced workflow productivity.

10. Is this equipment suitable for high-throughput labs?
Yes, it is ideal for high-throughput testing environments where large numbers of samples need to be processed quickly and consistently.

Applications of ELISA Microplate Washer

Clinical Diagnostics: Used in hospitals and diagnostic labs for disease detection and screening tests
Immunology Research: Supports antibody-antigen interaction studies with precise washing steps
Pharmaceutical Industry: Utilized in drug discovery, development, and quality control processes
Biotechnology Laboratories: Essential for protein analysis, biomarker detection, and assay development
Academic Research: Widely used in universities and research institutes for life science studies
Food & Environmental Testing: Helps detect contaminants, toxins, and pathogens
Veterinary Diagnostics: Used for animal disease testing and monitoring
Blood Banks & Serology Labs: Assists in screening infectious diseases and blood-related studies

Galaxy

Elisa Microplate Washer

SKU EW-812

Regular price: Rs.250,000.00
Sale price: Rs.119,000.00

Features :

* 3.5-inch LCD display. Easy to name, edit and save different 100 wash programs. ． Any line and hole can be easily cleaned, unnecessary to complement the whole plate or strip .

* Stop or Pause key in the panel can be chosen to stop or

pauseduring working.

* Aspirating in 2 positions, residual volume <0.7µ1.

* Multi-plate can be selected by default settings or manual operation. ． Microplate holder is detachable, which makes easy to disinfect and maintain 1.

Volume	Residual: 1-12 Lines Selectable
No. of Channels	Dispensing: 3 Channel, Can be extended to 5 Channels
Time	Aspiration: 0.1 to 9.9 seconds adjustable, interval 0.1 second, Pipeline Wash: 0 to 240 seconds Adjustable, Soaking and Shaking: 0 to 999 (seconds/minutes/hours) Adjustable
Plate Type	Flat-, Round-, U-, V- plate (96-well and 48-well)
Name of Manufacturer/Packer/Importer	Galaxy
Channel	<0.7 μl/well
Wash Lines	1 to 99 times adjustable
Dispensing Uniformity	CV<1.5%
Wash Time	8 and 12 way
Distilled Water Wash Interval	0 to 20 plates
Wash Model	Plates or Strips
Dispensing Volume	50 to 950 μl, interval of 50 μl

Frequently Asked Questions (FAQs)

4. Can wash cycles be customized?
Yes, the washer typically allows programmable settings such as number of wash cycles, soak time, dispense volume, and aspiration parameters.

5. Is the system fully automated?
Yes, it is designed for automated operation, minimizing manual intervention and reducing human error in repetitive washing steps.

6. What type of laboratories can use this instrument?
It is suitable for clinical laboratories, diagnostic centers, research institutions, pharmaceutical labs, and biotechnology facilities.

7. Does the washer reduce reagent consumption?
Yes, optimized dispensing and aspiration help minimize reagent usage while maintaining effective washing performance.

8. Is maintenance required for the ELISA washer?
Routine cleaning and periodic maintenance are recommended to ensure optimal performance and long-term durability.

10. Is this equipment suitable for high-throughput labs?
Yes, it is ideal for high-throughput testing environments where large numbers of samples need to be processed quickly and consistently.

Applications of ELISA Microplate Washer

Clinical Diagnostics: Used in hospitals and diagnostic labs for disease detection and screening tests
Immunology Research: Supports antibody-antigen interaction studies with precise washing steps
Pharmaceutical Industry: Utilized in drug discovery, development, and quality control processes
Biotechnology Laboratories: Essential for protein analysis, biomarker detection, and assay development
Academic Research: Widely used in universities and research institutes for life science studies
Food & Environmental Testing: Helps detect contaminants, toxins, and pathogens
Veterinary Diagnostics: Used for animal disease testing and monitoring
Blood Banks & Serology Labs: Assists in screening infectious diseases and blood-related studies

Regular price: Rs.250,000.00
Sale price: Rs.119,000.00

Quantity

Delivery Period :5-7 Working Days
Replacement :3 Days Replacement as standard, Free of Cost
Dedicated Support :Support from 9:30 AM to 6:00 PM everyday

Product Description

Features :

* 3.5-inch LCD display. Easy to name, edit and save different 100 wash programs. ． Any line and hole can be easily cleaned, unnecessary to complement the whole plate or strip .

* Stop or Pause key in the panel can be chosen to stop or

pauseduring working.

* Aspirating in 2 positions, residual volume <0.7µ1.

* Multi-plate can be selected by default settings or manual operation. ． Microplate holder is detachable, which makes easy to disinfect and maintain 1.

Volume	Residual: 1-12 Lines Selectable
No. of Channels	Dispensing: 3 Channel, Can be extended to 5 Channels
Time	Aspiration: 0.1 to 9.9 seconds adjustable, interval 0.1 second, Pipeline Wash: 0 to 240 seconds Adjustable, Soaking and Shaking: 0 to 999 (seconds/minutes/hours) Adjustable
Plate Type	Flat-, Round-, U-, V- plate (96-well and 48-well)
Name of Manufacturer/Packer/Importer	Galaxy
Channel	<0.7 μl/well
Wash Lines	1 to 99 times adjustable
Dispensing Uniformity	CV<1.5%
Wash Time	8 and 12 way
Distilled Water Wash Interval	0 to 20 plates
Wash Model	Plates or Strips
Dispensing Volume	50 to 950 μl, interval of 50 μl

Frequently Asked Questions (FAQs)

4. Can wash cycles be customized?
Yes, the washer typically allows programmable settings such as number of wash cycles, soak time, dispense volume, and aspiration parameters.

5. Is the system fully automated?
Yes, it is designed for automated operation, minimizing manual intervention and reducing human error in repetitive washing steps.

6. What type of laboratories can use this instrument?
It is suitable for clinical laboratories, diagnostic centers, research institutions, pharmaceutical labs, and biotechnology facilities.

7. Does the washer reduce reagent consumption?
Yes, optimized dispensing and aspiration help minimize reagent usage while maintaining effective washing performance.

8. Is maintenance required for the ELISA washer?
Routine cleaning and periodic maintenance are recommended to ensure optimal performance and long-term durability.

10. Is this equipment suitable for high-throughput labs?
Yes, it is ideal for high-throughput testing environments where large numbers of samples need to be processed quickly and consistently.

Applications of ELISA Microplate Washer

Clinical Diagnostics: Used in hospitals and diagnostic labs for disease detection and screening tests
Immunology Research: Supports antibody-antigen interaction studies with precise washing steps
Pharmaceutical Industry: Utilized in drug discovery, development, and quality control processes
Biotechnology Laboratories: Essential for protein analysis, biomarker detection, and assay development
Academic Research: Widely used in universities and research institutes for life science studies
Food & Environmental Testing: Helps detect contaminants, toxins, and pathogens
Veterinary Diagnostics: Used for animal disease testing and monitoring
Blood Banks & Serology Labs: Assists in screening infectious diseases and blood-related studies
