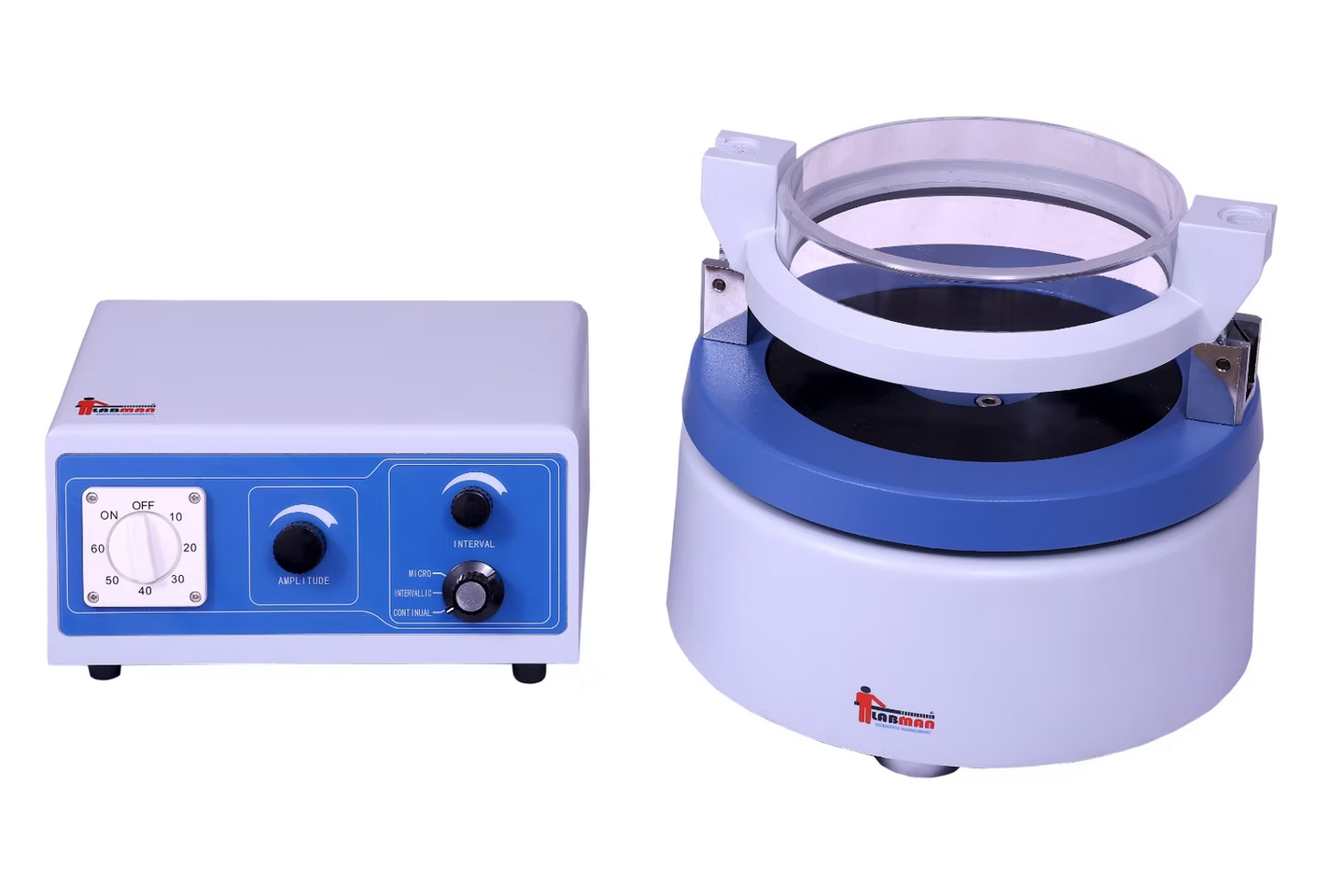

The ESS300M Electromagnetic Sieve Shaker is a high-precision, motorized laboratory instrument designed for dry and wet particle size analysis. Operating via an electromagnetic drive instead of traditional mechanical motors, it features no moving or rotating parts, ensuring a maintenance-free lifespan with low-noise operation.

Key Specifications & Technical Data

Parameter	Specification
Control Mechanism	Manual analog knob control
Vibration Type	Electromagnetic (Vertical vibration)
Measuring Range	≤ 325 mesh (Not suitable for finer particle meshes)
Vibration Frequency	3000 times/min or 6000 times/min
Amplitude Adjustment	Continuous range from 0 mm to 3 mm
Sieve Capacity	Accommodates 5 to 6 standard sieves
Compatible Sieve Size	∅ 200 mm × 50 mm height (Sieves sold separately)
Vibration Modes	3 Modes (Fine, Intermittent, and Continuous vibration)
Timer Range	0 to 60 minutes via manual knob
Power Requirements	150 W operating on standard AC 220V / 50-60Hz
Net Weight	Approx. 26 kg

Features and Material Advantages

Uniform & Controlled Separation: The vertical electromagnetic pulse forces the material evenly over the mesh surface, minimizing aperture binding or clogging.
Quick Clamping System: Features an easy-to-use slide and locking mechanism to ensure test sieves remain completely secure during high-frequency agitation.
Zero Mechanical Wear: Eliminates traditional belts, gears, or rotating components, dramatically cutting down long-term wear and tear expenses.
Wet & Dry Flexibility: Safe to use for standard dry powder grading as well as wet liquid-wash suspension sieving

Labman

Electromagnetic Sieve Shaker I Measuring Range <325mesh I Without Sieves

SKU ESS300M

Regular price: Rs.95,000.00
Sale price: Rs.78,999.00

Key Specifications & Technical Data

Parameter	Specification
Control Mechanism	Manual analog knob control
Vibration Type	Electromagnetic (Vertical vibration)
Measuring Range	≤ 325 mesh (Not suitable for finer particle meshes)
Vibration Frequency	3000 times/min or 6000 times/min
Amplitude Adjustment	Continuous range from 0 mm to 3 mm
Sieve Capacity	Accommodates 5 to 6 standard sieves
Compatible Sieve Size	∅ 200 mm × 50 mm height (Sieves sold separately)
Vibration Modes	3 Modes (Fine, Intermittent, and Continuous vibration)
Timer Range	0 to 60 minutes via manual knob
Power Requirements	150 W operating on standard AC 220V / 50-60Hz
Net Weight	Approx. 26 kg

Features and Material Advantages

Uniform & Controlled Separation: The vertical electromagnetic pulse forces the material evenly over the mesh surface, minimizing aperture binding or clogging.
Quick Clamping System: Features an easy-to-use slide and locking mechanism to ensure test sieves remain completely secure during high-frequency agitation.
Zero Mechanical Wear: Eliminates traditional belts, gears, or rotating components, dramatically cutting down long-term wear and tear expenses.
Wet & Dry Flexibility: Safe to use for standard dry powder grading as well as wet liquid-wash suspension sieving

Regular price: Rs.95,000.00
Sale price: Rs.78,999.00

Quantity

Delivery Period :5-7 Working Days
Replacement :3 Days Replacement as standard, Free of Cost
Dedicated Support :Support from 9:30 AM to 6:00 PM everyday

Product Description

Key Specifications & Technical Data

Parameter	Specification
Control Mechanism	Manual analog knob control
Vibration Type	Electromagnetic (Vertical vibration)
Measuring Range	≤ 325 mesh (Not suitable for finer particle meshes)
Vibration Frequency	3000 times/min or 6000 times/min
Amplitude Adjustment	Continuous range from 0 mm to 3 mm
Sieve Capacity	Accommodates 5 to 6 standard sieves
Compatible Sieve Size	∅ 200 mm × 50 mm height (Sieves sold separately)
Vibration Modes	3 Modes (Fine, Intermittent, and Continuous vibration)
Timer Range	0 to 60 minutes via manual knob
Power Requirements	150 W operating on standard AC 220V / 50-60Hz
Net Weight	Approx. 26 kg

Features and Material Advantages

Uniform & Controlled Separation: The vertical electromagnetic pulse forces the material evenly over the mesh surface, minimizing aperture binding or clogging.
Quick Clamping System: Features an easy-to-use slide and locking mechanism to ensure test sieves remain completely secure during high-frequency agitation.
Zero Mechanical Wear: Eliminates traditional belts, gears, or rotating components, dramatically cutting down long-term wear and tear expenses.
Wet & Dry Flexibility: Safe to use for standard dry powder grading as well as wet liquid-wash suspension sieving
