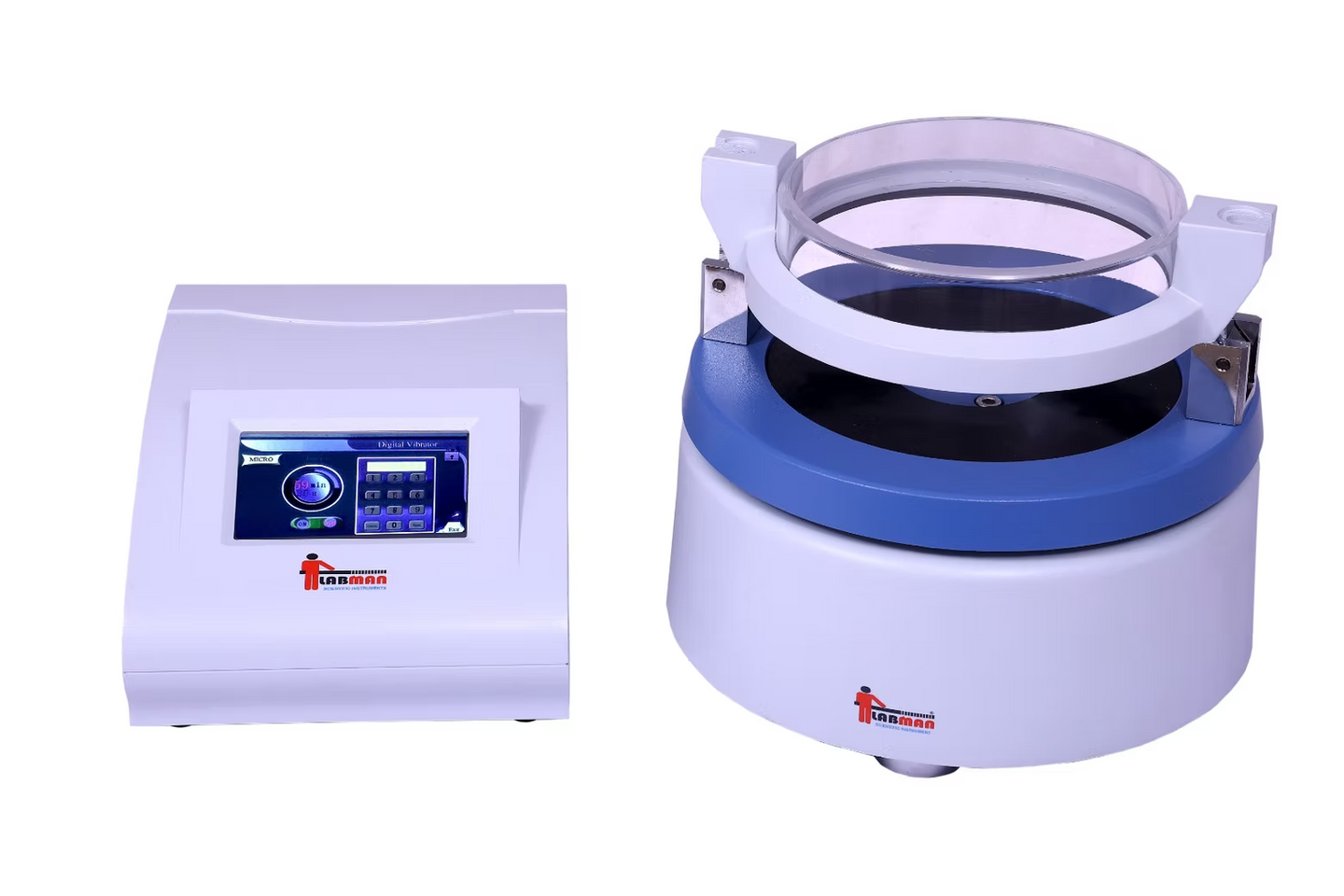

The ESS325T is an advanced, automated particle separation instrument featuring a 5-inch touchscreen digital control display. Designed for reproducible dry and wet particle size analysis in laboratories, it replaces traditional manual adjustments with a programmable interface and an automatic shut-off function to improve workflow testing efficiency.

Key Specifications & Technical Data :
Parameter
Specification
Control Interface 5-inch digital touchscreen display
Drive Technology Electromagnetic vertical vibration (No moving mechanical parts)
Operating Range ≤ 325 mesh particle capacity
Vibration Amplitude 0 mm to 3 mm continuous adjustment
Timer Range Adjustable from 1 to 99 minutes
Vibration Modes 3 Programmable settings: Fine, Intermittent, and Continuous
Sieve Capacity Accommodates 5 to 6 standard test sieves
Sieve Compatibility Designed for Ø 200 mm × 50 mm height sieves
Power Supply AC 220V–230V / 50–60Hz
Automation Upgrades Integrated program memory function & automatic shut-off

Key Differences: ESS325T vs. ESS300M
While both models feature identical vertical electromagnetic vibration mechanisms and a robust bench-top frame, the
ESS325T
 introduces several major laboratory upgrades:

  • Digital Calibration: The analog control knobs of the   are replaced by an exact touchscreen panel. This allows for the electronic control and precise monitoring of frequency, amplitude, and run duration.
  • Testing Reproducibility: The integrated program memory function lets operators save optimized profiles for specific materials. This eliminates human variation across different laboratory shifts.
  • Extended Timer limit: The operation timer capability is extended up to 99 minutes (compared to the 60-minute limit on the
    ESS300M
    )

Labman

Electromagnetic Sieve Shaker I Digital Touch Display I Measuring Range <325mesh I Without Sieves

SKU ESS325T
Rs.175,000.00
Rs.155,000.00

The ESS325T is an advanced, automated particle separation instrument featuring a 5-inch touchscreen digital control display. Designed for reproducible dry and wet particle size analysis in laboratories, it replaces traditional manual adjustments with a programmable interface and an automatic shut-off function to improve workflow testing efficiency.

Key Specifications & Technical Data :
Parameter
Specification
Control Interface 5-inch digital touchscreen display
Drive Technology Electromagnetic vertical vibration (No moving mechanical parts)
Operating Range ≤ 325 mesh particle capacity
Vibration Amplitude 0 mm to 3 mm continuous adjustment
Timer Range Adjustable from 1 to 99 minutes
Vibration Modes 3 Programmable settings: Fine, Intermittent, and Continuous
Sieve Capacity Accommodates 5 to 6 standard test sieves
Sieve Compatibility Designed for Ø 200 mm × 50 mm height sieves
Power Supply AC 220V–230V / 50–60Hz
Automation Upgrades Integrated program memory function & automatic shut-off

Key Differences: ESS325T vs. ESS300M
While both models feature identical vertical electromagnetic vibration mechanisms and a robust bench-top frame, the
ESS325T
 introduces several major laboratory upgrades:

  • Digital Calibration: The analog control knobs of the   are replaced by an exact touchscreen panel. This allows for the electronic control and precise monitoring of frequency, amplitude, and run duration.
  • Testing Reproducibility: The integrated program memory function lets operators save optimized profiles for specific materials. This eliminates human variation across different laboratory shifts.
  • Extended Timer limit: The operation timer capability is extended up to 99 minutes (compared to the 60-minute limit on the
    ESS300M
    )
Rs.175,000.00
Rs.155,000.00
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
