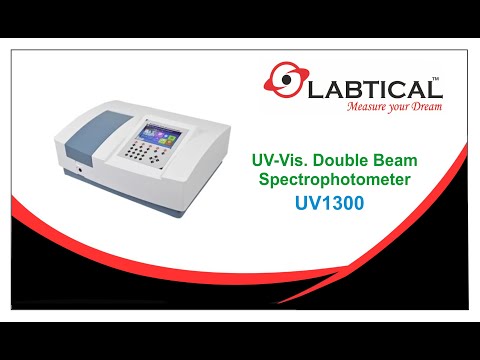

Discover the precision of a double-beam UV-VIS spectrophotometer. Accurately measure the absorbance of samples in the ultraviolet and visible spectrum. Ideal for research, quality control, and various scientific applications.Explore advanced features and benefits for reliable and efficient measurements.

• 7 inches TFT color screen and windows graphic interface.
• Powerful functions like Photometric measurement, Quantitative measurement,
• Kinetics, Spectrum scan, DNA\Protein test,multi-wavelength test, etc
• In-house massive memory is capable of saving up to 1024 for test data & working curves.
• Supports USB storage. The USB port can be used for data transfer, which is easily exported to Excel for further processing,analysis and storage.
• Socket type deuterium and tungsten lamp can make lamps switching without optics debugging and easy to be replaced.
• Large sample chamber can accommodate 5-100mm cuvettes.
• Photometric Mode - T, A, C, E.
• PC Software available

Technical Specifications :

Spectral Bandwidth : 1nm (Fixed)
Optical System :  Double Beam Grating 1200 lines/mm
Wavelength Range :  190-1100 nm
Wavelength Accuracy :  ±0.3nm
Wavelength Repeatability :  ±0.2nm
Photometric Range :  ±0-200%T, -0.3~3A, 0-9999C
Photometric Accuracy : 0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)
Photometric Repeatability : ≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)
Photometric Mode : T, A, C, E
Stray Light :  +0.03%T@220nm, 360nm
Stability :  ±0.0003A/h @ 500 nm
Baseline Flatness : ±0.001A @ 500nm
Noise :  0.001A@500nm
Scanning Speed : Fast, Medium, Low (Max. 3000nm/min)
Wavelength Setting : Auto matic
Display:  7" TFT Color Screen
Light Source :  Deuterium & Tungsten lamp
Detector :  Silicon Photodiode
Cell Holder : 10mm single cell holder(sample & reference)
Output :  USB,RS232 C
Powersupply : AC 220V/50Hz
Pakcing Dimension :  (LxWx H) 880 x 690 x 520 mm
Gross Weight :  30kg
