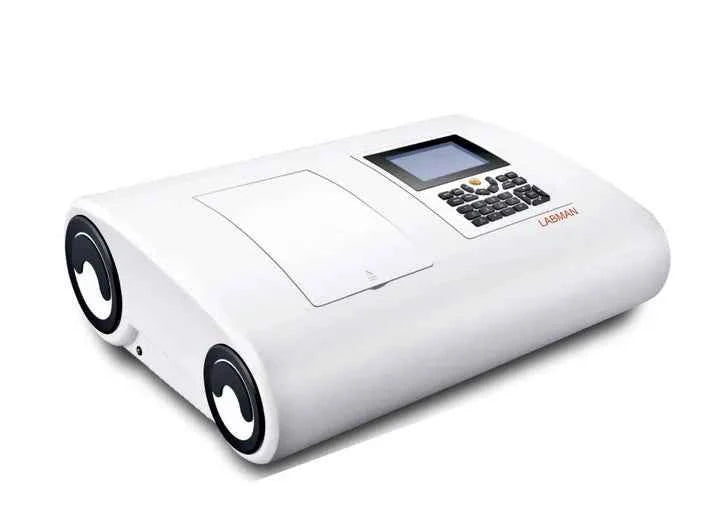

Double Beam UV-Vis. Spectrophotometer LMSPUV1908 - Labmart.in

Product Description

SALIENT FEATURES:

The two detectors are used to measure sample and reference respectively and simultaneously for optimizing measurement accuracy.
Lamp Selection enables conserving the life of D2 & Tungsten lamps. Real time clock for date & time stamping of results.
LIGHT PATH DESIGN: DOUBLE BEAM
LMSPUV1900 series double light design can prevent circuit fluctuation and stray light to ensure stability of the instrument.
LONG PATH LIGHT DESIGN
LMSPUV1900 series unique 520mm long light path design with greatly improved resolution.
16MM OPTICAL BASE
LMSPUV1900 series use a rigid 16mm diecast aluminum base as their optical mount to ensure the stability and reliability.
6 INCHES LCD DISPLAY
LMSPUV1900 series have a 6 inches LCD display to show results and curves directly on the screen.
SOFTWARE FUNCTIONS
Multi functions operated directly on the spectrophotometer and display the test results' curve and data: wavelength scanning,
standard curve, kinetics, multi wavelength scanning, DNA/protein test.
PERFECT CALIBRATION SYSTEM
All baseline, wavelength, dark current can be calibrated automatically to keep good running conditions.
DATA OUTPUT
LMSPUV1900 series are equipped with USB port to connect with a PC.

SPECIFICATIONS:



MODEL

LMSPUV1900

Make

LABWAN

Sample Cell Holder

10mm Cell Holder

Bandwidth

1nm

Reference Cell Holder

10mm Cell Holder

Optical System

Double Beam (1200 Lines/mm Grating)

Wavelength Range

190-1100nm

Wavelength Accuracy

±0.3nm

Wavelength Repeatability

±0.2nm

Scanning Speed

Fast, Medium & Low

Photometric Accuracy

±0.3%T

Photometric Repeatability

0.2%T

Photometric Range

-0.3-3A,0-200%T,0-9999C

Stability

± 0.001A/h @ 500nm

Baseline Flatness

± 0.001A/h

Noise

± 0.001A/h

Stray Light

≤0.05%T @ 220nm,360nm

Data Output Port

USB

Printer Port

Parallel Port

Display

LCD

Light Source

D2 Lamp & Tungsten Halogen Lamp (W Lamp)

Detector

Silicon Photodiode

Power Supply

AC 220V,50/60Hz

Packing Dimension (LxWxH)

790 x 590 x 400mm

Gross Weight

35kg
