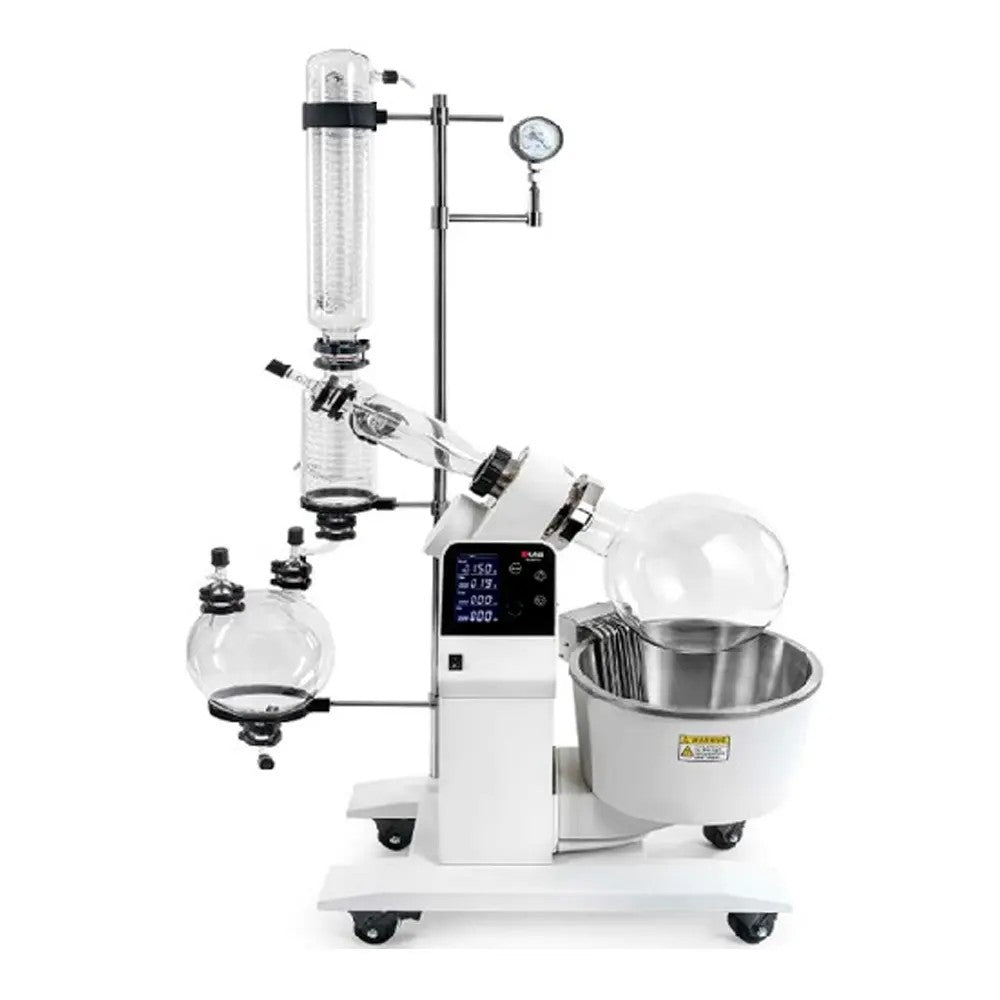

The DLAB RE200-Pro is a 20 L industrial digital rotary evaporator for pilot-scale production and large-scale applications in biology, pharmaceutical, chemical, beauty, medical and food industries.
Key features
- Large LCD showing heating temperature, rotation speed, direction and time
- One-click motorised lift, 180 mm stroke
- Water or oil heating bath, RT to 180 °C
- Speed 10–150 rpm with interval operation in both directions
- Two-section vertical triple-coil condenser, cooling surface 1.2 m²
- Quick-install connector device; PTFE double sealing ring
- Switch valve for continuous collection without breaking vacuum
- Motor overcurrent, earth-leakage, lift overload, boil-dry and overheating protection
Technical specifications
| Evaporating flask | 20 L round flask |
| Receiving flask | 10 L round flask with drain valve |
| Temperature range | Room temperature to 180 °C (water and oil bath) |
| Temperature control accuracy | Water ±1 °C; oil ±3 °C |
| Rotation speed | 10–150 rpm |
| Ultimate vacuum | Less than 2.6 mbar |
| Evaporation capacity | Max. 4.5 L/h (75% alcohol) |
| Temperature control | Microprocessor PID |
| Display | LCD (temperature, speed, direction, time) |
| Time setting range | 0–999 min |
| Lift stroke | Motorised, 180 mm |
| Condenser | Two-section vertical triple coil, cooling surface 1.2 m² |
| Heating bath size | Ø450 × 240 mm |
| Hose connection | Cooling/suction nozzle outer Ø 16 mm; vacuum pump nozzle outer Ø 16 mm |
| Dimensions (D×W×H) | 1160 × 600 × 1860 mm |
| Voltage / frequency | 220 V, 50/60 Hz |
| Power | 4600 W |
| Heating power | 4400 W |
| Delivery period | 10 days |
Supplied with
Main unit with heating bath and vertical glassware (as listed in the DLAB price list); other contents to confirm.
Delivery Period – 10 days.
Frequently asked questions
What is the DLAB RE200-Pro used for?
The DLAB RE200-Pro is a 20 L industrial digital rotary evaporator for pilot-scale production and large-scale applications in biology, pharmaceutical, chemical, beauty, medical and food industries.
What is supplied with the RE200-Pro?
Main unit with heating bath and vertical glassware (as listed in the DLAB price list); other contents to confirm.
Does Labmart provide a GST invoice and bulk or institutional quotation for the DLAB RE200-Pro?
Yes. GST invoice and bulk or institutional quotations are available; contact us with your quantity.
What is the HSN code?
Confirmed on your quotation and invoice.
What warranty does it carry?
Confirmed in your quotation; please ask before ordering.
What is the delivery period?
Delivery Period – 10 days.
Can I order glassware or accessories separately?
Yes, accessories are supplied separately. Contact Labmart with your requirement.
Which voltage does it work on?
220 V, 50/60 Hz.
Is installation or training available?
Please contact Labmart; confirmed in your quotation.
Is it a genuine DLAB product?
Yes, supplied under the DLAB brand per the DLAB price list FY26-27.
