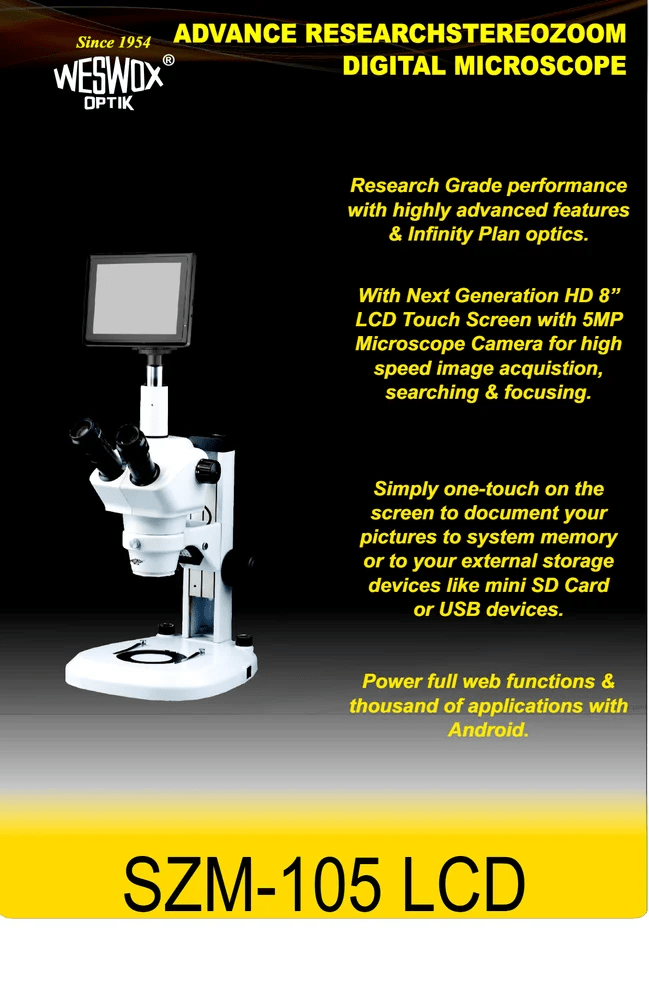

Technical Specifications:

MECHANICAL STAGE: Single mold sturdy stand with anti rust materials. Incorporates Clip for holding specimen and lateral zoom control movement.

TRINOCULAR OBERVETION HEAD: Trinocular 45 degree inclined. Interpupillary distance adjustable between 57-75mm.Diopter adjustment ring on ocular provides correction for eye acuity.

EYEPIECE: Wide Field Eyepiece 10x (PAIRED) FOV 22mm.

OBJECTIVE: Zoom 0.8X to 5X Twin with magnification ratio of 6.3:1.

MAGANIFICATION RANGE: 8X - 50X.

WORKING DISTANCE:115 MM

ILLUMINATION: Incorporates Inclined and transmitted light system with LED lamp. The system regulated with transformer has intensity control knob. On/Off switch to provide flexibility to use either both light or any of them.

LCD DIGITAL CAMERA: Dark Field Attachment, Polarising Kit, Ring Light, Fibre Optic

Illumination.: Display 8" High-resolution(1024x768) Color LCD Touch Screen Built-in Camera 5.0 Megapixel Color Camera 15fps  2592X1944. Built-in Software Capture/Measurement App Mechanical Structure LCD Screen 360° horizontal rotatable, 90° vertical rotatable Operating System Android.

OPTIONALACCESSORIES: Dark Field Attachment, Polarising Kit, Ring Light, Fibre Optic Illumination.
