Product Overview

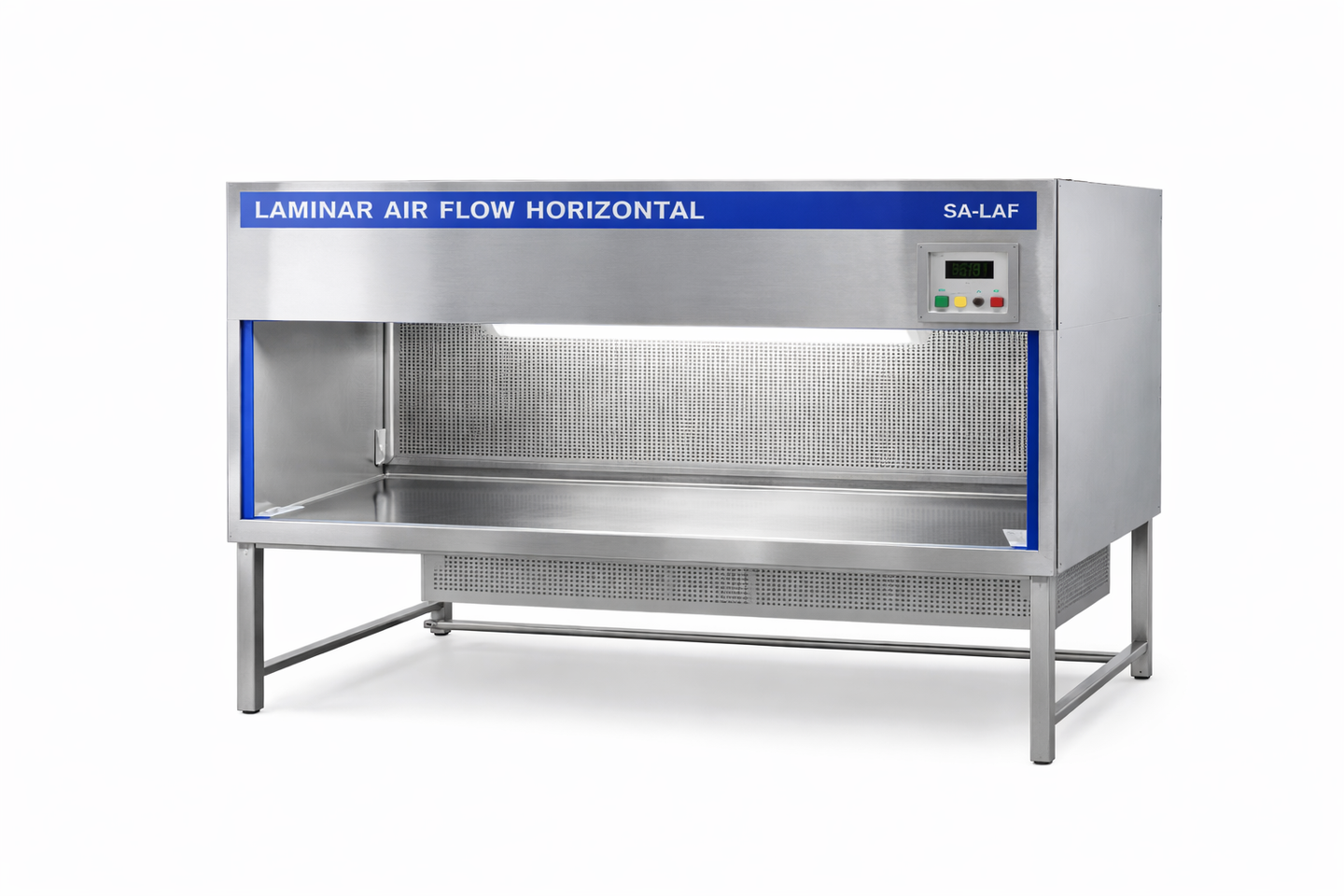

The Horizontal Laminar Air Flow (SA-LAF) cabinet is designed to provide a sterile, particle-free working environment by delivering unidirectional horizontal airflow from the rear of the cabinet toward the operator through a high-efficiency HEPA filtration system.
It is ideal for applications where product protection and contamination control are critical.
Key Features
✔ Horizontal laminar airflow system for uniform clean air distribution
✔ HEPA filter with pre-filter for superior air purification
✔ UV germicidal lamp for effective surface sterilization
✔ Fluorescent illumination for clear and shadow-free visibility
✔ Low-noise, energy-efficient blower
✔ Static pressure manometer for filter condition monitoring
✔ Door-open detection & filter choke indication
✔ Available in MS powder-coated or SS 304 construction
Technical Specifications
-
Power Supply: 220–230 V AC, 50 Hz
-
Air Filtration: HEPA Filter + Pre-Filter
-
Airflow Direction: Horizontal (Rear to Front)
-
Illumination: 20 W / 40 W / 80 W (model dependent)
-
Blower: Dynamically balanced, UV-age detector compatible
-
Monitoring: Static pressure manometer
Available Sizes & Configuration
| Size (W × D × H) | HEPA Filters | Pre-Filters | Illumination |
|---|---|---|---|
| 2′ × 2′ × 2′ | 1 | 1 | 20 W |
| 3′ × 2′ × 2′ | 1 | 1 | 20 W |
| 4′ × 2′ × 2′ | 1 | 2 | 40 W |
| 6′ × 2′ × 2′ | 2 | 2 | 80 W |
Optional Controllers
-
294 Series – LCD display, soft-touch keypad, blower & UV timer
-
295 Series – Air velocity indicator, inflow / downflow display
-
T43 Series – 4.3” TFT touch screen with advanced airflow monitoring
Applications
✔ Microbiology laboratories
✔ Pharmaceutical quality control labs
✔ Biotechnology research
✔ Electronics & optical assembly
✔ Clean room operations
- Regular price
- Rs.0.00
Product Overview
The Horizontal Laminar Air Flow (SA-LAF) cabinet is designed to provide a sterile, particle-free working environment by delivering unidirectional horizontal airflow from the rear of the cabinet toward the operator through a high-efficiency HEPA filtration system.
It is ideal for applications where product protection and contamination control are critical.
Key Features
✔ Horizontal laminar airflow system for uniform clean air distribution
✔ HEPA filter with pre-filter for superior air purification
✔ UV germicidal lamp for effective surface sterilization
✔ Fluorescent illumination for clear and shadow-free visibility
✔ Low-noise, energy-efficient blower
✔ Static pressure manometer for filter condition monitoring
✔ Door-open detection & filter choke indication
✔ Available in MS powder-coated or SS 304 construction
Technical Specifications
-
Power Supply: 220–230 V AC, 50 Hz
-
Air Filtration: HEPA Filter + Pre-Filter
-
Airflow Direction: Horizontal (Rear to Front)
-
Illumination: 20 W / 40 W / 80 W (model dependent)
-
Blower: Dynamically balanced, UV-age detector compatible
-
Monitoring: Static pressure manometer
Available Sizes & Configuration
| Size (W × D × H) | HEPA Filters | Pre-Filters | Illumination |
|---|---|---|---|
| 2′ × 2′ × 2′ | 1 | 1 | 20 W |
| 3′ × 2′ × 2′ | 1 | 1 | 20 W |
| 4′ × 2′ × 2′ | 1 | 2 | 40 W |
| 6′ × 2′ × 2′ | 2 | 2 | 80 W |
Optional Controllers
-
294 Series – LCD display, soft-touch keypad, blower & UV timer
-
295 Series – Air velocity indicator, inflow / downflow display
-
T43 Series – 4.3” TFT touch screen with advanced airflow monitoring
Applications
✔ Microbiology laboratories
✔ Pharmaceutical quality control labs
✔ Biotechnology research
✔ Electronics & optical assembly
✔ Clean room operations
- Regular price
- Rs.0.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
Product Overview
The Horizontal Laminar Air Flow (SA-LAF) cabinet is designed to provide a sterile, particle-free working environment by delivering unidirectional horizontal airflow from the rear of the cabinet toward the operator through a high-efficiency HEPA filtration system.
It is ideal for applications where product protection and contamination control are critical.
Key Features
✔ Horizontal laminar airflow system for uniform clean air distribution
✔ HEPA filter with pre-filter for superior air purification
✔ UV germicidal lamp for effective surface sterilization
✔ Fluorescent illumination for clear and shadow-free visibility
✔ Low-noise, energy-efficient blower
✔ Static pressure manometer for filter condition monitoring
✔ Door-open detection & filter choke indication
✔ Available in MS powder-coated or SS 304 construction
Technical Specifications
-
Power Supply: 220–230 V AC, 50 Hz
-
Air Filtration: HEPA Filter + Pre-Filter
-
Airflow Direction: Horizontal (Rear to Front)
-
Illumination: 20 W / 40 W / 80 W (model dependent)
-
Blower: Dynamically balanced, UV-age detector compatible
-
Monitoring: Static pressure manometer
Available Sizes & Configuration
| Size (W × D × H) | HEPA Filters | Pre-Filters | Illumination |
|---|---|---|---|
| 2′ × 2′ × 2′ | 1 | 1 | 20 W |
| 3′ × 2′ × 2′ | 1 | 1 | 20 W |
| 4′ × 2′ × 2′ | 1 | 2 | 40 W |
| 6′ × 2′ × 2′ | 2 | 2 | 80 W |
Optional Controllers
-
294 Series – LCD display, soft-touch keypad, blower & UV timer
-
295 Series – Air velocity indicator, inflow / downflow display
-
T43 Series – 4.3” TFT touch screen with advanced airflow monitoring
Applications
✔ Microbiology laboratories
✔ Pharmaceutical quality control labs
✔ Biotechnology research
✔ Electronics & optical assembly
✔ Clean room operations
