Product Overview

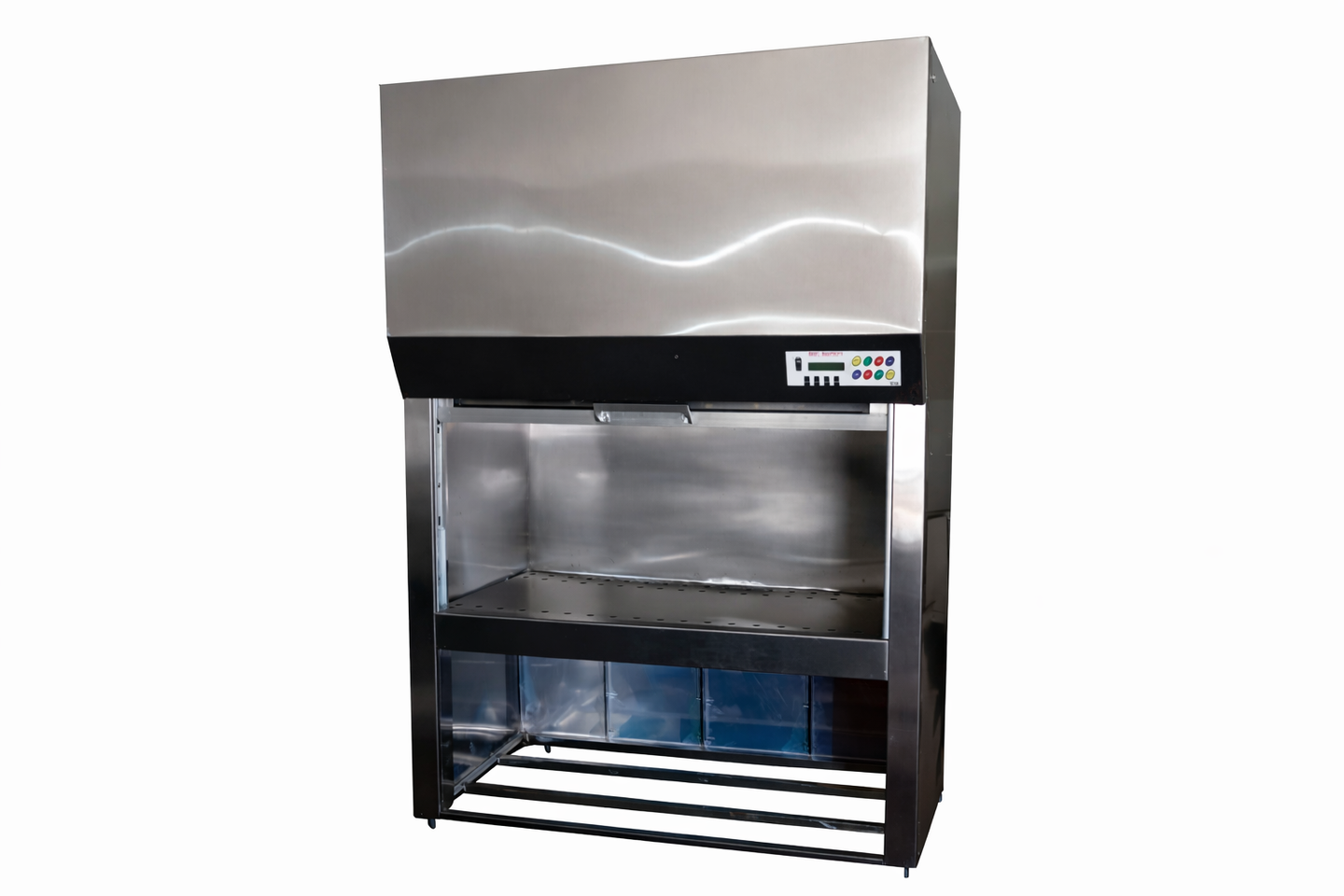

The Laboratory Fume Hood (SA-FM295) is designed to safely exhaust hazardous fumes, vapors, and gases generated during chemical experiments and laboratory processes.
It ensures a safe and controlled working environment by maintaining effective airflow and efficient exhaust ventilation, protecting users from chemical exposure.

Key Features

✔ Heavy-duty exhaust blower system
✔ Vertically sliding front sash door with counter-balanced mechanism
✔ Fluorescent illumination inside the working chamber
✔ Built-in gas cock for gas / air supply
✔ Smooth powder-coated MS or SS 304 finish
✔ Rigid and stable structure for long-term operation

Technical Specifications

• Power Supply: 230 V AC, 50 Hz

• Material: MS / SS 304

• Lighting: Fluorescent lamp

• Socket: 15 / 5 Amp for exhaust system

• Exhaust System: Motor & dynamically balanced blower

Working Chamber Sizes – MS Model

• 3′ × 2′ × 2′

• 4′ × 2′ × 2′

• 5′ × 2′ × 2′

• 6′ × 2′ × 2′

Working Chamber Sizes – SS Model

• 3′ × 2′ × 2′

• 4′ × 2′ × 2′

• 5′ × 2′ × 2′

• 6′ × 2′ × 2′

Optional Accessories

✔ High-CFM exhaust system (recommended for duct lengths over 10 ft)
✔ PVC fume ducting (per running foot)

Applications

✔ Chemical laboratories
✔ Pharmaceutical industries
✔ Research & development laboratories
✔ Educational institutions
✔ Industrial testing laboratories
