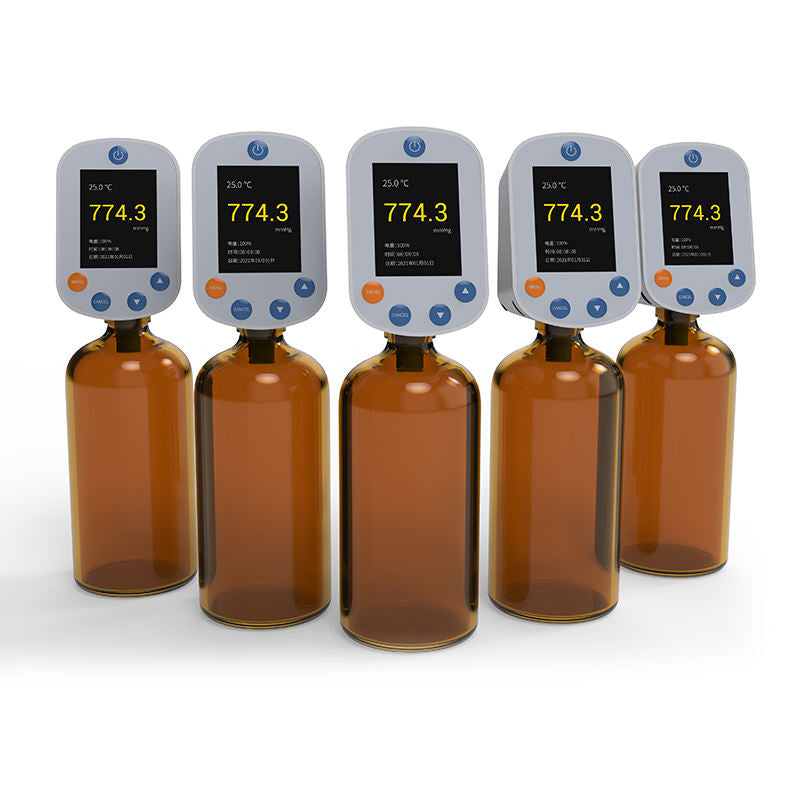

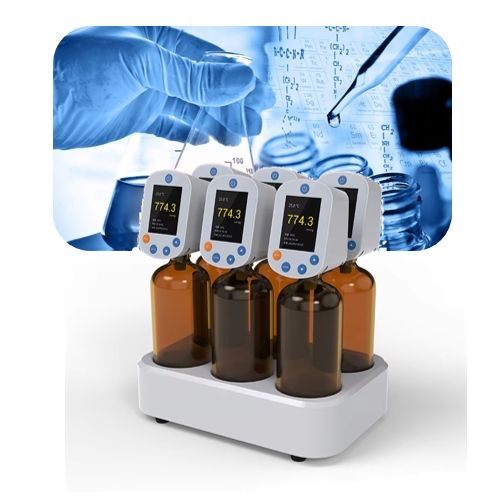

The LABMAN BOD4000 BOD Analyzer measures biochemical oxygen demand (BOD), an environmental pollution index used to judge organic pollution in water and to evaluate the efficiency of sewage treatment plants and ETPs. It uses pressure measurement (differential pressure, manometric) in a closed system and reads BOD directly in mg/L, with up to six samples per run.

Key features

• Free onsite installation
• Measuring principle: differential pressure (manometric)
• BOD value can be read at any time during or after the 5-day incubation
• BOD ranges up to 4000 mg/L using different sample volumes
• Six measurements at once with 580 ml culture bottles
• Measurement period 1–30 days; working temperature 20 ± 1°C
• Stores 10-year BOD5 result values; backlit display with date and time

Technical specifications

Supplied with

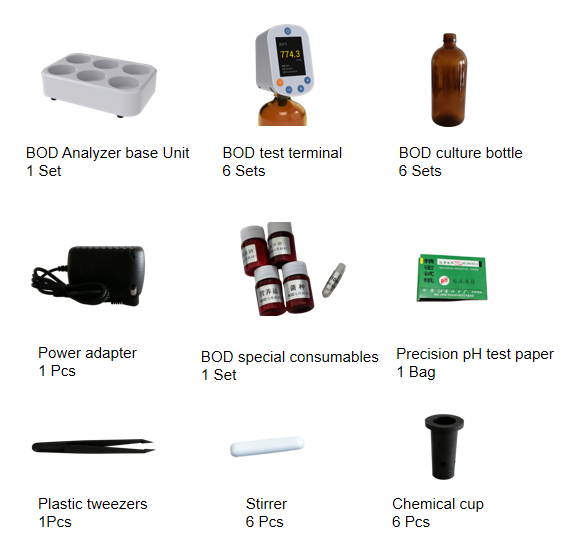

Main instrument, BOD test terminal, 6 BOD culture bottles (580 ml), stirrer, chemical cup, culture bottle holder, instruction manual, test certificate.

Frequently asked questions

How does the BOD4000 measure BOD?

By pressure measurement in a closed system: micro-organisms consume oxygen and release CO2, which is absorbed, creating a vacuum that the BOD sensor reads directly in mg/L.

How many samples can it test at once?

Six, using six 580 ml BOD culture bottles.

What is the measuring range and how do I choose sample volume?

0–4000 mg/L. The catalogue gives a sample volume table, for example 500 ml for 0–20 mg/L, 400 ml for 0–80 mg/L and 25 ml for 0–4000 mg/L.

How long is the test?

The standard test is 5 days; measurement days can be set from 1 to 30 days.

What temperature is required?

The working temperature is 20 ± 1°C.

What power supply does it need?

Adaptor, using AC 220 V, 50/60 Hz.

What is supplied with it?

Main instrument, BOD test terminal, 6 BOD culture bottles (580 ml), stirrer, chemical cup, culture bottle holder, instruction manual, test certificate.

What are the packing size and weight?

495 × 420 × 225 mm (L×W×H as per catalogue), gross weight 8 kg.

Can I get a GST invoice and a bulk or institutional quotation?

Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.

What is the warranty and delivery time?

LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
